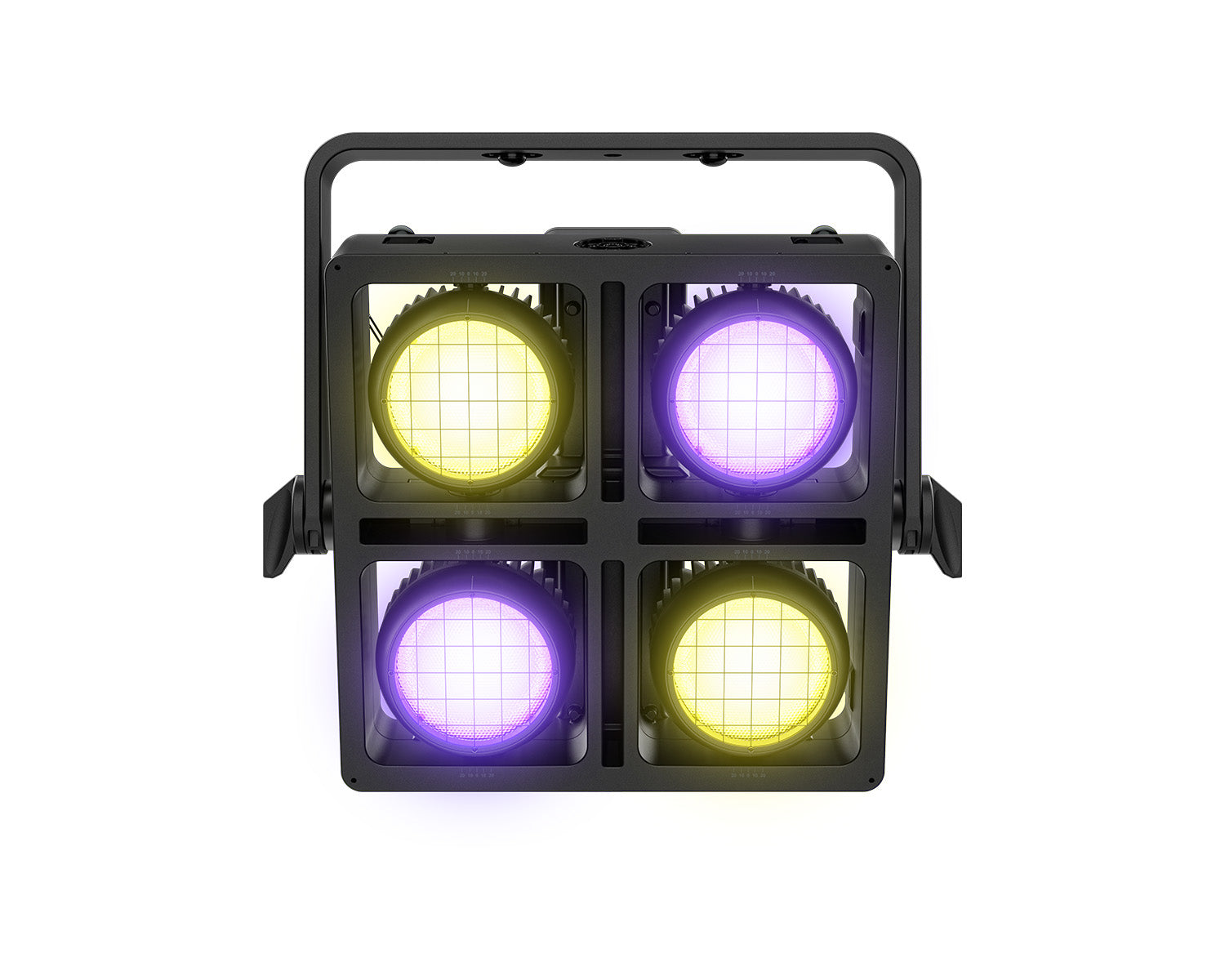

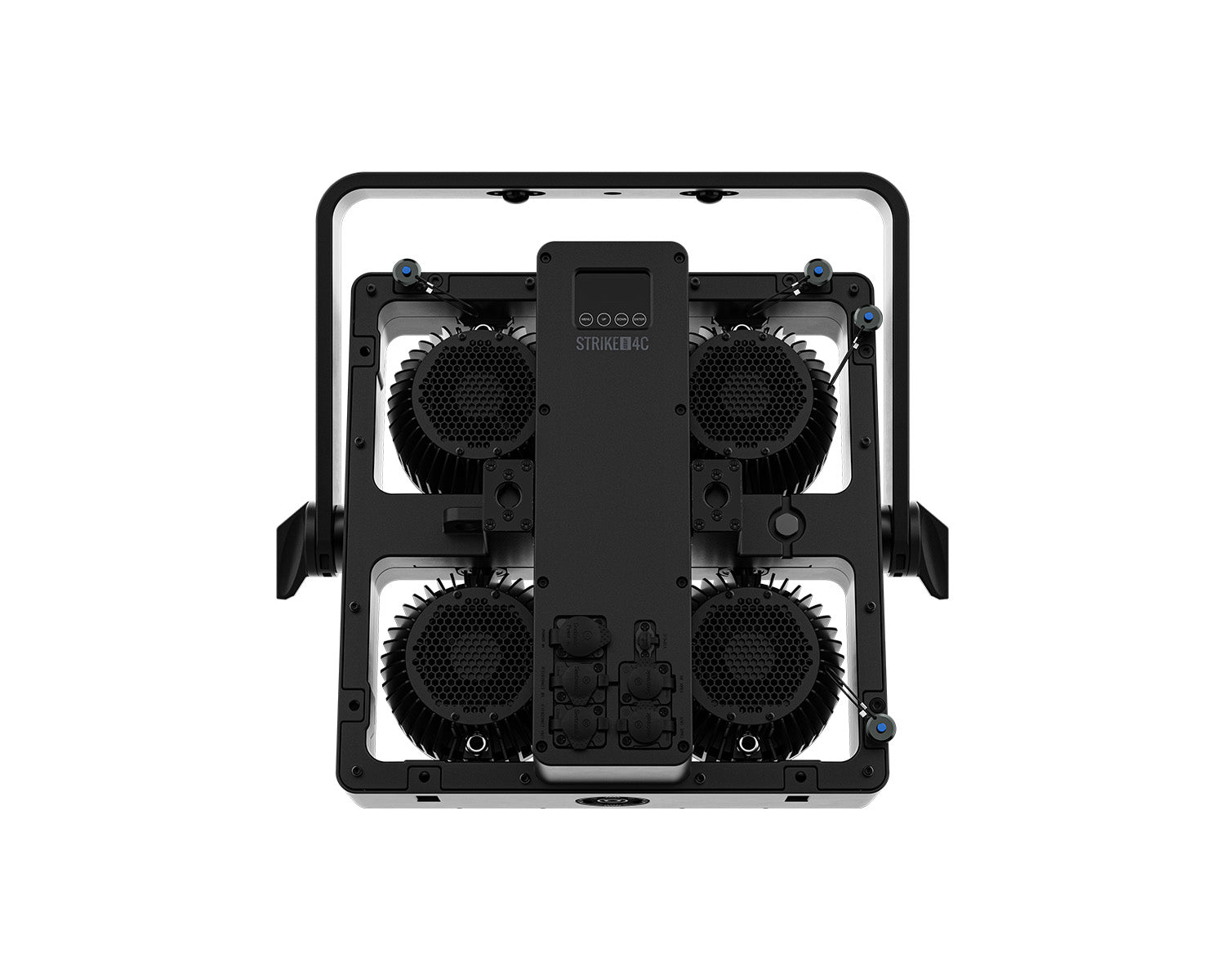

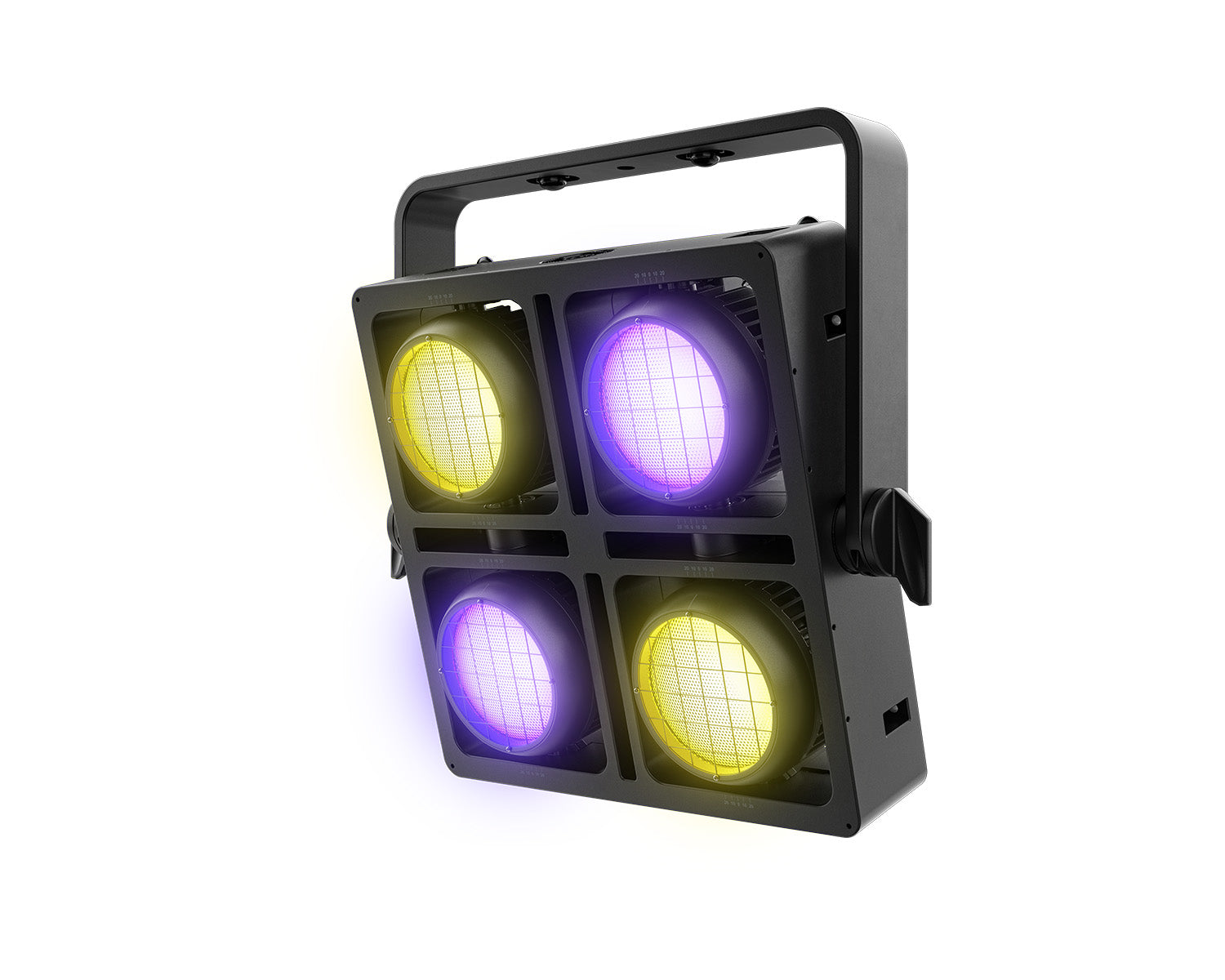

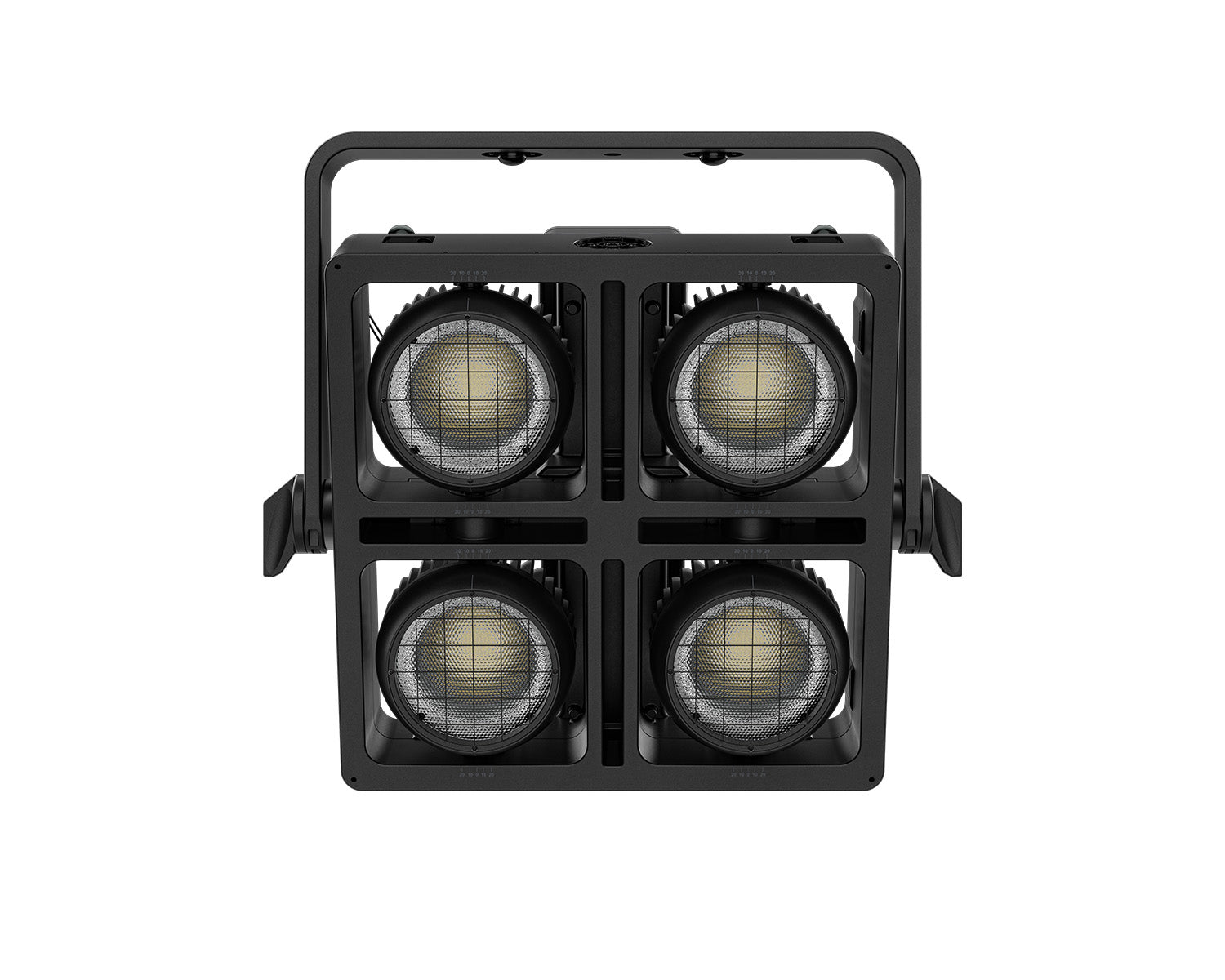

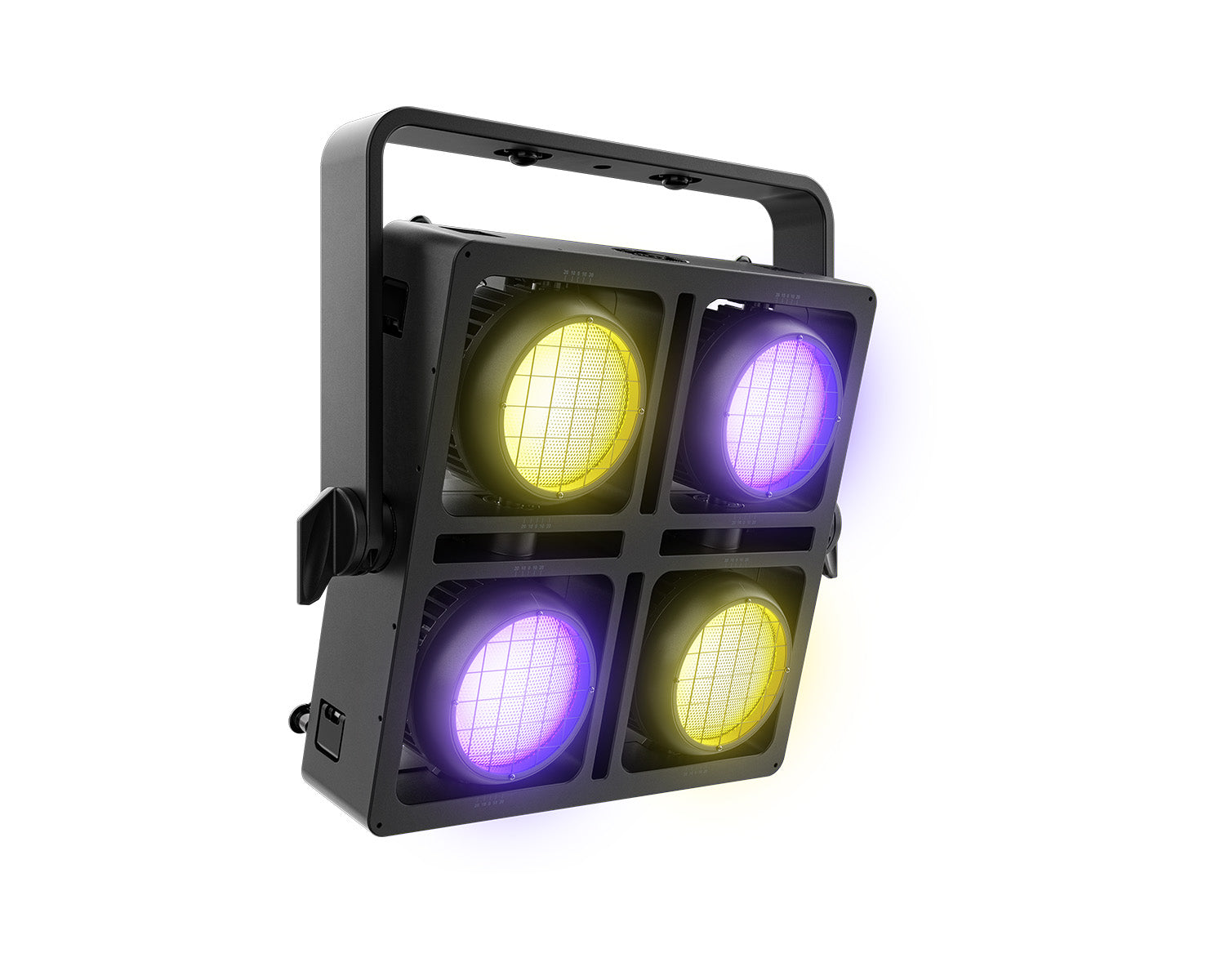

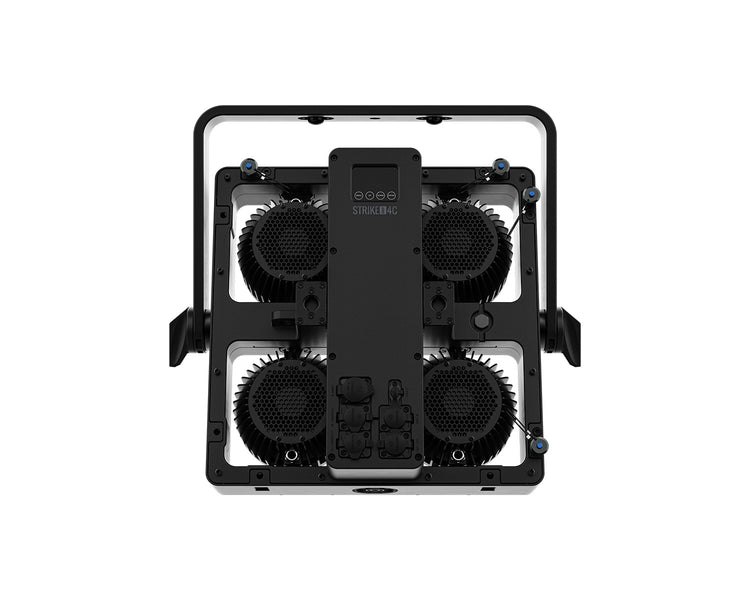

STRIKE Array 4C is an IP65-rated audience blinder with four independently focusable pods. Intense RGBA-WW LED output delivers a full range of colours as well as a wide choice of white colour temperatures with exceptional colour rendering. Offering the industry leading low end dimming performance our STRIKE Array fixtures are known for as well as Red Shift that warms the colour temperature of the light as it dims to emulate a classic tungsten look. Variable PWM and high CRI make this the ideal blinder for broadcast applications. Its proprietary Tool-Free interlocking system enables STRIKE Array 4C to be easily interconnected with multiple Array units for scalable configurations. Omega-Bracket locks are also installed on both the yoke and the rear of the fixture to streamline the truss mounting process.

Product Features

• Intense 4 pod colour blinder/strobe rated IP65 for all-weather use
• Full range of colour and excellent rendition of any colour temperature of white
• Emulated “red shift” to mimic incandescent fixtures perfectly
• Individual pan (or tilt depending on mount orientation) of each head to allow for directional adjustment of light output
• Innovative interlocking system to connect multiple STRIKE Array family fixtures together
• Multiple mounting locations and repositionable yoke with ¼ turn adaptors for creative and convenient rigging options
• Independent pod control and strobe functionality for high-impact effects on the fly

Product Specifications

Optical

• Light Source: 268 LEDs (112 quad-colour RGBA, 156 WW), 2.7W to 4.32 W, (871 mA), 50,000 hours life expectancy.
• Colour Temperature (range): 2800 to 6500 K
• Colour Temperature (at full): 5991 K
• CRI (@3200K): 94.6
• Beam Angle: 59.6°
• Field Angle: 102.2°
• Lumens: 53,481
• Illuminance: 1979 lux @ 5 m
• Selectable PWM: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 25000Hz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Colour Mixing: Yes
• Colour Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin Seetronic IP65 XLR or Seetronic IP65 etherCON
• Cable Length (power): 5 ft (1.5 m)
• Software Update: USB-C

Control

• Control Protocol: Art-Net, sACN, DMX ,RDM
• Modes/Personalities: 10 personalities (1, 3, 5, 7, 10, 12, 13, 16, 22 or HSV)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 1180 W, 9.92 A @ 120 V, 60 Hz
• Power and Current: 1150 W, 5.60.20 A @ 208 V, 60 Hz
• Power and Current: 1140 W, 5.02 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC, ETL, cULus,
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Construction / Physical

• Dimensions: 19.17 x 16.70 x 6.45 in (487.02 x 424.21 x 163.84 mm)
• Weight: 34.4 lb (15.4 kg)
• Exterior Colour: Black
• Housing Material: Magnesium alloy

What's in the Box?

• STRIKE Array 4C
• Seetronic Powerkon IP65
• Omega bracket with mounting hardware
