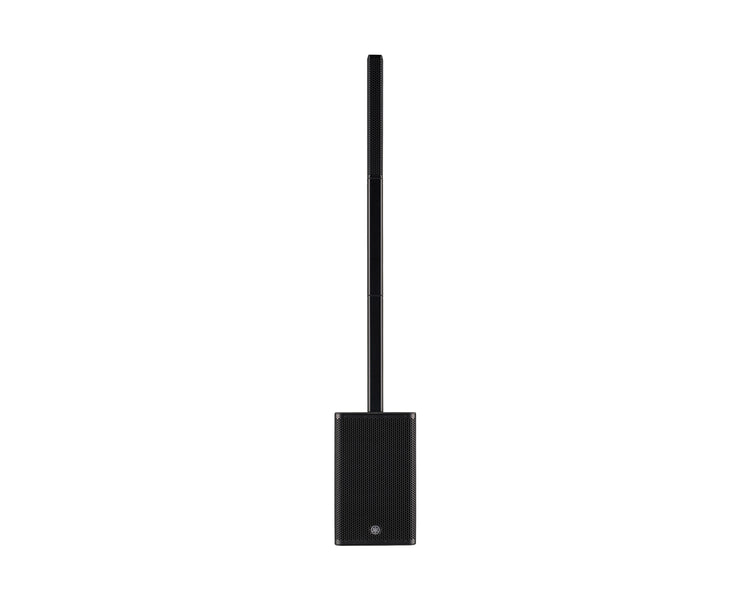

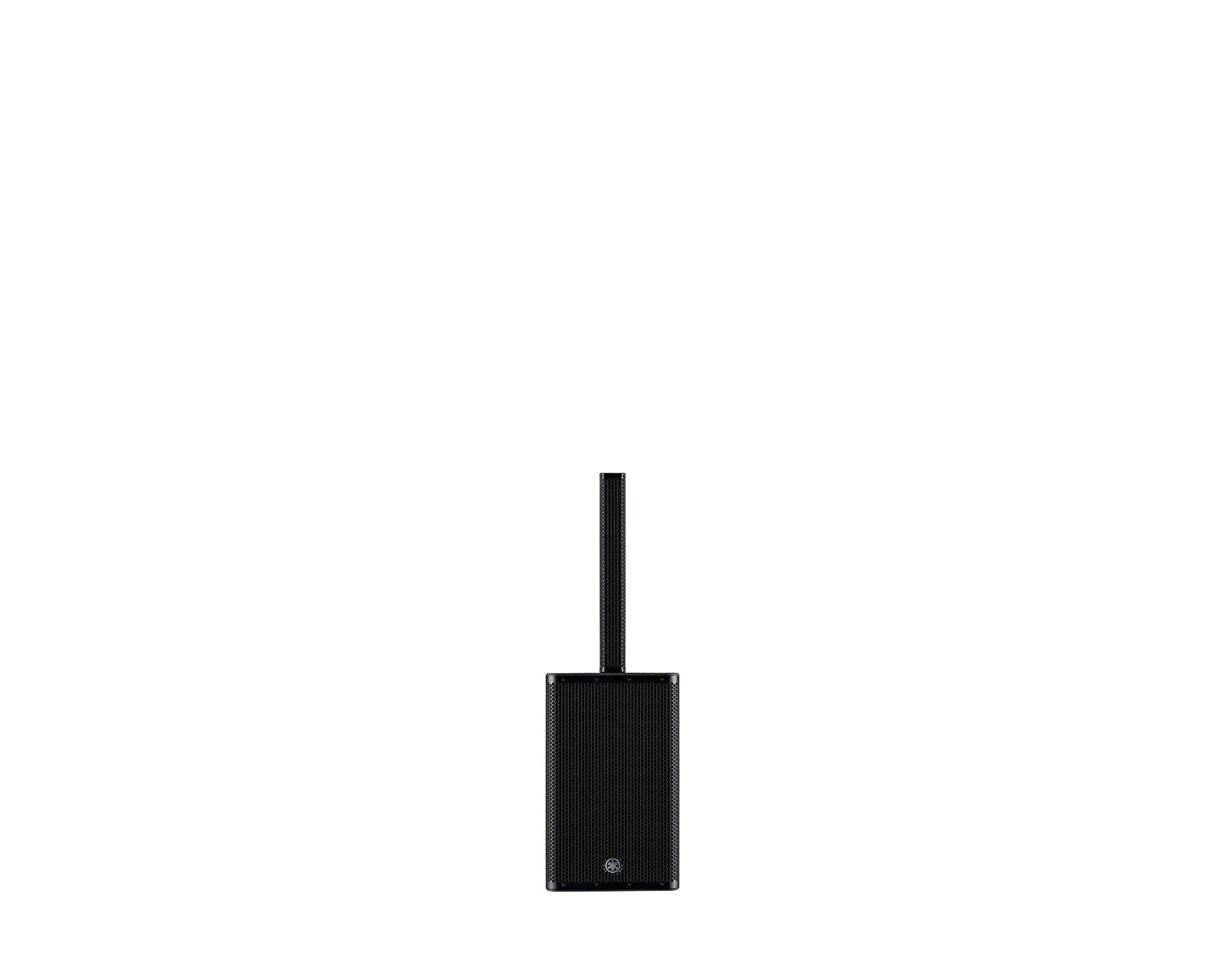

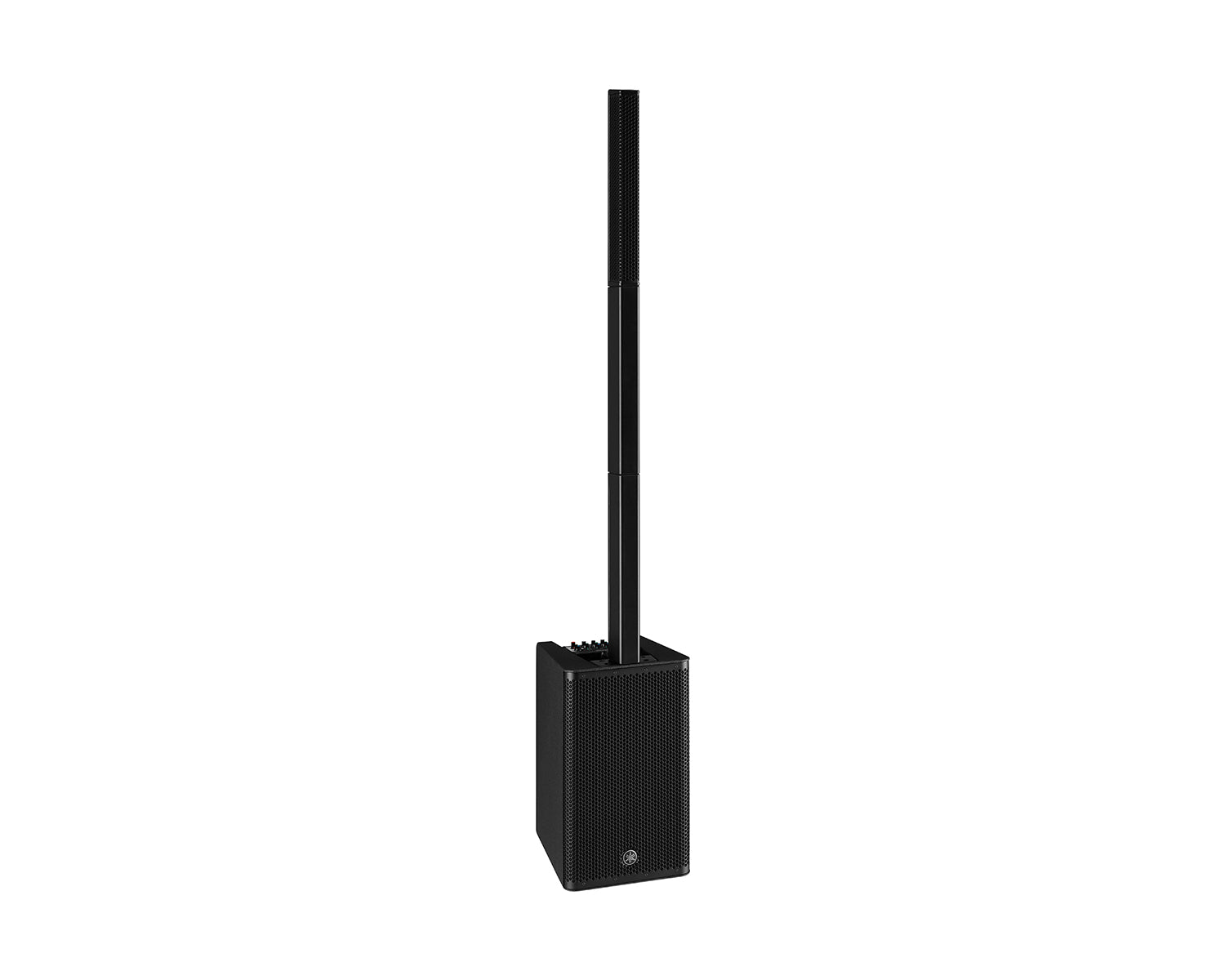

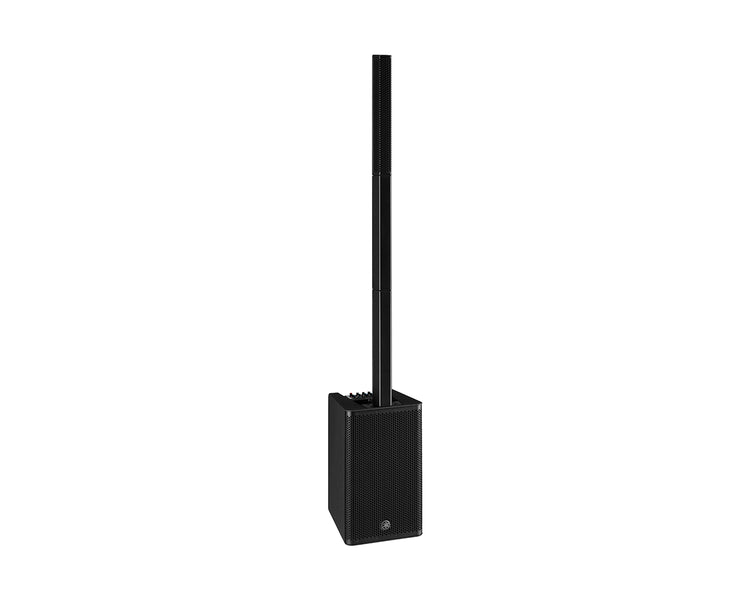

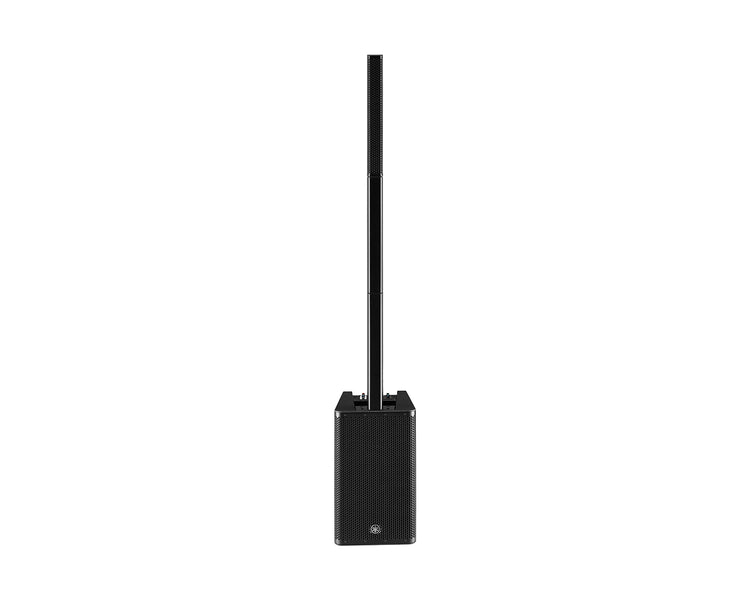

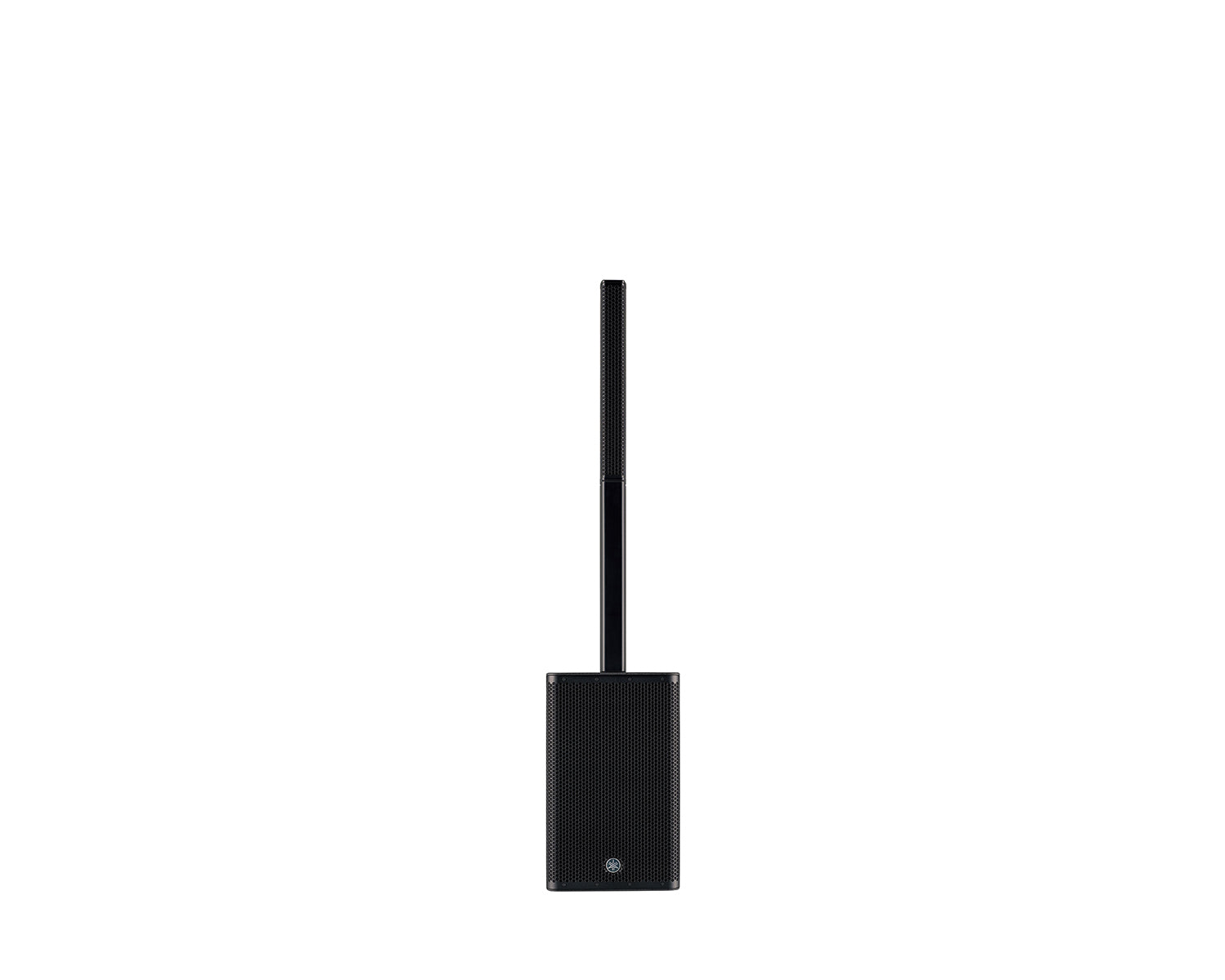

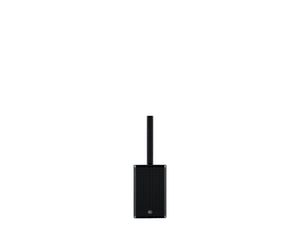

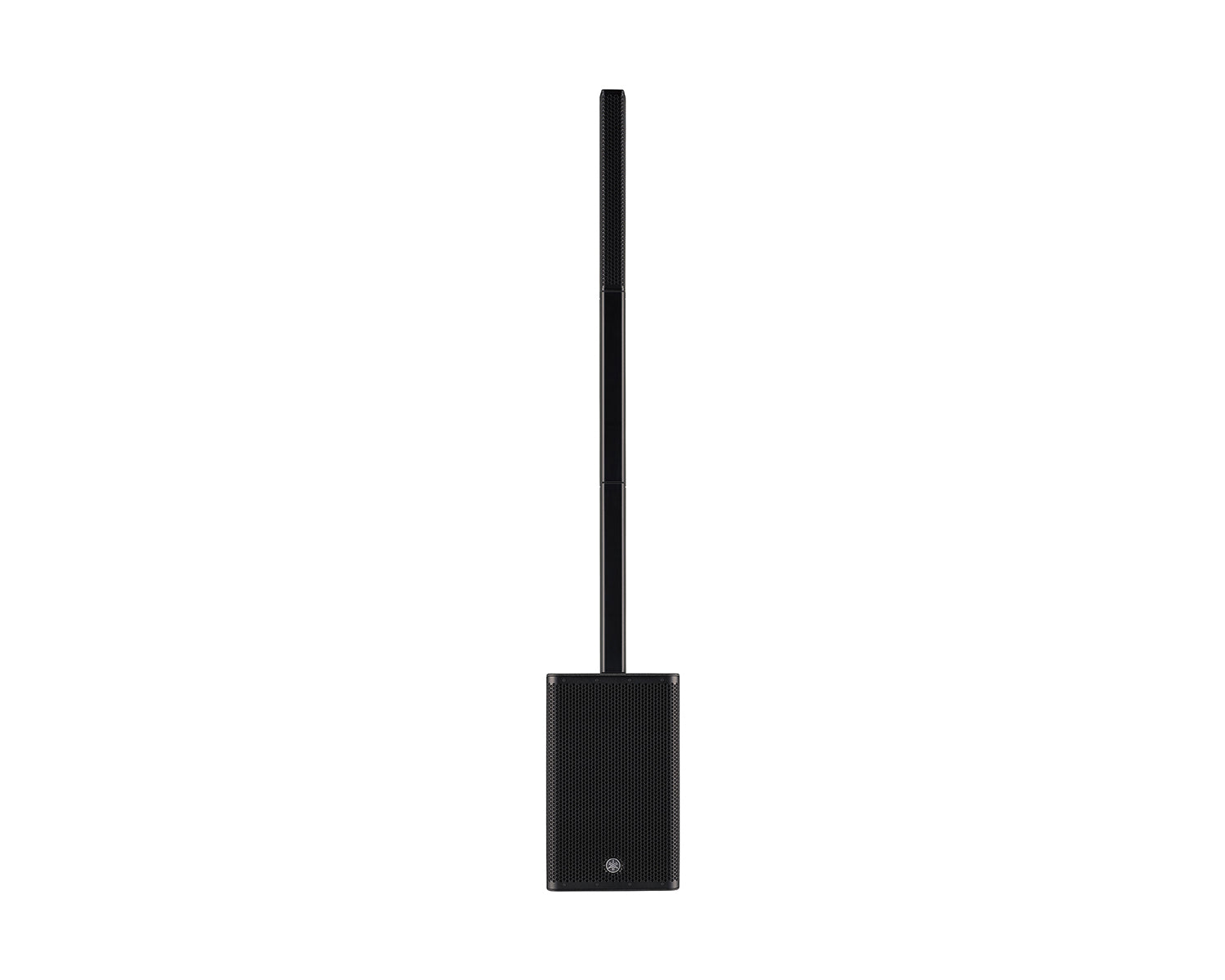

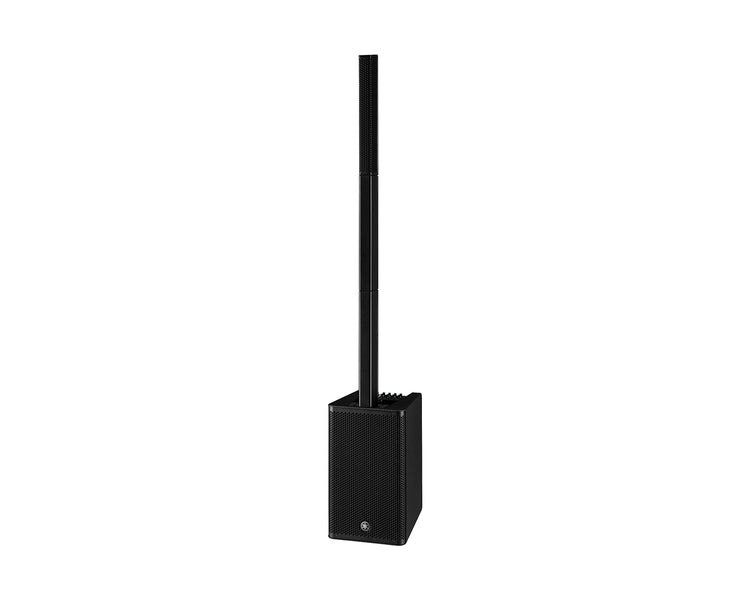

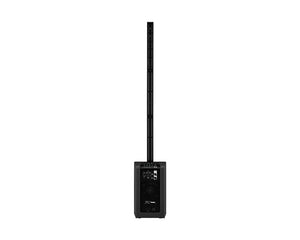

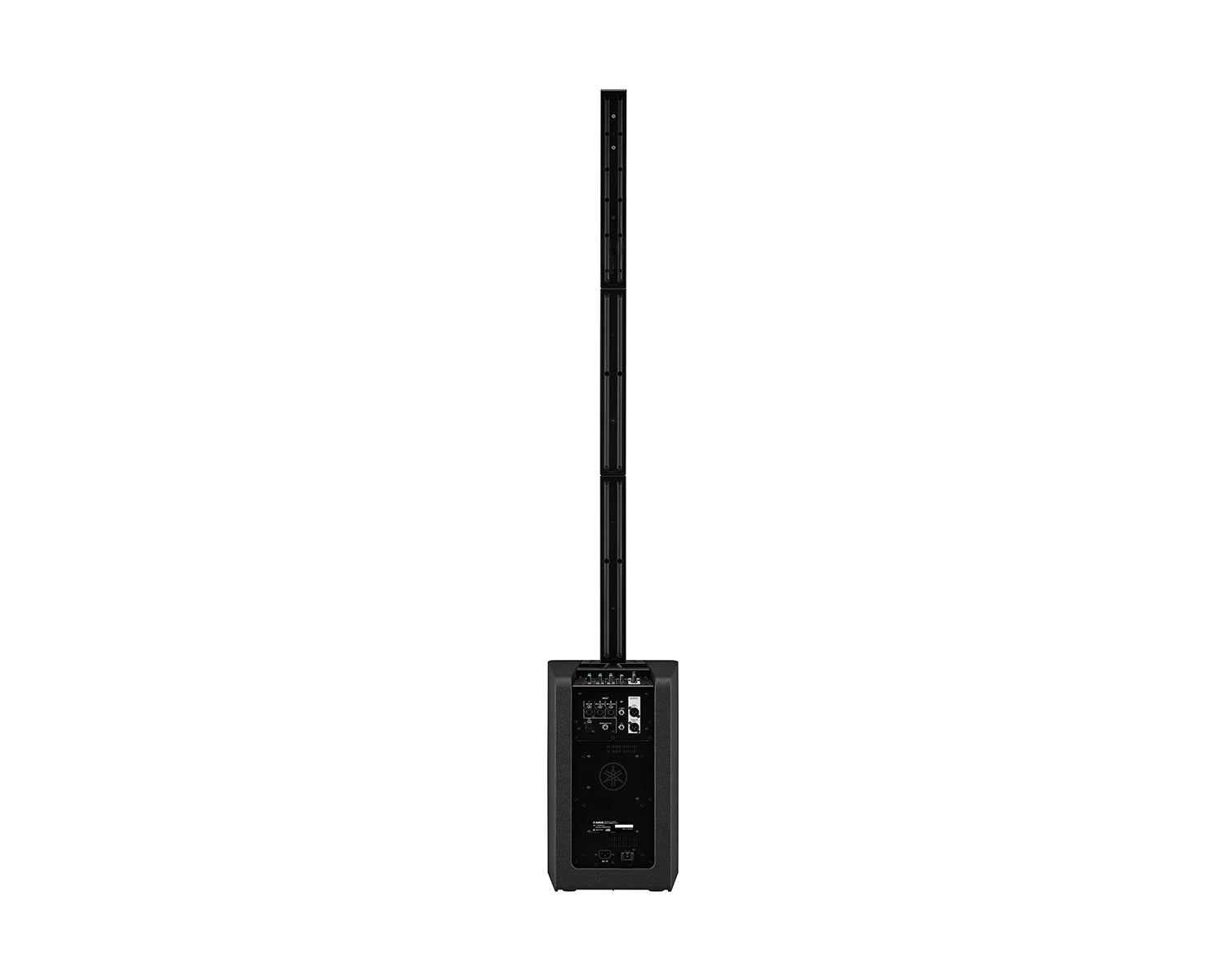

The STAGEPAS 1K mkII is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage, delivering professional-level audio performance with a simple setup that enables aspiring artists to focus on their music and get the most out of their performances. Adding an even higher sound pressure level and more flexible remote functionality than its predecessor, the second-generation STAGEPAS 1K mkII boasts the same combination of lightweight cabinet design, professional mixing functions, and simple operability, that has elevated the STAGEPAS all-in-one package above all other portable PAs. By adopting a concert-quality mixer and speaker, we have raised the bar for portable PA by utilizing Yamaha’s unique experience and know-how developed over decades of producing innovative, professional audio equipment from every stage of music engineering and production.

Product Features

• 1100W power output
• Biggest in the class 12-inch subwoofer for low frequency
• 1.5-inch x10 slim line array speaker for high frequency
• Digital mixer (3 mono mic/line + 1 stereo line)
• Multi band comp “MODE” for master output
• 1-knob EQ per channel
• High resolution SPX digital reverb (4 types, parameter control)
• Priority Ducker for stereo channel
• 4 band PEQ per channel via remote control APP “STAEGPAS Controller”
• 2x Hi-Z (high impedance) inputs
• Link out and monitor out

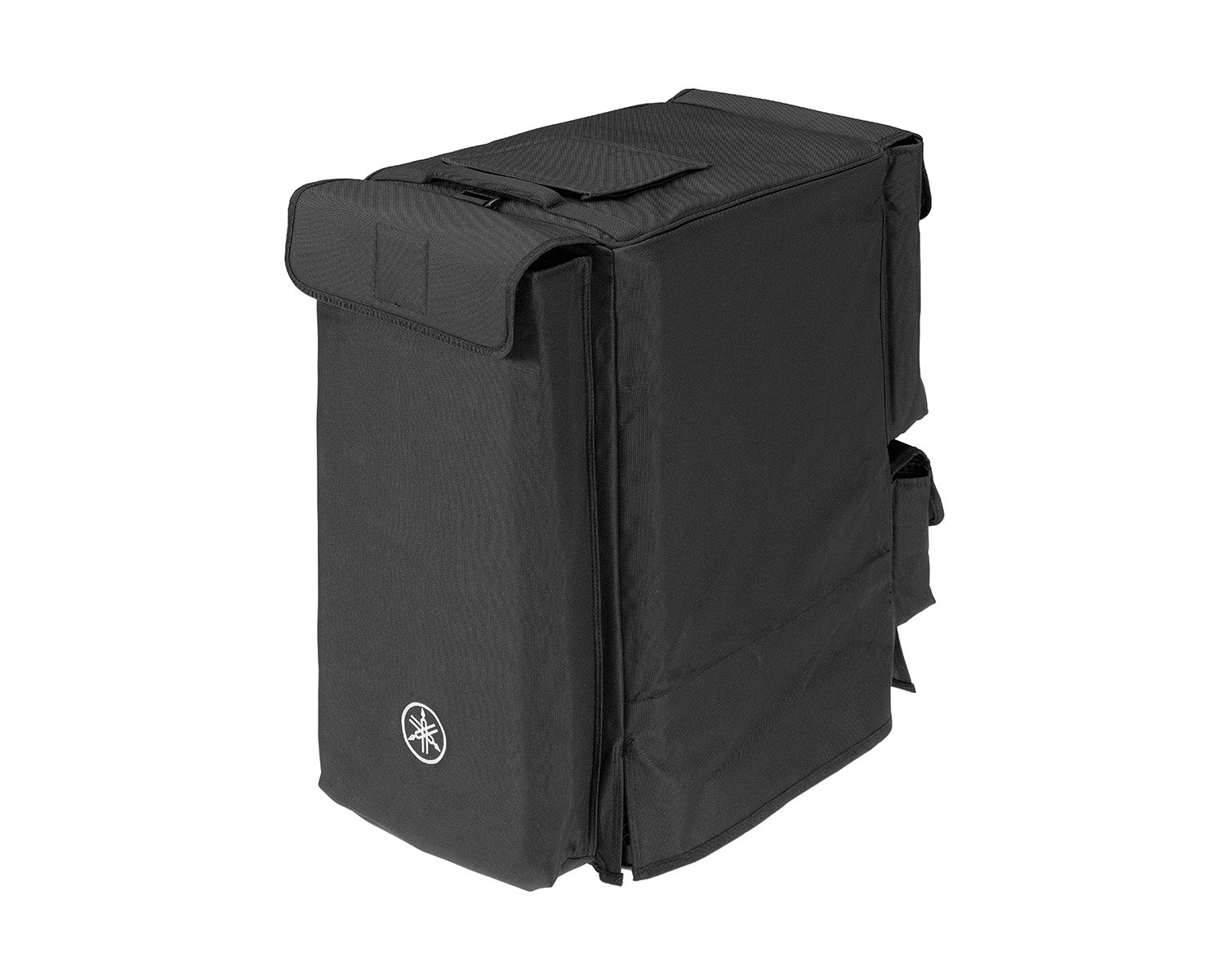

• Dedicated cover included

Product Specifications

Main Specifications

• System Type: Powered subwoofer with a line array speaker
• Frequency Response (–10 dB): 37 Hz - 20 kHz
• Coverage Angle (Horizontal x Vertical): 170° × 30°
• Crossover Frequency: 240 Hz
• Maximum Output Level (Measured peak, IEC noise@1 m): 125 dB SPL
• Power Requirements: 110-120 V 60 Hz, 220-240 V 50/60 Hz
• Power Consumption: 25 W (idle), 91 W (1/8 power)
• Dimensions (W × H × D): System (maximum) 334 × 2,000 × 418 mm
• Weight 23.0 kg

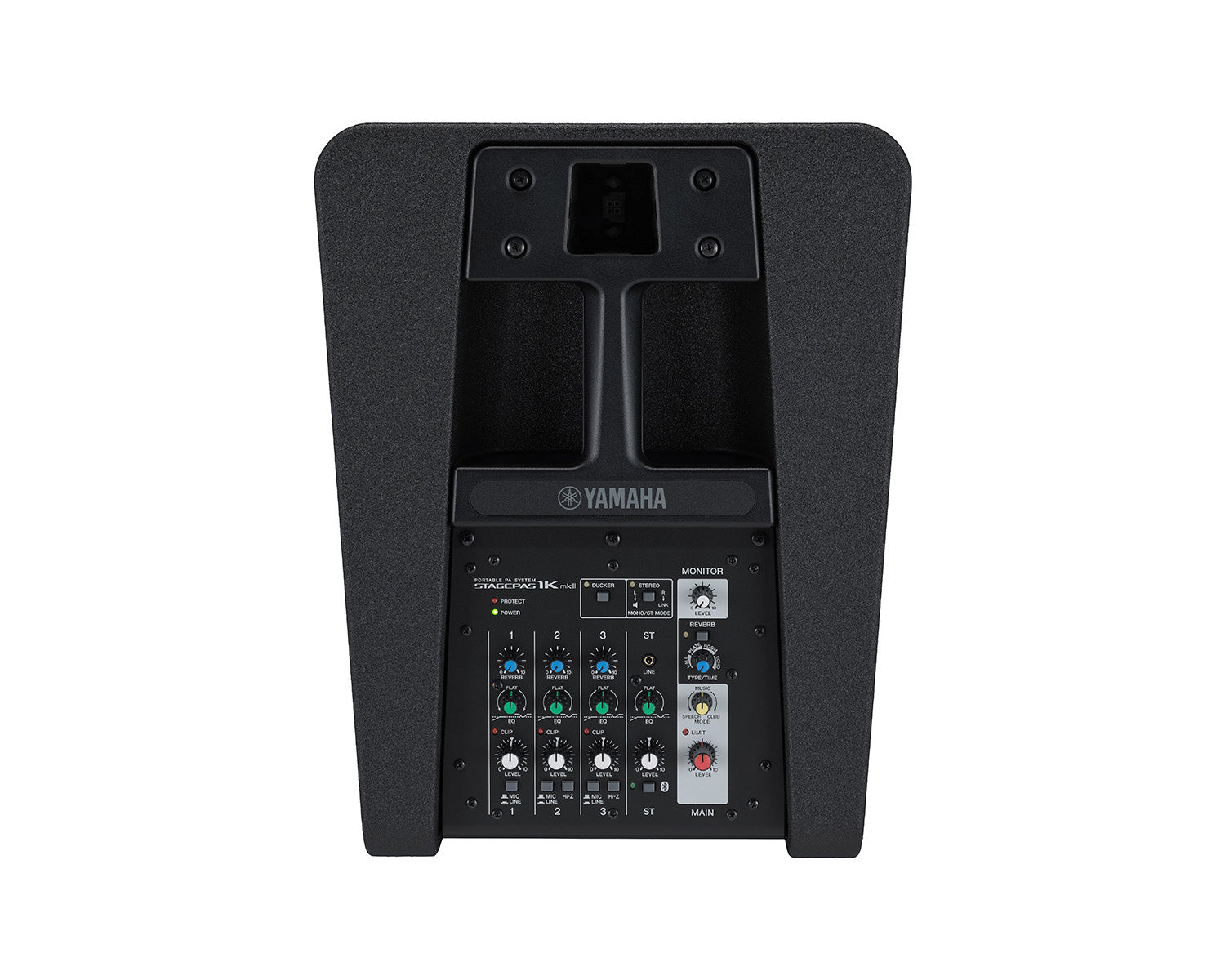

Mixer Section

• The number of Mixing Channels: 5
• Analog Inputs:
  • Mono mic/line × 3, mono line × 2, stereo line × 1
  • LINK IN (MONO)
• Bluetooth Audio Inputs: A2DP (SBC, AAC)
  • Content Protection Method: SCMS-T
  • Bluetooth Version: Ver 5.0
  • Transmission Frequencies: 2,402 - 2,480 MHz
  • Wireless Output: Class 1
  • Maximum Wireless Output Power (EIRP): 15 dBm (32 mW)
• Channel Functions: Hi-Z switch: CH2/3
• EQ/Effects:
  • 1-knob EQ: CH/1/2/3/ST
  • MODE (SPEECH/MUSIC/CLUB)
  • 4 types of reverb (HALL/PLATE/ROOM/ECHO): CH1/2/3
• Outputs:
  • LINK OUT (MONO/R)
  • MONITOR OUT (MONO)
• External Controls:
  • Reverb foot switch
  • STAGEPAS Controller (iOS/Android app)

Amplifier Section

• Rated Output Dynamic 1,100 W (Subwoofer: 500 W, Line array speaker: 600 W)

Speaker Section

• Enclosure:
  • Line array speaker: Enclosed
  • Subwoofer: Bass-reflex type
• Speaker Unit:
  • Line array speaker: 1.5" (3.8 cm) Cone × 10
  • Subwoofer: 12" (30 cm) Cone
• Dimensions (W × H × D):
  • Line array speaker: 67 × 582 × 86 mm
  • Spacer (each): 67 × 555 × 86 mm
  • Subwoofer: 334 x 550 × 418 mm
• Weight:
  • Line array speaker: 1.8 kg
  • Spacer (each): 0.6 kg
  • Subwoofer: 20.0 kg

What's in the Box?

• Subwoofer
• Line Array Speaker
• 2 x Spacer
• Power Cord
• Owner Manual
• Dedicated Cover
