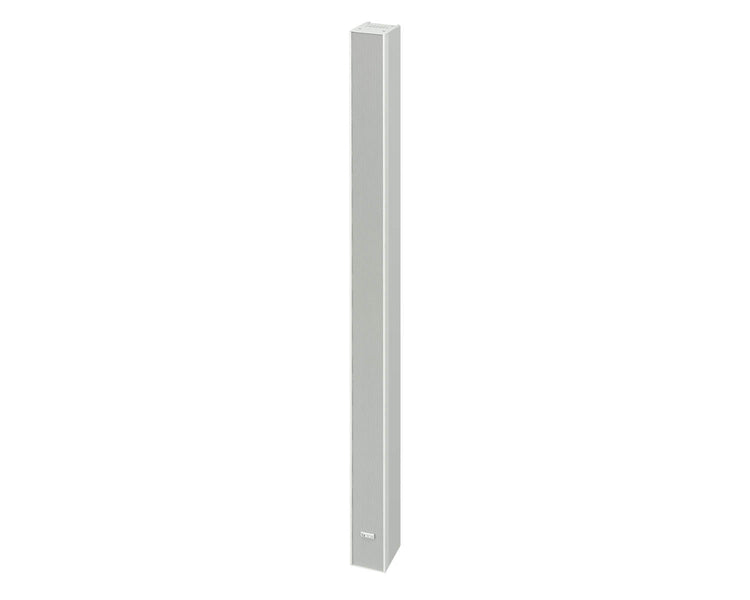

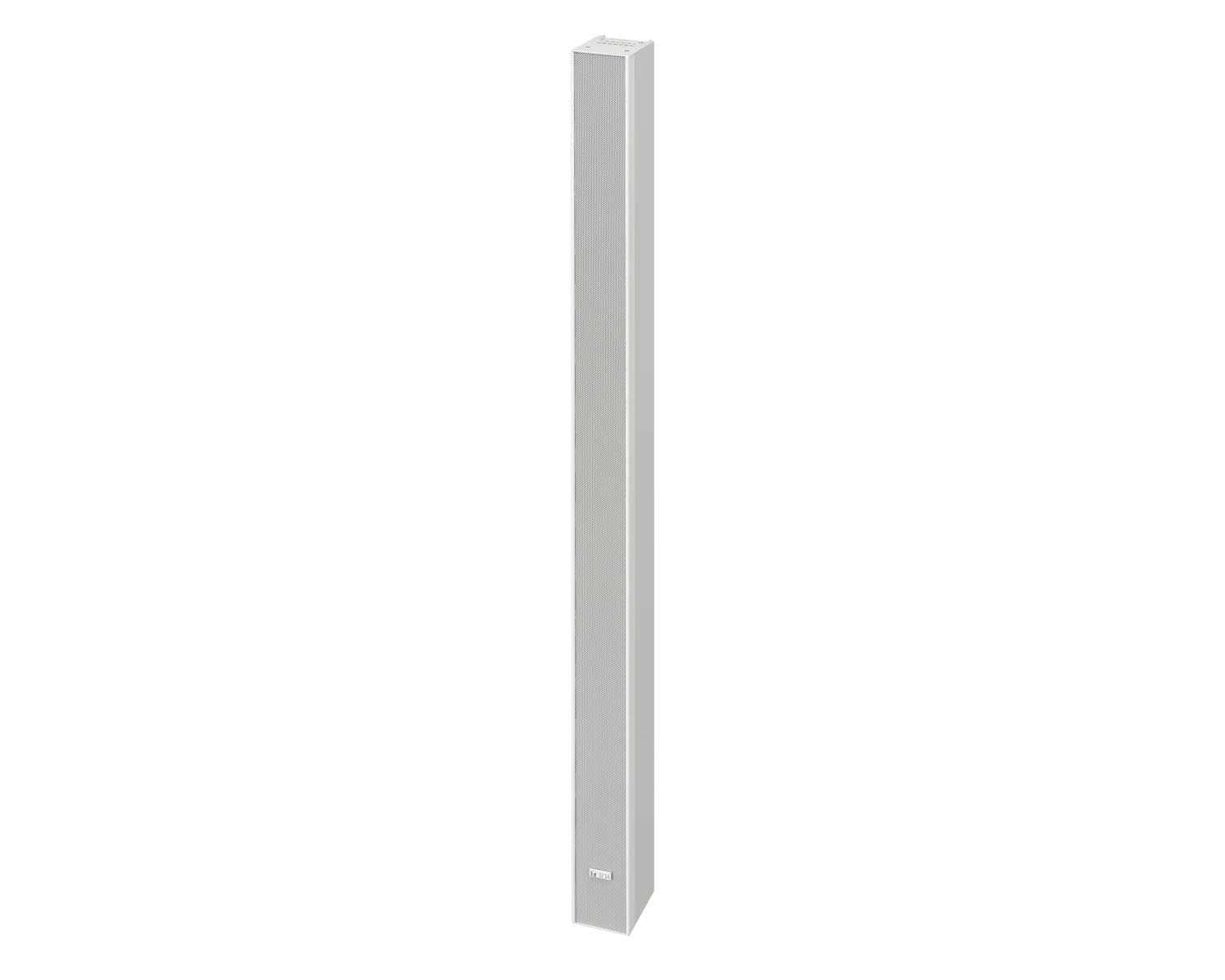

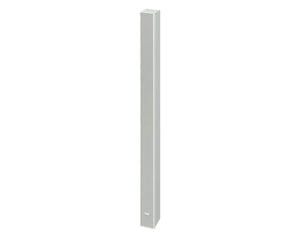

The SR-H3L Line array speaker forms a linear sound source by the internal speaker units arrayed vertically in close proximity. It can be used for high-impedance applications with the installation ofthe optional MT-S0301 Matching transformer.

Product Features

Outstanding Sound Quality

• Sync-Drive (Synchronous Nexus Control) technology keeps the audio in phase with its sources at the speakers to create an ideal linear sound source.
• Line array configuration of speakers works to produce clear sound with reduced attenuation over distance.
• Speakers are reflection-free and feedback resistant.
• A unique aperture front grille structure enhances the horizontal frequency vs. beam width response for more focused horizontal dispersion.
• Speakers are designed for optimally precise directivity of sound, especially vertical directivity, so the audio dispersion can be more accurately focused at the targeted area.
• Curved speaker models rely on a hyper-clothoid concept curved array that ensures improved vertical dispersion.

Application Versatility

• Selection among four models is possible, enabling more extensive customisation of the listening area.
• Most applications are fully covered by no-extension (one cabinet) set-ups, but up to two units can be connected when an expanded vertical coverage area is suitable.
• Attractive and narrow 84mm (3.31") design allows speakers to fit in well with the interior decor of the venue.
• Optionally available mounting brackets allow gap-free installation of speakers on a wall, for an aesthetically pleasing appearance.

Space/Energy Efficient Design

• Energy-efficient line array configuration requires less input power to deliver required output.
• High-quality sound reproduction even when an equalizer is not used.
• Fully effective operation is possible without additional amplification equipment, saving space and adding to the unit cost effectiveness.

Easy & Flexible Installation

• A wide variety of optional mounting brackets is available, for wall-mounting, rigging, and stand mounting the Type H speakers.
• Removable input terminal connectors make hook-ups easier and less cumbersome.
• For high-impedance operation, an optional matching transformer MT-S0301 is available.

Product Specifications

• Enclosure: Bass-reflex type
• Power Handling Capacity: Continuous program: 360 W
• Rated Impedance: 8 Ω
• Sensitivity: 95 dB (1 W, 1 m equivalent, measured at 8 m)
• Frequency Response: 110 Hz - 18 kHz (when recommended parameters are applied by the optional DP-SP3)
• Directivity Angle: Horizontal: 90゜
• Vertical: 0゜ (within the range of speaker height)
• Speaker Component: 7 cm (2.8") cone-type × 16
• Input Connector: Removable input connector
• Finish:
  • Enclosure: MDF, white, urethane paint
  • Front grille: Punched steel plate, white, acrylic paint
• Dimensions: 84 (W) × 1186.4 (H) × 115 (D) mm (3.31" × 46.71" × 4.53")
• Weight: 7.6 kg (16.75 lb)
• Option:
  • Matching transformer: MT-S0301
  • Extension plate: SR-EP3
  • Wall mounting bracket: SR-WB3
  • Wall tilt bracket: SR-TB3
  • Flying bracket: SR-FB3
  • Stand adapter: SR-SA3 (Applicable stand: ST-34B)
  • Digital speaker processor: DP-SP3
