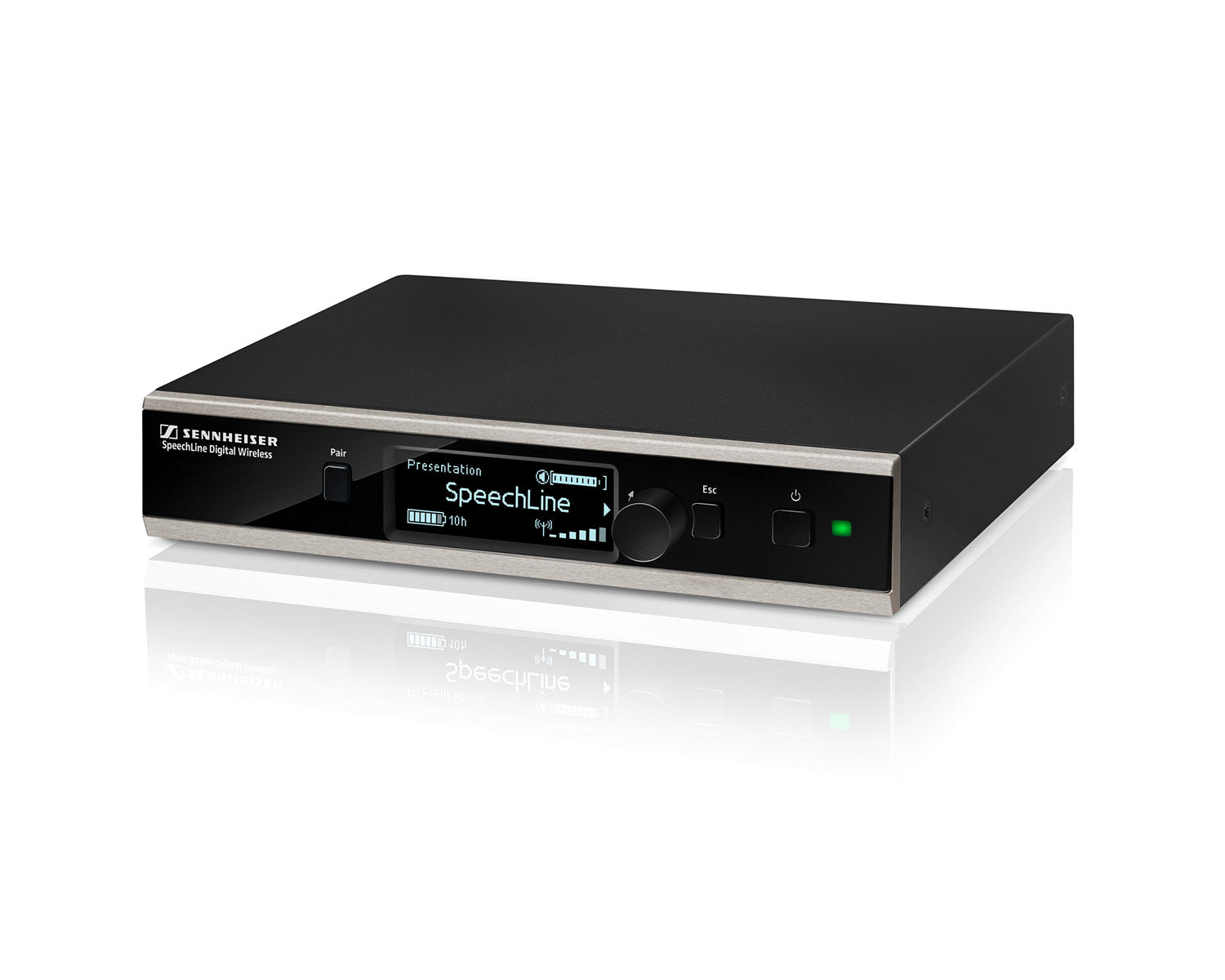

The half 19" stationary SL Rack Receiver DW is the easy-to-integrate core of the SpeechLine Digital Wireless System. It features a clear visible OLED display for easy setup and operation. Thanks to the bi-directional communication all settings of the mobile transmitters can be adjusted from the receiver side.

The automatic frequency and interference management allows convenient and reliable operation. Thanks to the easy-to-handle pairing process, the transmitter and receiver are securely linked. Via network integration all settings and statuses are also accessible via AMX/Crestron media control protocol and the dedicated Sennheiser iOS Apps. The antennas can be either back or front-mounted. Furthermore, extension cables for wall mounting are available.

Live stock levels for trade accounts. Shipping cut-off 4pm.

SpeechLine Rack Receiver Features

• Automatic frequency and interference management
• Speech optimised automatics and sound profiles
• Clear and easy focused user interface with OLED display
• Ethernet connectivity (IPv4 and IPv6)
• Media control protocol integration
• Secure 256 bit AES encryption
• Remote controllable
• Quick setup pairing process

SpeechLine Features

• Automatic Frequency Management: No frequency planning or manual fine tuning required due to Auto Frequency Management.
• Automatic Audio Level Management: Adjusts gain levels and sensitivity fully automatically and always guarantees superior audio clarity.
• Remote App: Easy monitoring and operation via the Wireless System Remote App for iOS or Android.
• Optimum Speech Intelligibility: Audio presets for male/female voices, and preconfigured sound profiles for dedicated settings.
• Automatic Interference Management: Actively avoids wireless transmission disturbances by quickly switching to a free frequency.
• Convenient Recharging: Powerful Li-Ion technology - Outstanding battery life up to 15 h.
• License-Free: License-free operation, no registration required.
• Future-Proof 1.9 GHz: A smart investment in a future-proof frequency range.
• Advanced 256-Bit AES Encryption: The strongest encryption algorithm for secure wireless transmission.
• Multichannel Operation: Up to 20 RF channels per range (dependant on local regulations).

SpeechLine Rack Receiver Specifications

General

• RF sensitivity: < –90 dBm
• RF output power back channel: adaptive, up to 250 mW (country-specific)
• Display: OLED
• Network protocol: Media Control Protocol | TCP/IP IPv4 (DHCP, Manual)/IPv6
• Power supply: 12 V DC
• Current consumption: 350 mA
• AF connection sockets: XLR/2 x RCA
• Antenna sockets: 2 x Rev-SMA
• Network socket: RJ45
• DC socket for power supply: hollow jack
• Weight: approx. 828 g

Digital gain: adjustable in 6-dB steps

• Mic/line level switch: –24 dB/0 dB
• XLR, balanced: max. +18 dBu
• RCA, unbalanced: max. +6 dBu

Audio effects

• Low cut: –3 dB at 120 Hz
• Equalizer: 7-band graphic equalizer with sound presets
• Automatic gain control AGC: Compression/expansion with automatic make-up gain function

System Specifications

General

• AF frequency response: 20 to 20,000 Hz
• Dynamic range: > 120 dB (A)
• THD (1 kHz): typ. 0.1 %
• Audio sampling: 24 bit/48 kHz
• Signal-to-noise ratio: > 90 dB (A)
• Encryption: AES 256
• Modulation: GFSK with back channel
• Transmission method: TDMA | Space diversity
• Latency: 19 ms

Temperature range - relative air humidity max. 95 %

• Operation: –10 °C to +55 °C
• Storage: –20 °C to +70 °C
• Temperature range is influenced by battery characteristics.

RF frequency ranges:

• EU: 1,880 to 1,900 MHz
• USA: 1,920 to 1,930 MHz
• Brazil: 1,910 to 1,920 MHz
• Taiwan: 1,880 to 1,895 MHz
• Japan: 1,893 to 1,906 MHz

What's in the Box?

• SL Receiver DW - Rack Receiver
• Power Supply
• Antennas
