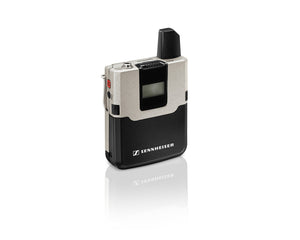

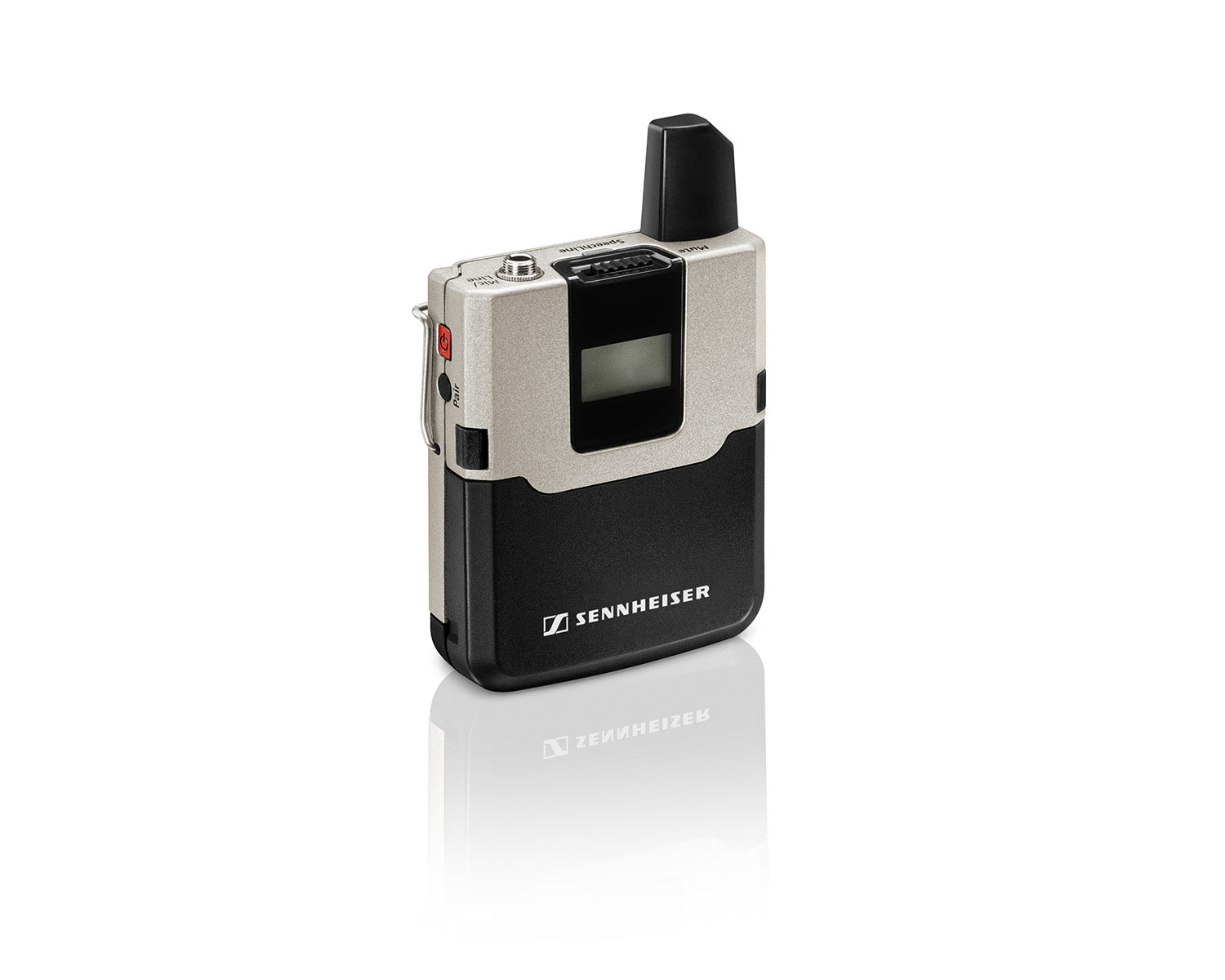

The compact but robust SL Bodypack DW is optimised for speech in presentations or lectures where every word matters. It is compatible with all Sennheiser mircophones such as SL Headmic 1 or MKE 1. Thanks to bi-directional communication between transmitter and receiver, no settings need to be adjusted on the transmitter.

The automatic frequency and interference management allows convenient and reliable operation. The LC display provides the link name, battery status and reception quality. The easy-to-access mute-slider makes the use of the microphone very convenient. The SL Bodypack DW comes with a rechargeable Li-Ion battery with external charging contacts - for easy charging with the CHG 2 - and a USB socket.

SpeechLine Bodypack Features

• Automatic frequency and interference management
• Speech optimized automatics and sound profiles
• Clear and easy focused user interface with OLED display
• Ethernet connectivity (IPv4 and IPv6)
• Media control protocol integration
• Secure 256 bit AES encryption
• Remote controllable
• Quick setup pairing process

SpeechLine Features

• Automatic Frequency Management: No frequency planning or manual fine tuning required due to Auto Frequency Management.
• Automatic Audio Level Management: Adjusts gain levels and sensitivity fully automatically and always guarantees superior audio clarity.
• Remote App: Easy monitoring and operation via the Wireless System Remote App for iOS or Android.
• Optimum Speech Intelligibility: Audio presets for male/female voices, and preconfigured sound profiles for dedicated settings.
• Automatic Interference Management: Actively avoids wireless transmission disturbances by quickly switching to a free frequency.
• Convenient Recharging: Powerful Li-Ion technology - Outstanding battery life up to 15 h.
• License-Free: License-free operation, no registration required.
• Future-Proof 1.9 GHz: A smart investment in a future-proof frequency range.
• Advanced 256-Bit AES Encryption: The strongest encryption algorithm for secure wireless transmission.
• Multichannel Operation: Up to 20 RF channels per range (dependant on local regulations).

SpeechLine Bodypack Specifications

General

• RF output power: adaptive, up to 250 mW (country-specific)
• Line input impedance: 1 MΩ
• Input sensitivity: automatic sensitivity adjustment
• AF connection socket: 3.5 mm jack socket, lockable
• Weight (w/o accupack): approx. 88 g

AF frequency response

• Mic: 50 to 20,000 Hz
• Line: 20 to 20,000 Hz

Max. input level

• Mic: 2.2 V RMS
• Line: 3.3 V RMS

Power supply

• Accupack: BA 30 (Li-Ion, 3.7 V)
• Batteries (optional occessory): 2 x AA size battery (1.5 V)

Operating time

• Accupack: typ. 15 h
• Batteries (optional accessory): typ. 11 h

SpeechLine System Specifications

General

• AF frequency response: 20 to 20,000 Hz
• Dynamic range: > 120 dB (A)
• THD (1 kHz): typ. 0.1 %
• Audio sampling: 24 bit/48 kHz
• Signal-to-noise ratio: > 90 dB (A)
• Encryption: AES 256
• Modulation: GFSK with back channel
• Transmission method: TDMA | Space diversity
• Latency: 19 ms

Temperature range - relative air humidity max. 95 %

• Operation: –10 °C to +55 °C
• Storage: –20 °C to +70 °C
• Temperature range is influenced by battery characteristics.

RF frequency ranges:

• EU: 1,880 to 1,900 MHz
• USA: 1,920 to 1,930 MHz
• Brazil: 1,910 to 1,920 MHz
• Taiwan: 1,880 to 1,895 MHz
• Japan: 1,893 to 1,906 MHz

What's in the Box?

• SL Bodypack DW
• BA 30 rechargable battery
• Pouch
