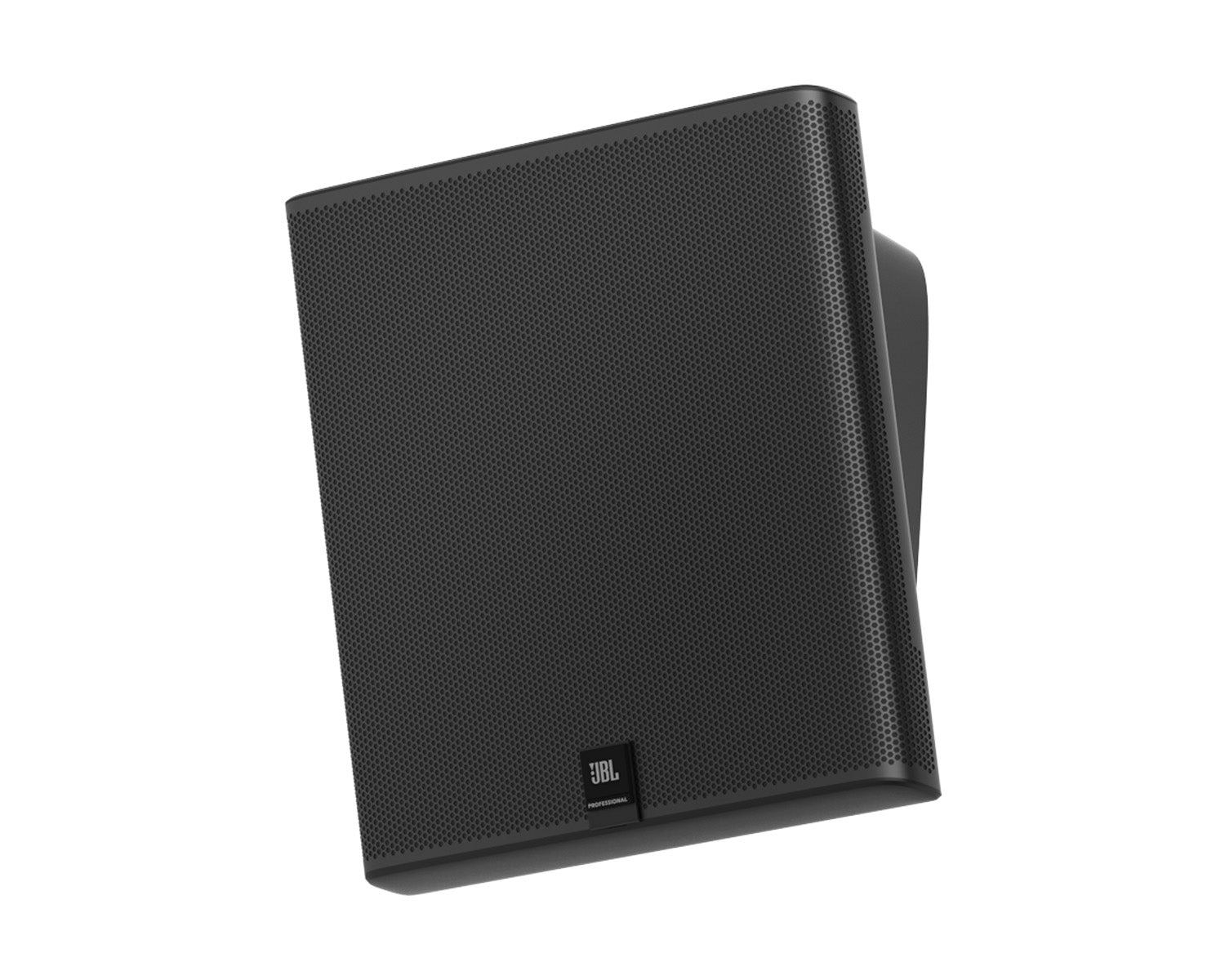

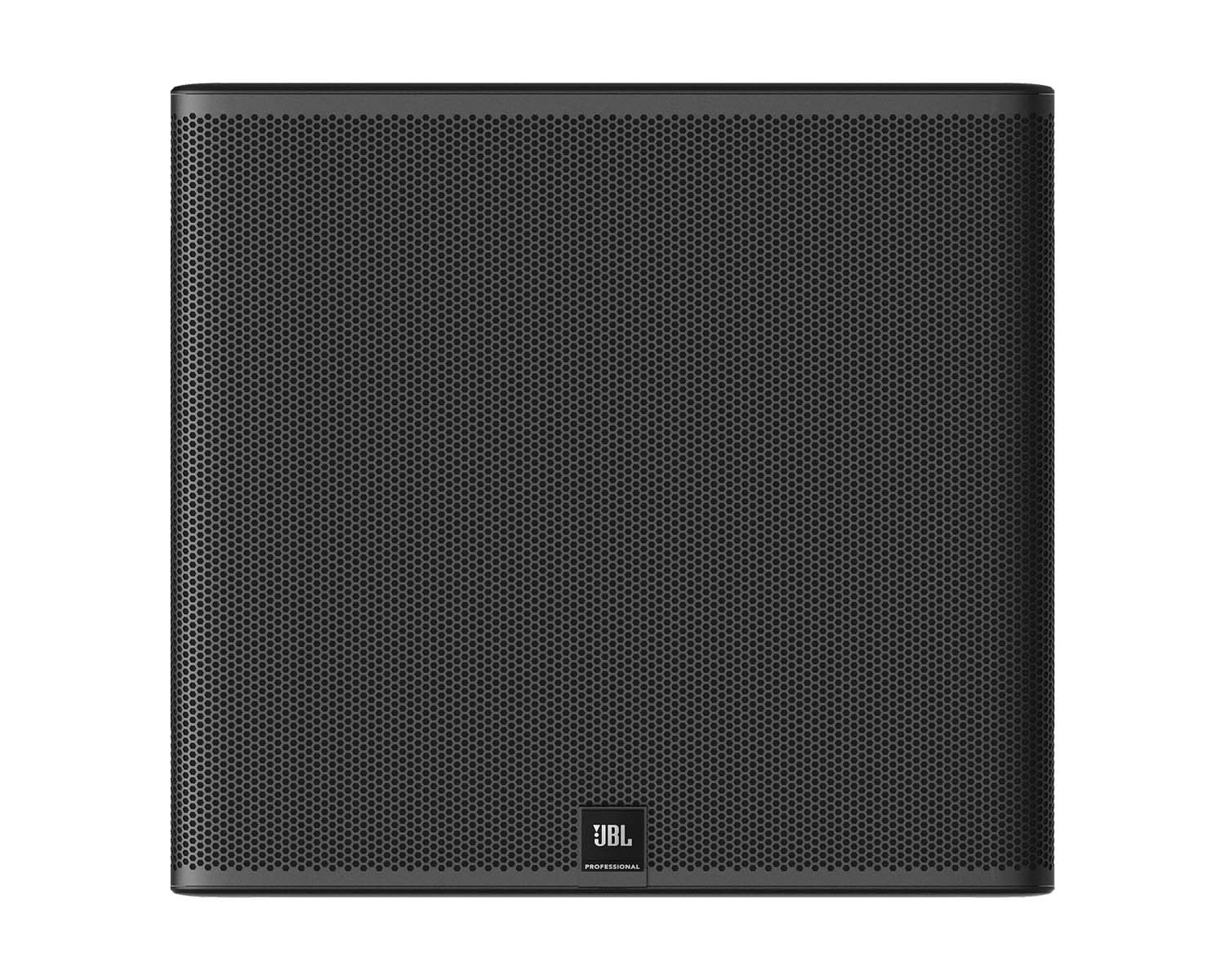

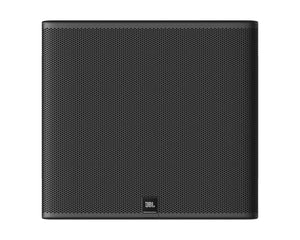

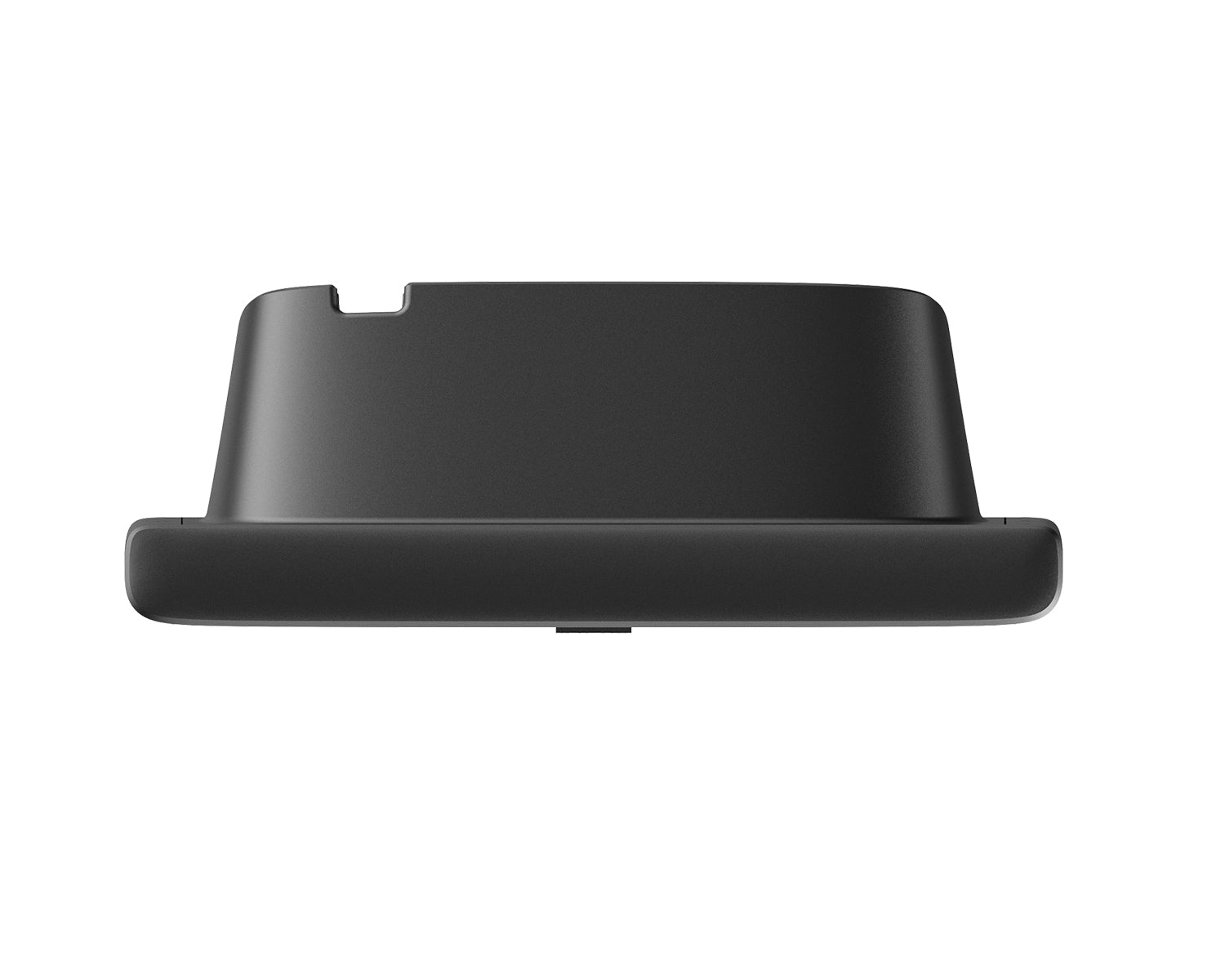

The SLP12/T full-range on-wall loudspeaker provides superior sound and broad, consistent coverage in a sleek, low-profile enclosure, with a powerful 75mm (3-inch) driver that delivers the legendary sound that JBL is known for. The SLP12/T is an ideal foundation for a range of applications: It features a 15-watt multi-tap transformer for use in 70V/100V systems, and is switchable for direct 8-ohm operation; voicing matches well with JBL Control 12C/T ceiling speaker for consistent sound character, allowing mixing and matching within a single system. This compact-yet-robust speaker boasts 40-watt power handling, delivering clean, clear sound at any volume.

Installation is fast and easy using the included slide-in wall bracket; 15° down-tilted coverage allows mounting flush against a wall. An included rain cover protects the terminal compartment in outdoor applications. This elegantly finished speaker—winner of the RedDot international design award for industrial design excellence—complements any décor and is available in black or white finishes.

The stylish, highly versatile JBL SLP12/T is perfect for venues such as high-finish restaurants, hotels, resorts, retail stores, and any installation application calling for a discreet yet elegant look.

Product Features

Transducer: 75 mm (3 in) full-range
Power handling: 30W continuous pink noise, 60W continuous program

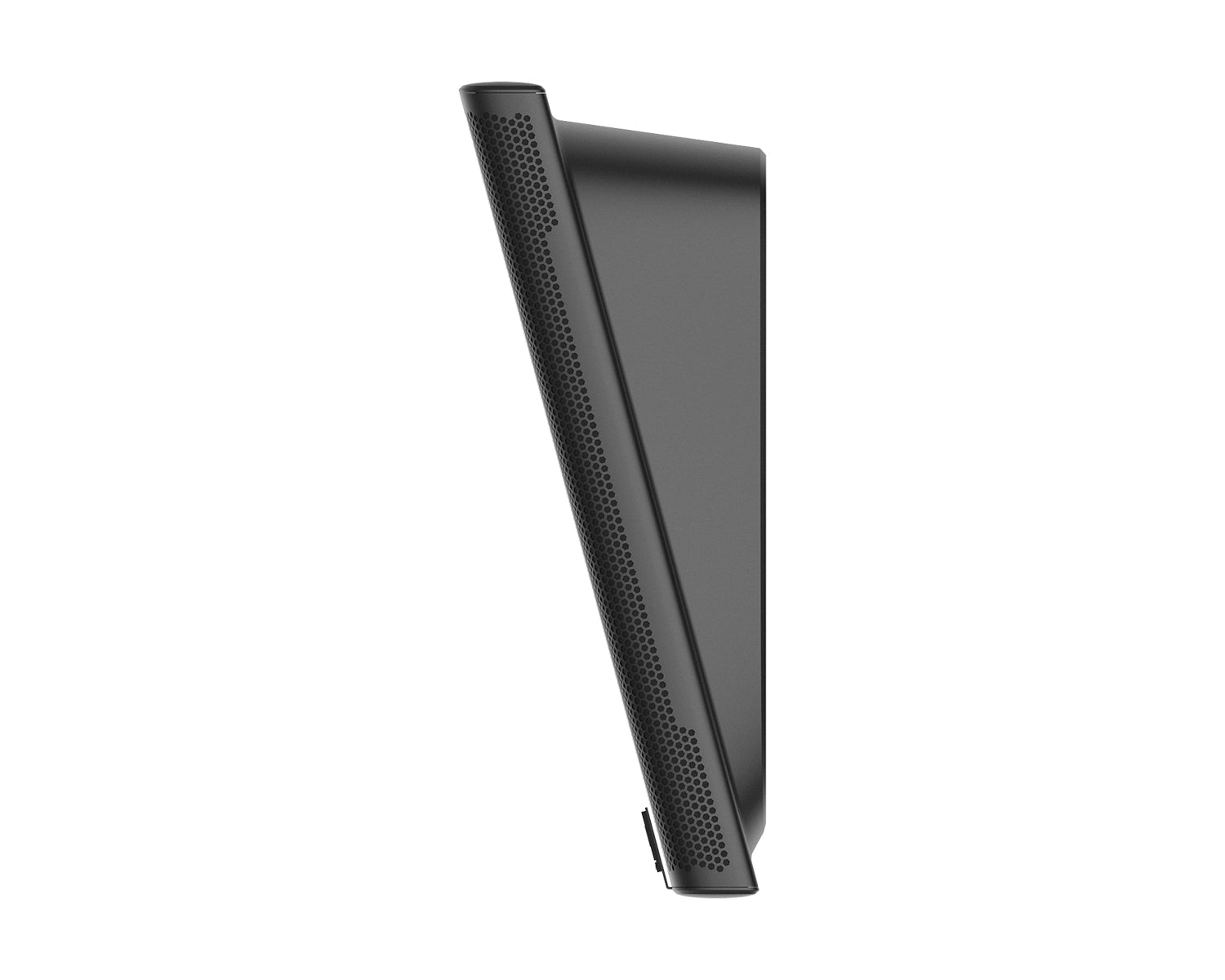

15° down-tilted coverage allows flush-to-wall mounting

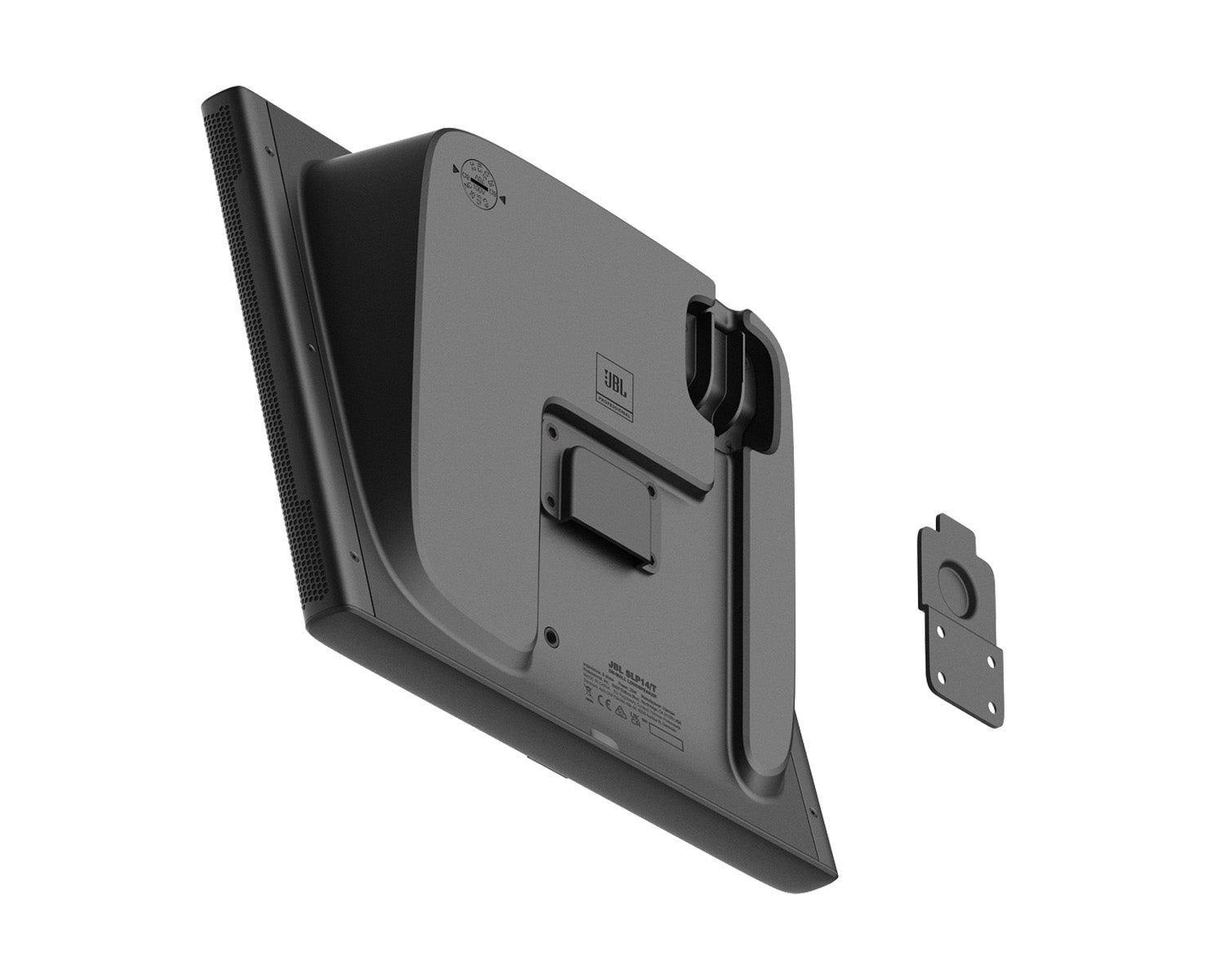

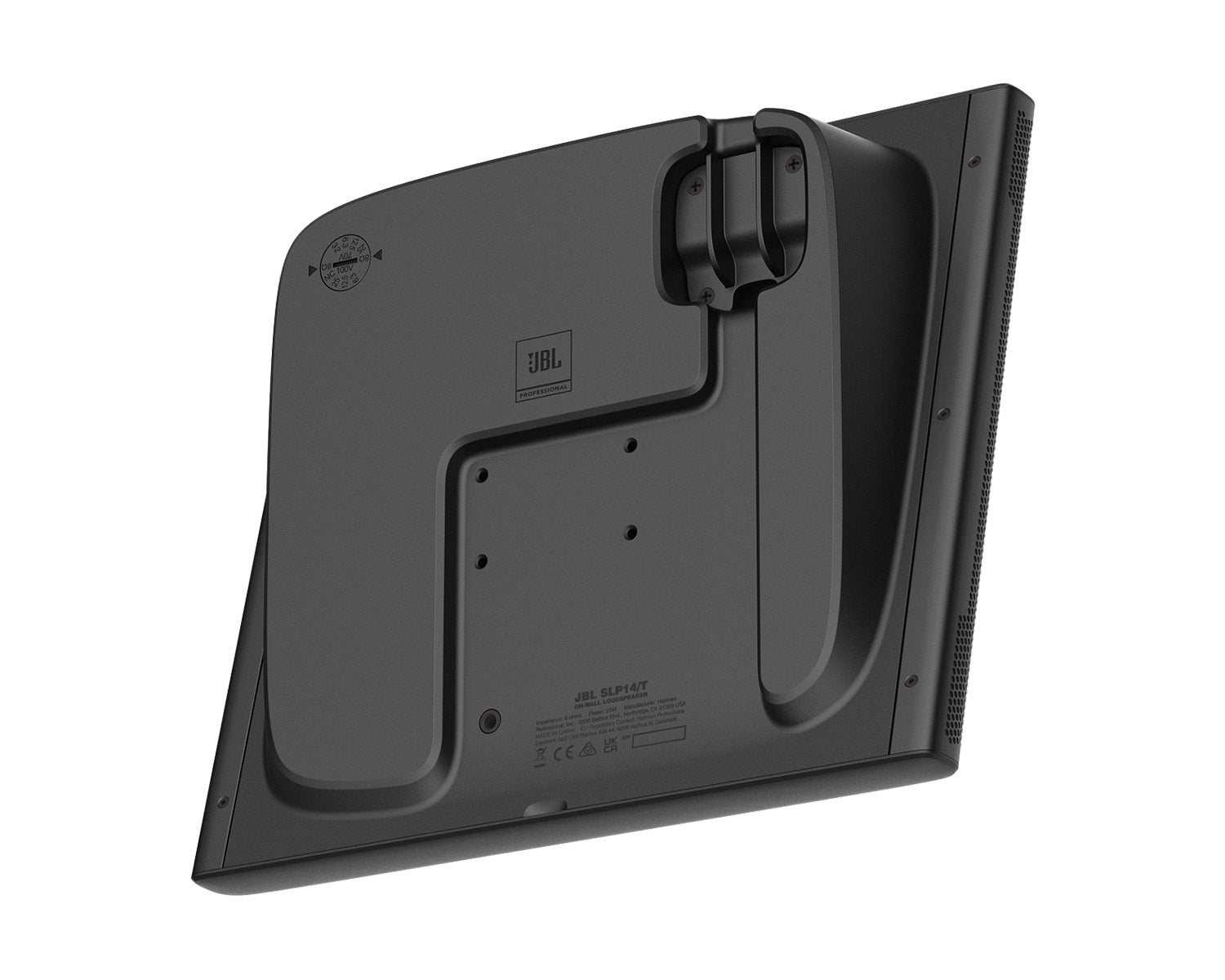

Included slide-in wall bracket makes installation a breeze
Sonically matched to JBL Control 12C/T ceiling speakers
Included rain cover protects terminal compartment in protected outdoor applications
Multi-tap transformer for use in 70V/100V systems
ADA-compliant at less than 4 inches deep
Finish: Black

Product Specifications

Frequency Range (-10dB): 90 Hz – 20 kHz
Frequency Response (+/-3 dB): 110 Hz – 15 kHz
Power Rating:
- 60 W Continuous Program (2 hrs)
- 30 W (160 W Peak), Continuous Pink Noise (2 hrs)
- 20 W (80 W Peak), Continuous Pink Noise (100 hrs)
Sensitivity: 84 dB (80 Hz – 20 kHz) half-space (mounted on a wall)
Maximum SPL: 105 dB peak (99 dB continuous, 2 hr) @ 1m
Nominal Coverage: 130° horizontal x 130° vertical
Directivity Factor (Q): 6.1
Directivity Index (DI): 7.8 dB
Nominal Impedance: 8Ω (at 8Ω tap setting)
Transformer Taps:
- 70V: 15 W, 7.5 W, 3.8 W, 1.9W
- 100V: 15 W, 7.5W, 3.8W
Driver: 75mm (3 in) full-range driver, polypropylene cone 20 mm (0.8 in) voice coil on Kapton™ voice coil former

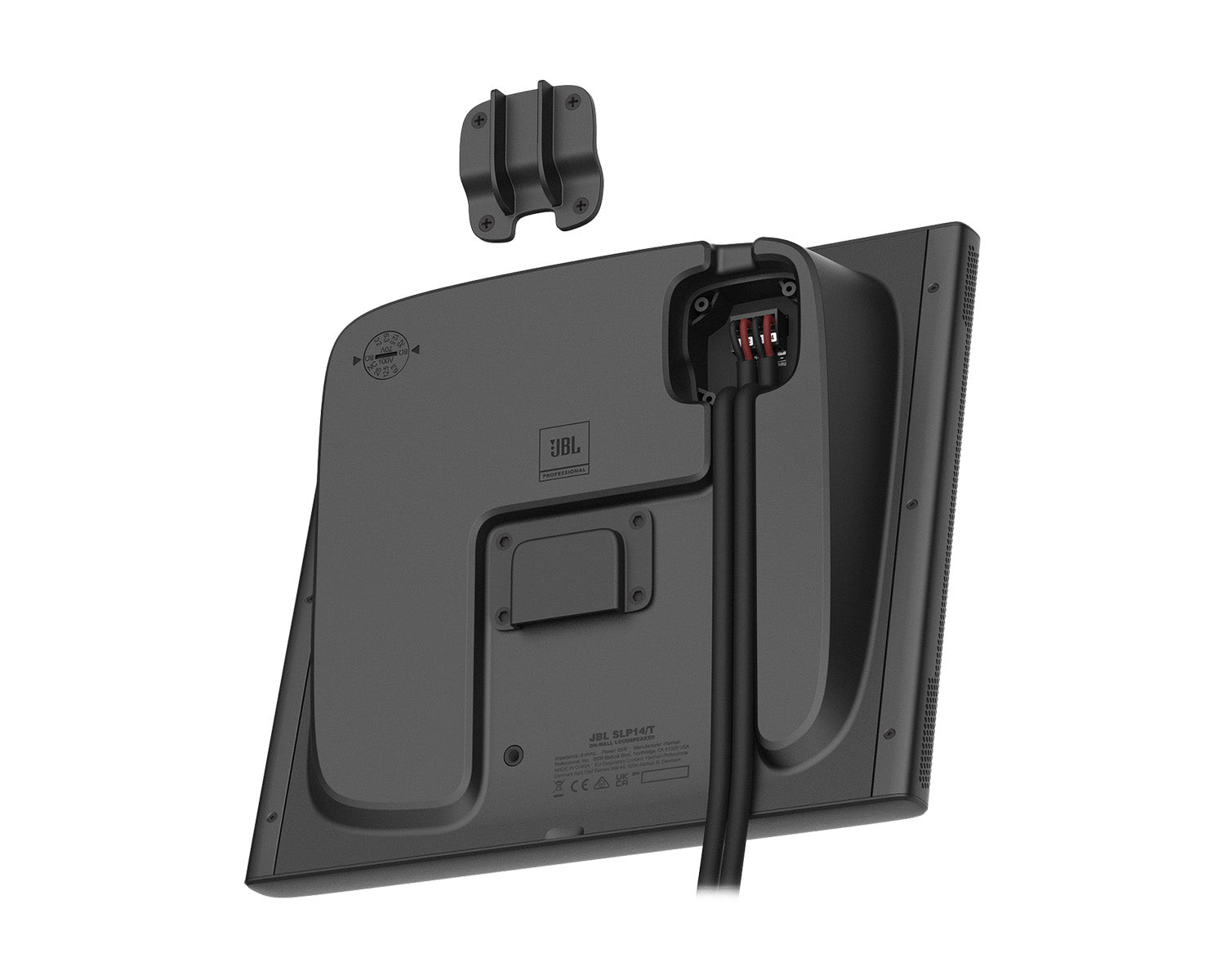

Terminals: Terminals 4-pin Euroblock connector for bare wire
Enclosure Material: Polycarbonate + ABS, UL94V-0 flammability rated
Colour: Black
Dimensions: 248mm wide x 230mm high x 100mm deep (9.8 x 9.1 x 3.9 in)
Net Weight: 2.1kg (4.6 lbs.)
Included Accessories: Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use.
