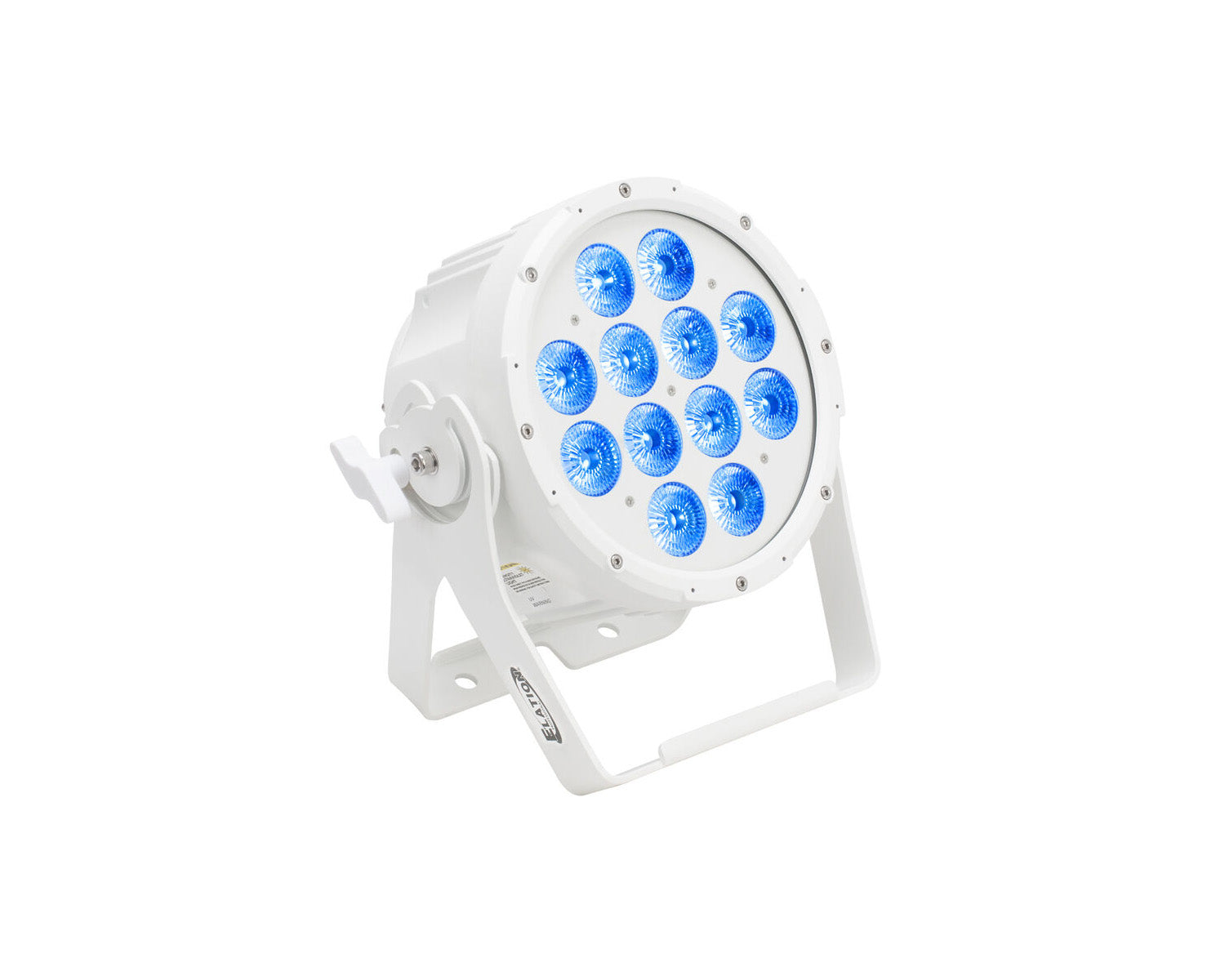

The IP65 outdoor rated SIXPAR 200WMG includes the same features as the standard SIXPAR 200IP model but with a special added White Marine Grade exterior coating designed for the marine/coastal environment installations. Featuring (12) 12W 6-in-1 RGBAW+UV LEDs producing a 23° beam angle, internal colour and colour chase macros, electronic strobe and variable dimming curve modes, manual and DMX-512 control, RDM (remote device management) support, dual yoke / floor stand, multiple unit power linking, rugged die-cast aluminium white marine grade coated exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-250v).

Product Features

• IP65 Outdoor Rated Par Luminaire
• Special White Marine Grade Exterior Coating

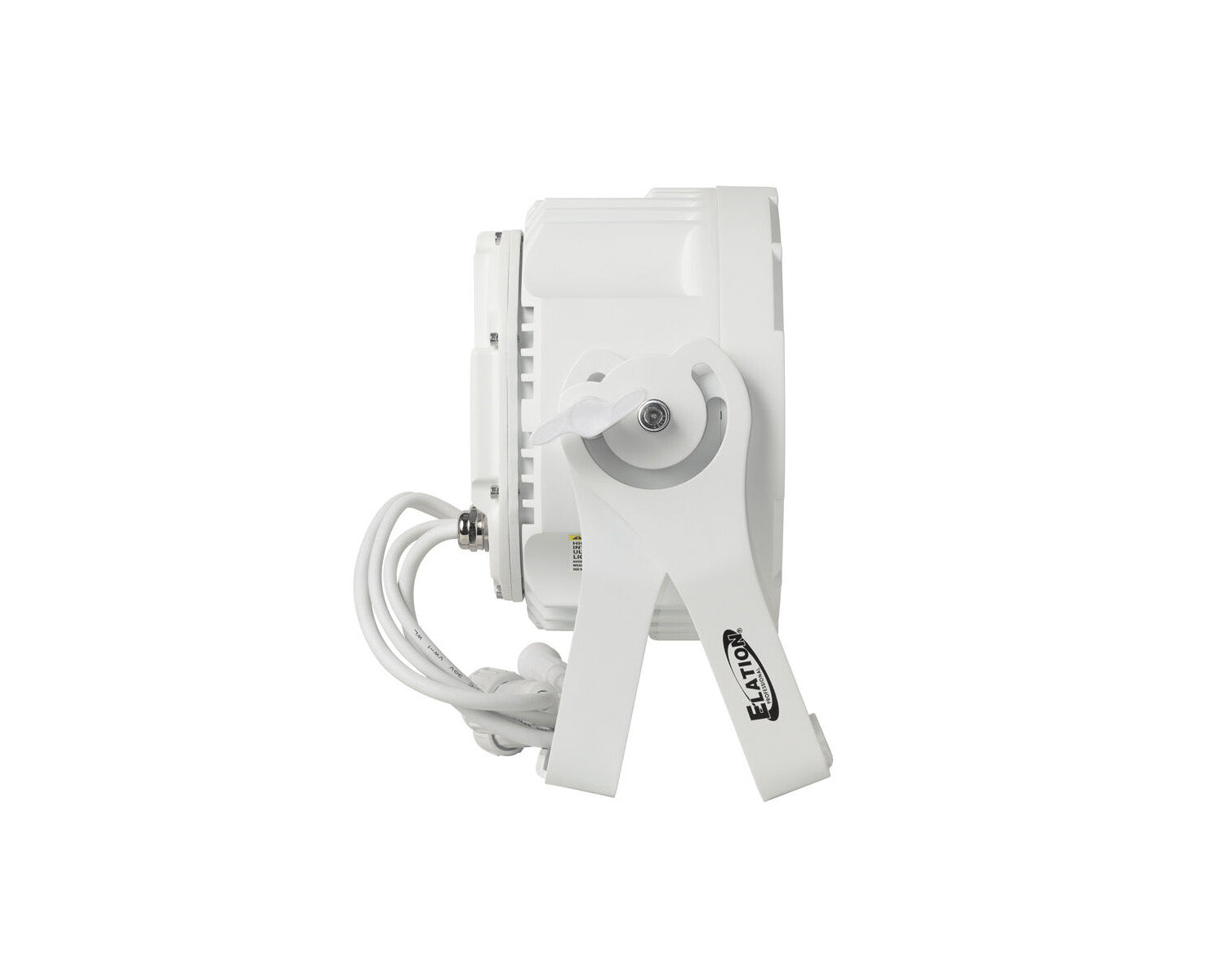

• Rugged Die-Cast Aluminium Exterior with Dual Yoke / Floor Stand
• (12) 12W 6-in-1 RGBAW+UV LEDs
• 23° Beam Angle
• 395nm UV Wavelength
• Electronic Strobe and Variable Dimming Curve Modes
• Manual and DMX-512 Control
• RDM (Remote Device Management) Support
• Multiple Unit Power Linking
• Proprietary IP Rated Power and Data In/Out Cables Attached
• Optional Extended Length Proprietary IP Rated Power and Data Linking Cables and In/Out Adapters Available

Product Specifications

Source

• (12) 12W 6-in-1 RGBAW+UV LEDs
• 100,000 hour average LED life

Photometric Data

• 2,500 LUX 232 FC @ 3m (9.8’)

Effects

• Electronic strobe
• Variable dimming curves modes
• Internal colour and colour chase macros

Colour

• RGBAW+UV multi-chip LEDs

Control / Connections

• Manual and DMX-512 control
• (4) DMX channel modes (6 / 7 / 8 / 12)

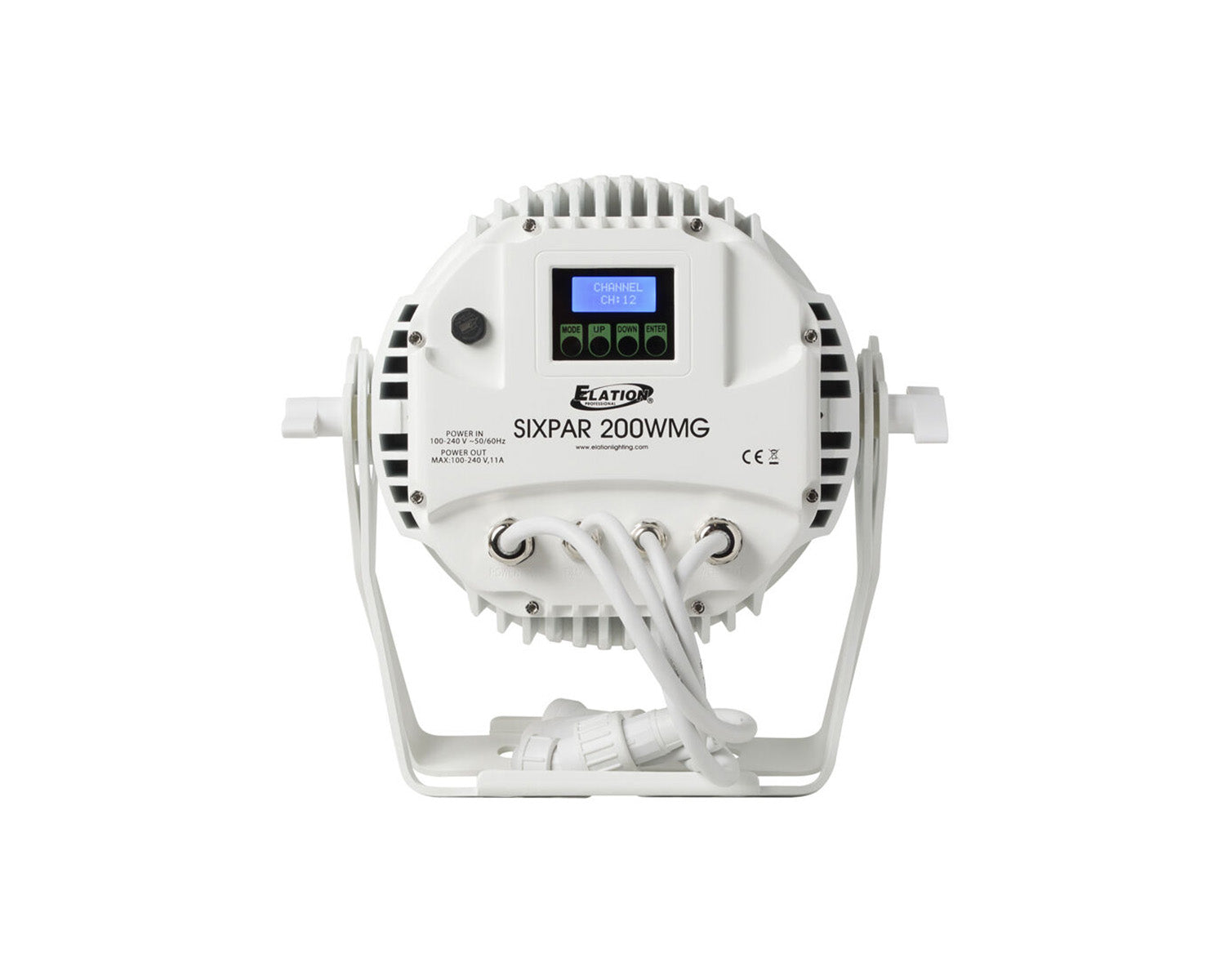

• (4) button touch LCD menu display

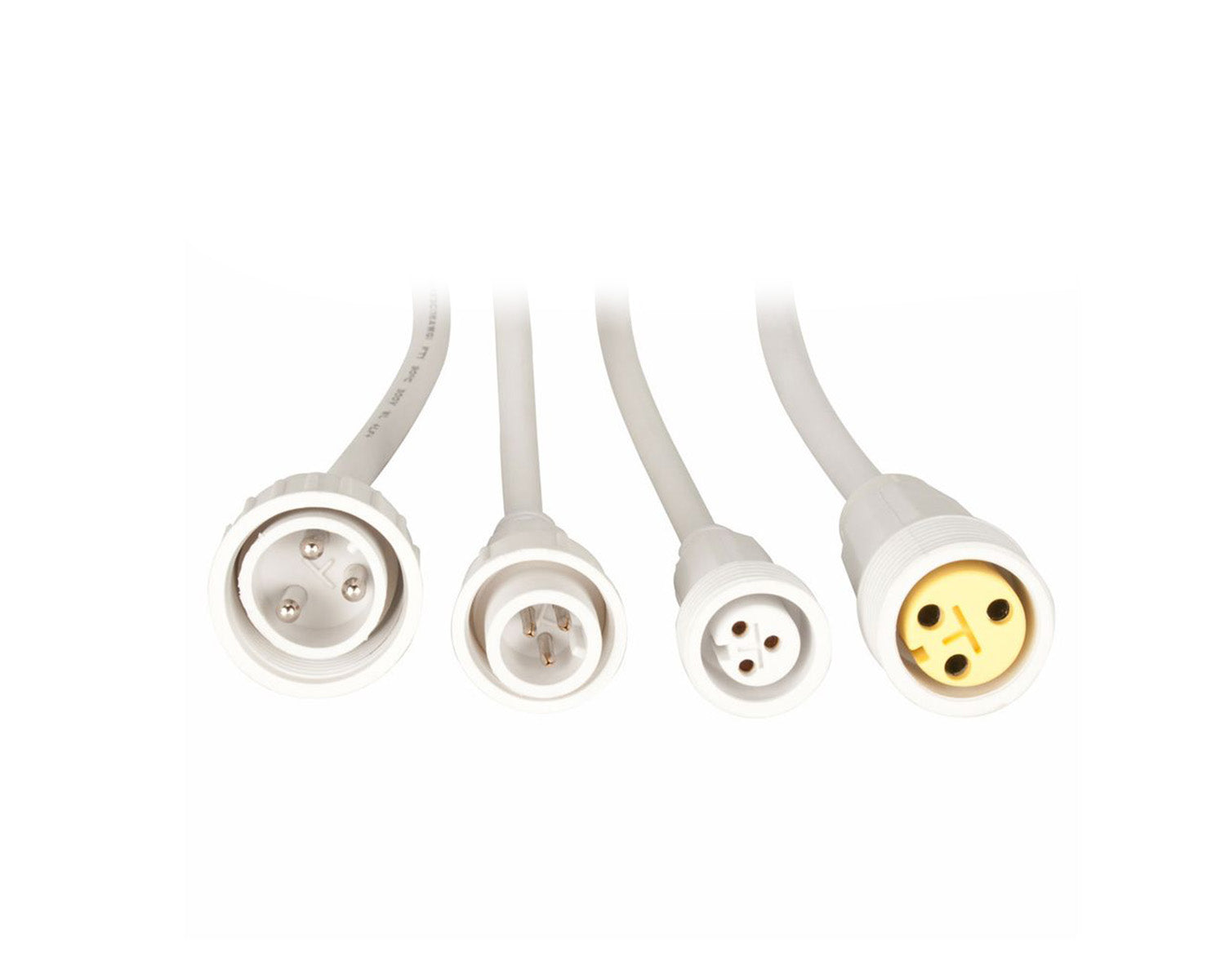

• Proprietary IP rated locking 3pin XLR DMX In/Out cables attached
• Proprietary IP rated locking 3pin power In/Out cable attached
• With wired digital communication network

Electrical / Thermal

• AC 110-250V - 50/60Hz
• 150W max power consumption
• Multiple unit power linking
• -15°C to 45°C (5°F to 113°F)
• UV wavelength: 395nm

Size / Weight

• Length:  313mm (12.3”)
• Width:  157mm (6.2”)
• Vertical height:  300mm (11.8”)
• Weight:  5.7 kg (12.6 lbs.)

What's in the Box?

• Male CEE 7/7 to IP Female Power Cable 2m (6.6 ft.)
• Male 5pin XLR to IP Female DMX Input Cable 1m (3.3 ft)
• Female 5pin XLR to IP Male DMX Output Cable 1m (3.3 ft)
