The SIX+ PAR S OPS includes the same features as the standard SIX+ PAR S model but adds a CX Marine Grade exterior coating and Hard Wired (bare wire) IP-rated power and data cables and is designed for permanent marine/coastal environment installations.

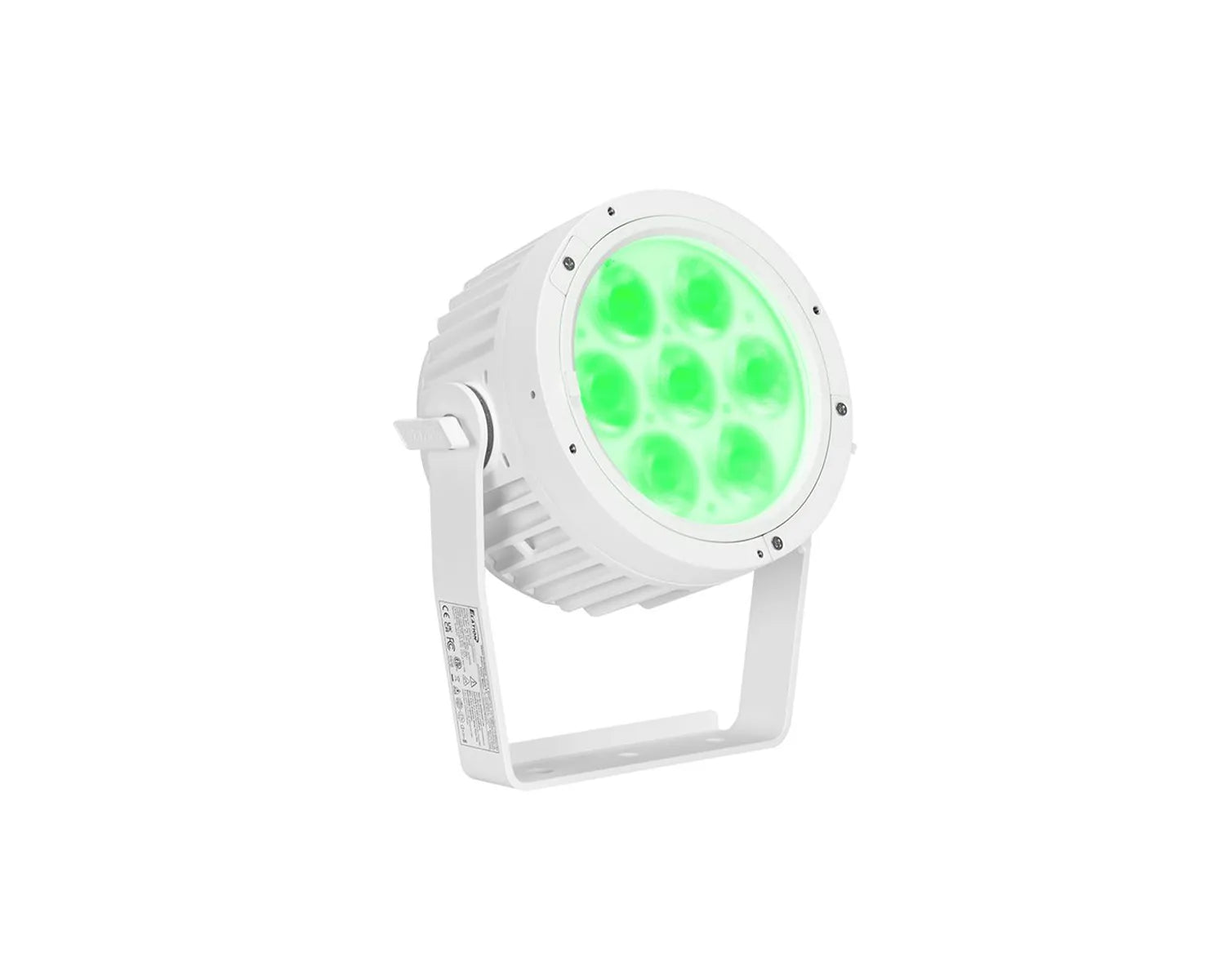

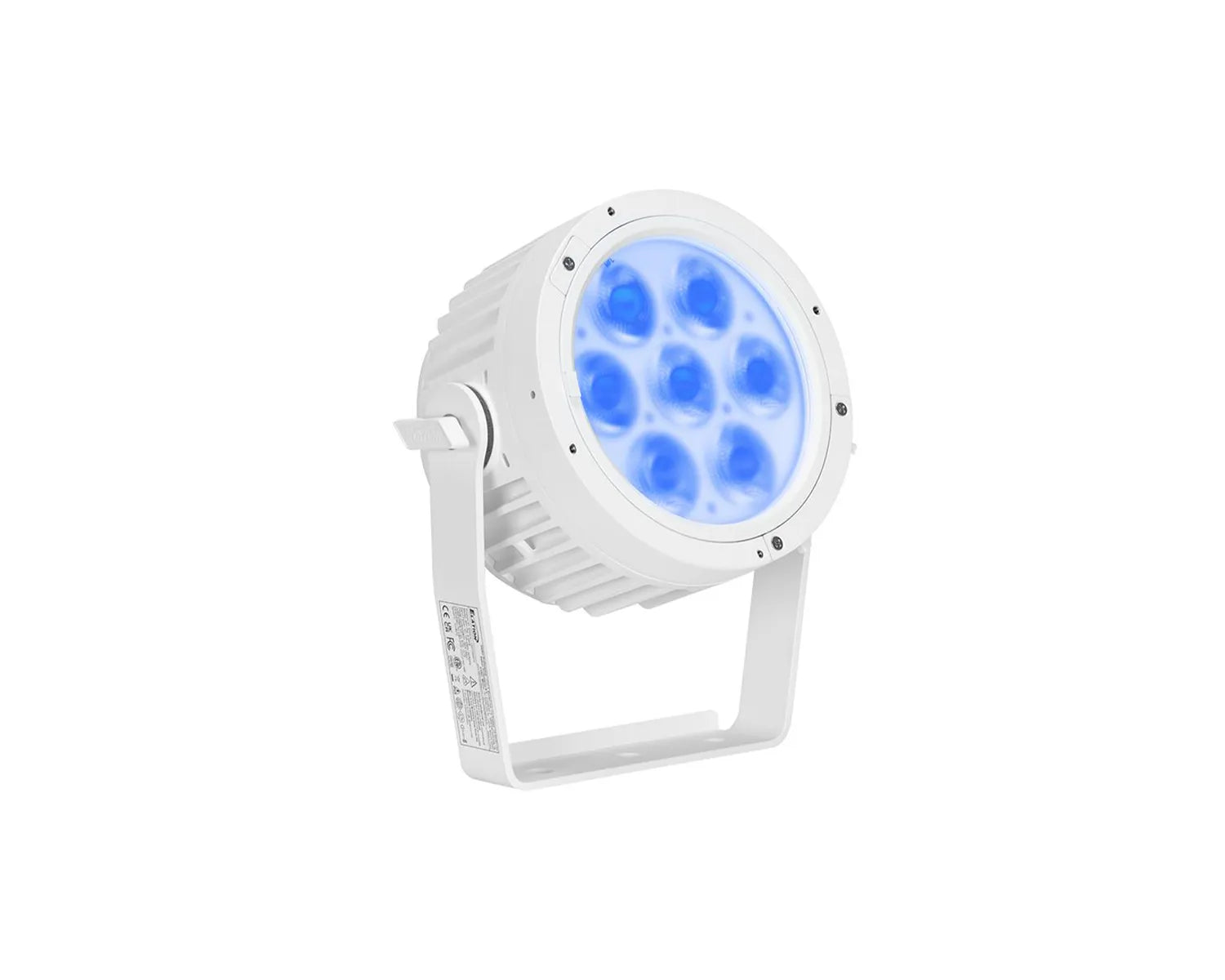

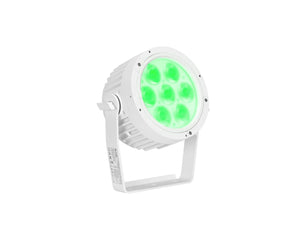

The SIX+ PAR S OPS is a compact and rugged LED fixture that features (7) 20W RGBLA+UV LED’s, which produce an ultra-wide colour spectrum and high quality of light. The optical system has been carefully engineered to offer an even distribution of light and colour homogenisation within the beam. This fixture has been designed to offer ultimate flexibility, use it indoors or out, it’s IP65 rating can handle any environment. The fanless cooling system ensures silent operation allowing it to be installed in the most noise sensitive environments.

With a six colour LED array, the SIX+ PAR S OPS is able to offer outstanding colour rendering capabilities with a high CRI of 87. This, paired with its remotely variably LED refresh frequency allows it to be easily integrated into any TV and Film application.
To expand the control capabilities on the SIX+ PAR S OPS, precise colour temperature control via a dedicated variable CCT control channel has been integrated. Programming a six-colour LED fixture can be complicated so, a CMY emulation mode has been added for users that are more familiar with that colour mixing system. Furthermore, an integrated library of calibrated colour presets that match the most popular gel filters has been included.

The IP65 housing can be ordered in BLACK or WHITE colour and includes a dedicated diffusion lens holder and the gel frame holder can accommodate industry standard 7.5” accessories. One 20° lens is included with the fixture, and other optional lenses are also available. The single yoke design allows the fixture to be mounted using the same bolt spacing as the SIXPAR 100 for retrofit applications.

To ensure the SIX+ PAR S OPS can be integrated seamlessly alongside original SixPar fixtures, great care has been taken to ensure that the new LED array colours match the original. A unique SixPar Emulation DMX mode has been developed, so that the new fixtures can be controlled with the same DMX mapping as the original. The colour mixing has also been calibrated to virtually emulate the White LED included in the SixPar array and an output limit master setting has been added so your new lights don’t overpower any older fixtures in the rig.

The SIX+ PAR S OPS is an ideal fixture for Themed Environments, Hospitality or Installations where high output, small form factor, simple design and permanent installation are required.

Product Features

• (7) 20W RGBLA+UV LED Array
• 3200 Lumens, 87 CRI
• 12° Beam Angle, 22° Lens Included
• Completely Fanless Cooling
• 16-bit Selectable Dimming Modes and Curves
• Remote LED Refresh Rate
• 7.5” Accessory Holder
• Hard Wired (Bare Wire) IP Rated Power and Data Cables Attached
• Special White Marine Grade Exterior Coating

Product Specifications

Source

• (7) x 20W RGBLA+ UV LEDs
• 30,000 Hour Average LED Life*
• *Lamp life may vary depending on several factors including but not limited to:
  Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

Photometric Data

• 3200 Total Lumen Output
• CRI - 87

Effects

• Electronic Dimmer and Strobe
• Variable 16-bit Dimming Modes and Curves

Colour

• RGBLA+ UV Colour Array
• CMY Emulation
• Variable CCT 2400K - 8500K
• Virtual Gel Swatch Book

Control / Connections

• 9 DMX Channel Modes (1ch, 3ch, 6ch, 9ch, 9ch, 11ch, 14ch, 14ch, 20ch)
• 4 SixPar Emulation DMX Channel Modes (6ch, 7ch, 8ch, 12ch)
• RDM (Remote Device Management)

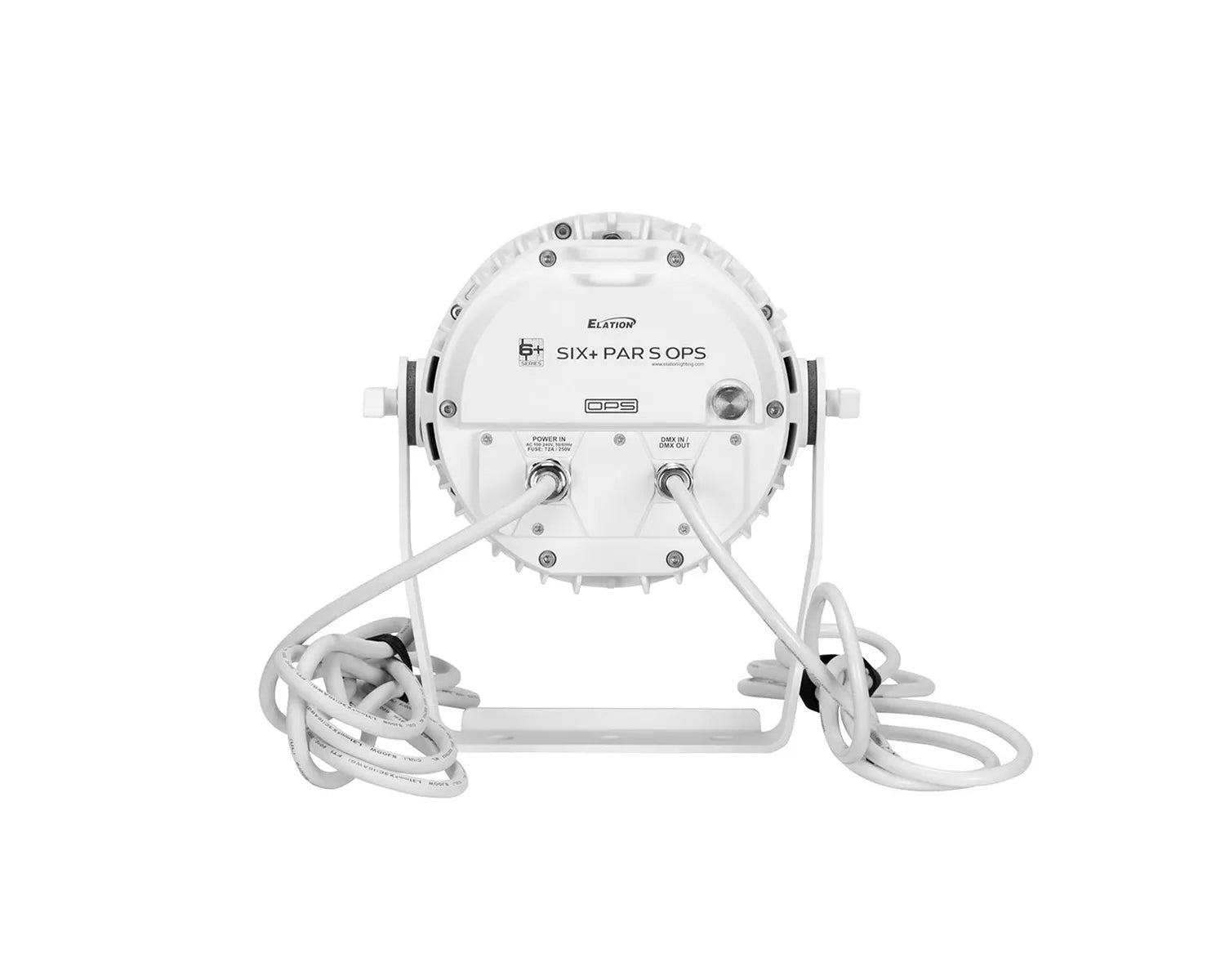

• Hard Wired (Bare Wire) IP Rated Power and Data Cables, 3 metres with the following cable options:
• 2-Wire – Power In & Combination DMX In/Out Cables
• 4-Wire – Power In, Power Out, DMX In and DMX Out Cables

Size / Weight

• Length: 193mm (7.6”)
• Width: 241mm (9.5”)
• Vertical Height: 230mm (9.1”)
• Weight: 4.3kg (9.5lbs)

Electrical / Thermal

• AC 100-240V – 50/60Hz
• 100W Max Power Consumption
• -40°C to 45°C (-40°F to 113°F)
• BTU/hr (+/- 10%) 341
