Lasers need to be operated in a certain temperature range for optimal performance and to avoid damages. If laser systems shall be operated in areas, where the environmental temperature exceeds this operating temperature range, it is necessary to add air conditioning.

The RTI Cocoon Climate Housing is a special protective housing with integrated air conditioning and is designed for use with different laser systems. It is equipped with a climate control system, that is able to cool as well as heat the laser system. Thus it ensures a stable operating temperature.

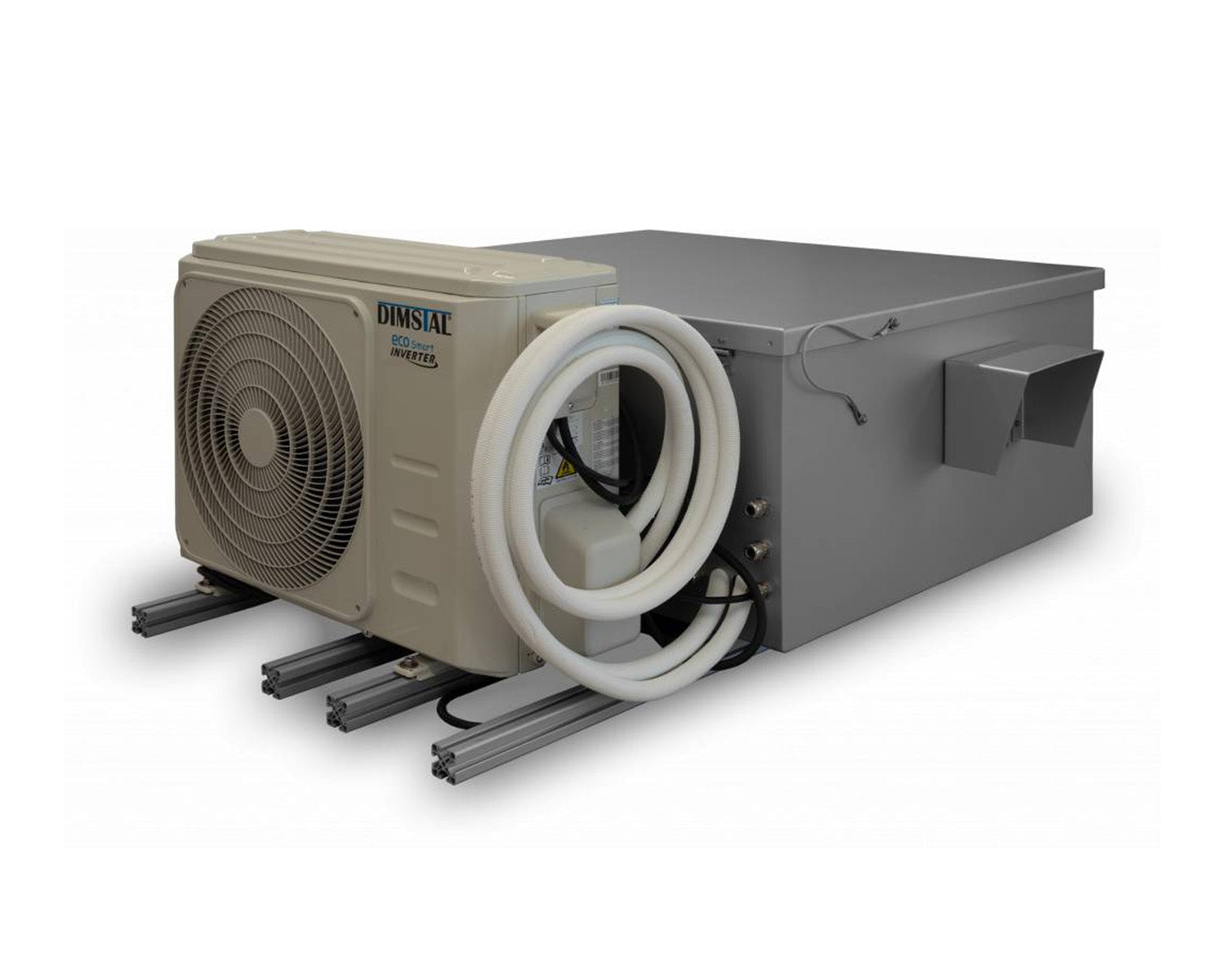

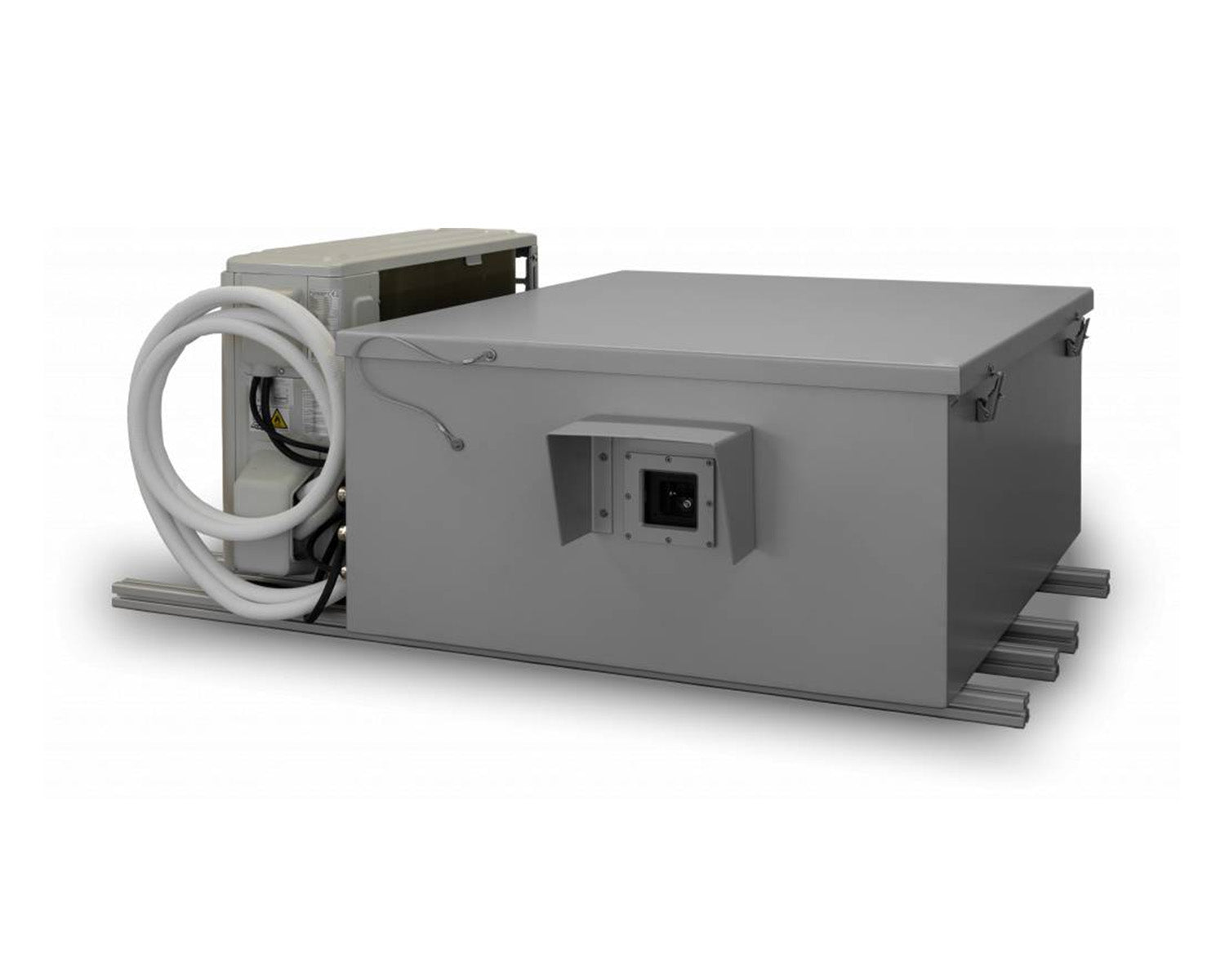

The system consists of two components (as conventional air conditioning units): the actual climate housing and an external condenser/compressor unit. The housing is sealed dust- and waterproof according to IP65, the external condenser and compressor unit is rated IP54. Both parts are connected with a 3m coolant hose. On request, it is also possible to place the condenser unit further from the housing.

With a power consumption of 1,150W and a cooling power of 12,000BTU, the Cocoon is able to pump 3,590W of heat. Operating temperatures range from -15°C to +50°C.

The RTI Cocoon climate housing must be mounted on a support system (metal plate, concrete base, or similar).

Product Features

• Climate Housing for RTI PIKO / RTI NANO / tarm Systems
• The RTI Cocoon Climate Housing is a special protective housing with integrated air conditioning
• Equipped with a climate control system, that is able to cool as well as heat the laser system
• Consists of two components: the actual climate housing and an external condenser/compressor unit
• IP Rating: IP65
• On request, it is also possible to place the condenser unit further from the housing

Product Specifications

• Power Supply: 230V AC - 50 Hz
• Power Consumption: 1150W
• Dimensions: 120 x 105 x 58 cm (L x W x D)
• Weight: 55 kg
• EAN / MPN: 7640144998028
