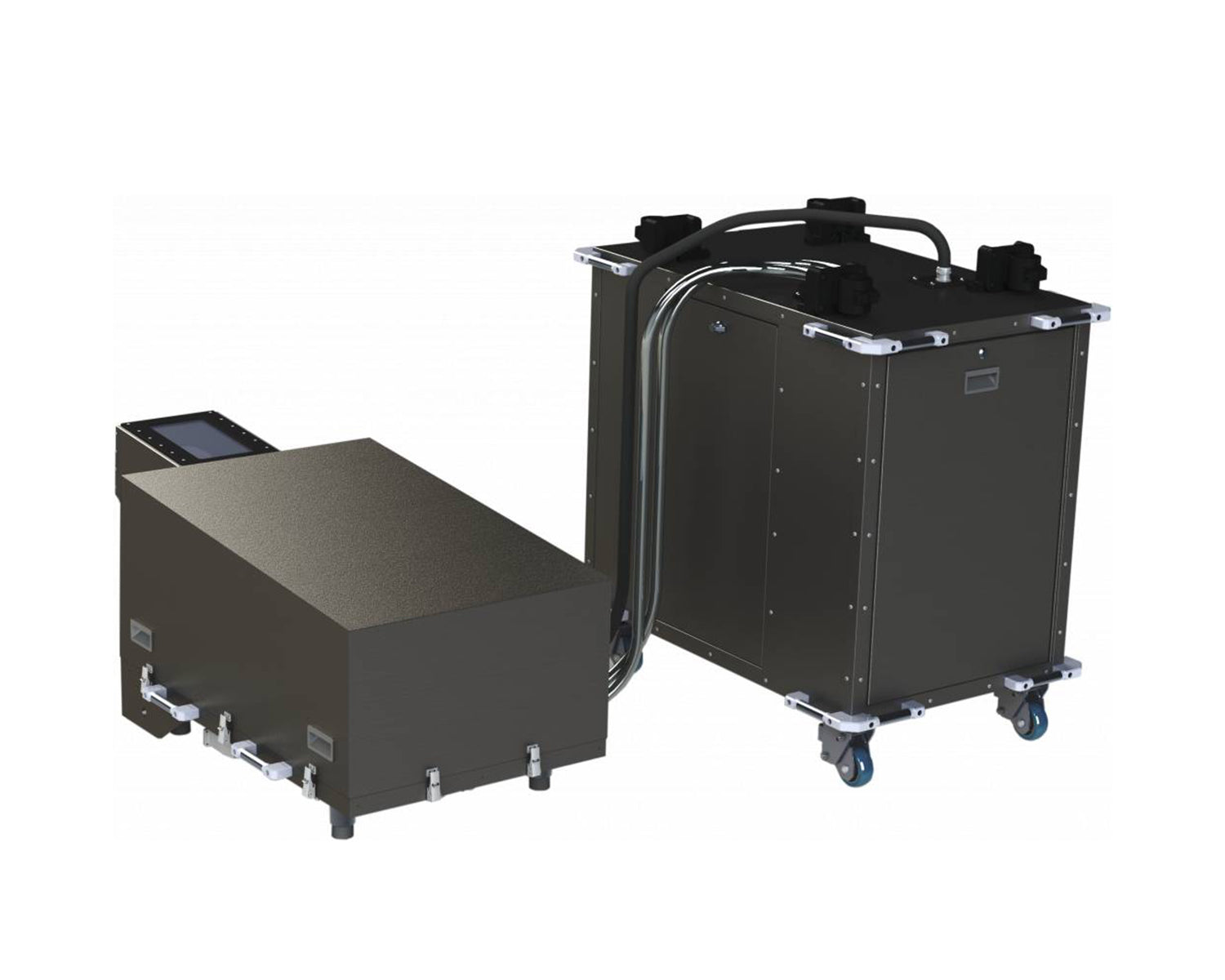

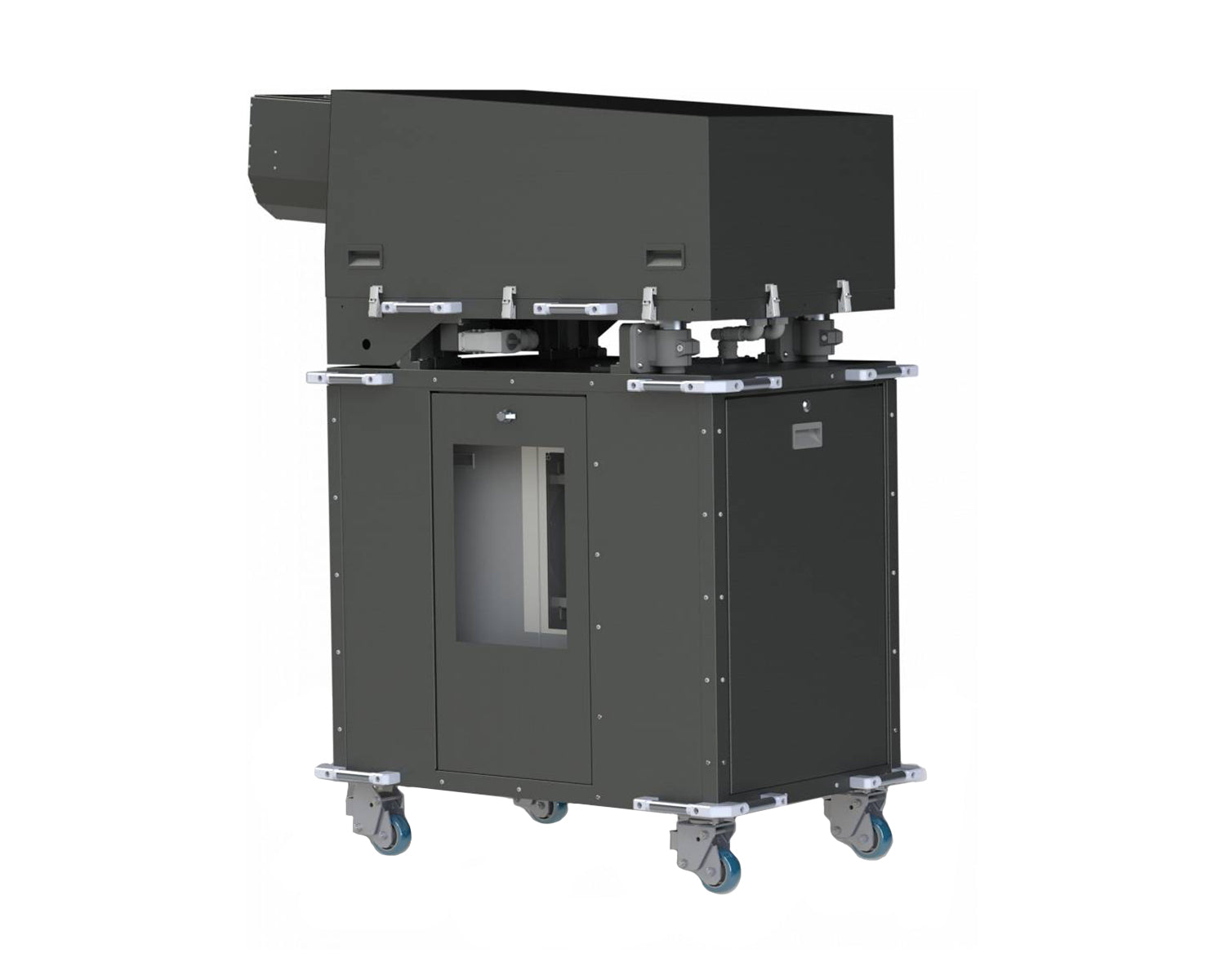

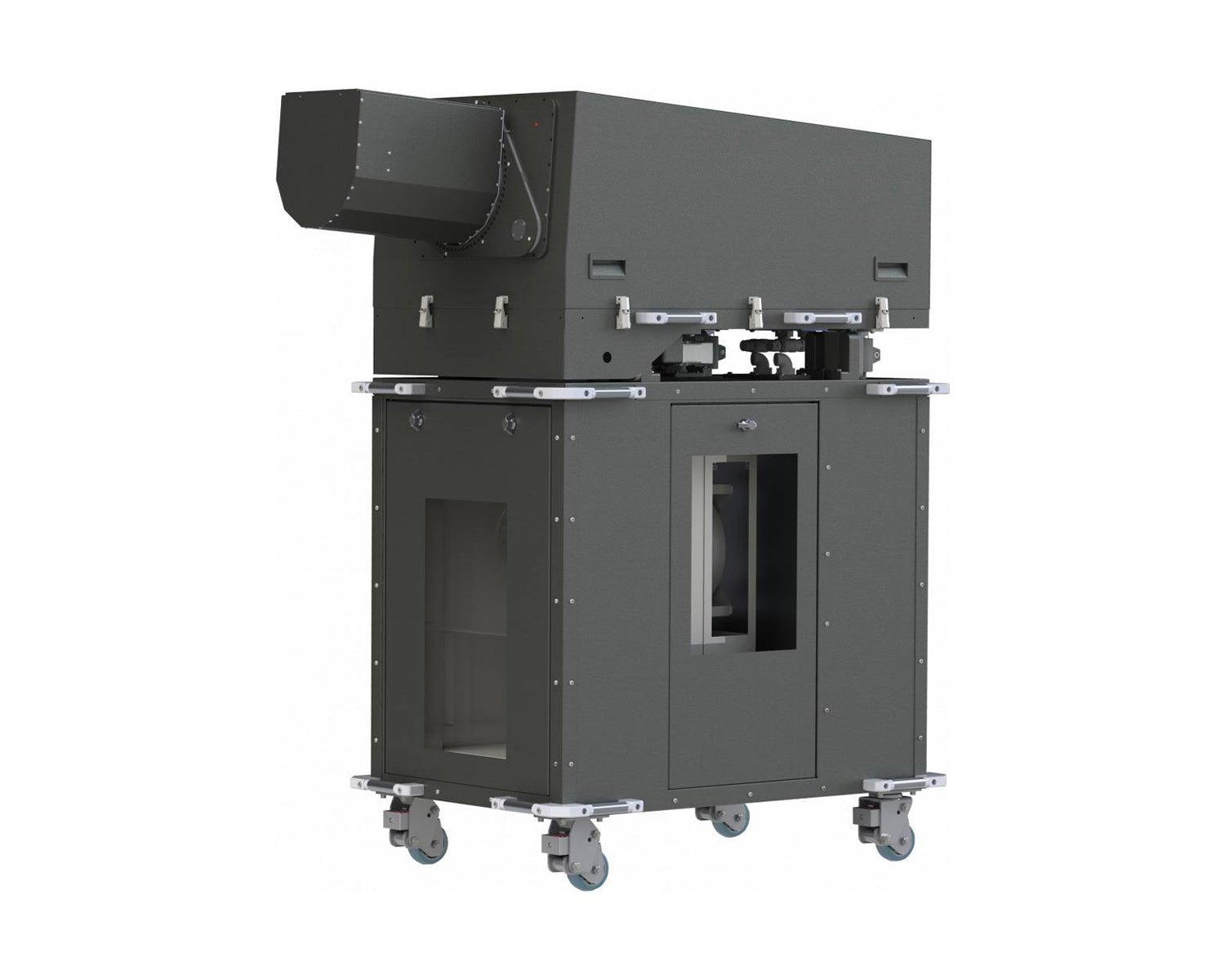

Extreme power 300 W RGB laser beam projector with xy moving mirror and analog colour mixture (full colour, including white). Specially designed for outdoor use on buildings, on mountains, as sky laser or landmark laser, or as sky-cannon-effect.

The RTI ANGO 300 is an ultra high power laser system that is designed for long distance laser visibility. The ANGO laser systems are full colour, analog modulated laser systems with an extremely thin and low divergent beam for the power. They are equipped with the latest high precision laser module technology of RTI.

With continuous wave output power of 300 W RGB, the RTI ANGO 300 is extreme in many ways - it‘s not only the power, but also the capability to move the beam!

The individual powers per source colour are well balanced, so the colour mixture is well and homogenous over long distances.

The divergence of only 1.0 mrad with a beam diameter at aperture of only 75 mm make the beam travel over extremely long distances, as power does not get lost in close proximity to the laser and the beam does not widen up much with increasing distance - so the power is preserved.

The RTI ANGO 300 is equipped with a mirror to deflect and position the beam on the x and y axis. The movement of the beam can be precisely controlled via DMX. The mirror can even be aligned 360° on the Tilt movement (y axis). A special, adjustable mechanism can physically limit the output angle to a certain range for safety reasons, so even glitches in the control signal cannot let the beam deviate out of the set projection area.

To make the ANGO laser systems withstand adverse weather conditions, they are equipped with an active air conditioning system for precise temperature control as well as with a durable, rainproof housing. Having the active AC, the specified operation temperature range for the RTI ANGO 300 is specified from -5 to +50°C.

To make sure the aperture does not get dirty or gets too much water in case of rain, a specially designed, moving output chamber is attached to the device to reduce maintenance to a minimum.

Due to the powerful built-in AC, the RTI ANGO 300 requires a 16A CEE 3-phase connection, but only consumes 7500W.

Product Features

• Extreme laser power of 300 W
• Analog modulated multi-color system, including white
• Movable beam with xy mirror
• 360° projection angle setting for tilt
• Weatherproof housing, IP64
• With active built-in AC

Product Specifications

• Guaranteed Power at aperture: 300\'000 mW
• Power Red: 100 W / 637 nm
• Power Green: 85 W / 525 nm
• Power Blue: 140 W / 445 nm
• Beam Specifications (full angle): 75 mm / 1.0 mrad
• Scanner: Moving xy Scanner mirror, 16 bit resolution
• Max. Scan Angle: 360° y axis (tilt), 60° x axis (pan)
• Operation Modes: DMX, ArtNET, stand-alone
• Laser Class: 4
• Laser Source: RTI Semiconductor
• Accessories: Manual, keys, interlock connector
• Power Supply: 16A CEE, 3 phase
• Power Consumption: 7500 W
• Dimensions: 1542 x 712 x 1670 mm
• Weight: 270 kg
