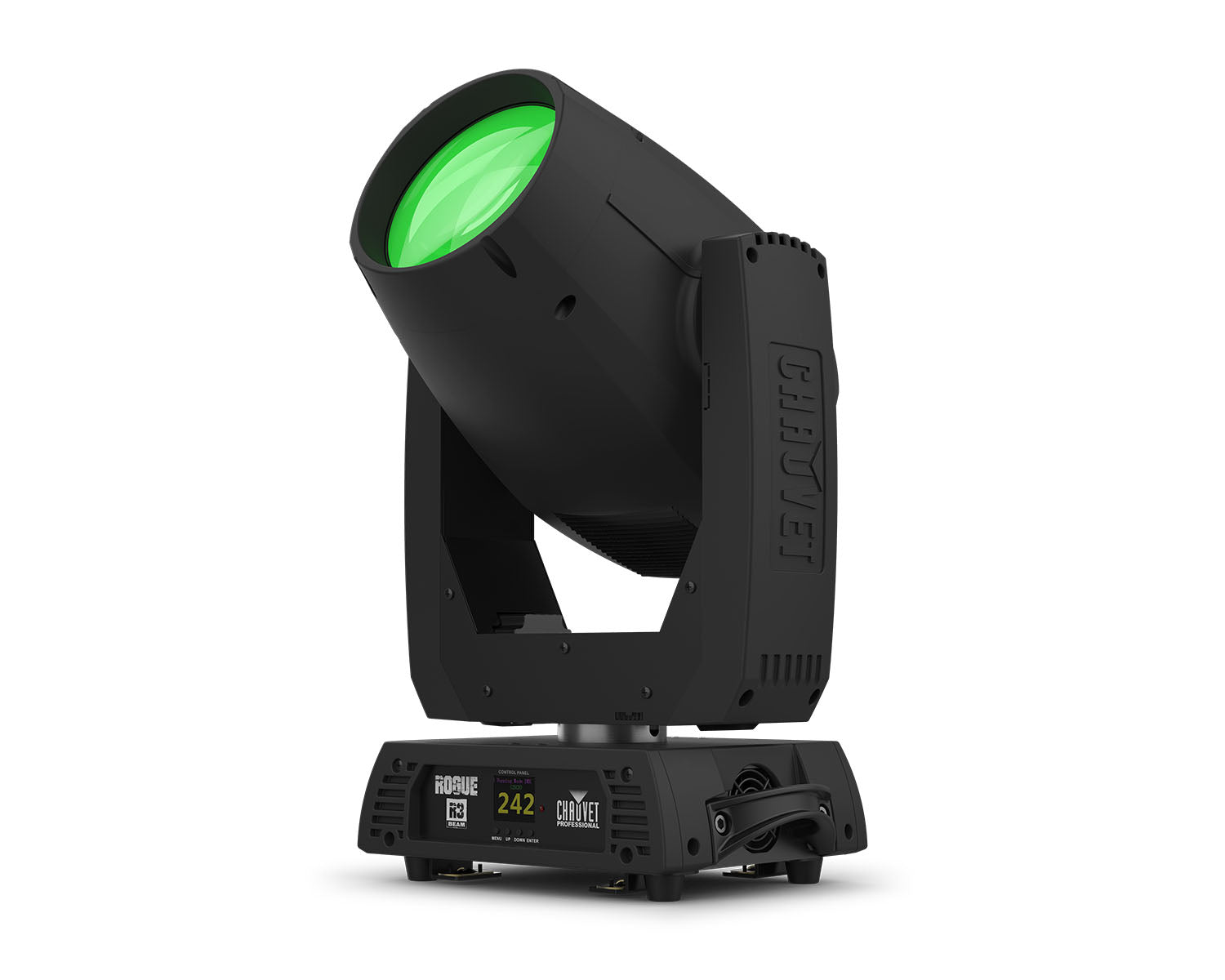

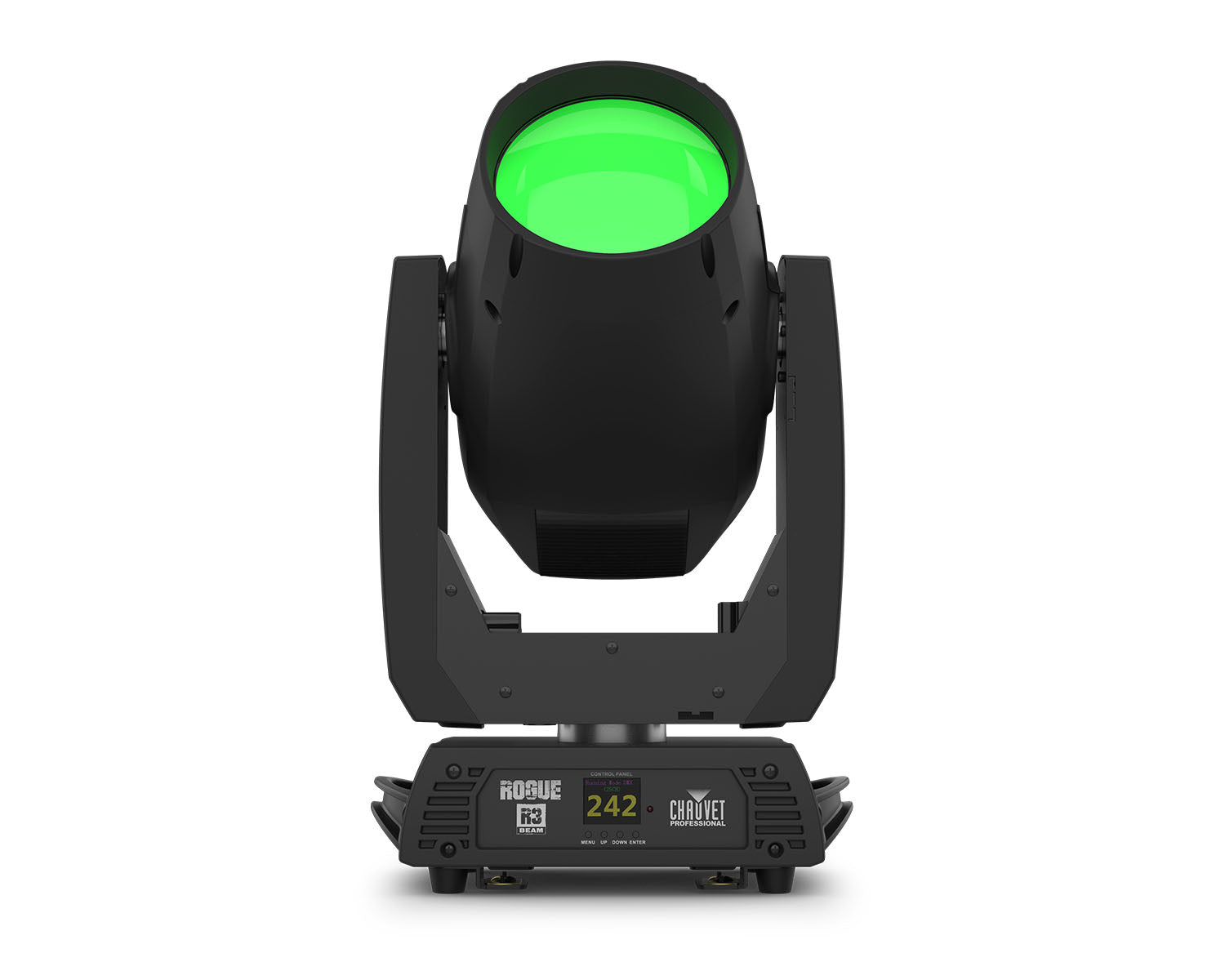

Rogue R3 Beam is the light cannon of the Rogue series, outputting over 208,000 lux at 15 meters from its 300 W Ushio NSL lamp. This fully-featured beam can be focused down to 0.8° degrees for extremely focused aerial effects alongside motorized frost and focus options. A color wheel equipped with 14 colors complimented by a gobo wheel with 17 gobos give you a wealth of dynamic effects, and both wheels are fully scrollable at variable speeds. Additionally, the unit features individually overlapping 8 and 24-facet prisms for an endless supply of creative beam looks. The unit is equipped with RDM and DMX protocols and features multiple control personalities.

Product Features

• Fully featured, high powered beam fixture with a single colour wheel, single static gobo wheel, layerable prisms, and 300 W Ushio NSL lamp rated at 8,000 hours life
• Fast and precise movement of pan and tilt functions
• Individually controllable and layerable 8- and 24-facet prisms
• Frost for even light distribution
• Tight 0.8° beam for extremely focused areal effects
• RDM Enabled for remote addressing and troubleshooting
• 17 static gobos for massive visual impact

Product Specifications

OPTICAL

• Light Source: 300W NSL Ushio lamp, 8000 K (Colour temp), 8,000 hours life expectancy
• Colour Temperature (at full): 7657 K
• CRI: 80.8
• Front Lens Diameter: 153 mm
• Beam Angle: 0.8°
• Field Angle: 1.6°
• Cutoff Angle: 2°
• Lumens – Output: 30,878
• Illuminance (total): 208,006 lux @ 15 m

DYNAMIC EFFECTS

• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
• Colours: 14 + white, split Colours, continuous scroll at variable speeds
• Gobos : 17 + open (17 metal), continuous scroll at variable speeds
• Dimmer: Motorized
• Shutter/Strobe: Motorized
• Focus: Motorized
• Frost: Motorized
• Prism: 8 facets, motorized, rotating
• Prism: 24 facets, motorized, rotating
• Strobe Rate: 0 to 15 Hz
• Move in Black: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 12.79 x 8.66 x 21.65 in (325 x 220 x 550 mm)
• Weight: 34.4 lb (15.6kg)
• Exterior Colour: Black
• Housing Material: High-impact flame-retardant polymer

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik
• Power Input: Neutrik powerCON
• Power Output: Neutrik® powerCON®
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 16 or 19
• Modes/Personalities: 2 personalities (16, 19)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 422 W, 4.20 A @ 100 V, 60 Hz
• Power and Current: 418 W, 3.55 A @ 120 V, 60 Hz
• Power and Current: 411 W, 1.98 A @ 208 V, 60 Hz
• Power and Current: 411 W, 1.78 A @ 230 V, 50 Hz
• Power and Current: 406 W, 1.68 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's in the Box?

• Rogue R3 Beam
• Neutrik powerCON power cord
• 2 Omega brackets with mounting hardware

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• DMX cables
• Flight Case: #CP2CASER2XR3SPOT
• UPLOAD 08 software uploader
