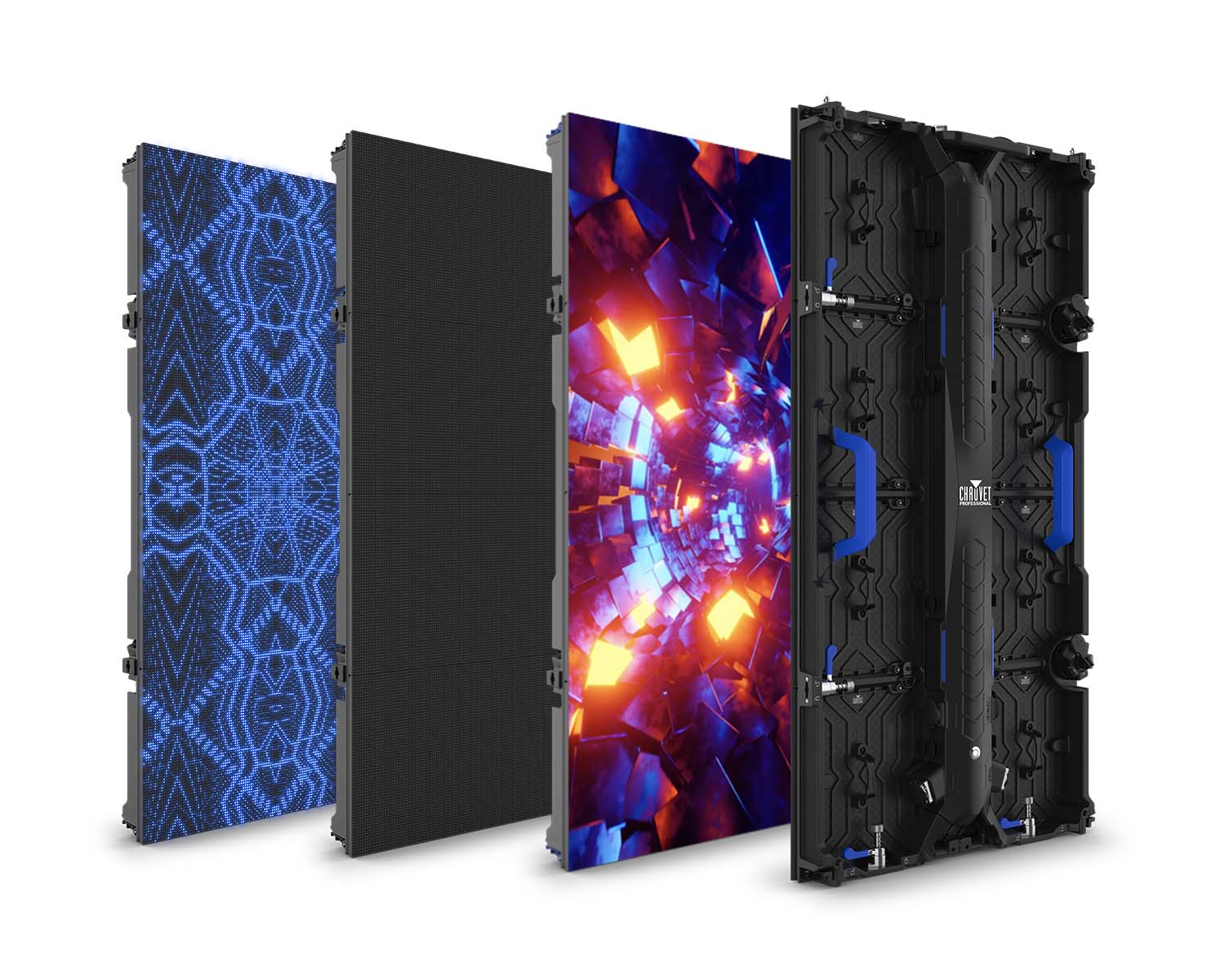

CHAREM3IP - CHAUVET Professional REM 3IP LED Video Panel 3.9mm Pixel Pitch or 5000 NITS 4 Pack IP65 Image 1

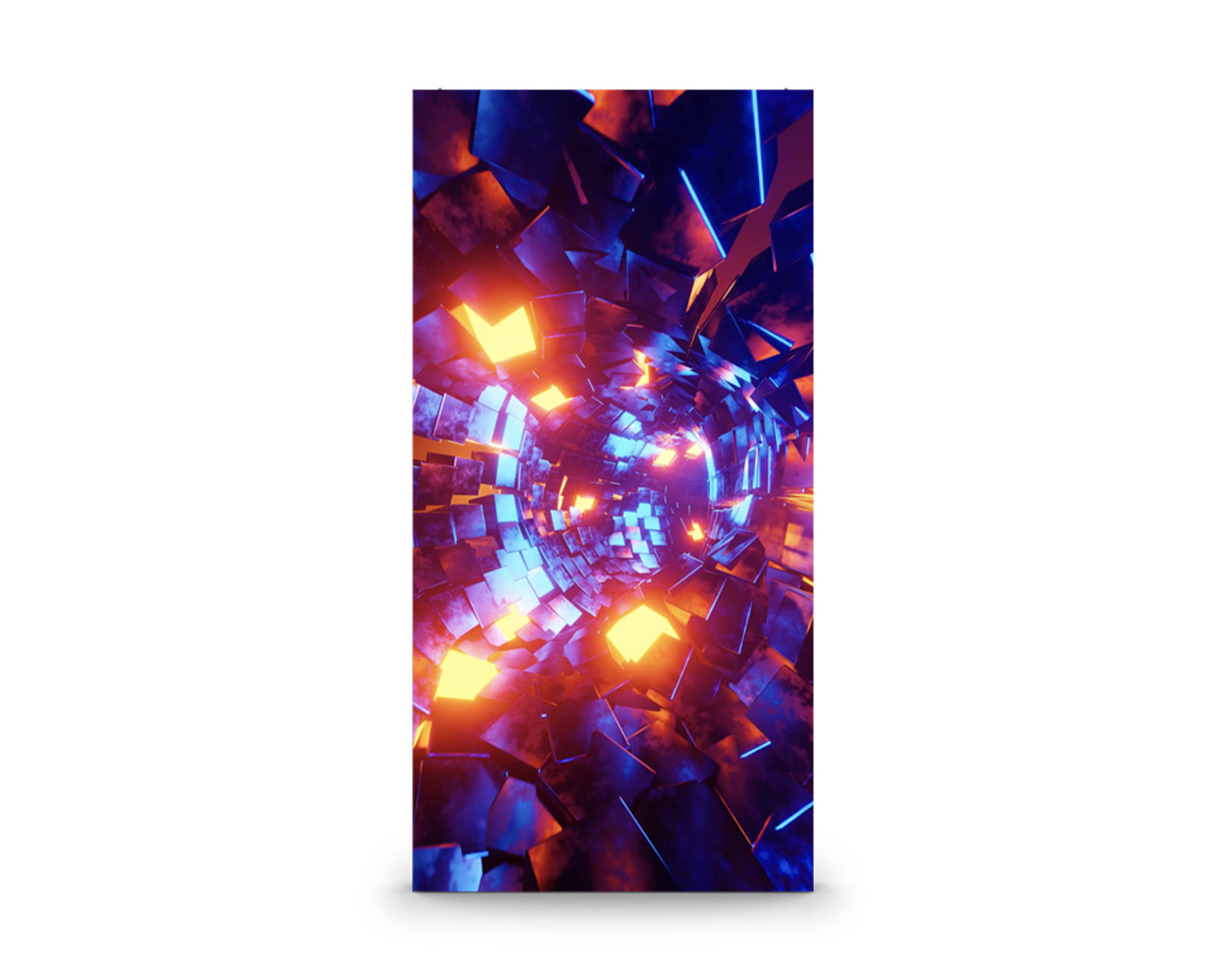

CHAREM3IP - CHAUVET Professional REM 3IP LED Video Panel 3.9mm Pixel Pitch or 5000 NITS 4 Pack IP65 Image 2

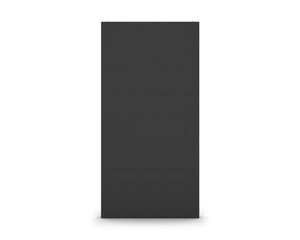

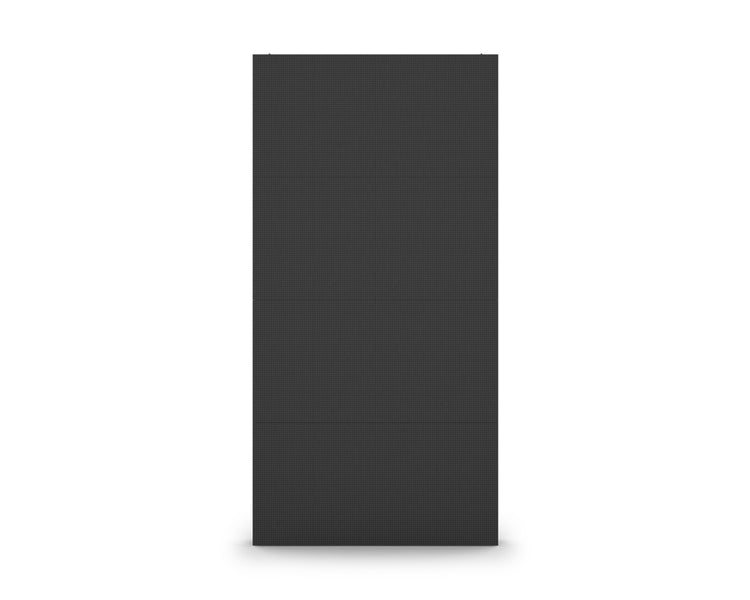

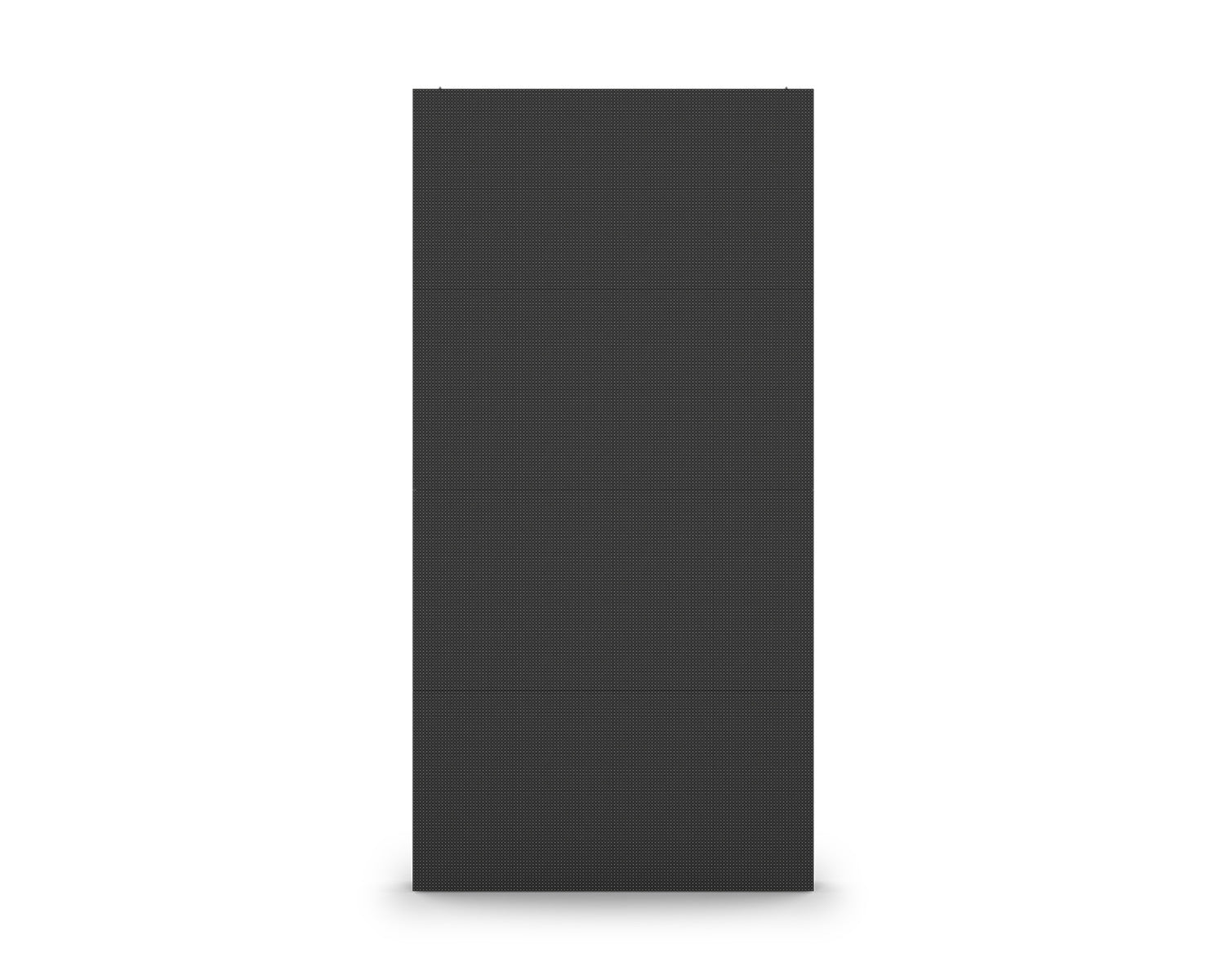

CHAREM3IP - CHAUVET Professional REM 3IP LED Video Panel 3.9mm Pixel Pitch or 5000 NITS 4 Pack IP65 Image 3

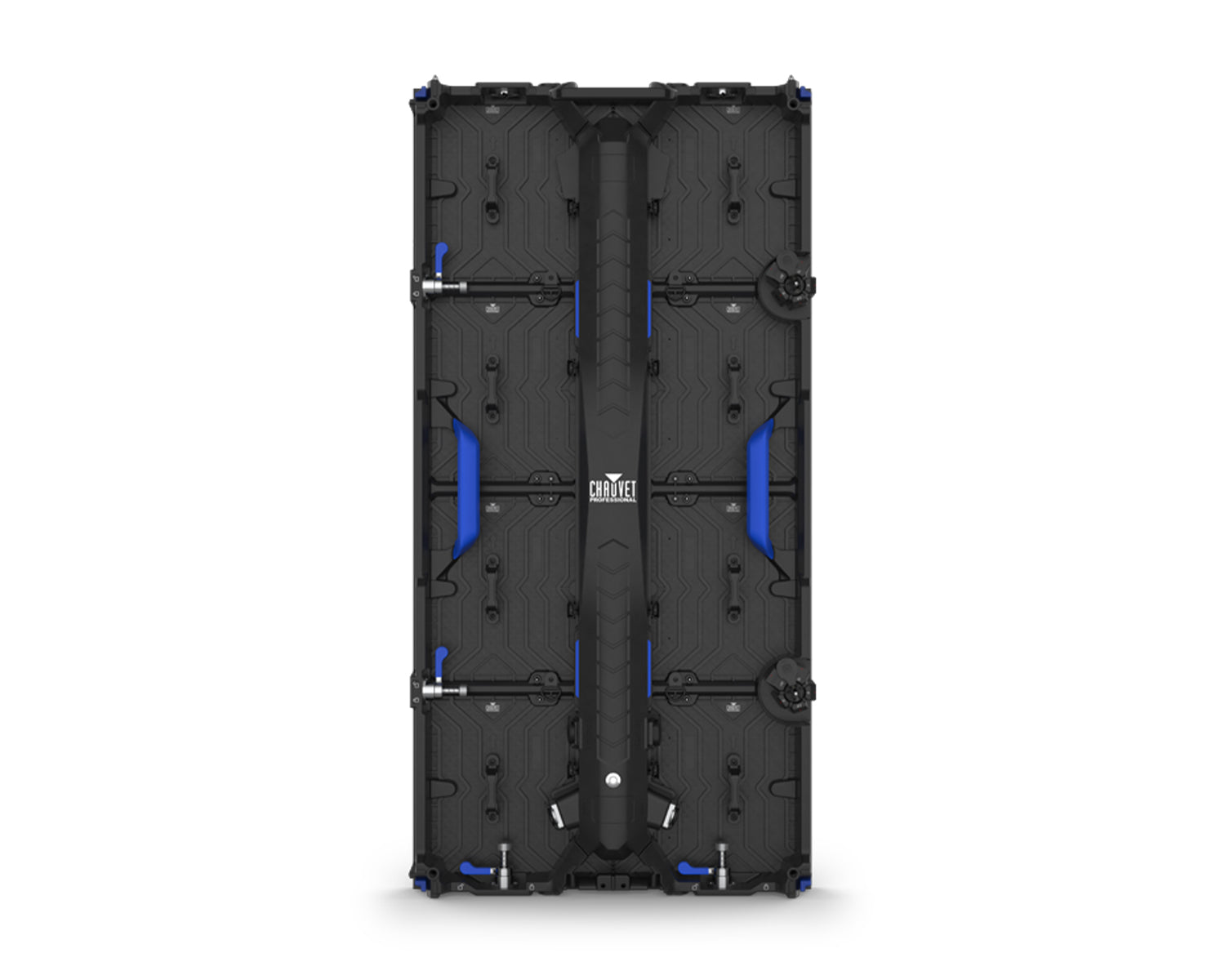

CHAREM3IP - CHAUVET Professional REM 3IP LED Video Panel 3.9mm Pixel Pitch or 5000 NITS 4 Pack IP65 Image 4

REM 3IP is a bright 4500 NITS indoor/outdoor hybrid video wall solution with a 3.9mm pitch, integrated convex/concave curving capabilities, and universal magnetic LED modules. Its DCI-P3 colour gamut LEDs offer 26% more colour possibilities compared to standard sRGB/Rec.709 LEDs. With high-speed 7680Hz LED drivers, A10s Pro Novastar Receiving cards, and low latency, REM 3IP offers top-tier performance and signal processing for outdoor rental markets as well as offering high quality indoor performance for live stages and events.

Product Features

3.9 mm pitch, high resolution, modular, indoor/outdoor hybrid video panel
Map and scale your wall with the Novastar MX40 Pro sender
Universal, magnetic LED modules for easy replacement and servicing
Magnetic-assisted hanging integrated into frames makes building a screen fast and easy with minimal labor/effort required
REM 3IP offered in two physical sizes: 1 m x 0.5 m, 0.5 x 0.5 m (special order)
Integrated curving capabilities for concave and convex configurations
Spring-loaded corner protection for safe transportation and handling
Operating in the DCI-P3 colour space and driven via the premium A10s Pro receiver card from Novastar, black body LEDs accurately reproduce video at 22-bit+ grayscale and a wide colour gamut
High performance LED drivers deliver 7,680 Hz refresh rate for camera-friendly operation in high-demand applications
Low latency and HDR10 supported for VR/XR studio, live applications
Design allows for overhead hanging, ground stacking, and wall mounting, maximized for multiple applications
Specialized anti-reflective coating applied to the front of LED modules ensures optimal viewing comfort
Ground support/stacking system available in scalable road case-GROUNDSUPPORT2KIT

Product Specifications

Optical

Light Source: 32,768 LEDs (tri-colour RGB) SMD 2121, 100,000 hours life expectancy
Color Wavelength: red (615 to 630 nm), green (520 to 535 nm), blue (465 to 480 nm)
Color Space: DCI-P3
Viewing Angle (H/V): 140°/140°
Calibrated Illuminance: 4,500 NITS (calibrated)
Maximum Illuminance: >5,000 NITS (calibration disabled)
Grayscale: 22-bit+
Receiver Card : A10s Pro
Drive Type : 1/16
Pixels: 128 x 256
Pixel Pitch: 3.9 mm
Minimum Viewing Distance: 7.5 ft (2.3 m)
Pixel Density: 65,536/m2
Display Refresh Rate: 7,680 Hz (S-PWM)

Construction/Physical

Dimensions: 19.69 x 39.37 in (500 x 1000 mm)
Weight: 31.2 lb (14.15 kg)
Threaded Bolt: M10, 1.5
Exterior Color: Black
Housing Material: Aluminum ADC12
LED Module Material: Glass fi lled Polycarbonate
Maximum vertical hang: 11 panels

Connections

Power Connection: Edison (local) plug to Seetronic® powerKON®
Power Input: Seetronic® powerKON®
Power Output: Seetronic® powerKON®
Data Connectors: Seetronic® etherKON®
Cable Length (signal extension): 4 ft (1.2 m)
Cable Length (power): 4 ft (1.2 m)
Cable Length (power extension): 6 ft (1.8 m)

Control

Control Protocol: Novastar VMP platform
Recommended Processor/Driver: Novastar MX40 Pro
Panel Resolution (L x H): 128 x 256
Maximum Panels/Novastar MX40 Pro (20 ports):
HDR off , 24 Hz
- 8-bit video source: 50/port, up to 1,000/Processor/Sender
- 10-bit video source: 37/port, up to 740/Processor/Sender
- 12-bit video source: 25/port, up to 500/Processor/Sender
HDR off , 30 Hz
- 8-bit video source: 40/port, up to 800/Processor/Sender
- 10-bit video source: 30/port, up to 600/Processor/Sender
- 12-bit video source: 20/port, up to 400/Processor/Sender
HDR off , 60 Hz
- 8-bit video source: 20/port, up to 400/Processor/Sender
- 10-bit video source: 15/port, up to 300/Processor/Sender
- 12-bit video source: 10/port, up to 200/Processor/Sender
HDR off , 120 Hz
- 8-bit video source: 10/port, up to 200/Processor/Sender
- 10-bit video source: 7/port, up to 140/Processor/Sender
- 12-bit video source: 5/port, up to 100/Processor/Sender
HDR off , 144 Hz
- 8-bit video source: 8/port, up to 160/Processor/Sender
- 10-bit video source: 6/port, up to 120/Processor/Sender
- 12-bit video source: 4/port, up to 80/Processor/Sender
Maximum Panels Tall/ Novastar MX40 Pro: (adjust input/source resolution as needed):
- 4 @ 1080 height
- 5 @ 1344 height
- 6 @ 1680 height
- 8 @ 2160 height
Maximum Panels Wide/ Novastar MX40 Pro:
(adjust input/source resolution as needed):
- 15 @ 1920 wide resolution
- 30 @ 3840 wide resolution
- 64 @ 8192 wide resolution
