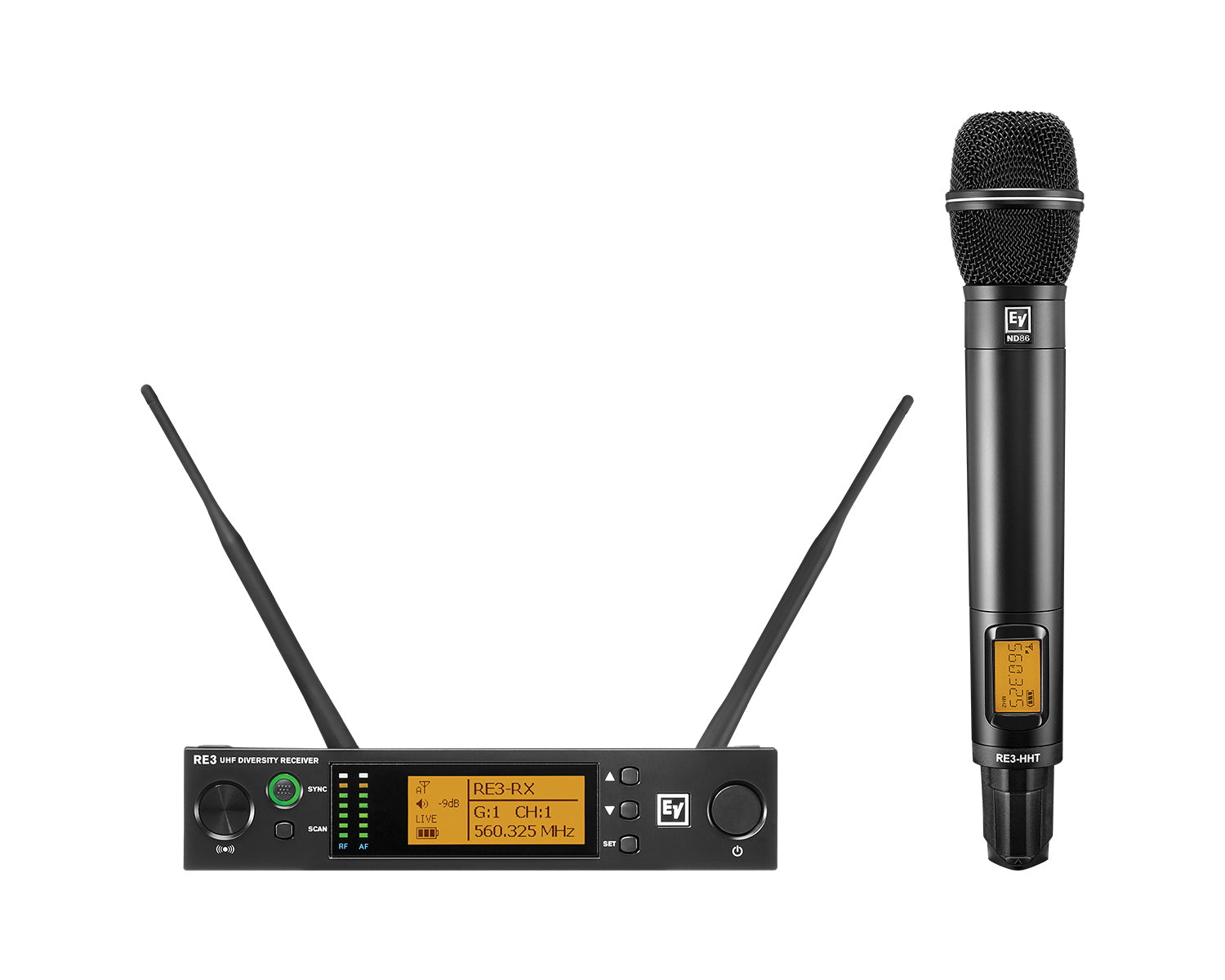

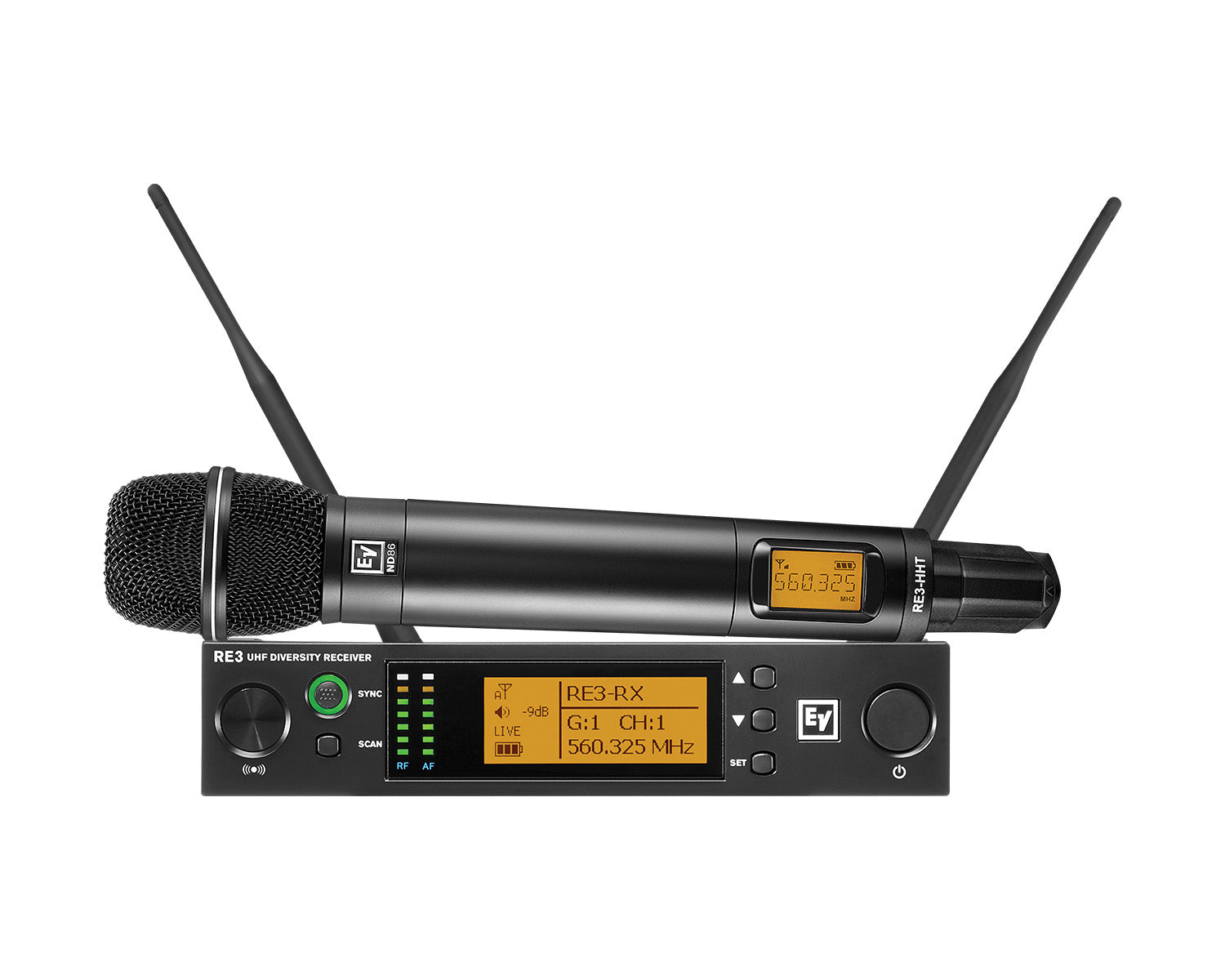

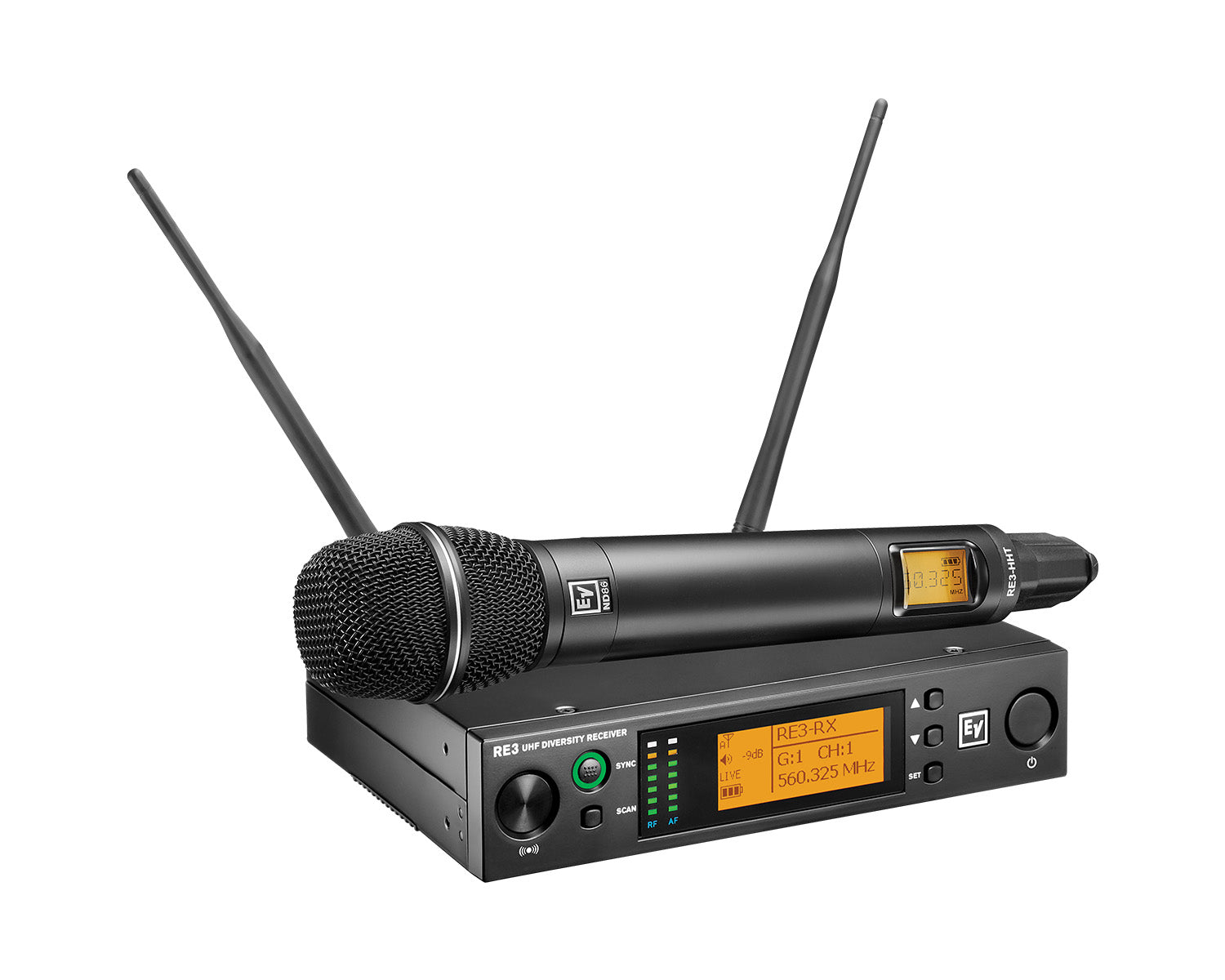

Handheld UHF wireless set featuring ND86 dynamic supercardioid microphone head for vocal performance and presentations. The ND86’s sound is present, smooth, and detailed, and its supercardioid polar pattern provides excellent acoustic control in even the largest of venues.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

Product Features

ND86-RC3 Wireless Head with ND86 Capsule

• Thread-on microphone head for Electro-Voice handheld transmitters (compatible with many other brand handheld transmitters)
• Excellent acoustic control in even the largest of venues: present, smooth and detailed sound
• Large diaphragm dynamic capsule creates a rich and detailed frequency response
• Shock-mounted capsule minimizes handling noise
• Memraflex grille resists denting

RE3-HHT Handheld Transmitter

• Robust metal body
• Sync function for easy frequency setup
• Selectable low and high output power (band specific)
• Up to 36 MHz tuning bandwidth (band specific)
• Common threaded coupling allows microphone head interchangeable

RE3-RX Diversity Receiver

• Diversity reception minimizes dropouts
• Frequency scanning for selecting open frequencies
• Sync function links transmitter to receiver for easy setup
• Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
• Easy-to-read LCD display

Product Specifications

ND86-RC3 Wireless Head with ND86 Capsule

• Element type: Dynamic neodymium magnet structure
• Frequency response, close: 30 Hz-17 kHz
• Frequency response, far: 70 Hz-17 kHz
• Polar pattern: Supercardioid Sensitivity, open circuit
• voltage @ 1 kHz: 5.6 mV/Pascal (-45 dBV/Pa)
• Maximum SPL: 134.5 dB SPL (1% THD)
• Impedance: 1000 ohms
• Power requirements: 4-8 VDC
• Polarity: Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact
• Electrical contact: 3-Ring/3-Pin
• Threaded coupling: 1.25" diameter 28 UN-2A thread pitch
• Finish: Black polyurethane paint
• Materials: Aluminium, steel, steel wire grille screen
• Dimensions:
  • Length: 3.6 in. (91 mm)
  • Diameter: 2.0 in. (50.5 mm)
• Net weight: 6.5 oz (184 g)
• Shipping weight: 8.4 oz (238 g)

RE3-HHT Handheld Transmitter

• Frequency oscillation mode: Phase-locked loop (PLL)
• Available band names, tuning bandwidths, and carrier frequency ranges:
  • 5L: 36 MHz (488-524 MHz)
  • 5H: 36 MHz (560-596 MHz)
  • 6M: 10 MHz (653-663 MHz)
  • 8M: (823-865 MHz)*
  • T: 3 MHz (803-806 MHz)
  • * 8M is split into two segments:
  • 823-832MHz: 9MHz
  • 863-865MHz: 2MHz
• Sync frequency: Ultrasonic
• RF power output: Frequency bands
  • 5L (488-524MHz): Low 10mW / High 50mW
  • 5H (560-596MHz): Low 10mW / High 50mW
  • 6M (653-663MHz): Low 10mW / High 20mW
  • 8M (823-865MHz) 10mW
  • T (803-806MHz): Low 10mW / High 50mW
• Display by: LCD + LED
• Function controls: Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock.
• RF stability: <±10kHz@Fc
• Modulation frequency shift: Wideband FM ±48kHz deviation
• Harmonic radiation: <-50dBc
• Battery: 2 x AA alkaline battery or NiMH rechargeable battery
• Charging contacts: Yes
• Microphone coupling: 1.25” diameter, 28 UN-2A thread pitch
• Microphone electrical contact: 3-ring/3-pin
• Finish: Black polyurethane paint
• Dimensions (without head): Height: 7.52 in. (191mm) Width at threaded end: 1.46 in. (37mm) Width at control cover: 0.856 in. (22mm)
• Net weight (without head): 12.2 oz. (346 g)
• Gross weight (without head): 16.9 oz. (480 g)

RE3-RX Diversity Receiver

• Frequency oscillation mode: Phase-locked loop (PLL)
• Carrier frequency range: 470 - 865 MHz (tuning bandwidth is band dependent)
• Band names, tuning bandwidths, and carrier frequency ranges:
  • 5L: 36 MHz (488-524 MHz)
  • 5H: 36 MHz (560-596 MHz)
  • 6M: 10 MHz (653-663 MHz)
  • 8M: (823-865 MHz)*
  • T: 3 MHz (803-806 MHz)
  • * 8M is split into two segments:
  • 823-832MHz: 9MHz
  • 863-865MHz: 2MHz
• Sync frequency: Ultrasonic 40 kHz
• Diversity: Antenna diversity
• Bandwidth: 36MHz
• Signal/Noise ratio: >100dB(A)
• Total harmonic distortion (Thd): <0.6%@1kHz
• Receiving sensitivity: -81dBm for -12dB SINAD
• Frequency response:
  • 63Hz~16kHz±2dB (BPT)
  • 51Hz~16kHz±2dB (HHT)
• Antenna type: Detachable ½ wave with BNC connector
• Antenna booster power: DC12 - 15V/100mA
• Function display by: LCD
• Contents of display: Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.
• Control functions: Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.
• Sync data options: Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
• Audio frequency output level:
  • Ref：±22.5kHz Dev@1kHz Tone ¼” (6.3mm)
  • Phone Jack：-10dBV XLR
  • Jack：-4dBV(Line)、-24dBV(MIC)
• Audio frequency output impedance:
  • 240Ω (unbalanced)
  • 1400Ω (balanced)
• Squelch and noise muting: Noise muting and tone code locking
• Output ports:
  • 1 x balanced XLRM jack
  • 1 x unbalanced ¼” TS (6.3mm) jack
• Power supply: DC12~15V/500mA
• Finish: Black polyurethane paint
• Dimensions:
  • Width: 8.27 in. (210mm)
  • Height: (with feet attached) 1.85 in. (47mm)
  • Height: (without feet attached) 1.73 in. (44mm)
  • Depth: (including antenna jack) 6.89 in. (175mm)
  • Depth: (not including antenna jack) 6.1 in. (155mm)
• Net weight: 2.71 lb (1.23 kg)
• Gross weight: 3.28 lb (1.49 kg)

What's in the Box?

• 1 x Receiver
• 2 x Receiver antennas
• 1 x Receiver power supply with four power convention-specific AC plug clips
• 2 x Rack-mount brackets
• 2 x Rack-mount bracket hole filler plugs
• 1 x Pack of four screws to mount rack brackets
• 1 x Safety booklet
• 1 x Installation manual
