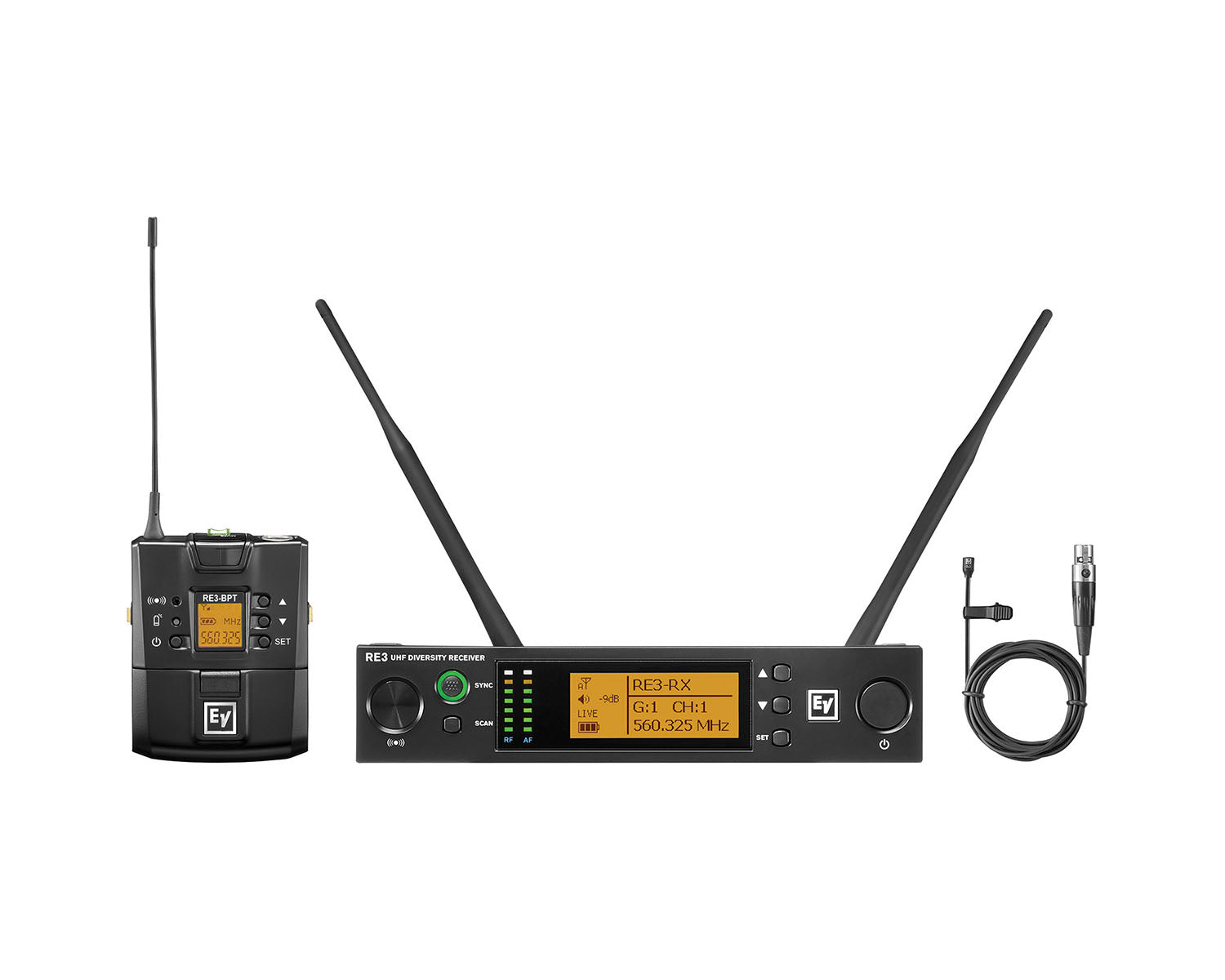

RE3 receivers and transmitters are available in five pre-packaged bodypack transmitter sets, configured to cover a wide range of performance and presentation applications. Sets contain one 1/2-rack-space diversity receiver with antennas, a universal power supply, a rack mount kit, a bodypack transmitter, batteries, and most contain an input device.

RE3 handheld sets are available in a total of five bandwidths for international coverage, strategically selected to minimize the complexities of today’s challenging RF environments. Three of those bandwidths are available globally, which include two 36 MHz-wide bands in the low and high 500 MHz spectrum, as well as one strategically chosen to operate within the 600 MHz duplex gap of 653 – 663 MHz, which the US FCC has dedicated for wireless microphone use. A fourth band of 823 – 865 MHz is for use only in select European countries, and a fifth band of 803 – 806 MHz for exclusive use in Thailand.

Product Features

• Pre-packaged bodypack transmitter sets with the latest EV transmitter input devices, complemented with an extensive range of accessories for every application
• Designed to deliver superior audio performance with best-in-class wireless flexibility and ease of use
• Band: 8M
• Carrier Frequency Range, Tuning Bandwidth:
• 823-832MHz: 9MHz
• 863-865MHz: 2MHz
• RF Power Output: 10mW

Product Specifications

• Frequency oscillation mode: Phase-locked loop (PLL)
• Available band names, tuning bandwidths, and carrier frequency ranges:
  • 5L: 36 MHz (488-524 MHz)
  • 5H: 36 MHz (560-596 MHz)
  • 6M: 10 MHz (653-663 MHz)
  • 8M: (823-865 MHz)*
  • T: 3 MHz (803-806 MHz)
  • *8M is split into two segments:
  • 823-832MHz: 9MHz
  • 863-865MHz: 2MHz
• Sync frequency: Ultrasonic
• RF power output: Frequency band specific:
  • 5L (488-524MHz): Low 10mW / High 50mW
  • 5H (560-596MHz): Low 10mW / High 50mW
  • 6M (653-663MHz): Low 10mW / High 20mW
  • 8M (823-865MHz) 10mW
  • T (803-806MHz): Low 10mW / High 50mW
• Display by: LCD + LED
• Function controls: Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock.
• RF stability: <±10kHz@Fc
• Modulation frequency shift: Wideband FM ±48kHz deviation
• Harmonic radiation: <-50dBc
• Input jack: 4-pin mini jack
• Battery: 2 x AA alkaline battery or NiMH rechargeable battery
• Charging contacts: Yes
• Finish: Black polyurethane paint
• Dimensions (without antenna):
• Height: 3.2 in. (81.5mm)
• Width: 2.54 in. (64.5mm)
• Depth: 0.98 in. (25mm)
