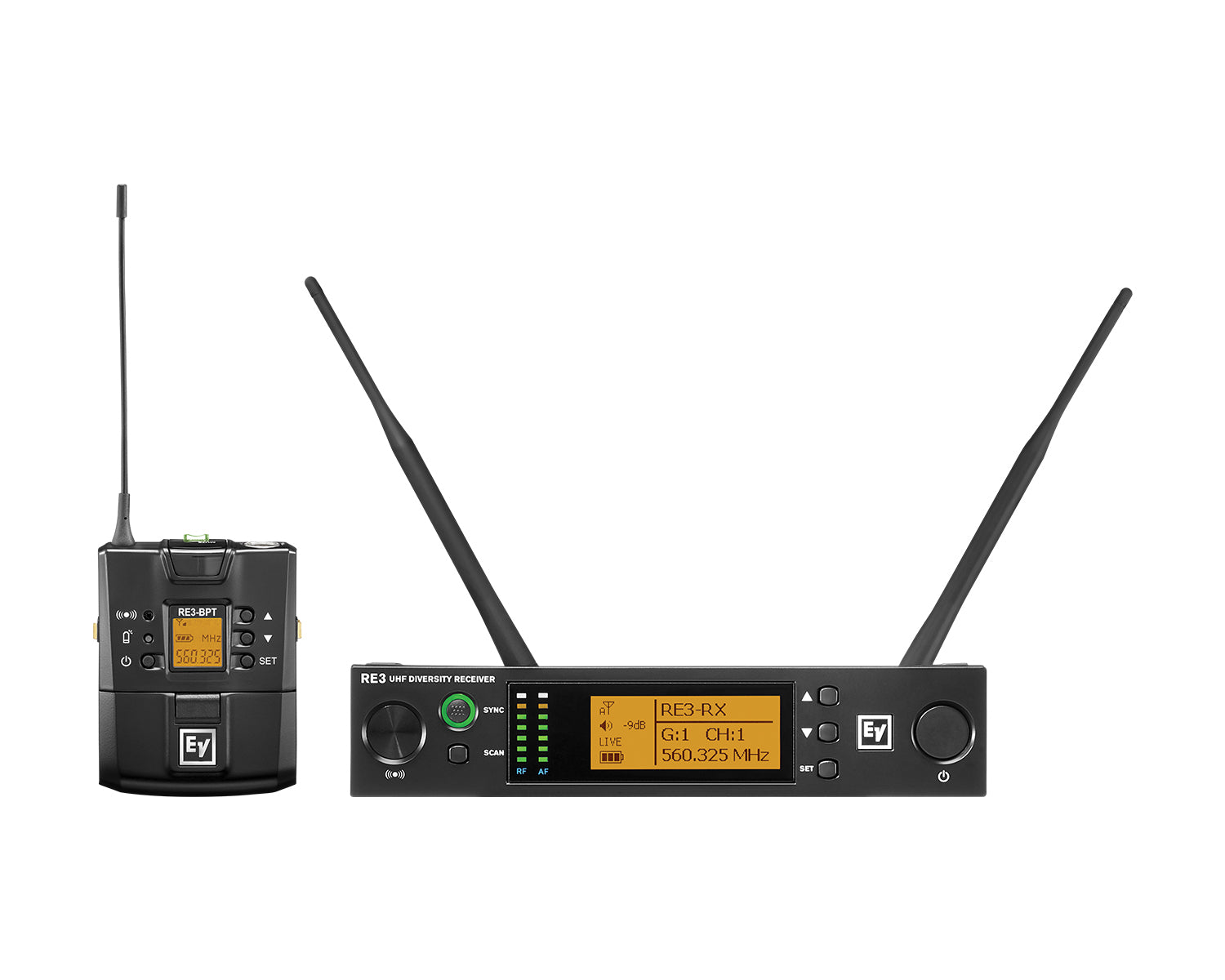

ELERE3BPNID8M - Electro-Voice RE3 BPNID 8M CH70 and Duplex Gap Bodypack System with NO Mic Image 1

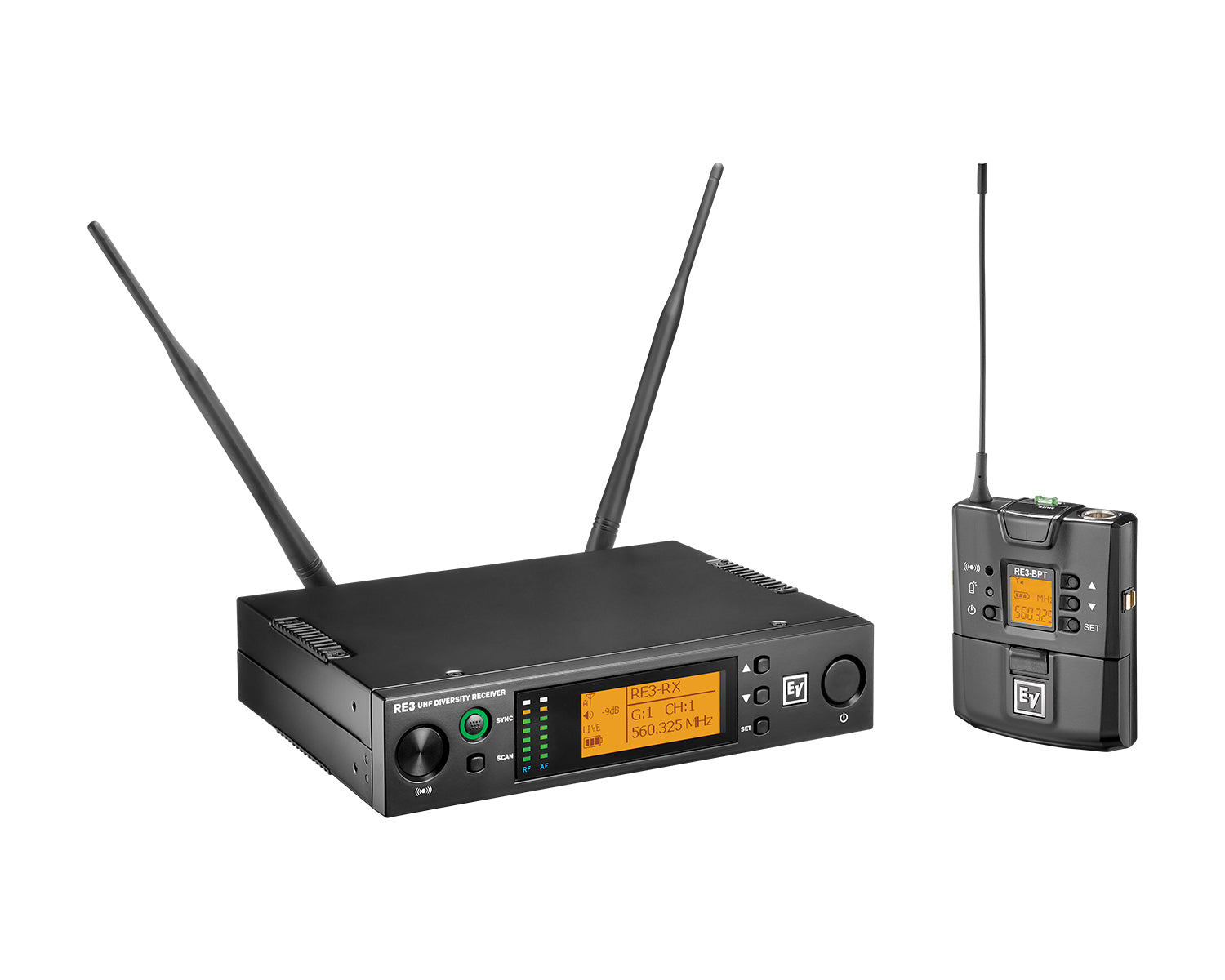

ELERE3BPNID8M - Electro-Voice RE3 BPNID 8M CH70 and Duplex Gap Bodypack System with NO Mic Image 2

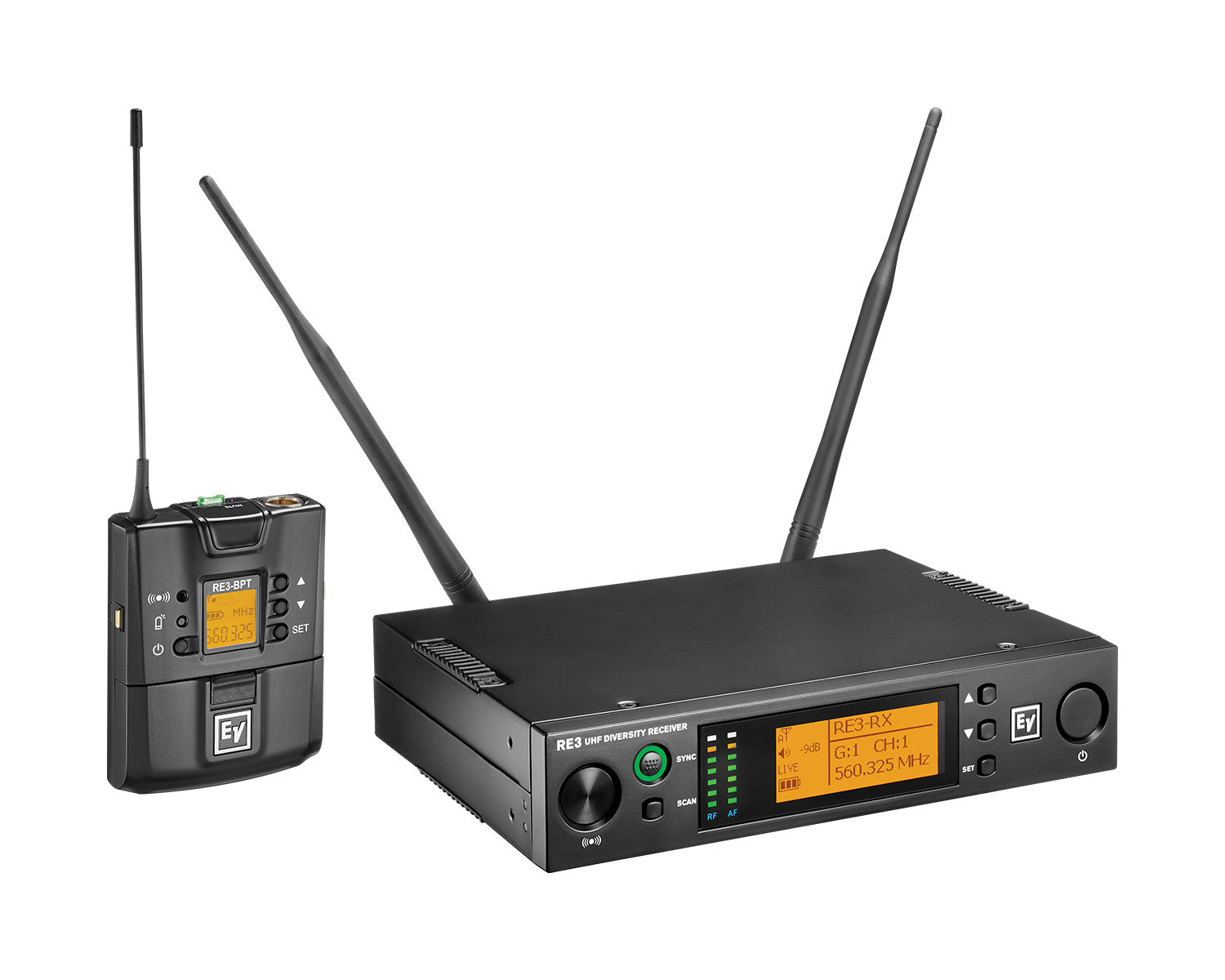

ELERE3BPNID8M - Electro-Voice RE3 BPNID 8M CH70 and Duplex Gap Bodypack System with NO Mic Image 3

Bodypack UHF wireless set containing no input device for the bodypack transmitter. Serving as an ideal foundation set, it can be completed when coupled with any Electro-Voice lavalier, headworn, or instrument input device.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.

Product Features

RE3-BPT Bodypack Transmitter

Robust metal body
Sync function for easy frequency setup
Selectable low and high output power (band specific)
Up to 36 MHz tuning bandwidth (band specific)
Unique magnetic latch and lock for easy access to batteries

RE3-RX Diversity Receiver

Diversity reception minimizes dropouts
Frequency scanning for selecting open frequencies
Sync function links transmitter to receiver for easy setup
Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
Easy-to-read LCD display

Product Specifications

RE3-BPT Bodypack Transmitter

Frequency oscillation mode: Phase-locked loop (PLL)
Available band names, tuning bandwidths, and carrier frequency ranges:
- 5L: 36 MHz (488-524 MHz)
- 5H: 36 MHz (560-596 MHz)
- 6M: 10 MHz (653-663 MHz)
- 8M: (823-865 MHz)*
- T: 3 MHz (803-806 MHz)
- *8M is split into two segments:
- 823-832MHz: 9MHz
- 863-865MHz: 2MHz
Sync frequency: Ultrasonic
RF power output: Frequency band specific:
- 5L (488-524MHz): Low 10mW / High 50mW
- 5H (560-596MHz): Low 10mW / High 50mW
- 6M (653-663MHz): Low 10mW / High 20mW
- 8M (823-865MHz) 10mW
- T (803-806MHz): Low 10mW / High 50mW
Display by: LCD + LED
Function controls: Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock.
RF stability: <±10kHz@Fc
Modulation frequency shift: Wideband FM ±48kHz deviation
Harmonic radiation: <-50dBc
Input jack: 4-pin mini jack
Battery: 2 x AA alkaline battery or NiMH rechargeable battery
Charging contacts: Yes
Finish: Black polyurethane paint
Dimensions (without antenna):
- Height: 3.2 in. (81.5mm)
- Width: 2.54 in. (64.5mm)
- Depth: 0.98 in. (25mm)
Net weight: 6.14 oz. (0.174 kg)
Gross weight: 8.29 oz. (0.235 kg)

RE3-RX Diversity Receiver

Frequency oscillation mode: Phase-locked loop (PLL)
Carrier frequency range: 470 - 865 MHz (tuning bandwidth is band dependent)
Band names, tuning bandwidths, and carrier frequency ranges:
- 5L: 36 MHz (488-524 MHz)
- 5H: 36 MHz (560-596 MHz)
- 6M: 10 MHz (653-663 MHz)
- 8M: (823-865 MHz)*
- T: 3 MHz (803-806 MHz)
- * 8M is split into two segments:
- 823-832MHz: 9MHz
- 863-865MHz: 2MHz
Sync frequency: Ultrasonic 40 kHz
Diversity: Antenna diversity
Bandwidth: 36MHz
Signal/Noise ratio: >100dB(A)
Total harmonic distortion (Thd): <0.6%@1kHz
Receiving sensitivity: -81dBm for -12dB SINAD
Frequency response:
- 63Hz~16kHz±2dB (BPT)
- 51Hz~16kHz±2dB (HHT)
Antenna type: Detachable ½ wave with BNC connector
Antenna booster power: DC12 - 15V/100mA
Function display by: LCD
Contents of display: Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.
Control functions: Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.
Sync data options: Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
Audio frequency output level:
- Ref：±22.5kHz Dev@1kHz Tone ¼” (6.3mm)
- Phone Jack：-10dBV XLR
- Jack：-4dBV(Line)、-24dBV(MIC)
Audio frequency output impedance:
- 240Ω (unbalanced)
- 1400Ω (balanced)
Squelch and noise muting: Noise muting and tone code locking
Output ports:
- 1 x balanced XLRM jack
- 1 x unbalanced ¼” TS (6.3mm) jack
Power supply: DC12~15V/500mA
Finish: Black polyurethane paint
Dimensions:
- Width: 8.27 in. (210mm)
- Height: (with feet attached) 1.85 in. (47mm)
- Height: (without feet attached) 1.73 in. (44mm)
- Depth: (including antenna jack) 6.89 in. (175mm)
- Depth: (not including antenna jack) 6.1 in. (155mm)
Net weight: 2.71 lb (1.23 kg)
Gross weight: 3.28 lb (1.49 kg)
