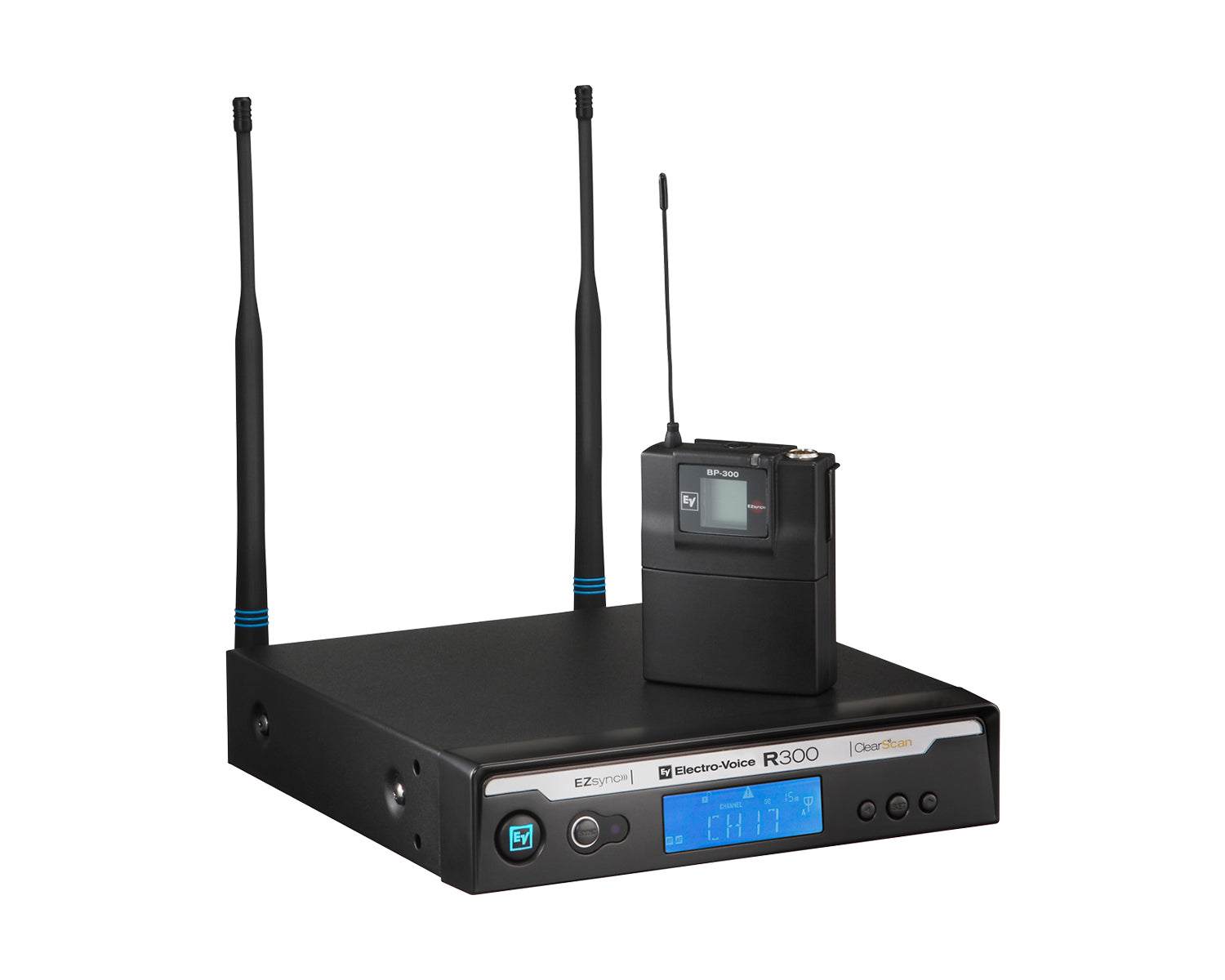

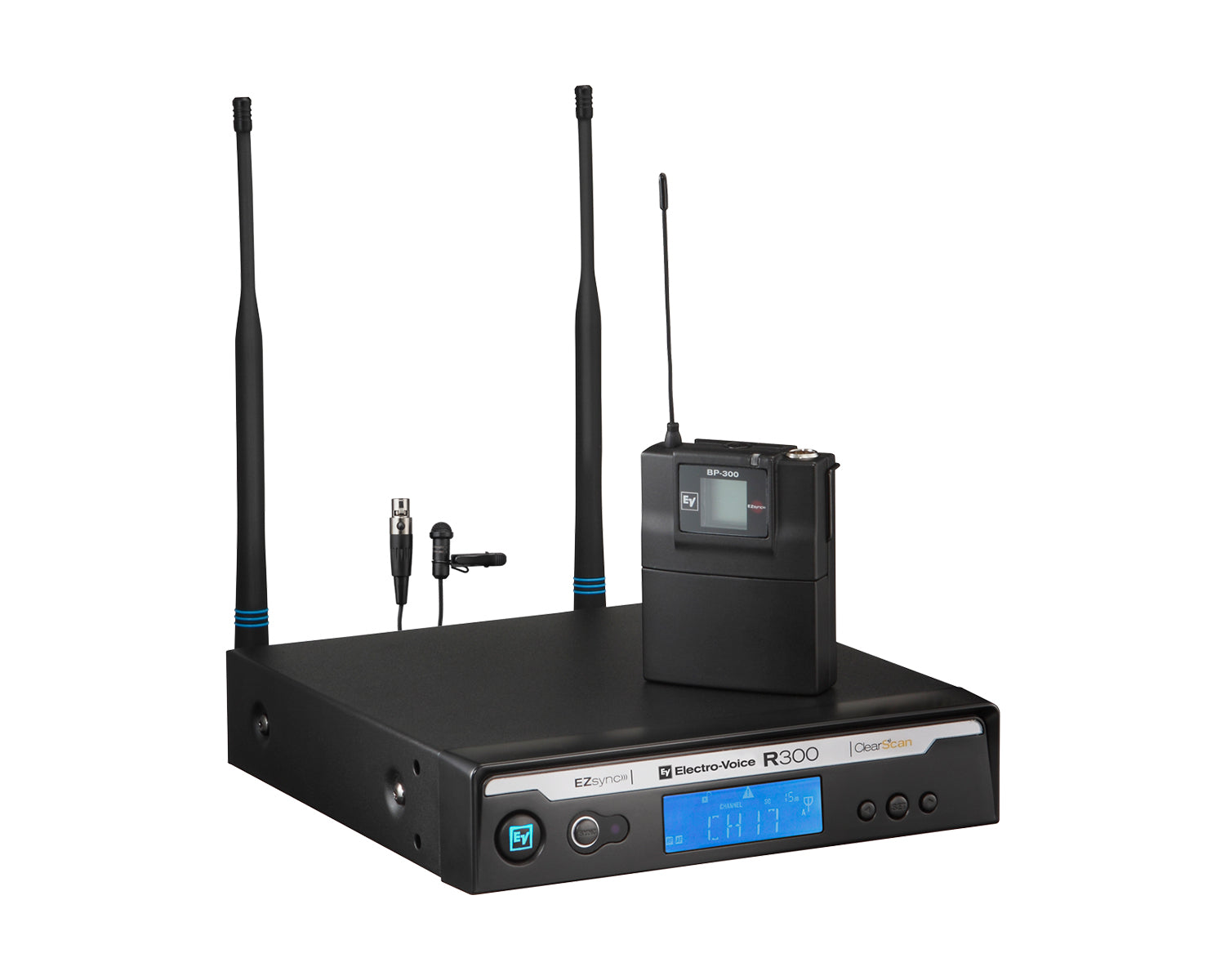

The R300-L is a robust UHF wireless bodypack system, suitable for any application where the convenience of a wireless lavalier microphone is required. The system BP-300 rugged metal bodypack transmitter is simple to use, and is powered by two AA batteries. Included with the system, the ULM18 is a high quality directional (cardioid) condenser lavalier microphone suitable for sound reinforcement or recording of voice, and allows users the convenience of a hands-free presentation or performance experience. Exceptionally useful for sound reinforcement applications, the ULM18’s directional cardioid polar pattern reduces sound system feedback potential when used properly. The receiver dual antenna diversity helps avoid signal dropouts, and its durable metal frame and chassis can either be used on a tabletop, or rack-mounted with optional rack mounting hardware.

Product Features

ClearScan automatically finds the clearest channel
EZsync one-step channel setup

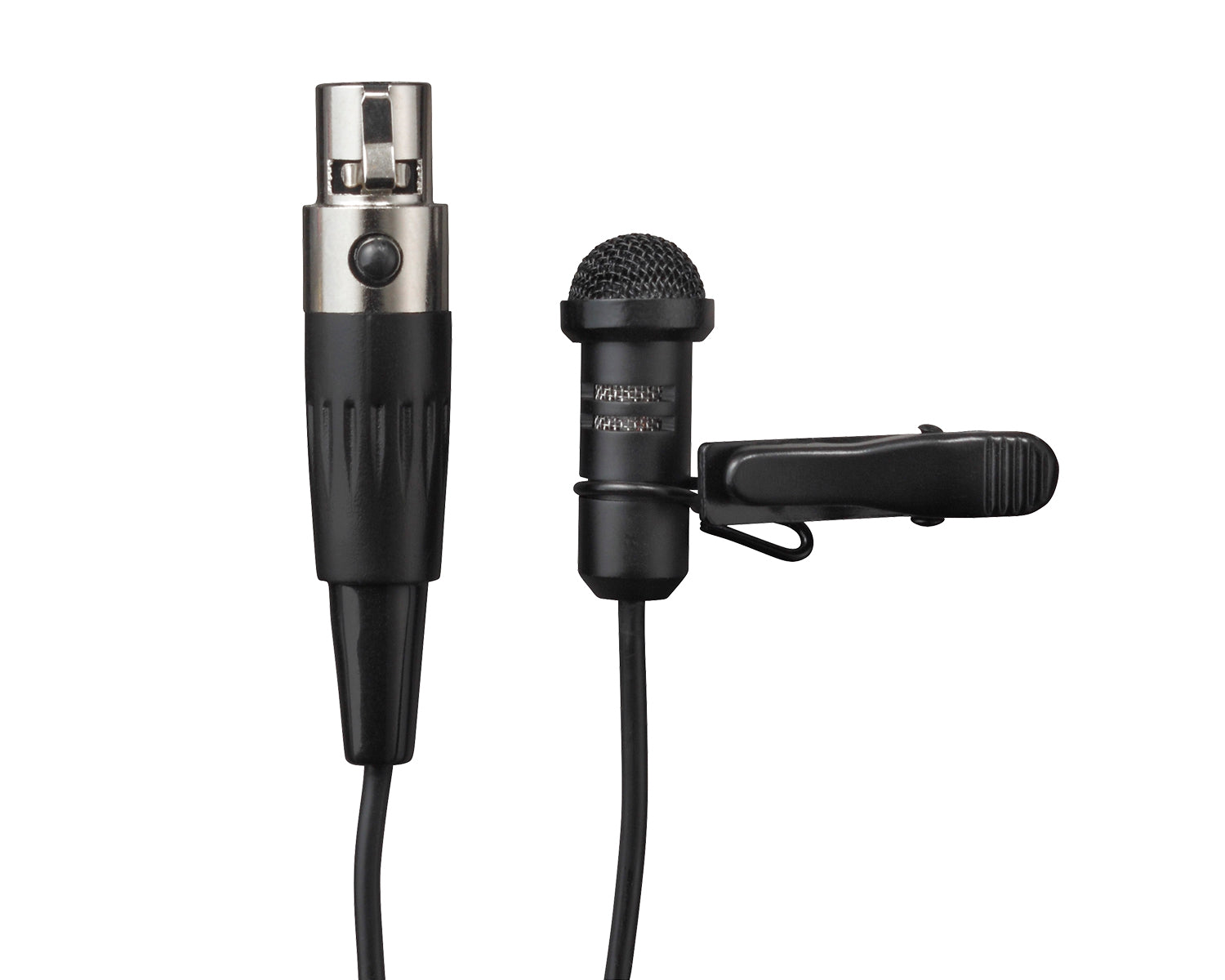

ULM18 directional lavalier microphone
14 hour battery life from two AA alkaline
Rugged metal transmitter
Metal receiver chassis with optional rack mount

Product Specifications

Receiver Type: Synthesized PLL
Frequency Range (RF): E Band 850 – 865 MHz
Number of Channels: 32
Modulation: ± 40 kHz
Diversity: True Antenna
RF Sensitivity: <1.0 μV for 12 dB SINAD
Image Rejection: > 55 dB
Squelch: Tone Code plus Amplitude
Power Requirements: 12–16 VDC, 500mA max
Operating Temperature: 5°C to 45°C (41°F to 113°F)
Dimensions: 43 mm H x 206 mm W x 210 mm D (1.72 in H x 7.8 in W x 8.0 in D)
Audio Parameters
- Frequency Response: 80 Hz – 18 kHz ± 2 dB
- Balanced Output: 20 dBV (max @ 40 kHz deviation)
- Unbalanced Output: Adjustable 8 mV to 0.755V RMS
- Distortion: < 1.0%, 0.4% typical (ref 1 kHz, 40 kHz deviation)
- Signal-to-Noise Ratio: > 100 dB A-Weighted
- Dynamic Range: > 95 dB
BP-300 Transmitter Specifications:
- Radiated Output: 8 mW typical
- Back Lit LCD Display: Channel, Frequency, Mute, and Battery Level
- Standard Lavalier Microphone: Electro-Voice ULM18 Uni-Directional Condenser
- TA4F Connector Wiring:
  - Pin 1: Ground
  - Pin 2: Mic Input
  - Pin 3: +5V bias
  - Pin 4: +5V thru 2.2k Ω
- Power Requirement: Two AA batteries
- Battery Life (Typical): > 14 hours with AA alkaline typical
- Bodypack Antenna: Flexible external 1/4 wave
- Dimensions (Bodypack): 84 mm H x 66 mm W x 23 mm D (3.3 in H x 2.6 in W x 0.89 in D)
