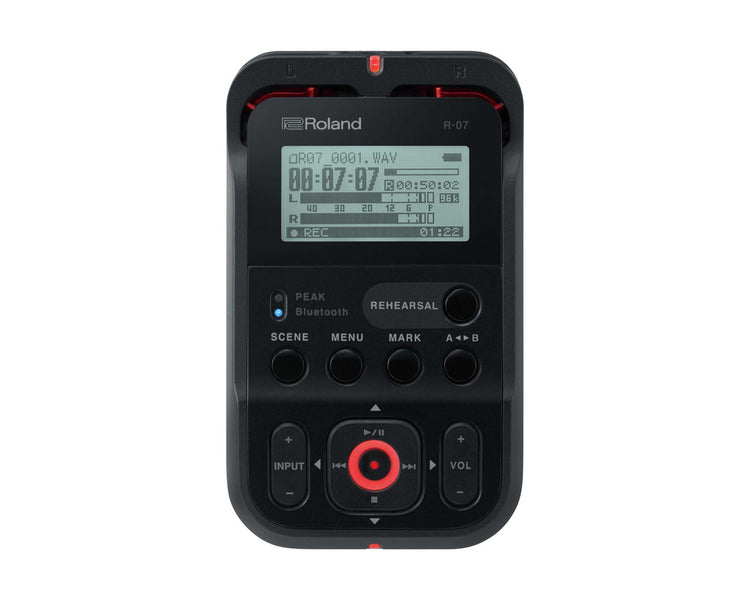

The R-07 packs mission-critical recording features into a stylish and ultra-portable device that goes anywhere life takes you. High-resolution audio, one-touch Scene memory, and Hybrid Limiting ensure great sounding recordings no matter what the situation. And wireless listening and remote control mean you can record with less wires in more places.

Product Features

• R07 Handheld High Resolution Audio Recorder
• High-resolution audio
• One-touch Scene memory
• Hybrid Limiting ensure great sounding recordings
• Wireless listening
• Remote control

Product Specifications

General

• Tracks
  • 2 (stereo)
  • 4 (stereo x2) * WAV x 2 recording mode only
• Signal Processing: AD/DA conversion: 24 bits, 44.1/48/88.2/96 kHz
• Memory Card-
  • microSD Card
  • SDHC format compatible
• Data Type
• WAVE:
  • Sampling Rate: 44.1/48/88.2/96 kHz
  • Bit Depth: 16/24 bits
• MP3 (MPEG-1 Audio Layer 3):
  • Sampling Rate: 44.1/48 kHz
  • Bit Rates: 64/96/128/160/192/224/320 kbps
• WAVE + MP3:
  • Sampling Rate: 44.1/48 kHz
  • Bit Depth: 16 bits
  • Bit Rates: 128 kbps
• WAVE x 2:
  • Sampling Rate: 44.1/48 kHz
  • Bit Depth: 16/24 bits
• WAVE:
  • Sampling Rate: 32/44.1/48/88.2/96 kHz
  • Bit Depth: 16/24 bits
• MP3 (MPEG-1 Audio Layer 3):
  • Sampling Rate: 32/44.1/48 kHz
  • Bit Rates: 32--320 kbps or VBR (Variable Bit Rate)

Input/Output

• Audio Inputs: Internal Stereo Microphone MIC/AUX IN (Stereo miniature phone type, plug-in powered mic) *The Internal Mic and the MIC/AUX IN can\'t be used at the same time; only the MIC/AUX IN is effective
• Audio Output: Phones (Stereo miniature phone type) Internal Speaker for playback (monaural) *The Internal Speaker and the Phones can\'t be used at the same time; only the Phones is effective.
• Nominal Input Level (Variable) MIC/AUX IN: -31 dBu (Default input level) * 0 dBu = 0.775 Vrms
• Input Impedance: MIC/AUX IN: 4.5 k ohms
• Output Level: 3 mW + 3 mW (In case 16 ohms load)
• Recommended Load Impedance: 16 ohms or greater
• Frequency Response: 20 Hz – 40 kHz (+-3 dB)
• USB Interface
  • USB port: USB Micro-B type
  • support USB 2.0/1.1 mass storage device class

Other

• Display: Graphic LCD 128 x 64 dots (white backlit)
• Power Supply
  • Alkaline battery (AA, LR6) x 2,
  • or Rechargeable Ni-MH battery (AA, HR6) x 2,
  • or Supplied from the computer via USB
• Current Draw: 350 mA (MAX)
• Duration:
  • Playback: Approximately 15 hours
  • Recording: Approximately 15 hours

Physical & Dimensions

• Height: 26mm
• Width: 61mm
• Depth: 103mm
• Weight: 150g

What's in the Box?

• Leaflet “Read Me First”
• Owner’s manual
• microSD card (inserted in the R-07)
• Batteries (two AA)
