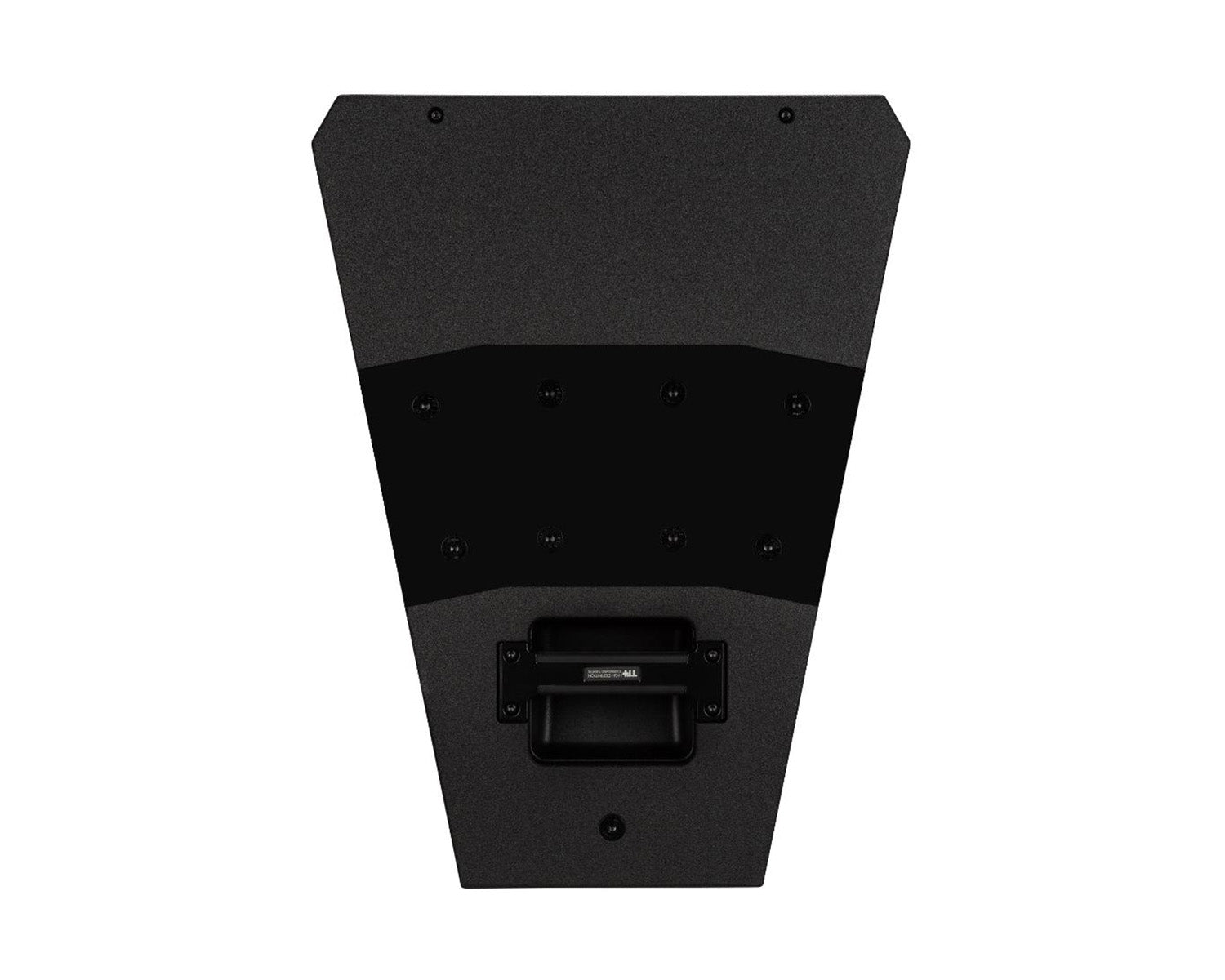

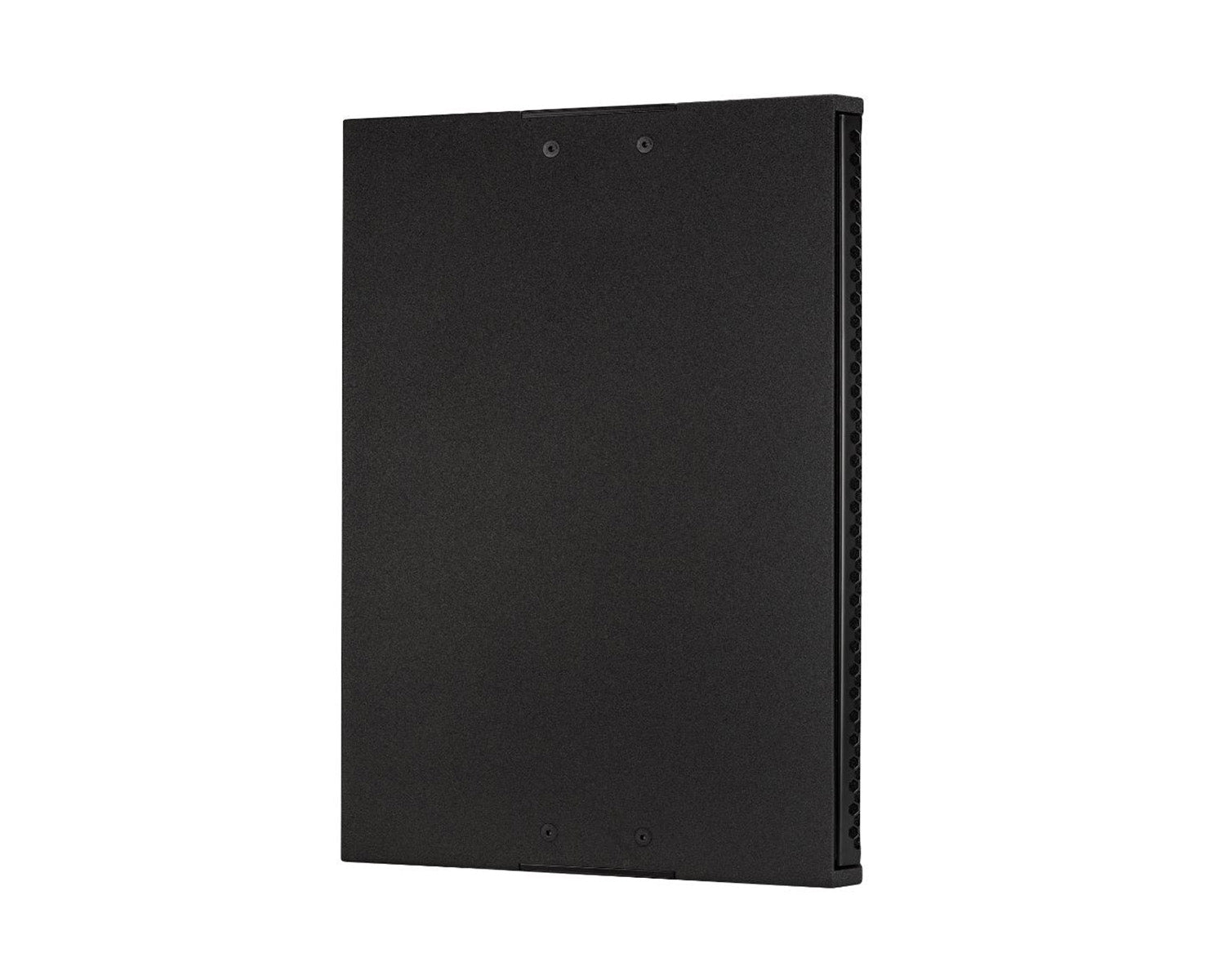

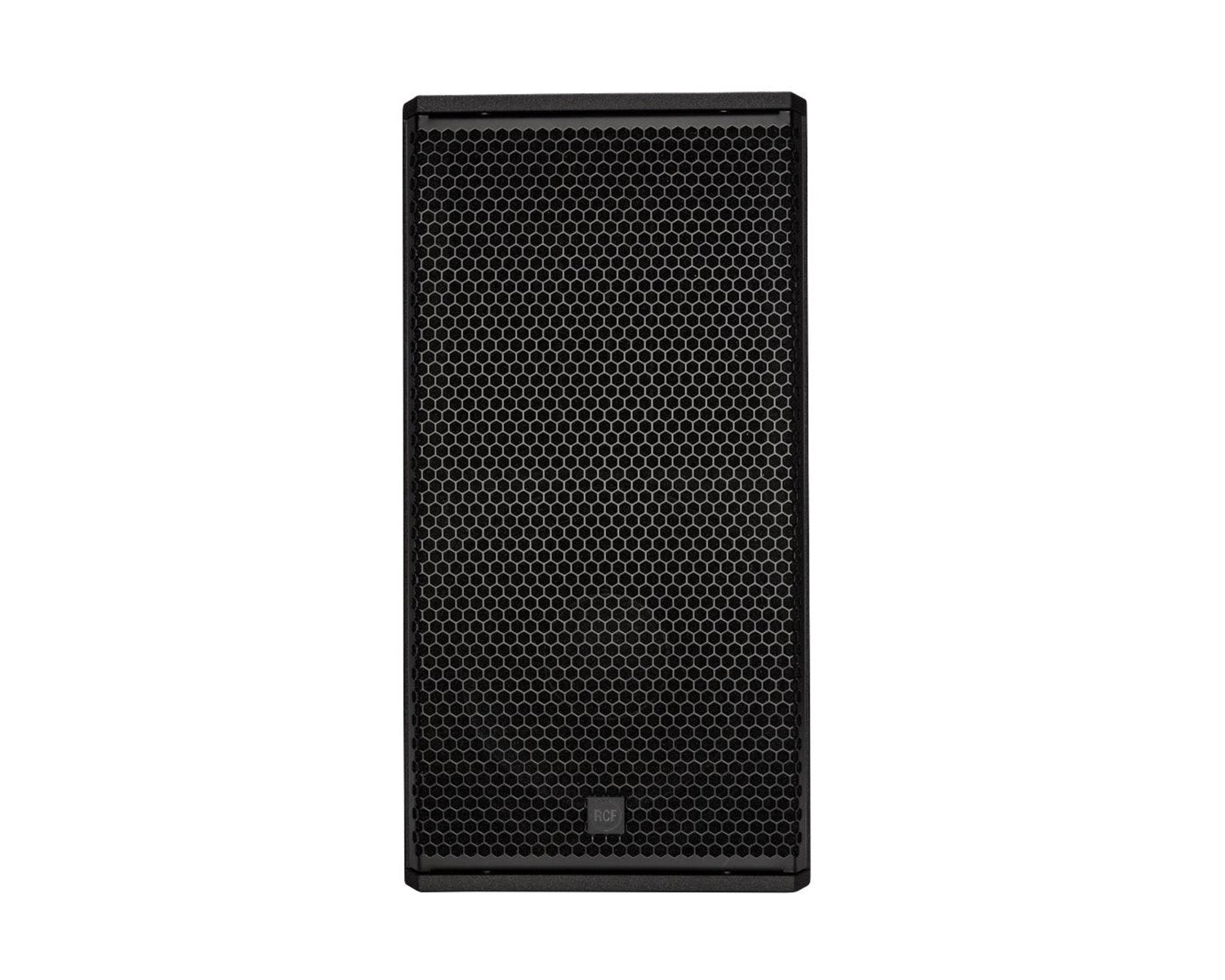

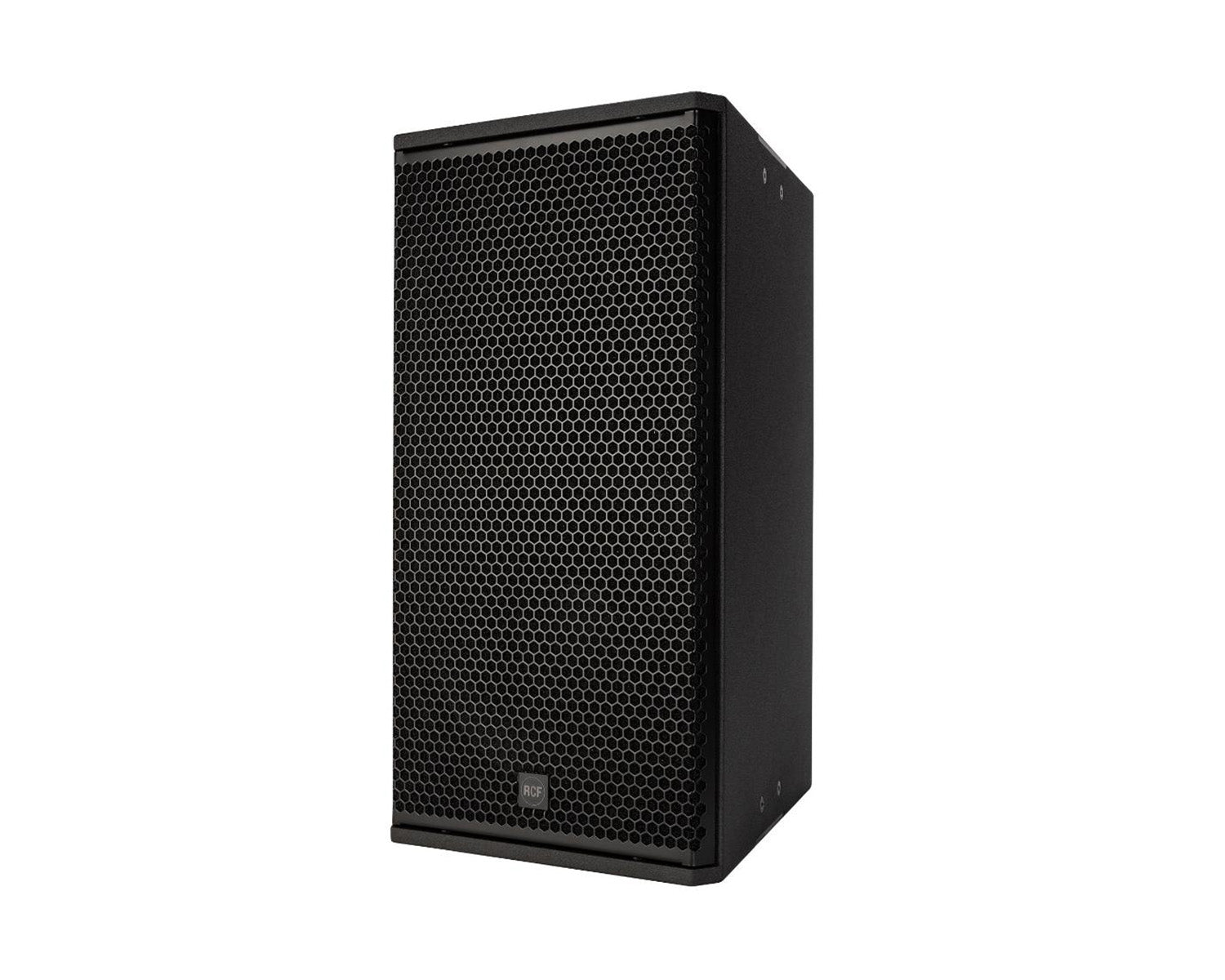

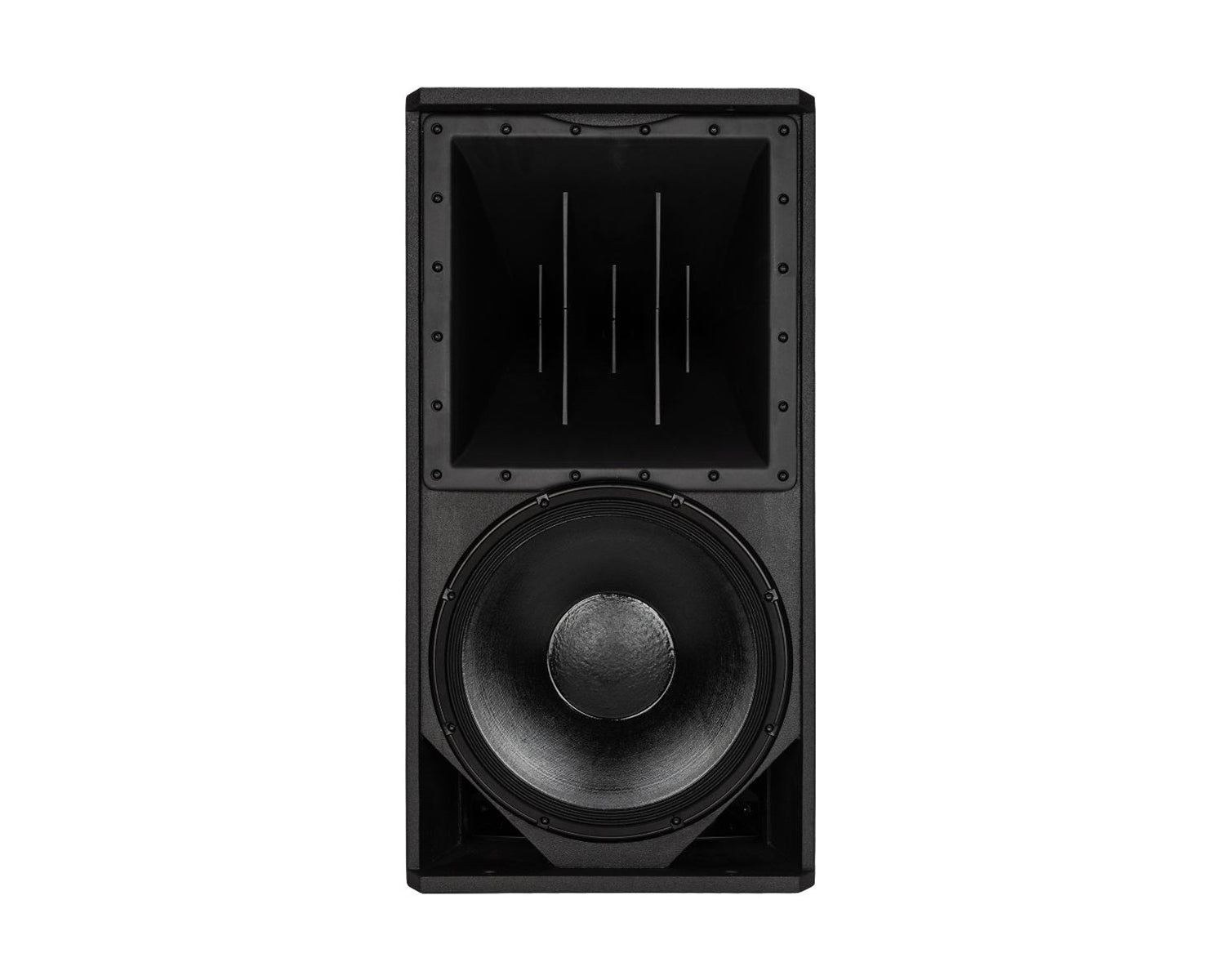

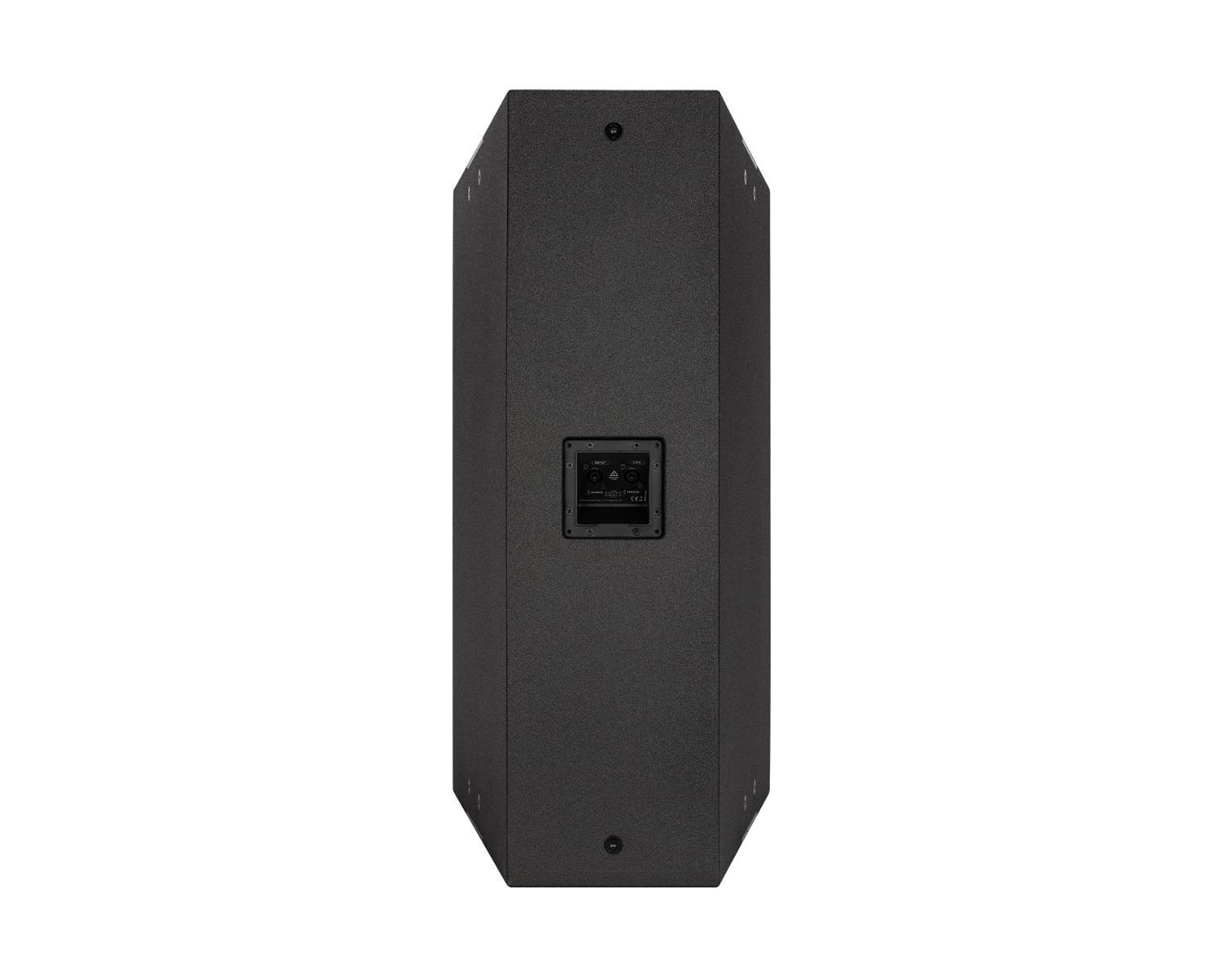

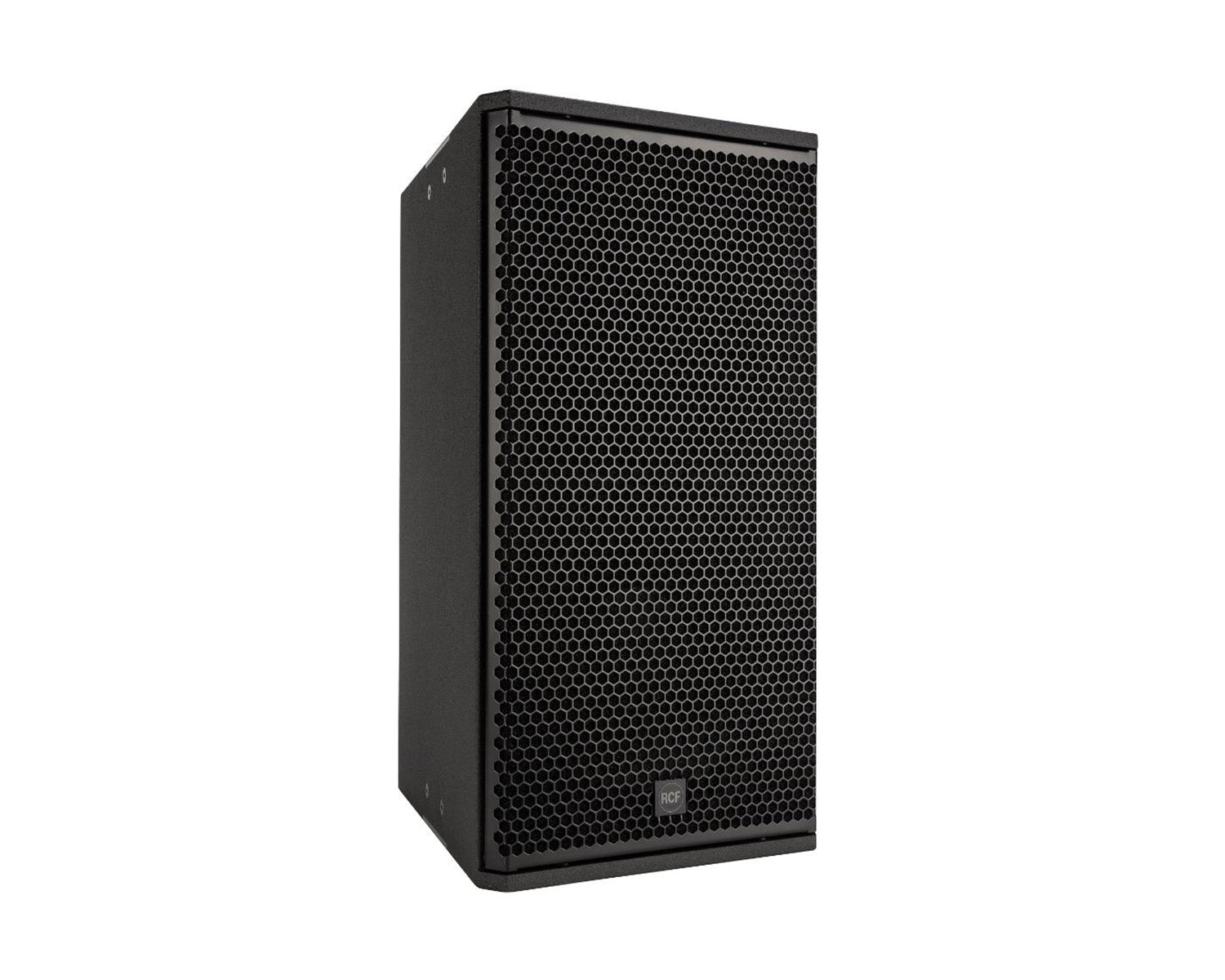

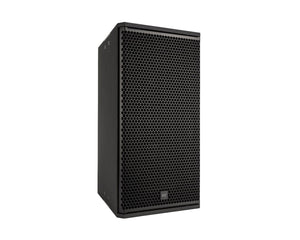

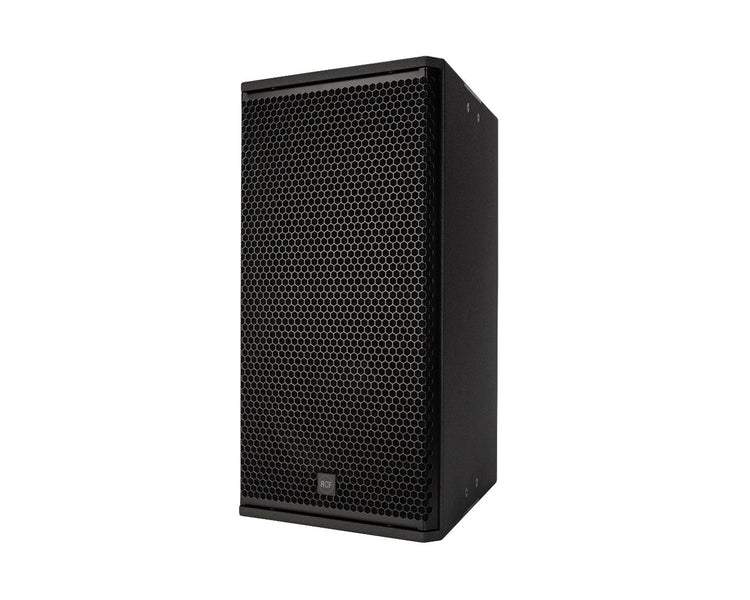

Q 15 is a two-way, bi-amp point source module for mid-distance and long-throw applications, combining a compact size with very high output and accurate speech and music reproduction. The system is equipped with the latest generation of RCF precision transducers featuring one 15" neodymium woofer and a 4" titanium-neodymium compression driver for a total of 1500 W power rating and 60° (vertical) and 22.5° (horizontal) directivity. The enclosure shape is trapezoidal and offers a 22.5° coupling angle on each side. Q Series typical applications span from point-source configurations for mid-distance applications to clusters up to 8 modules for long-throw applications. The grille is epoxy-coated, with a woven fabric backing for dust protection. The cabinet is made of multi-ply Baltic birch plywood with a highly resistant, textured, black polyurea finishing and features two rear-panel Neutrik Speakon NL4 connections for bi-amplification (4 poles).

Product Features

• 138 dB Max SPL
• 1500 W AES power handling
• 45 ÷ 20000 Hz
• 60° x 22.5° constant directivity coverage
• 1 x 15" neodymium woofer, 4.0" v.c.
• 4" neodymium compression driver
• Baltic birch plywood cabinet
• Steel front grille with clothing
• Integrated array mechanics
• Multi-pole Speakon connectors

Product Specifications

Acoustical specifications

• Frequency Response (-10dB): 45 Hz ÷ 20000 Hz
• Max SPL @ 1m: 138 dB
• Horizontal coverage angle: 22.5°
• Vertical coverage angle: 60°
• Directivity index Q: 20
• System Sensitivity: 98 dB

Power section

• Amplification: Bi-Amp
• Nominal Impedance LF: 8 ohm
• Power Handling LF: 1350 W
• Peak Power Handling LF: 5400 W
• Recommended Amplifier LF: 2700 W
• Nominal Impedance HF: 8 ohm
• Power Handling HF: 150 W
• Peak Power Handling HF: 600 W
• Recommended Amplifier HF: 300 W
• Protections HF: Capacitor on Compression Driver

Transducers

• Compression Driver: 1 x 1.4\'\' neo, 4.0\'\' v.c
• Woofer: 15\'\' neo, 4.0\'\' v.c

Input/Output section

• Input connectors: Speakon® NL4
• Output connectors: Speakon® NL4

Standard compliance

• CE marking: Yes

Physical & Dimensions

• Cabinet/Case Material: Baltic birch plywood
• Hardware: Side and rear array rigging point
• Handles: 2
• Grille: Steel
• Colour: Black - RAL 9005
• Height: 860 mm / 33.86 inches
• Width: 446 mm / 17.56 inches
• Depth: 590 mm / 23.23 inches
• Weight: 55 kg / 121.25 lbs
