The Laserworld PL-50.000RGB Hydro show laser light is completely equipped with diodes and has a good white balance, with linear colour fading behaviour and high visibility.

The Laserworld PL-50.000RGB Hydro units have a built-in network DAC for Showcontroller and Showeditor, but also can be controlled with any ILDA laser control software such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface (e.g. FB3). They also have a built-in memory with pre-set patterns, that can be easily triggered through DMX or automatic mode.

The Laserworld PL-50.000RGB Hydro comes with integrated ShowNET network interface and free laser show software.

The Laserworld PL-50.000RGB Hydro has a beam diameter of about ca. 10.0 mm and beam divergence of ca. 1.5 mrad.

Guaranteed output power at aperture is 48\'000 mW. 15\'000 mW / 638 nm (red), 15\'000 mW / 520 nm (green), 20\'000 mW / 450 nm (blue).

Fast scanners work at a speed of 35kpps @ 8° ILDA and can do a max. scan angle of 50°.

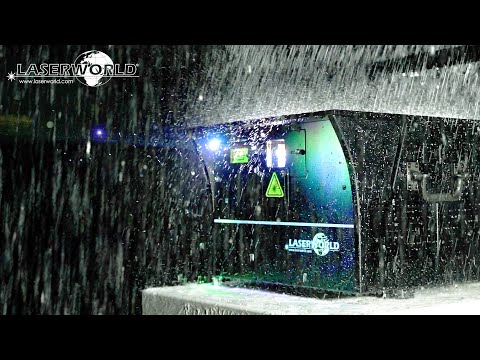

The complete projector is built with Sealed Housing Technology and is cooled through the external cooling fins (bottom part). Thus the maintenance effort is kept very low.

The show laser has an internal PSU for easy handling.

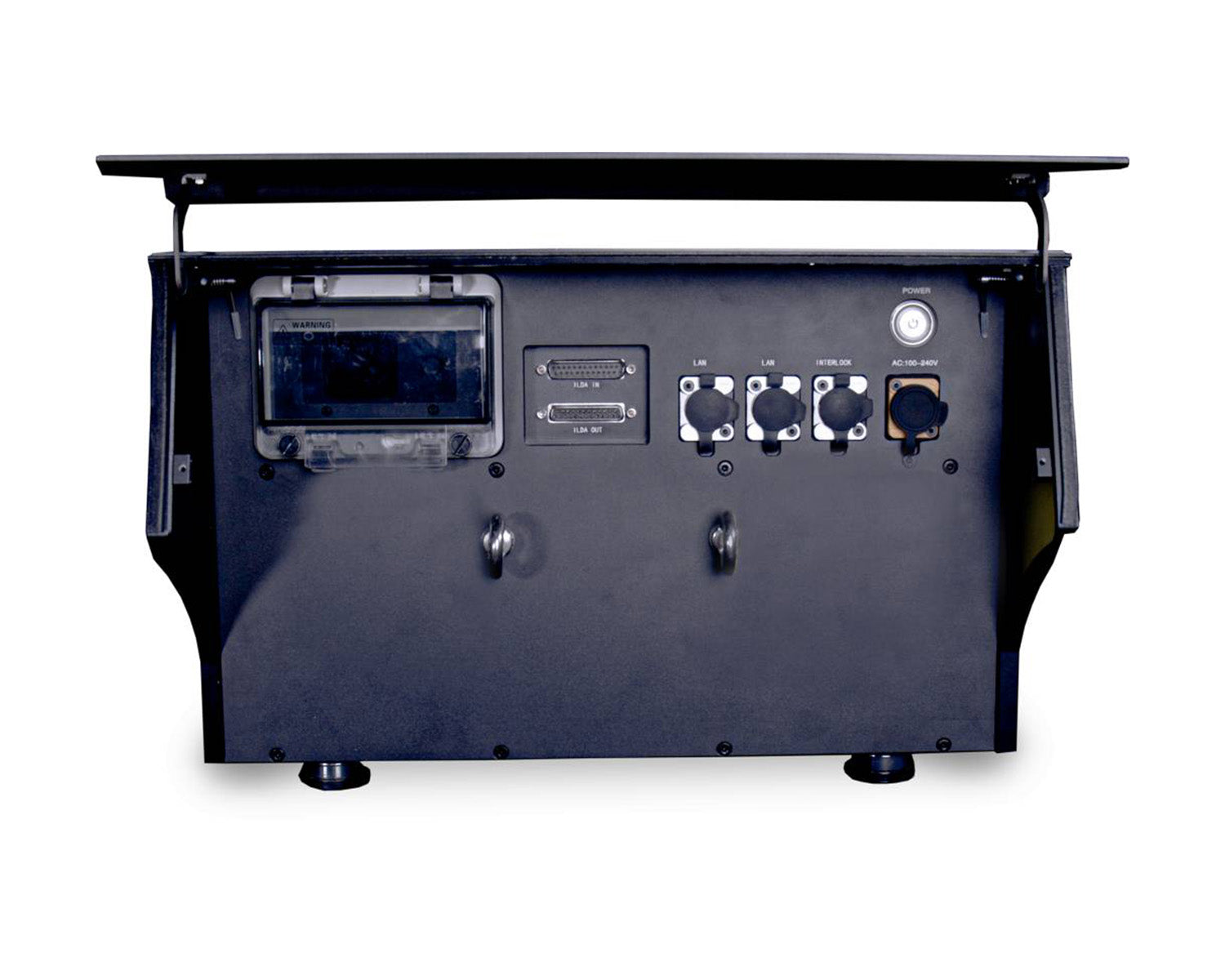

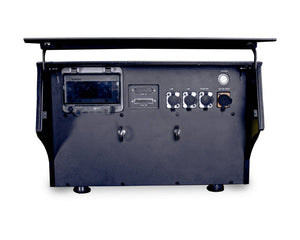

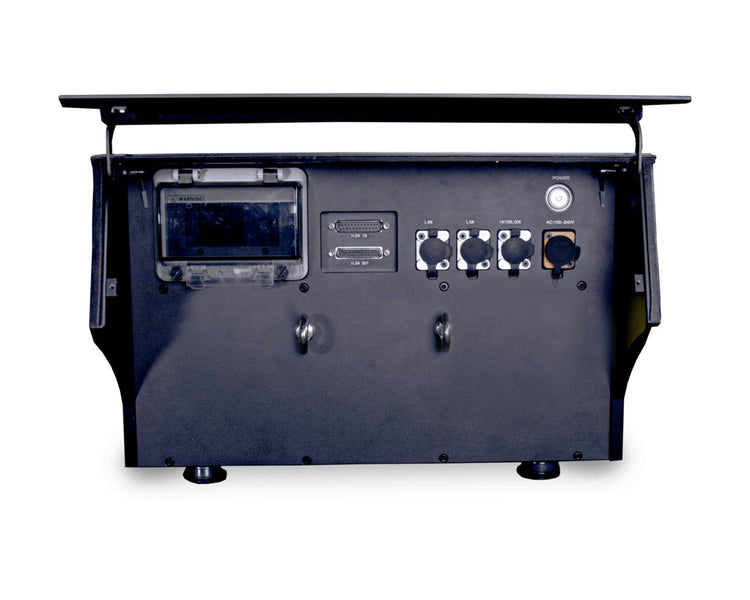

At the back of the unit, there are trim pots for colour settings, so the colour balance can be quickly adjusted. The X- / Y-axis can also be mirrored through switches. Additionally, the scan safety can be set at the backside of the laser system.

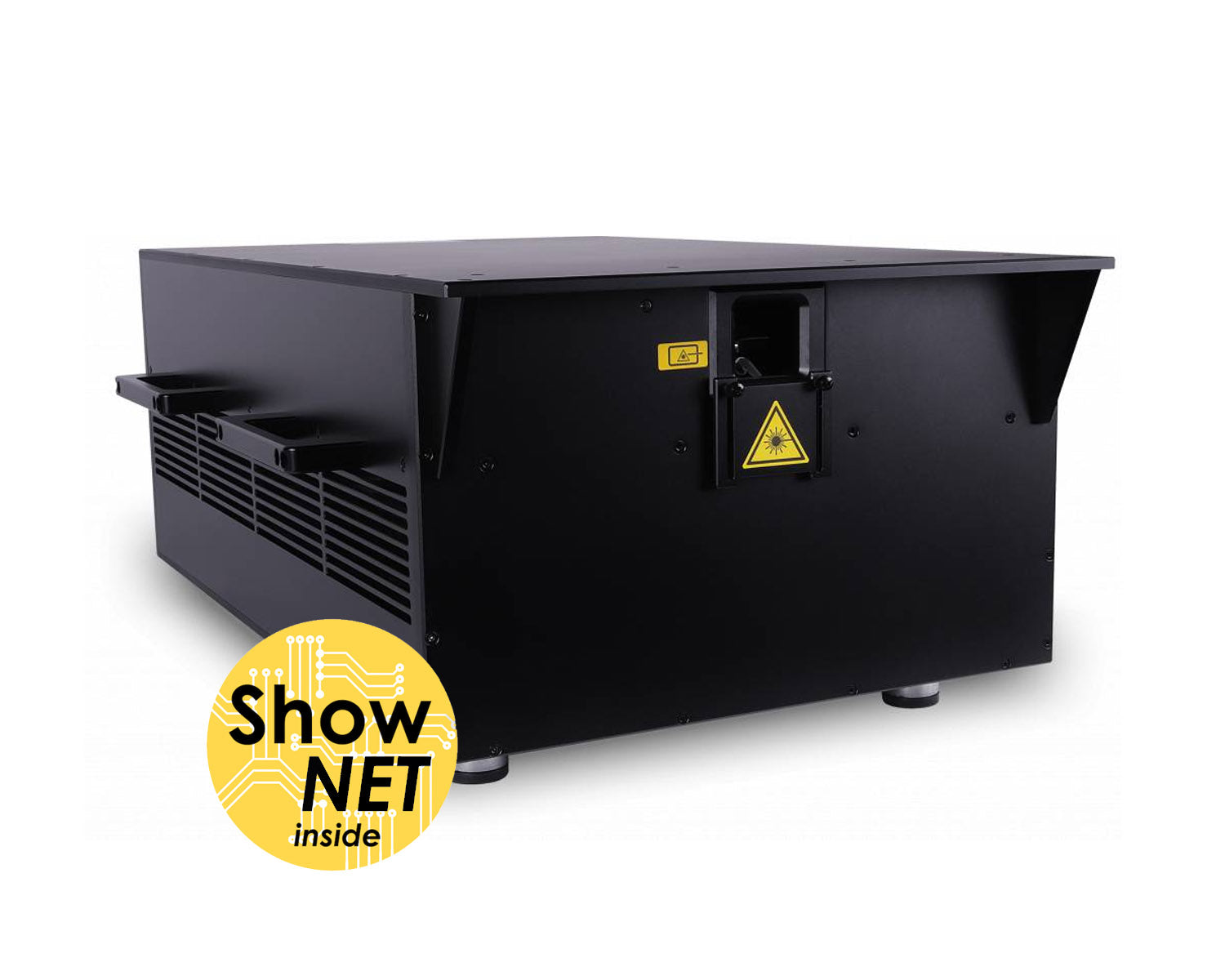

The Laserworld PL-50.000RGB Hydro features an integrated ShowNET network interface with free laser control software included!

Start with your own professional laser show thanks to the intuitive Showeditor laser show software which comes with every new Laserworld PL-50.000RGB Hydro for free. The Showcontroller software is supported as well and can be purchased additionally.

The integrated ShowNET allows for direct input through ILDA and LAN. Besides DMX, it is possible to trigger single frames via ArtNet. You can play custom frames and shows from an integrated SD card (included in delivery) – even in stand-alone mode!

Product Features

• 48\'000 mW guaranteed power
• Graphics capable - 35kpps @ 8° ILDA
• Max scan angle 50°
• Full-colour mixing - analogue modulation
• Sharp intense beams – ca. 10.0 mm beam diameter and low divergence of 1.5 mrad
• Save safety settings direct to the laser and they apply in all modes
• Link multiple units with linking Power, DMX and ILDA
• Free computer control software – Showeditor - upgradable to Showcontroller
• Multiple control modes - Auto, DMX, Artnet and ILDA

Product Specifications

• Guaranteed Power at aperture: 48\'000 mW
• Power Red: 15\'000 mW / 638 nm
• Power Green: 15\'000 mW / 520 nm
• Power Blue: 20\'000 mW / 450 nm
• Beam Specifications: ca. 10.0 mm / 1.5 mrad
• Scanner: 35kpps @ 8° ILDA
• Max. Scan Angle: 50°
• Laser Source: Diode
• Laser Class: 4
• Operation Modes: ILDA, DMX, LAN, ArtNet, ILDA streaming, integrated SD card, stand-alone, master-slave
• Basic Patterns: over 120 (layers, tunnels, fences, waves, etc.)
• Accessories: incl. key, power cable, manual; full version Showeditor software license included
• IP rating: IP54
• Power Supply: 85 V - 250 V / AC, 50/60 Hz
• Power Consumption: 900 W
• Dimensions: 834 x 524 x 270 mm (L x W x H)
• Weight: 48 kg

What's in the Box?

• Key
• Power cable
• Manual
• Full version Showeditor software license included
