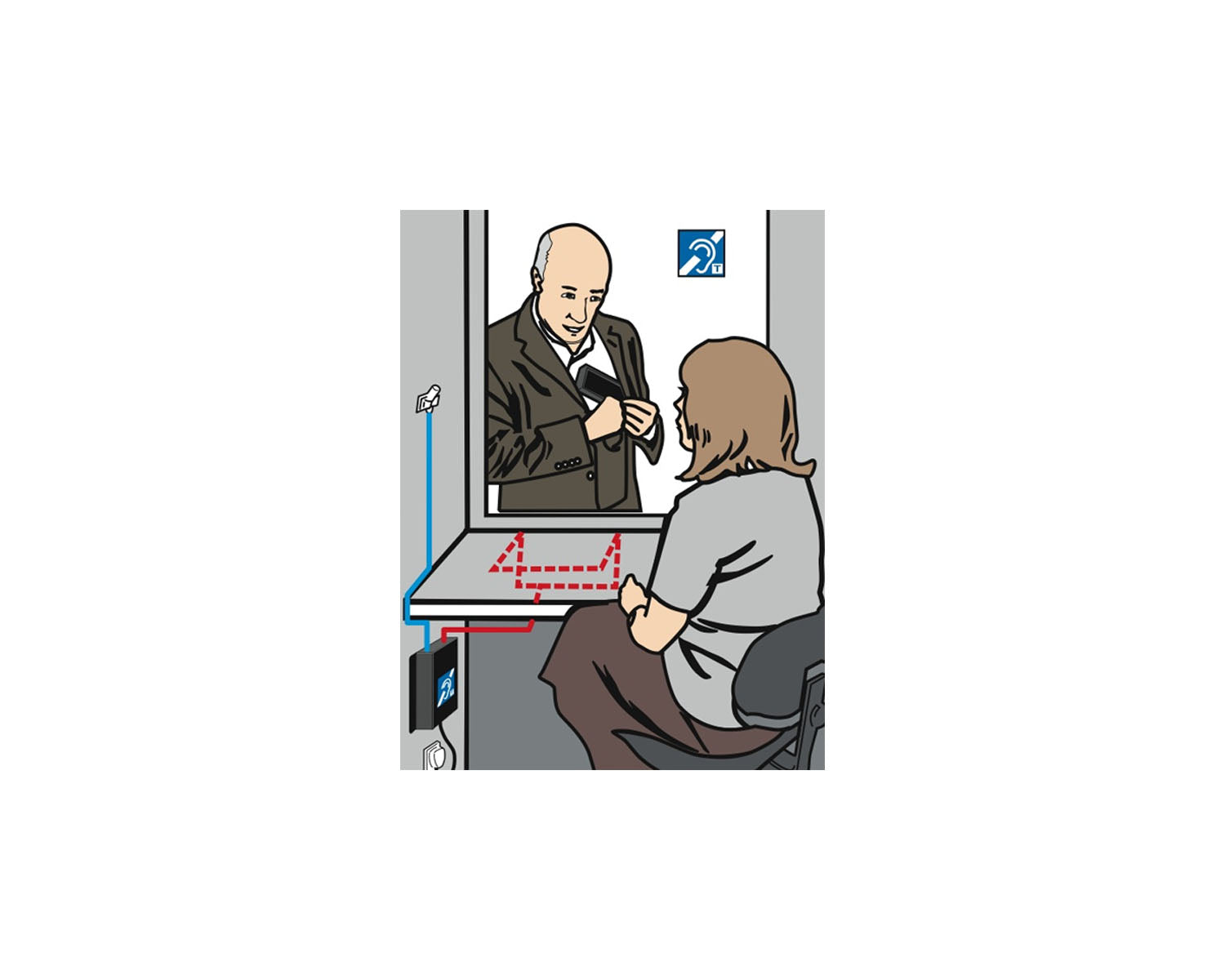

The PDA103C Counter Loop Kit is everything you need to create a high-quality fixed hearing loop system for a counter, desktop or ticket booth.

The kit is ideal for banks, post offices, small meeting rooms, reception desks, ticket offices and any other application requiring restricted or small area coverage, but does include metal compensation controls to improve intelligibility in rooms with high metal content.

In addition, the state-of-the-art audio processor features an automatic gain control which compensates for poor microphone techniques and helps suppress loud noises, hisses and clicks.

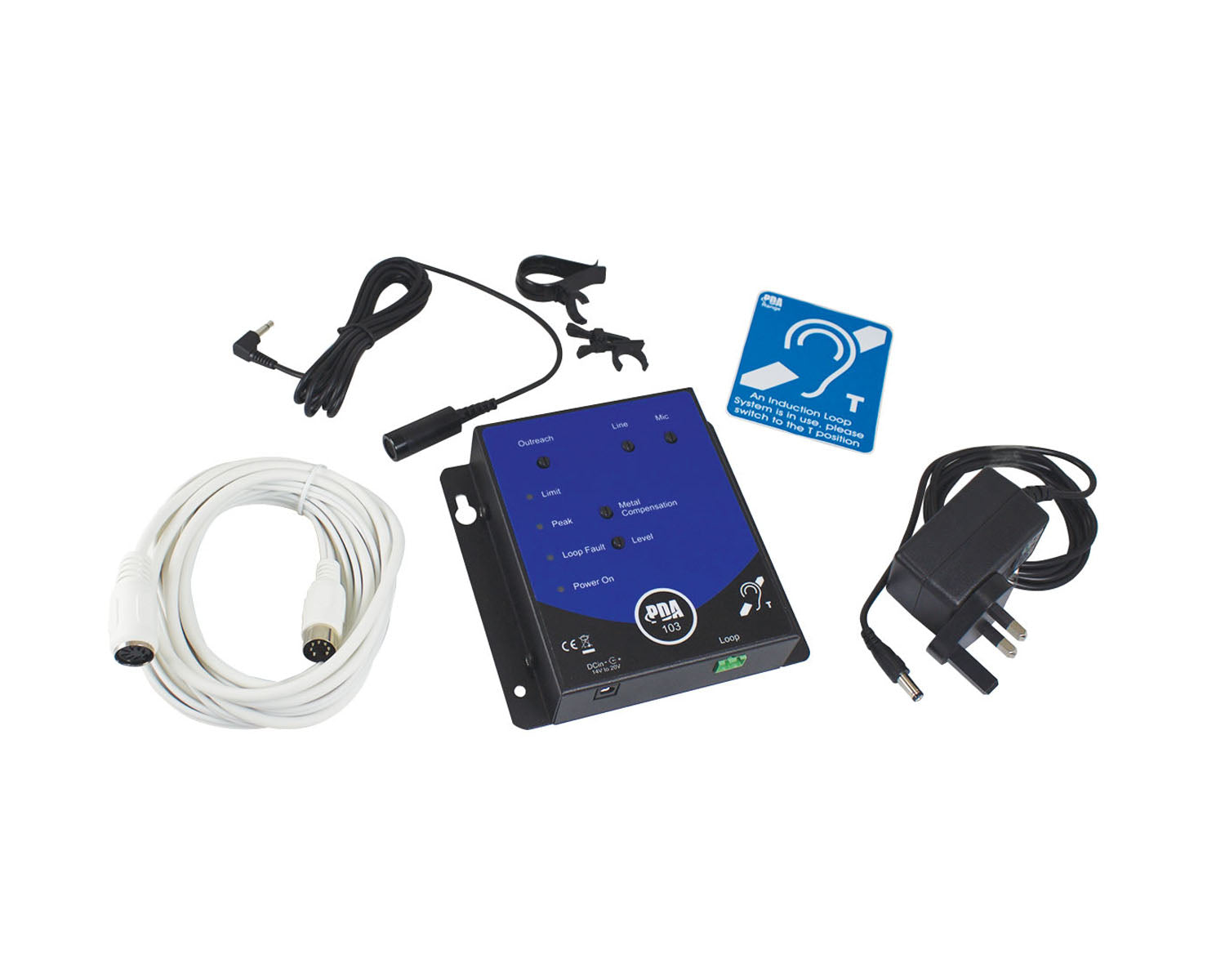

The PDA103C Counter Loop Kit contains the PDA103 amplifier, PL1/PSU1 plugtop power supply, AMT microphone, TX2 pre-formed counter loop and a ‘Hearing Loop Fitted’ sticker.

Product Features

Everything you need to create a high-quality fixed hearing loop system for a counter, desktop or ticket booth.
Ideal for banks, post offices, small meeting rooms, reception desks, ticket offices and any other application requiring restricted or small area coverage
PDA103 amplifier includes a 3.5mm microphone input (for use with the AMT microphone supplied), a line level input and an ‘outreach’ socket
Metal compensation control helps improve intelligibility in rooms with high metal content
Adjustable mic, line level and ‘outreach’ controls.
Drive (level) control allows the amplifier’s output stage to be set-up to suit the exact characteristics of the application.
State-of-the-art audio processor features an automatic gain control which compensates for poor microphone techniques and helps suppress loud noises, hisses and clicks
Limit, Peak, Loop Fault and Power On indicators
Designed to be wall-mounted using the keyholes provided
Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed

Product Specification

General

Hearing Loop Type: Wall mountable. Plugtop mains lead supplied
Coverage: 1.2m2 approx
Inputs
- 1 x 3.5mm mic. socket
- 1 x 3.5mm line level socket
- 1 x Outreach socket
Indicators: Limit; Peak; Loop Fault; Power On.
Controls: Mic; Line; Outreach; Metal Compensation; Loop Drive (Level)
Kit content: PDA103 amplifier; PL1/PSU1 plugtop power supply; AMT microphone; TX2 pre-formed counter loop; ‘Hearing Loop Fitted’ sticker
