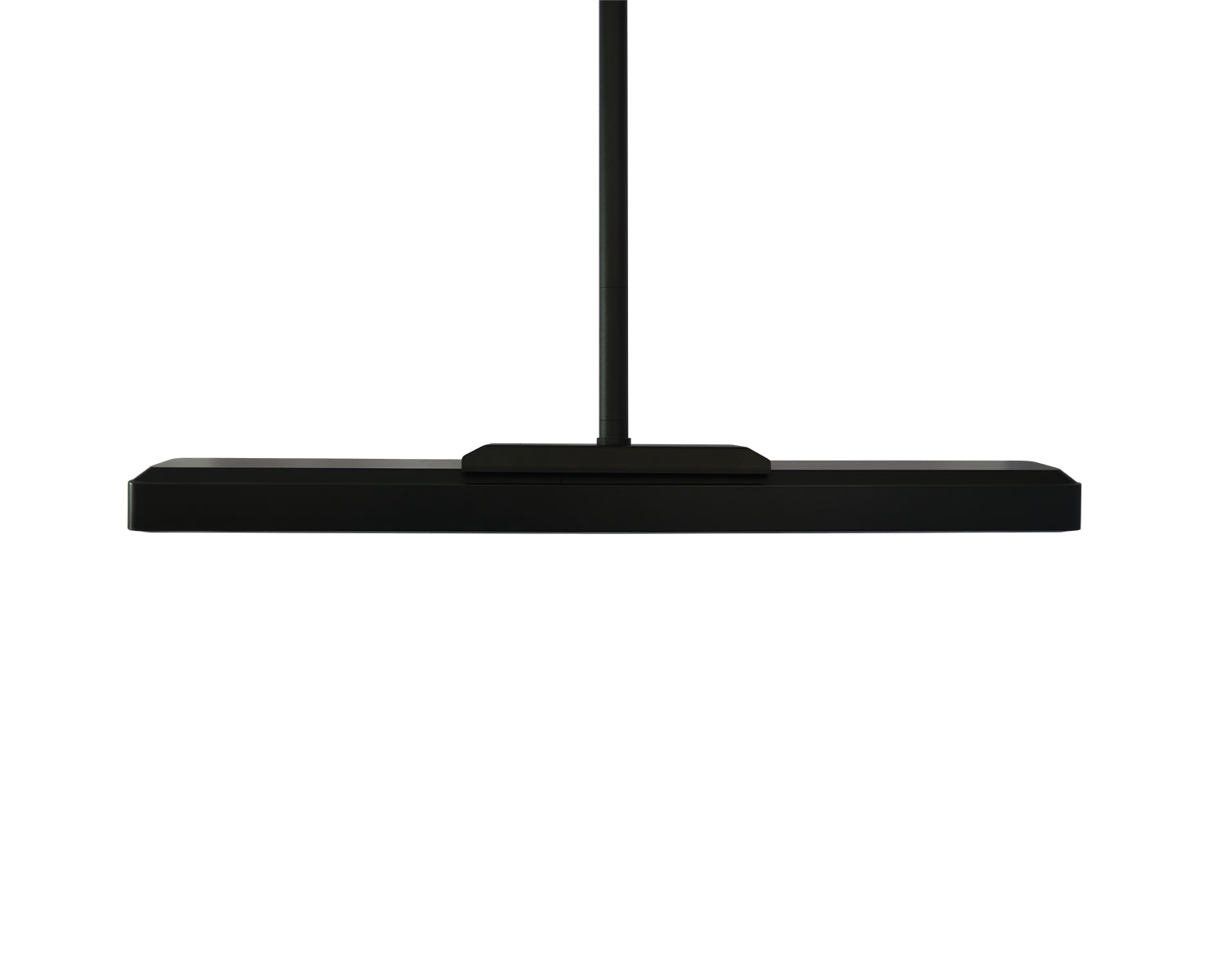

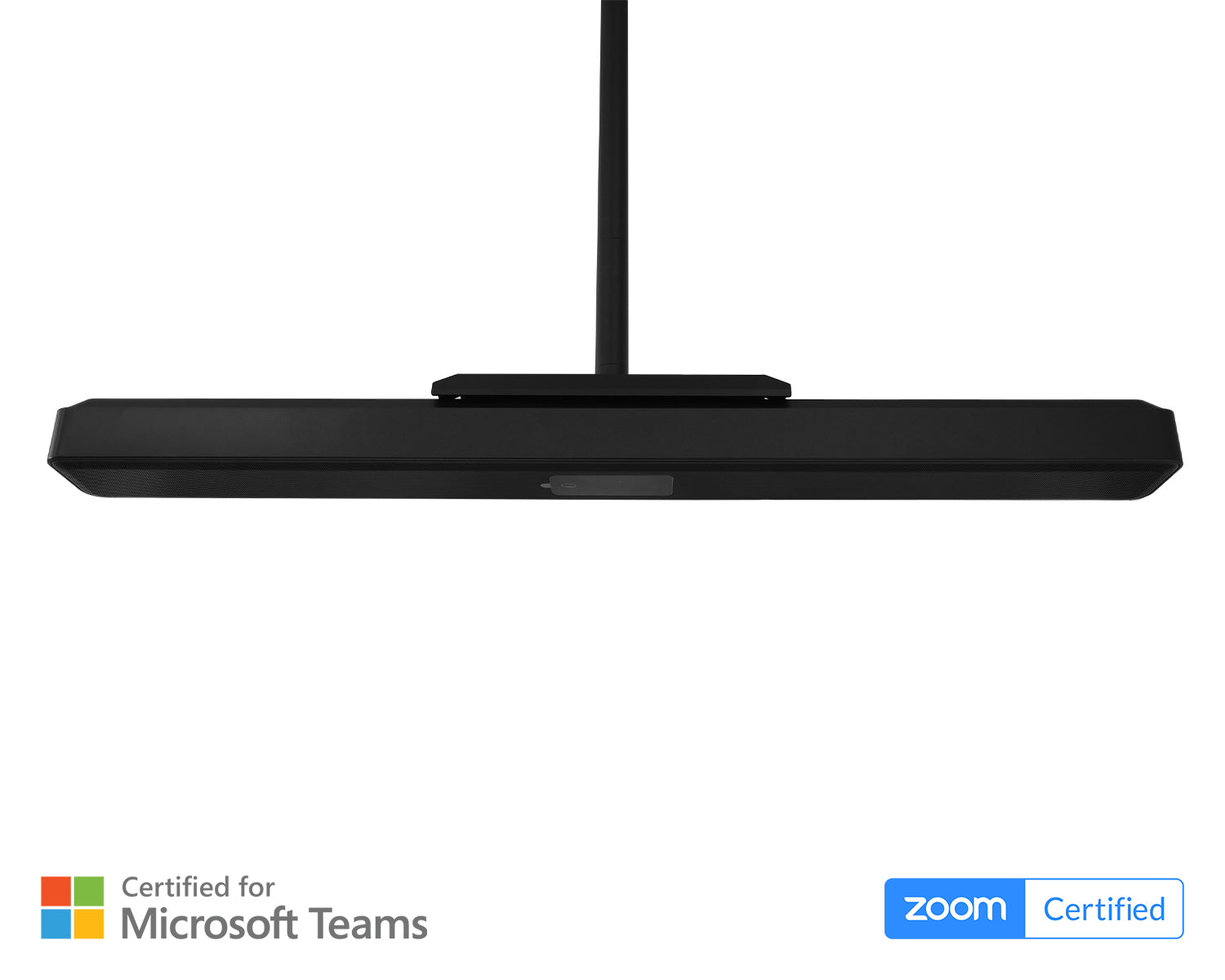

The Parlé™ CBC 2500 PM is a ceiling mounted, all-in-one conferencing bar for collaboration spaces where wall mounting might be difficult. Featuring a sleek design that hangs from any open plan ceiling with an aesthetically pleasing pole mount assembly, the CBC 2500 PM is quickly and cleanly installed with a single mounting point.

With integrated Acoustic Echo Cancellation (AEC) and AI Noise Reduction, the CBC 2500 PM uses a 27-element mic array and Biamp Beamtracking™ technology to actively track and intelligently mix conversations from around the room. Two smart speakers use distortion compensation and dynamic bass enhancement technology to create room filling audio with superior speech reproduction.

The CBC 2500 PM also features Biamp Launch, an automated tuning system that optimizes the audio to each unique conferencing space.

Product Features

• Certified for Microsoft Teams and Zoom
• Beamtracking technology actively tracks and intelligently mixes conversations
• AI noise reduction algorithm for clear voice reproduction
• Low distortion smart speakers
• Biamp Launch for one touch automatic tuning
• LED indications for mute status
• Pole mount assembly included
• 5-year warranty

Product Specifications

Microphones

• Microphone Technology: 27-Element Digital Array
• Frequency Response (100 Hz - 8 kHz): -10dB
• Polar Pattern: Active Beamformed
• Pickup Range (25dBA noise floor): > 23 feet (7 m)
• SNR (@ 1kHz, 94dB SPL, A-Weighted): 69 dB
• Maximum SPL (@ 1kHz, THD < 10%): 130 dB
• Indicators:
  • Mute Indicator
  • (Green/Red/Off LEDs)
• Sensitivity (@ 1Pa): > -37dBFS ± 1dB
• Microphone Data Rate Output: 48 kHz
• Audio Processing: AEC (Acoustic Echo Cancellation)
• Noise Reduction: AI filter

Loudspeakers

• Frequency Response (57 Hz - 20 kHz): -10 dB
• Nominal Beamwidth (H x V): 180° x 180°
• Transducers: 2x 2.5 in (60 mm) full range
• Rated Maximum SPL (@ 1m):
  • 90 dB (continuous)
  • 96 dB (peak)
• Sensitivity (@ 1m, 2.83V): 84 dB
• THD (@ 1kHz): < 0.2%
• Nominal Impedance: 4Ω
• Continuous Rated Power
• (6 dB crest factor, HPF @ 60 Hz): 20W
• Sampling Rate: 48 kHz

Other Specifications

• Interfaces
  • USB 3.0: 1x Type C
• Power Sources
  • USB-C: 60W
  • External Power Supply: 100-240VAC 50/60Hz
  • (12VDC, 4.74A)
• Overall Dimensions
  • Height: 3.9 inches (100 mm)
  • Width: 37 inches (940 mm)
  • Depth: 2.5 inches (64 mm)
  • Weight: 9.6 lbs (4.4 kg)
• Environmental
  • Operating Temperature: 32 - 104° F (0 - 40° C)
  • Humidity: 0-90% (non-condensing)
  • Altitude: 0-10,000 ft (0-3000m) MSL
• Compliance:
  • FCC Part 15B (USA)
  • CE Marked (Europe)
  • UL and C-UL listed (USA and Canada)
  • RoHS Directive (Europe)

What's in the Box?

• CBC 2500 PM
• Pole mount assembly
• Bar mounting plate
• Pipe (3 lengths) [6”, 1’, 2’ (153, 305, 610 mm)]
• Bracket coupler and nut
• USB cable 10m (32.8’)
• Power cable 10m (32.8’)
• 4 x Lag bolts
• Instructions
