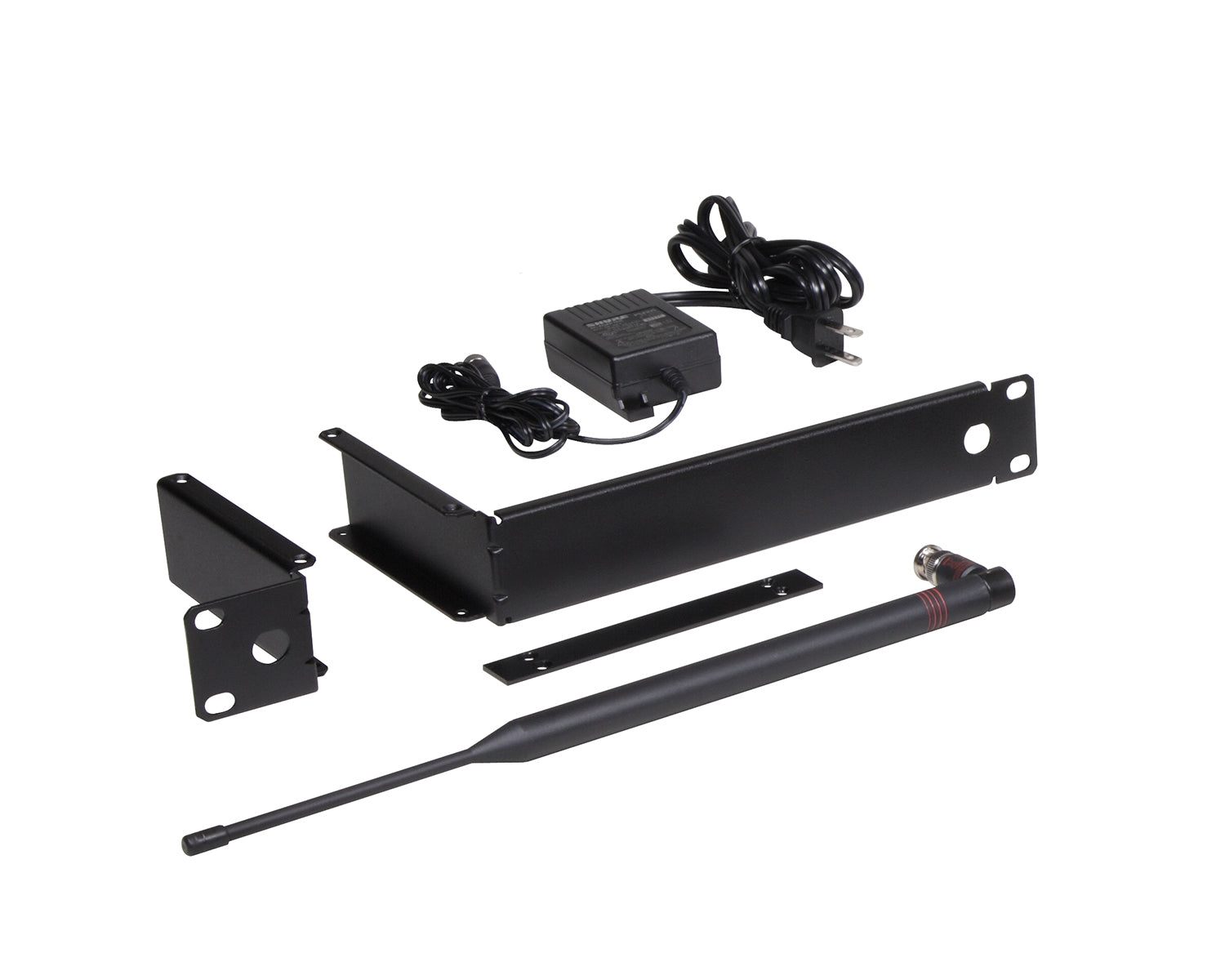

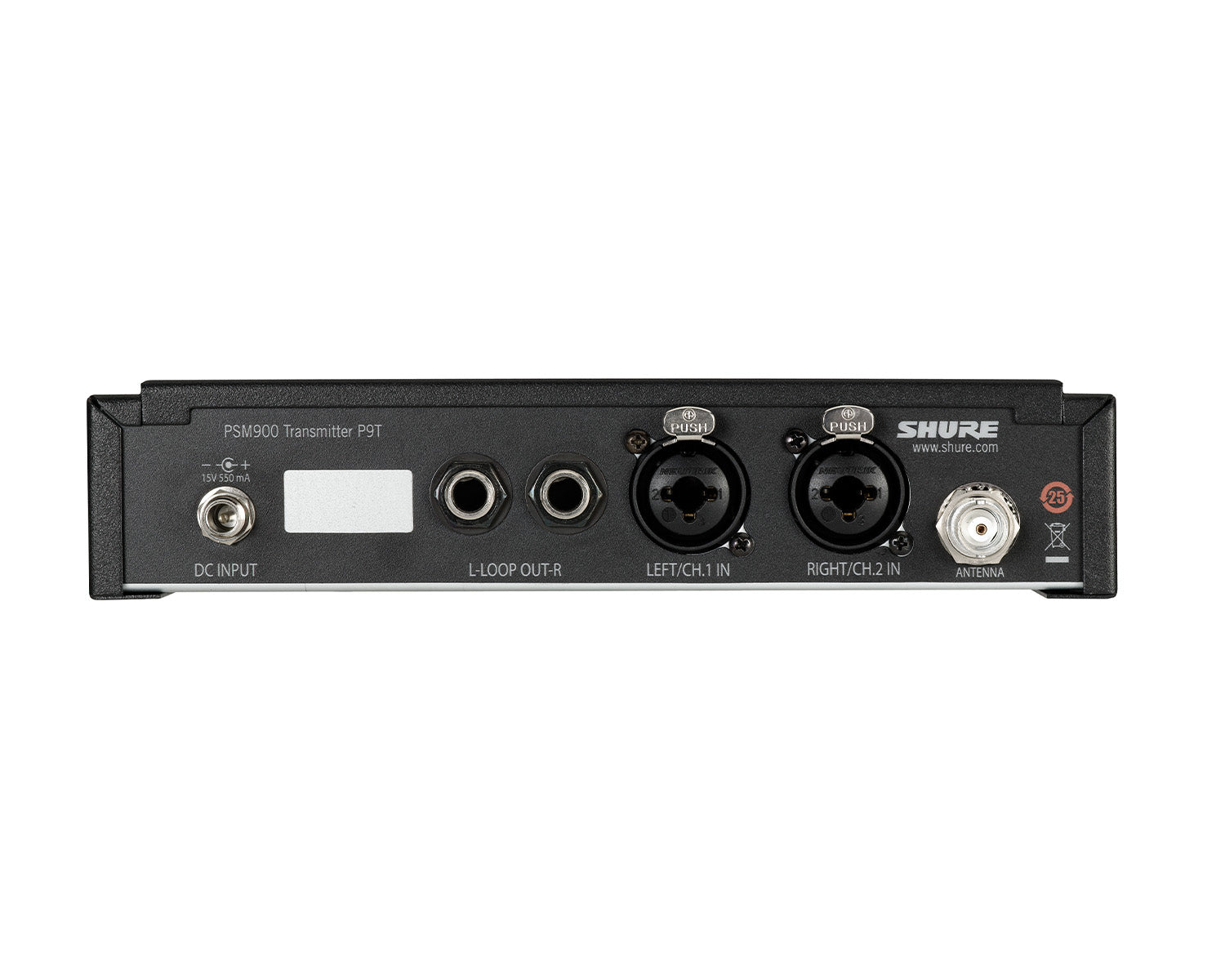

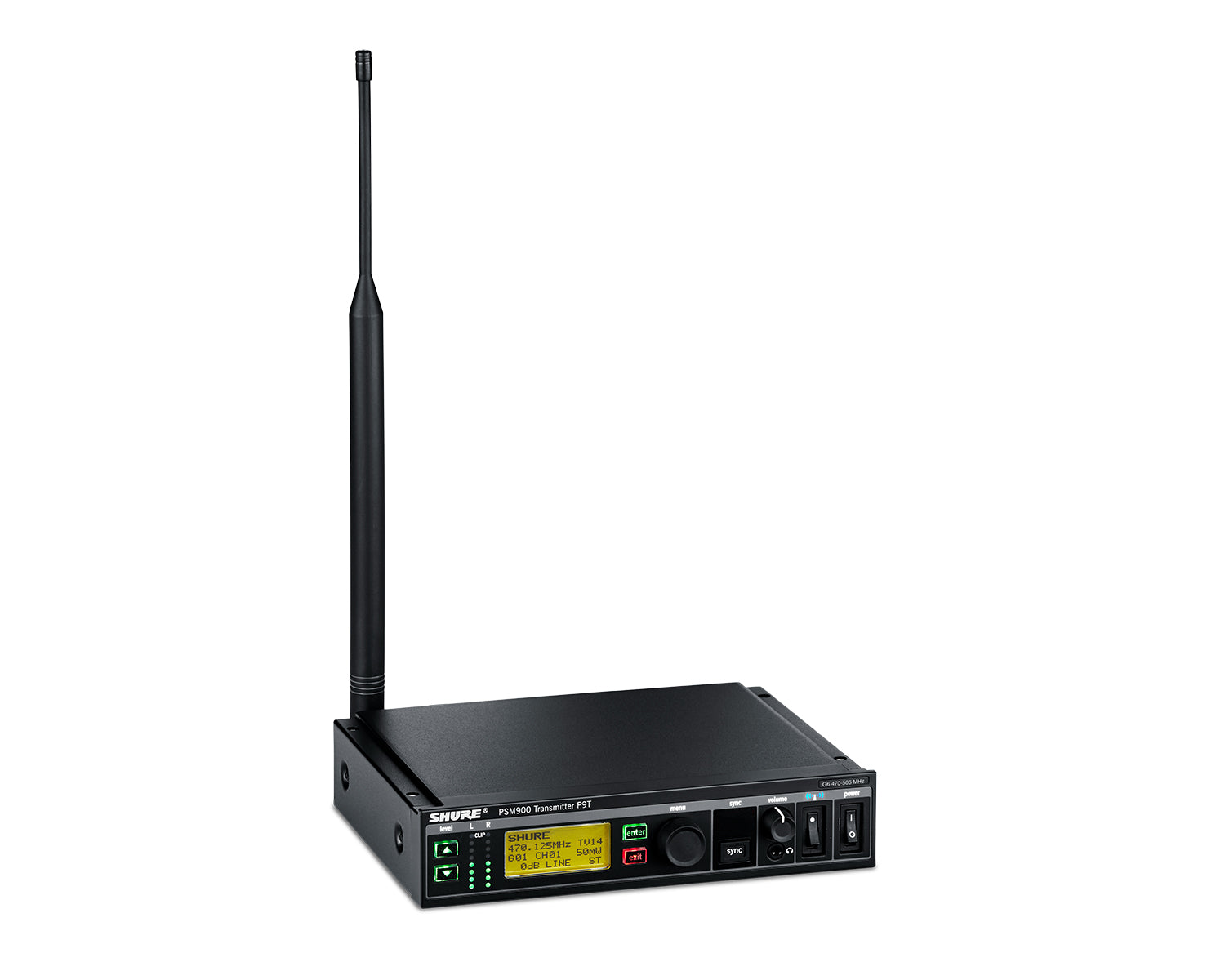

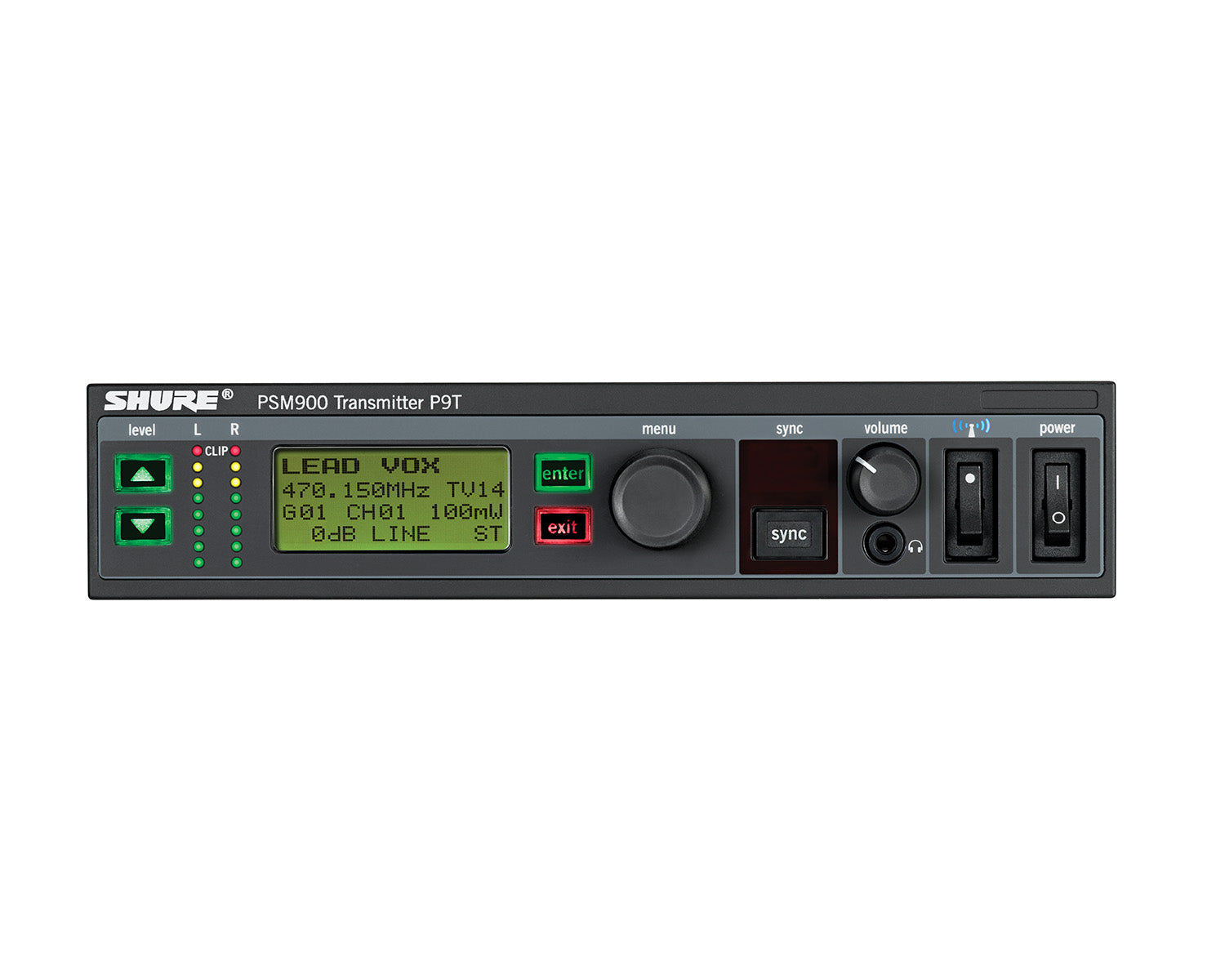

Shure’s P9T is a half-rack, wireless transmitter used in conjunction with the P9RA+ Bodypack receiver as part of the PSM® 900 Wireless Personal Monitor System. The P9T Wireless Transmitter combines state-of-the-art technology with an ideal set of features for professional monitoring applications of any kind, including IEM and IFB applications. Connections include balanced 1/4” and XLR, loop out, and headphone out. Includes rack-mounting kit, front or back mountable antennas, and power supply.

Product Features

• K1E Band: 596-632 MHz
• Robust metal chassis
• RF Mute Switch allows system setup without causing RF interference
• Allows up to 20 compatible channels per frequency range
• Exceptional transmitter linearity vastly reduces frequency intermodulation
• Includes rackmount kit

Product Specifications

• RF Output Power: Selectable: 10, 50, 100 mW (regionally dependent)
• RF Output Impedance: 50 Ω (typical)
• Net Weight: 850 g
• Dimensions: 197 mm x 166 mm x 42 mm (7.75in X 6.55in X 1.65in)
• Power Requirement : 415 mA typical @ 120VAC (with RF on 100 mW power mode, no audio)

Audio Input

• Connector Type: Combination XLR and 6.35 mm (1/4”) TRS
• Polarity: XLR: Non-inverting (pin 2 positive with respect to pin 3) 6.35 mm (1/4”) TRS: Tip positive with respect to ring
• Configuration: Electronically balanced
• Impedance: 70.2 kΩ (actual)
• Nominal Input Level: Switchable: +4 dBu, –10 dBV
• Maximum Input Level:
  • +4 dBu: +23.3 dBu
  • –10 dBV: +12.5 dBu
• Pin Assignments
  • XLR: 1=ground, 2=hot, 3=cold
  • 6.35 mm (1/4”) TRS: Tip=hot, Ring=cold, Sleeve=ground
• Phantom Power Protection: up to 60 V DC

Audio Output

• Connector Type: 6.35 mm (1/4”) TRS
• Configuration: Electronically balanced
• Impedance: Connected directly to inputs
