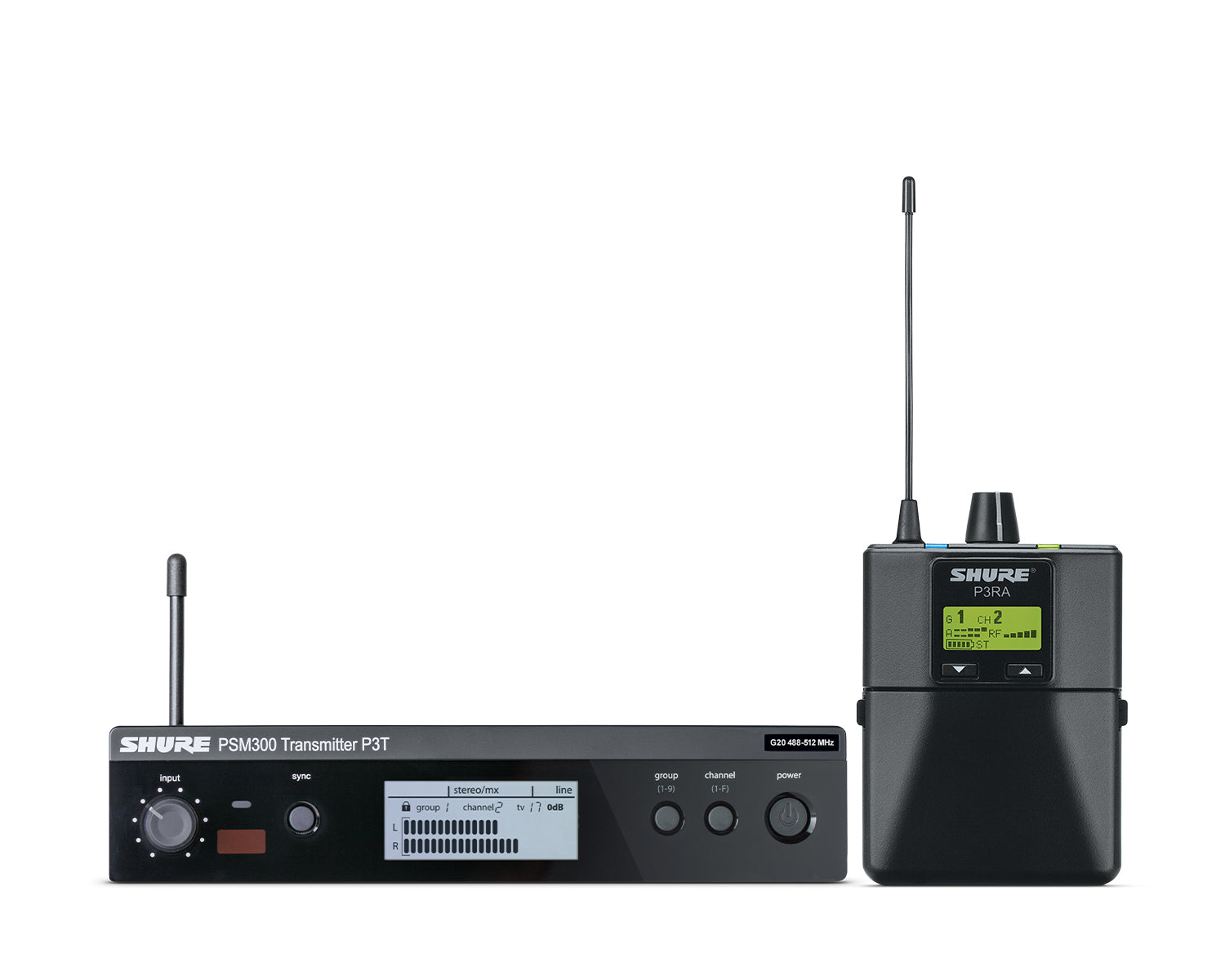

P3TRA Wireless Personal Monitor System Set include: P3RA Premium Wireless Bodypack Receiver & P3T PSM®300 Wireless Transmitter.

P3T PSM®300 Wireless Transmitter

The P3T is a wireless transmitter for use with the PSM300 Personal Monitor System. Dependable wireless transmission and 24-bit digital audio deliver a superior personal monitoring mix for every performance. Send 2 channels of audio to a bodypack receiver up to 90 meters away, with patented Audio Reference Companding to ensure transparent sound quality with no artifacts or dropouts. The rugged, half rack transmitter features easy front-panel controls including one-touch sync and input level knob to enable quick setup and easy operation. Rear-panel balanced inputs and loop outputs provide versatile connectivity to audio sources and other P3T units.

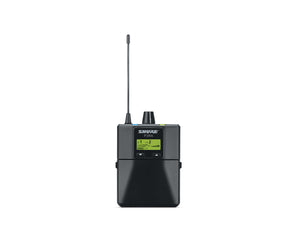

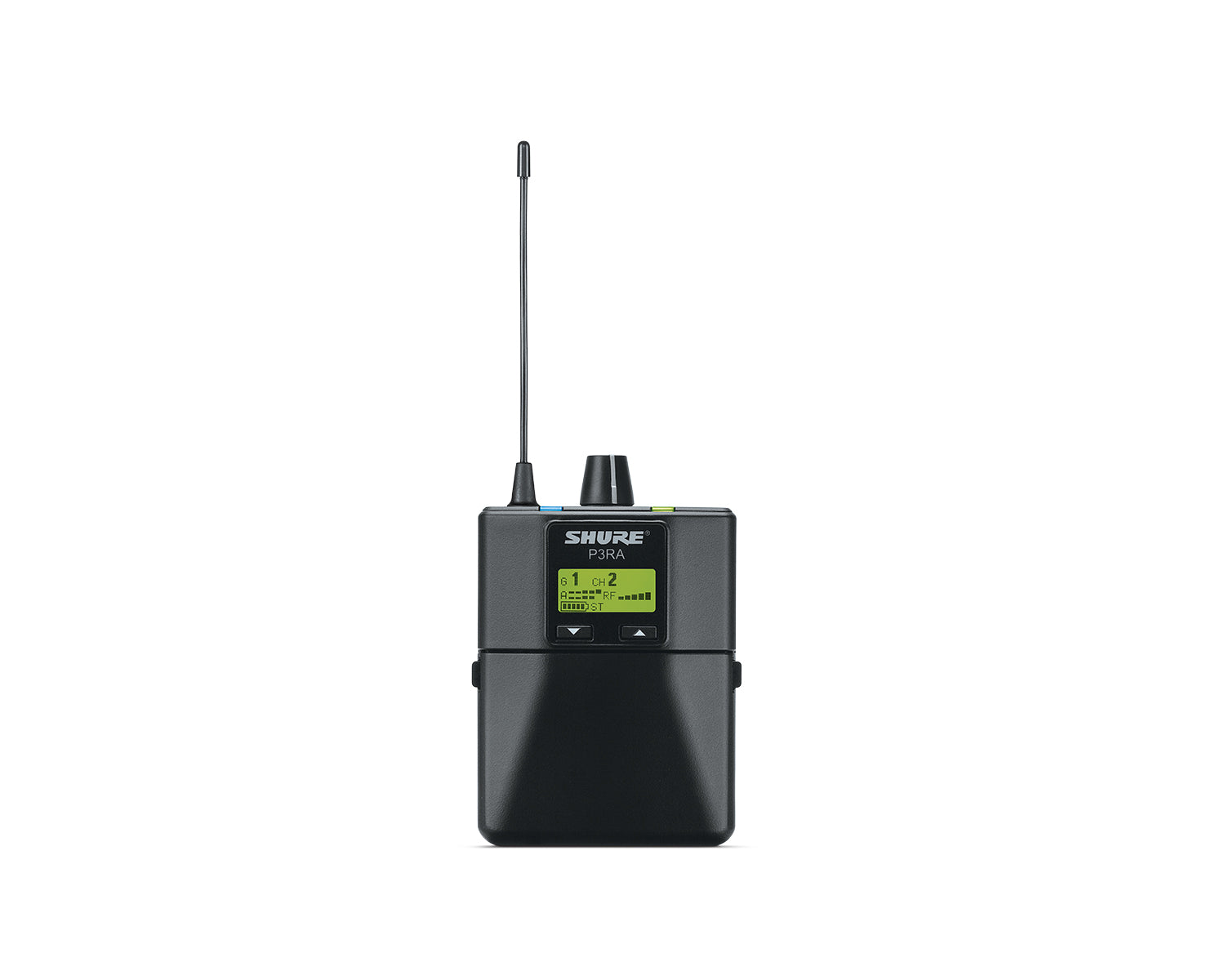

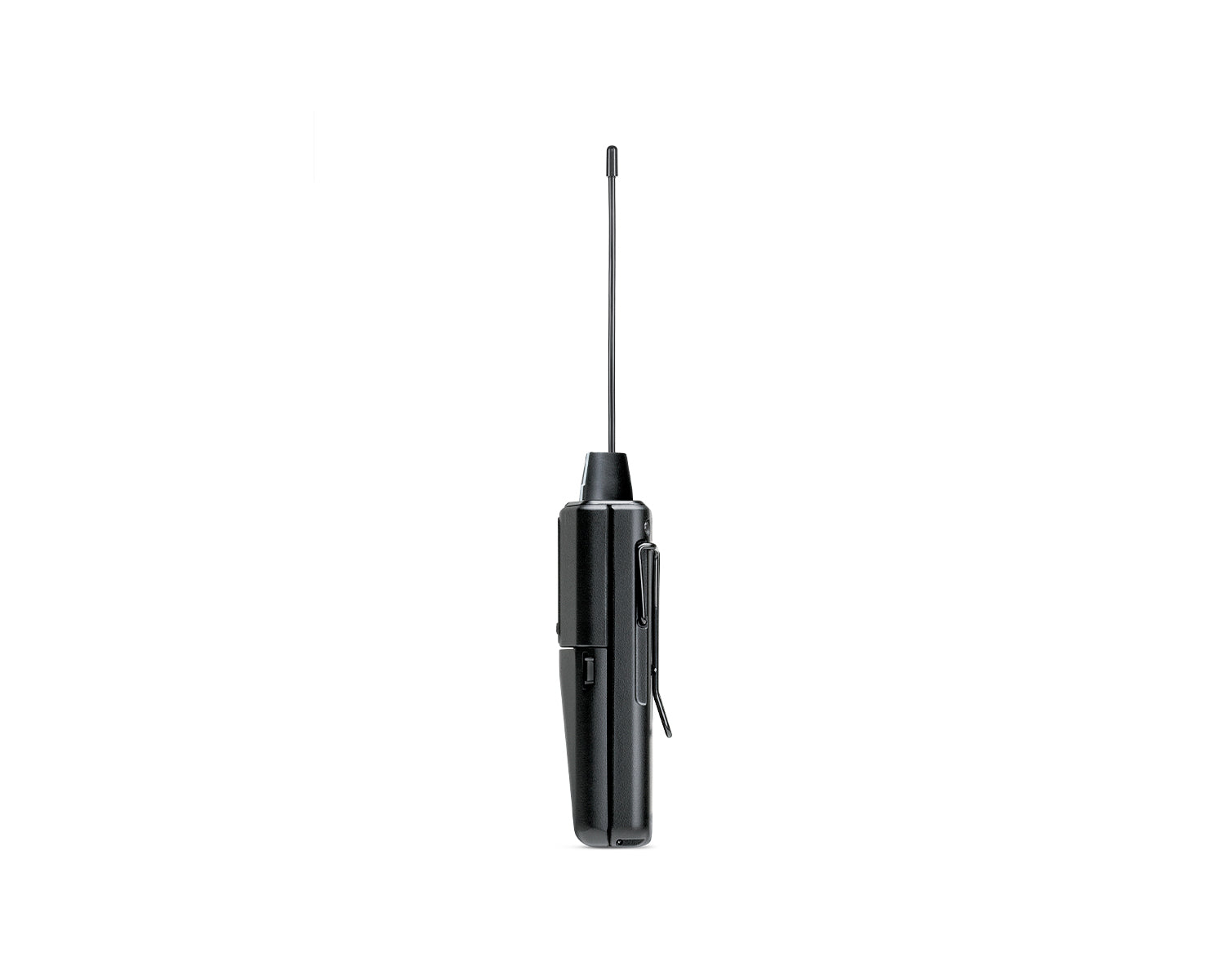

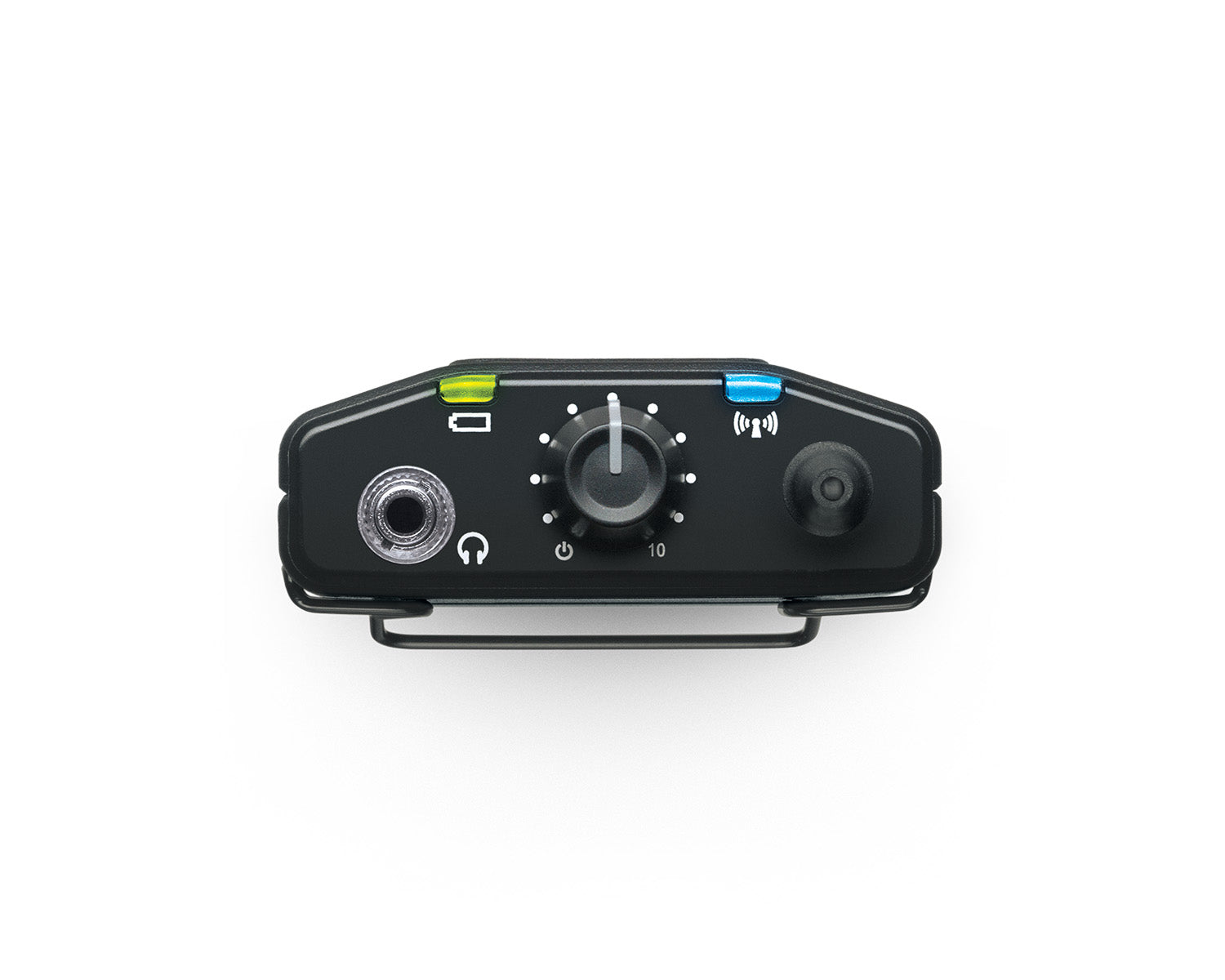

P3RA Premium Wireless Bodypack Receiver

The P3RA is a wireless stereo bodypack receiver for use with the PSM300 Personal Monitor System. With detailed 24-bit digital audio processing and reliable wireless performance, the P3RA bodypack delivers professional personal monitoring to any corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Find a wireless channel easily, using the scan function to automatically select the cleanest frequency available from a wide tuning bandwidth. Adjust the volume and use MixMode® technology or stereo mode to create a personal mix from two channels of audio. EQ and volume limiting further individualize the sound via the high-contrast LCD menu. With a compact and rugged aluminium body, the P3RA ensures a long lifetime of use and easily clips onto a belt or guitar strap. Two standard AA batteries provide up to 7 hours of continuous use. The optional SB900A rechargeable battery (sold separately) extends runtime and allows easy in-unit charging.

Product Features

P3T PSM®300 Wireless Transmitter Features

• Single channel, half-rack transmitter with included rack mount kit
• Sends a stereo or mono mix wirelessly to performers onstage
• Rock-solid wireless connection to PSM300 receivers over a 90 meter range
• One-touch IR sync instantly links transmitter to receiver
• Up to 30 mW output power (region dependent)
• Up to 24 MHz tuning range (region dependent)
• ¼” (6.3 mm) TRS balanced inputs and loop outputs
• High-contrast LCD screen with left/right audio output meters
• Detachable ¼ wave antenna
• Selectable line/aux level

P3RA Premium Wireless Bodypack Receiver

• Rugged, all-metal construction
• High-contrast LCD screen with menu-based navigation
• 2-band shelving EQ with high and low boost
• Volume limiter sets the maximum gain level range for the volume knob
• MixMode® technology enables adjustment of two independent monitoring mix levels
• Stereo mode enables adjustment of left/right balance
• Frequency scan and IR sync quickly finds and assigns a clean channel
• 2 AA batteries provide up to 7 hours of continuous use
• Optional Shure SB900A lithium-ion rechargeable battery provides extended runtime
• Power and battery status LED
• 5-segment battery life meter
• Power save mode preserves battery life when earphones are not connected

Product Specifications

P3T PSM®300 Wireless Transmitter Specifications

• RF Output Power: 10, 20, 30 mW Note: varies by region
• RF Output Impedance: 50 Ω (typical)
• Net Weight: 783 g (27.6oz.)
• Dimensions: 43 × 198 × 172 mm (1.7 × 7.8 × 6.8 in.), H × W × D
• Power Requirements: 12–15 V DC, 260 mA maximum
• Audio Input
  • Connector Type: 6.35 mm (1/4") TRS
  • Polarity: Tip positive with respect to ring
  • Configuration: Electronically balanced
  • Impedance: 40 kΩ (actual)
  • Nominal Input Level: Switchable, +4 dBu, -10 dBV
  • Maximum Input Level:
    • +4 dBu: +22 dBu
    • -10 dBV: +12.2 dBu
  • Pin Assignments: Tip=hot, Ring=cold, Sleeve=ground
  • Phantom Power Protection: Up to 60 V DC
• Audio Output
  • Connector Types: 6.35 mm (1/4") TRS
  • Configuration: Electronically balanced
  • Impedance: Connected directly to inputs

P3RA Premium Wireless Bodypack Receiver

• Active RF Sensitivity(at 20 dB SINAD): 2.2 μV
• Image Rejection: >90 dB
• Adjacent Channel Rejection: >60 dB
• Intermodulation Attenuation: >50 dB
• Blocking: >60 dB
• Audio Output Power 1 kHz @ <1% distortion, peak power, @32 Ω: 80 mW (per output)
• Minimum Load Impedance: 16 Ω
• Headphone output: 3.5 mm (1.8") stereo
• Net Weight: 196 g (6.9 oz.) (with batteries)
• Dimensions: 99 × 66 × 23 mm (H × W × D)
• Battery Life (continuous use):
  • 4–5.5 hours, AA batteries
  • 5.5–7 hours, SB900A battery

What's in the Box?

• P3T PSM®300 Wireless Transmitter
• P3RA Premium Wireless Bodypack Receiver
• Rackmount and Hardware Kits
• Detachable ¼ Wave Antenna
• BNC Cable
• Power Supply
