The P3 PowerPort 1000 IP Rental is an integrated power supply and data processor for Martin’s rental range of creative LED video products, including the VDO Sceptron™ and VC-Dots™. When driven by one of Martin’s award-winning P3™ System Controllers™, it combines stable power delivery with high-speed, high-capacity video processing. Setup and configuration are easy and intuitive. A full outdoor rating with robust IP65-rated connectors make the product perfect for outdoor rental installations.

• Power and data processor for all Martin’s rental market creative LED video products
• Flexible integration: can be located remotely, indoors or outdoors
• Easy cabling and configuration

Product Features

• P3 image processing technology
• Set-up and addressing via P3 System Controller family
• No local configuration needed
• P3 input and thru to allow daisy-chaining
• 4 hybrid power/data output ports

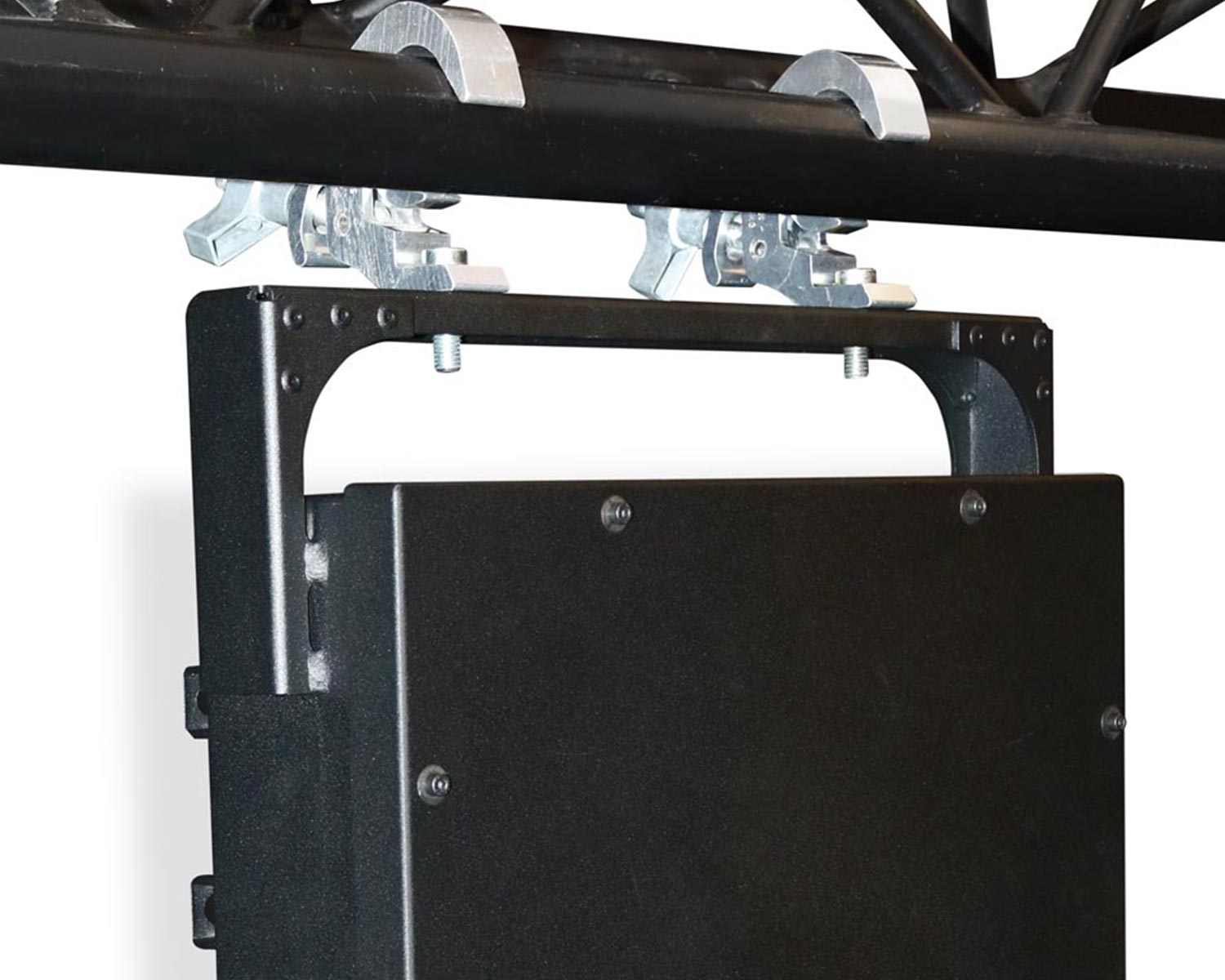

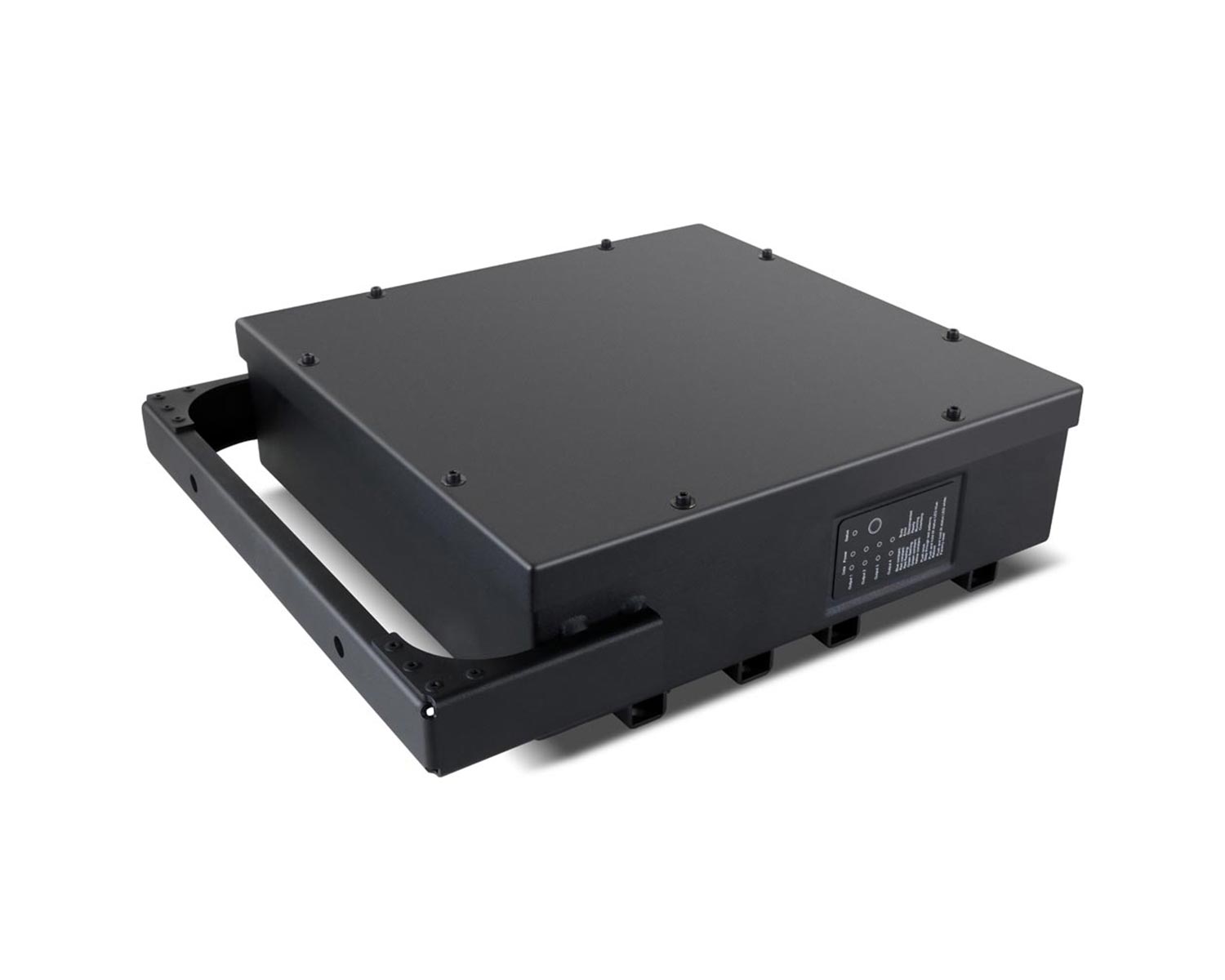

• Truss-mountable or free-standing
• Can be located up to 50 m away from the creative LED video products
• IP65

Product Specifications

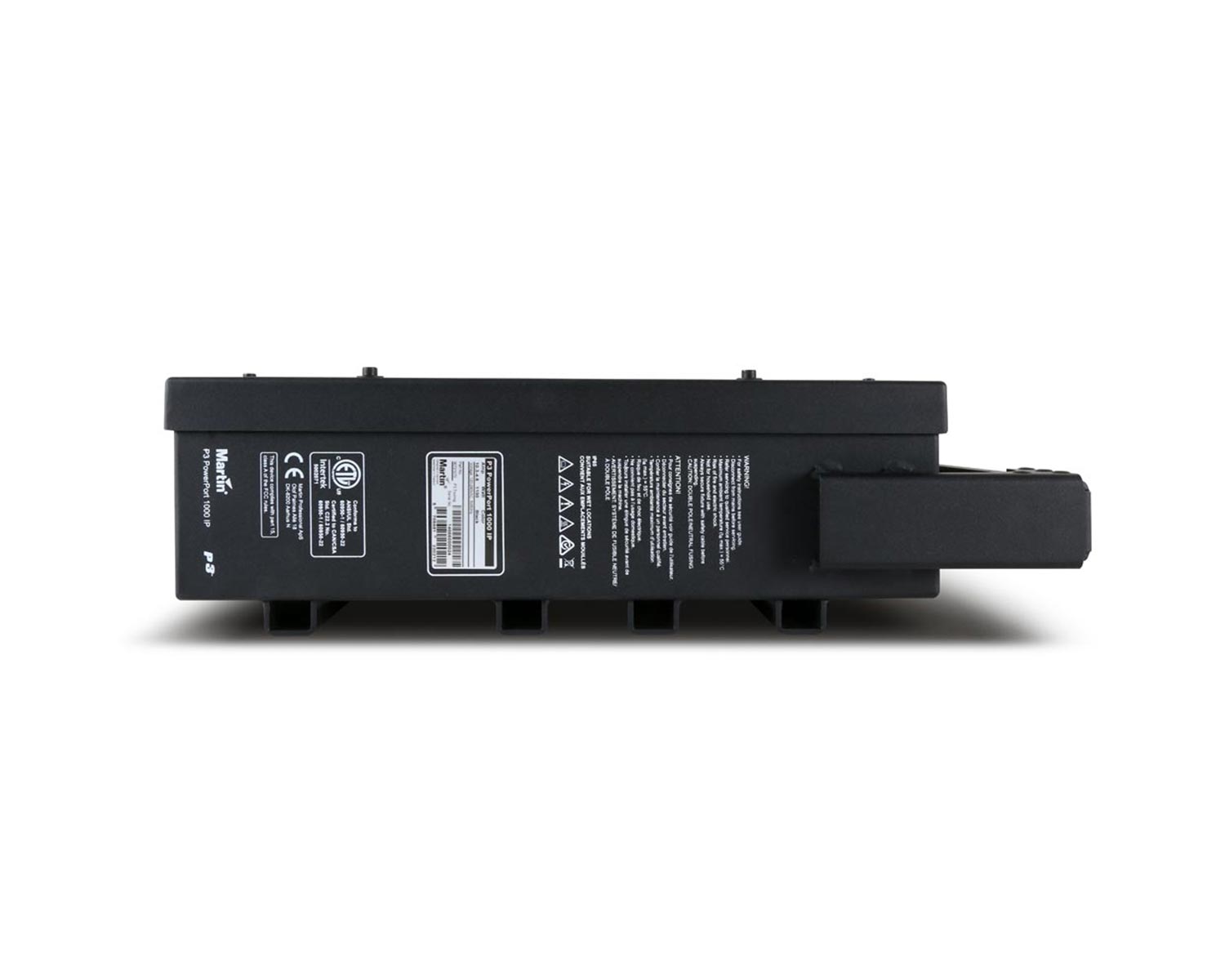

PHYSICAL

• Length: 520 mm (20.5 in.)
• Width: 460 mm (18.2 in.)
• Height: 146 mm (5.8 in.)
• Weight: 8.5 kg (18.8 lbs.)

CONTROL AND PROGRAMMING

• Addressing and status: Via P3 System Controller
• Mapping: Via P3 System Controller
• Firmware update: Via P3 System Controller

CONTROL/USER INTERFACE

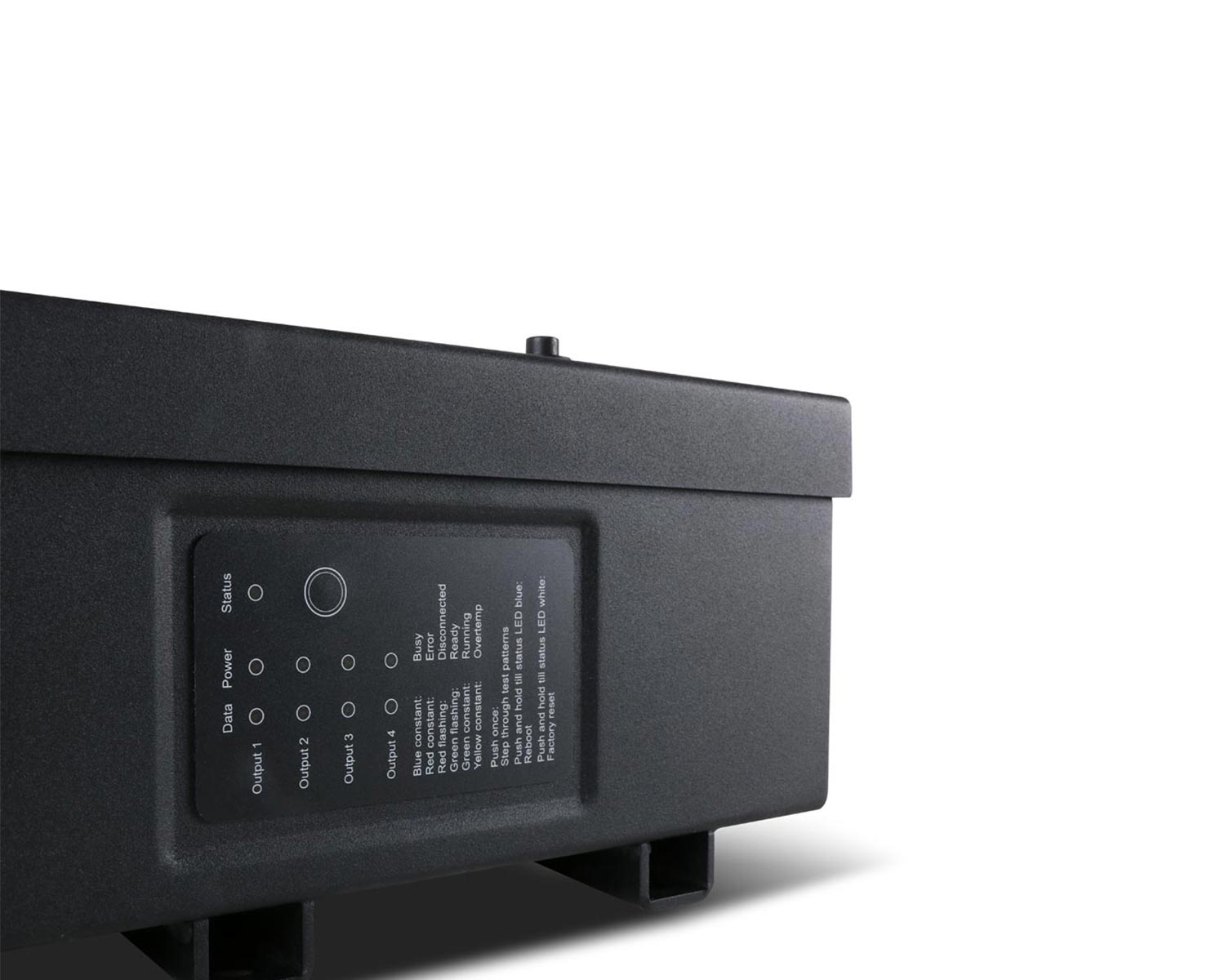

• Device status: Multicolor status LED
• Power output status: Four LEDs
• Data output status: Four LEDs
• Device test and reset: Pushbutton to call up local test patterns and reset device
• Status LEDs and pushbutton can be disabled remotely if required.

P3 SIGNAL PROTOCOL

• Signal type: Gigabit Ethernet
• Protocol : Proprietary Martin P3™
• Hot pluggable: Yes, electrically isolated at all connections
• Cable type: Ethernet, CAT 5e or better
• Cable length: Up to 100 m (328 ft.) between any 2 devices, extendable with Ethernet switch or conversion to fiber

SYSTEM INTEGRATION

• VC-Dot™ family via VC-Feeder™
• Exterior PixLine™ family
• VDO Sceptron™ family
• VC-Grid™ family (indoor product)
• VC-Strip™ family (indoor product)
• Exterior Dot-HP™ family

CONSTRUCTION

• Housing: Aluminum
• Color: Matte black
• Protection rating: IP65
• NEMA enclosure rating: Type 3
• Effective Projected Area (EPA): 0.22 m2
• RoHS compliant

INSTALLATION

• Mounting: Flown from rigging clamps or free-standing
• Orientation: Any, except with connectors facing up or lid facing down

CONNECTIONS

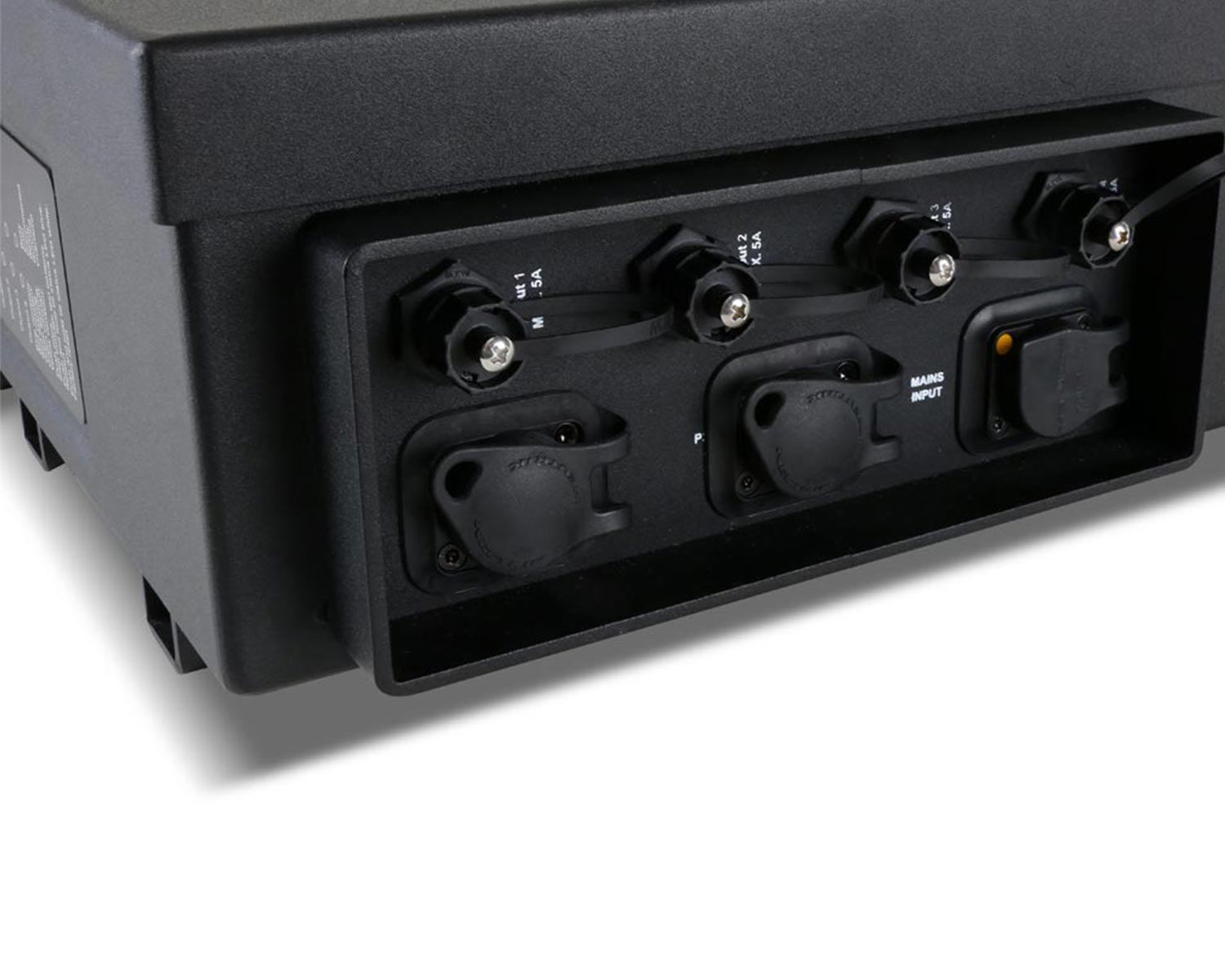

• Power input: Neutrik PowerCON TRUE1
• P3 data in/out: Neutrik EtherCON Cat 6
• Combined power & data out: Four 6-pin custom (BBD) IP66-rated sockets

ELECTRICAL

• AC power: 120-240 V nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch-mode
• Typical total power consumption: 1000 W (including full load of connected display devices, all at full intensity)
• Typical half-cycle RMS inrush current: 20.9 A (At 230 V, 50 Hz)
• Total power consumption in idle state (at 25° C, all connected devices powered off): 22 W

THERMAL

• Cooling: Convection
• Maximum ambient temperature (Ta max.): 55° C
• Minimum ambient temperature (Ta min.): -30° C
• Total heat dissipation (calculated, +/- 10%): 345 BTU/hr. (not including display devices but with system at full load)

APPROVALS

• EU safety: EN 60950
• EU EMC: EN 55032, EN 55103-2, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
• US safety: ANSI/UL 60950-1
• Canadian safety: CSA C22.2 No. 60950-1

ACCESSORIES

• Power connectors:
  • Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789
• Power cables:
  • Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91611797
  • Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91611786
  • Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91610173
  • Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91610174
• Data cable:
  • Data Cable, Cat 6 EtherCON-EtherCON 0.45 m (1.4 ft.): P/N 91611781
  • Data Cable, Cat 6 EtherCON-EtherCON 1.2 m (3.9 ft.): P/N 91611782
  • Data Cable, Cat 6 EtherCON-EtherCON 5 m (16.4 ft.): P/N 91611783
  • Data Connector, Cat 6 EtherCON: P/N 91611787
• Adapters for connecting to VC-Dot cables:
  • Power+Data Adapter M16-BBD 0.25 m (9.8 in.): P/N 91616053
  • Power+Data Adapter BBD-M16 0.25 m (9.8 in.): P/N 91616054
• Rigging hardware:
  • G-clamp: P/N 91602003
  • Half-coupler clamp: P/N 91602005
  • Quick trigger clamp: P/N 91602007
  • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
  • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

RELATED ITEMS

• Martin P3-PC™ System Controller: Free download from martin.com
• P3-050 System Controller: P/N 90721090
• P3-100 System Controller: P/N 90721010
• P3-150 System Controller: P/N 90721015
• P3-200 System Controller: P/N 90721020
• P3-300 System Controller: P/N 90721060

ORDERING INFORMATION

• Martin P3 PowerPort 1000 IP™, Rental Model: P/N 90721070
