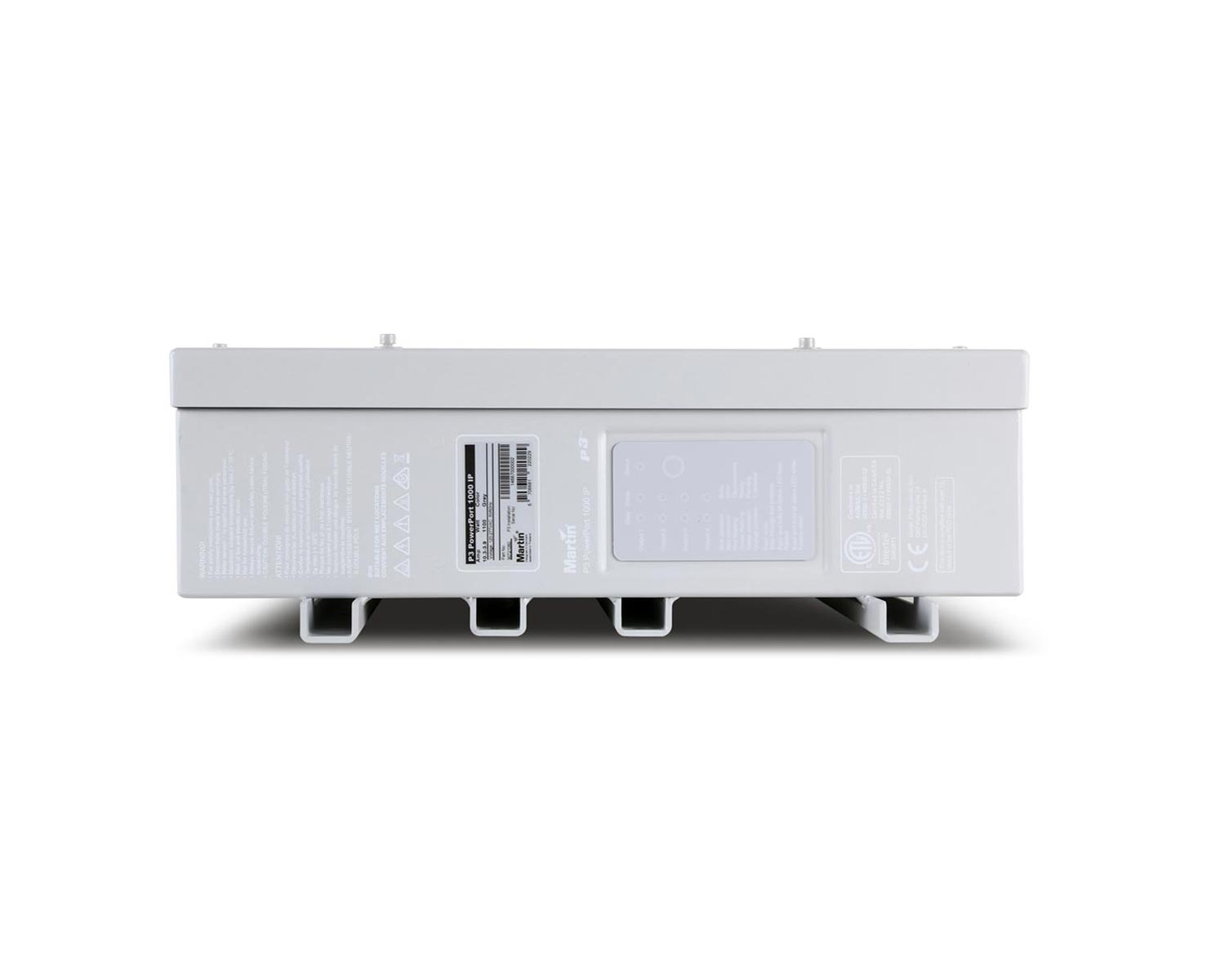

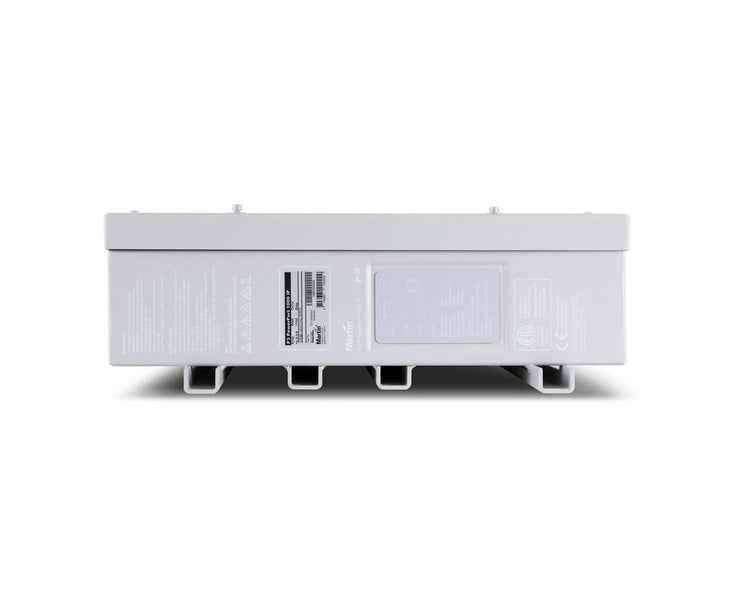

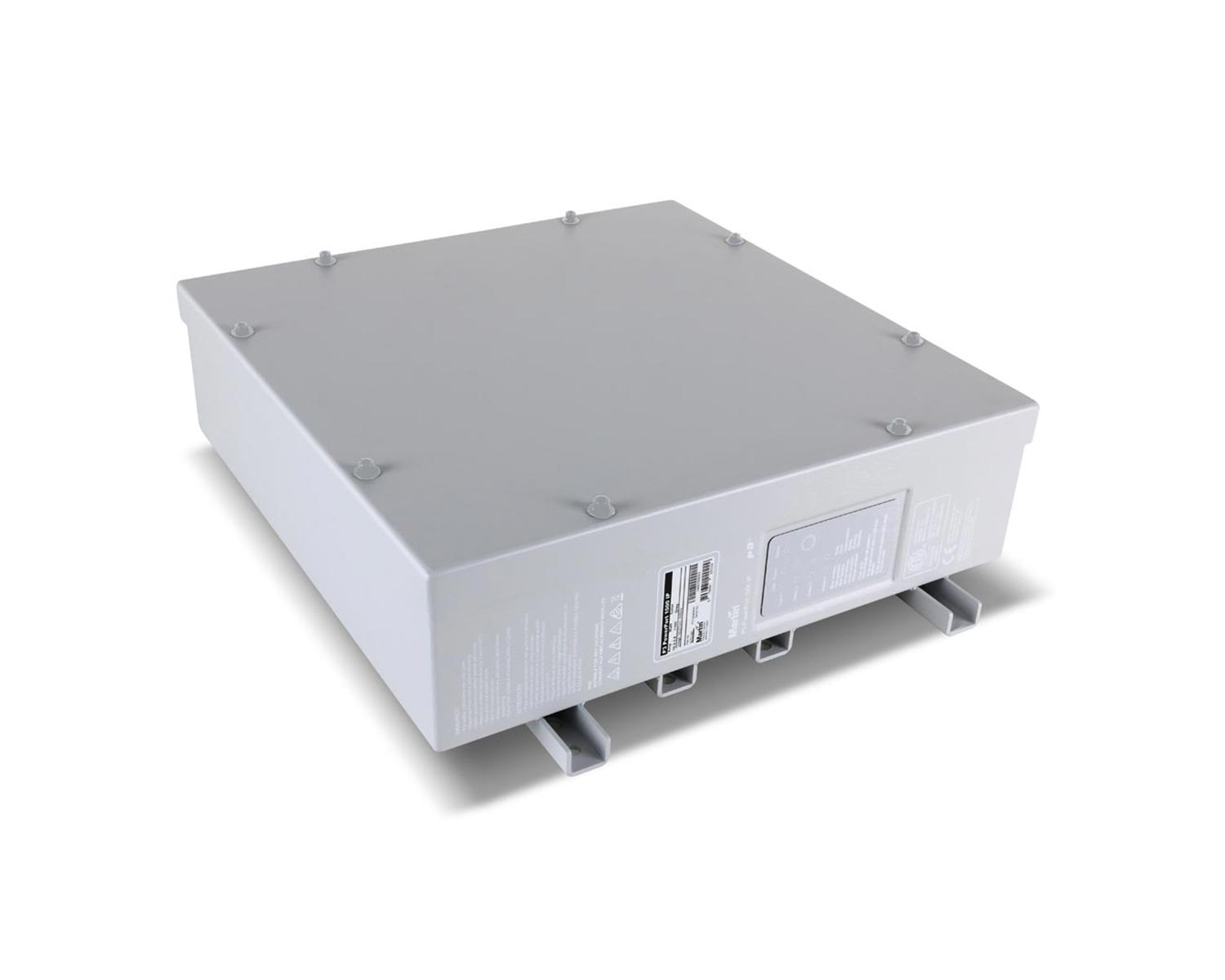

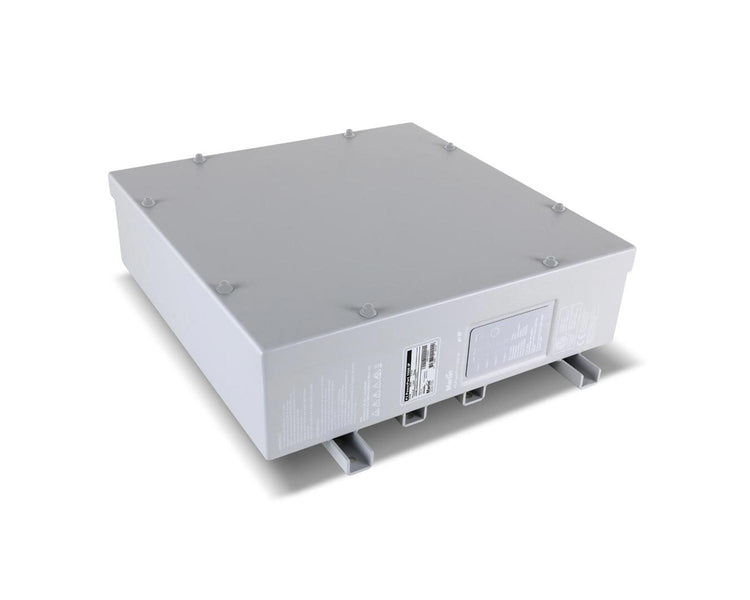

The P3 PowerPort 1000 IP Install is an integrated power supply and data processor for Martin’s range of creative LED video products, including the Exterior PixLine™ and VC-Dots™. When driven by one of Martin’s award-winning P3™ System Controllers™, it combines stable power delivery with high-speed, high-capacity video processing. Setup and configuration are easy and intuitive. A full outdoor rating and optional fiber interface make the product perfect for permanent outdoor installations.

• Power and data processor for all Martin’s fixed-installation creative LED video products
• Flexible integration: can be located remotely, indoors or outdoors
• Easy cabling and configuration

Product Features

• P3 image processing technology
• Set-up and addressing via P3 System Controller family
• No local configuration needed
• P3 input and thru to allow daisy-chaining
• Optional fiber-interface
• 4 hybrid power/data output ports
• Wall-mountable or free-standing
• Can be located up to 50 m away from the creative LED video products
• IP66

Product Specifications

PHYSICAL

• Length: 426 mm (16.8 in.)
• Width: 483 mm (19.1 in.)
• Height: 146 mm (5.8 in.)
• Weight: 8 kg (17.7 lbs.)

CONTROL AND PROGRAMMING

• Addressing and status: Via P3 System Controller
• Mapping: Via P3 System Controller
• Firmware update: Via P3 System Controller

CONTROL/USER INTERFACE

• Device status: Multicolor status LED
• Power output status: Four LEDs
• Data output status: Four LEDs
• Device test and reset: Pushbutton to call up local test patterns and reset device
• Status LEDs and pushbutton can be disabled remotely if required.

P3 SIGNAL PROTOCOL

• Signal type: Gigabit Ethernet
• Protocol : Proprietary Martin P3
• Hot pluggable: Yes, electrically isolated at all connections
• Cable type: Ethernet, CAT 5e or better
• Cable length: Up to 100 m (328 ft.) between any 2 devices, extendable with Ethernet switch or conversion to fiber

SYSTEM INTEGRATION

• VC-Dot™ family via VC-Feeder™
• Exterior PixLine™ family
• VDO Sceptron™ family
• VC-Grid™ family (indoor product)
• VC-Strip™ family (indoor product)
• Exterior Dot-HP™ family

CONSTRUCTION

• Housing: Aluminum
• Color: Alu grey (customized colors available on project basis)
• Protection rating: IP66
• NEMA enclosure rating: Type 3
• Effective Projected Area (EPA): 0.21 m2
• RoHS compliant

INSTALLATION

• Mounting: Brackets for installation on flat surface
• Orientation: Any, except with cable glands facing up or lid facing down

CONNECTIONS

• Power input: Cable gland (M20), internal screw terminals
• P3 data in/out: Two cable glands (M16), two internal RJ45 connectors (if copper-to-fiber unit is installed, one cable gland can be used for fiber)
• M16 cable glands accept 5.5 - 10 mm cable, M20 glands accept 8-13 mm cable.
• Combined power & data out: Four cable glands (M16), internal screw terminals

ELECTRICAL

• AC power: 120-277 V nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch-mode
• Typical total power consumption: 1000 W (including full load of connected display devices, all at full intensity)
• Typical half-cycle RMS inrush current: 20.9 A
• Total power consumption in idle state (at 25° C, all connected devices powered off): 22 W

THERMAL

• Cooling: Convection
• Maximum ambient temperature (Ta max.): 55° C
• Minimum ambient temperature (Ta min.): -30° C
• Total heat dissipation (calculated, +/- 10%): 345 BTU/hr. (not including display devices but with system at full load)

APPROVALS

• EU safety: EN 60950
• EU EMC: EN 55032, EN 55103-2, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
• US safety: ANSI/UL 60950-1
• Canadian safety: CSA C22.2 No. 60950-1

INCLUDED ITEMS

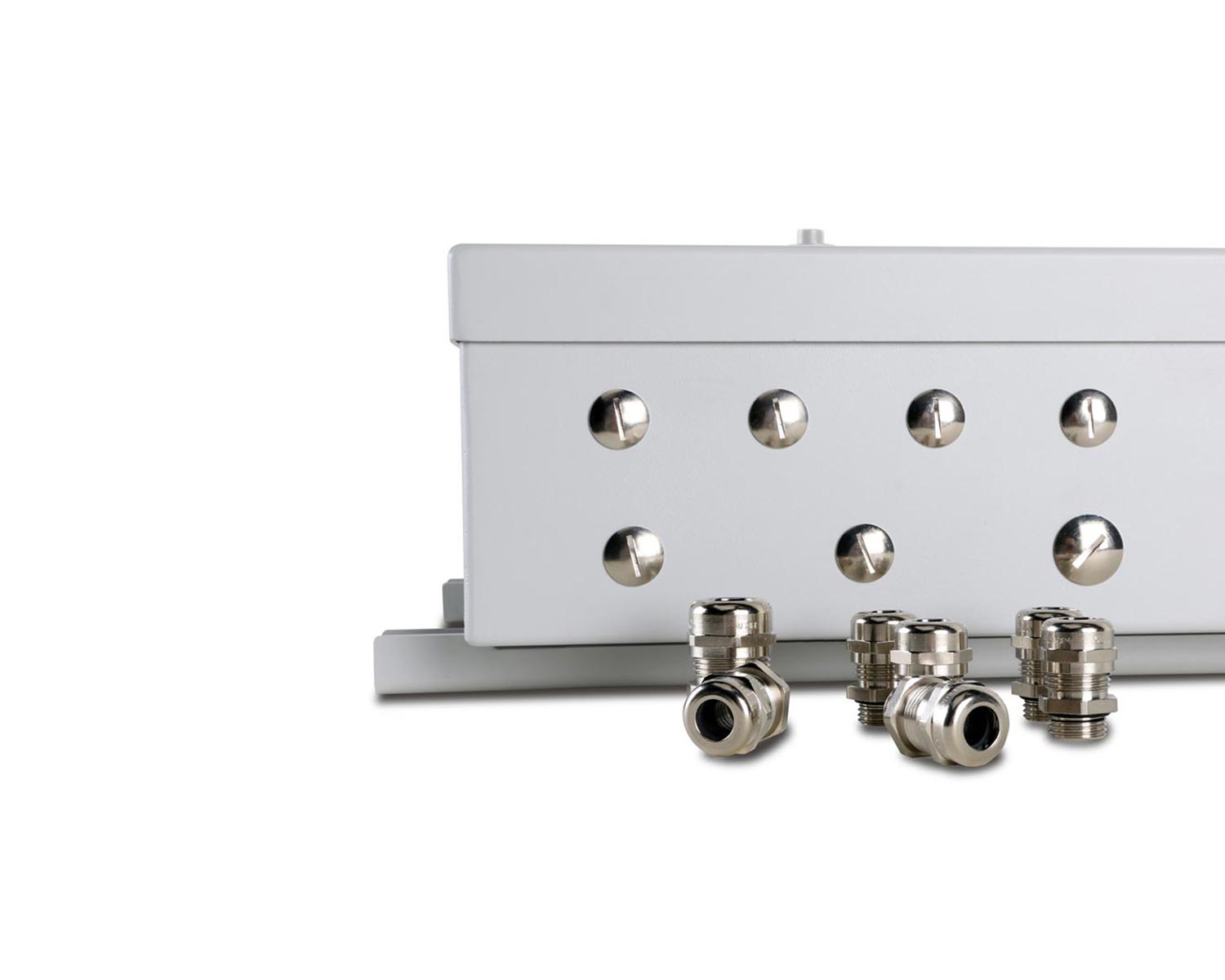

• Cable glands

RELATED ITEMS

• Martin P3-PC™ System Controller: Free download from martin.com
• P3-050 System Controller: P/N 90721090
• P3-100 System Controller: P/N 90721010
• P3-150 System Controller: P/N 90721015
• P3-200 System Controller: P/N 90721020
• P3-300 System Controller: P/N 90721060

ORDERING INFORMATION

• Martin P3 PowerPort™ 1000 IP, Installation Model: P/N 90721080

What's in the Box?

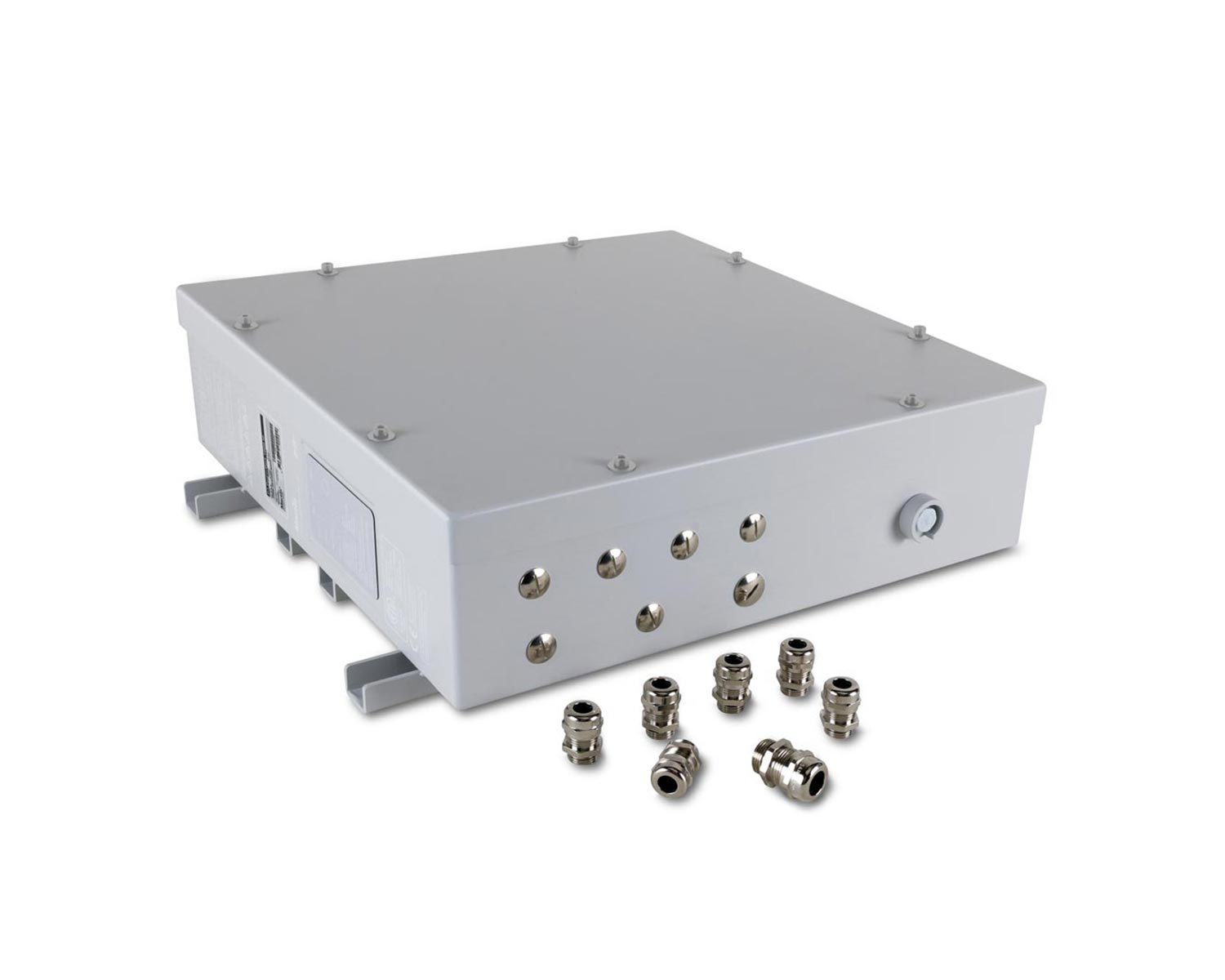

• P3 PowerPort 1000 IP Install
• Cable glands
