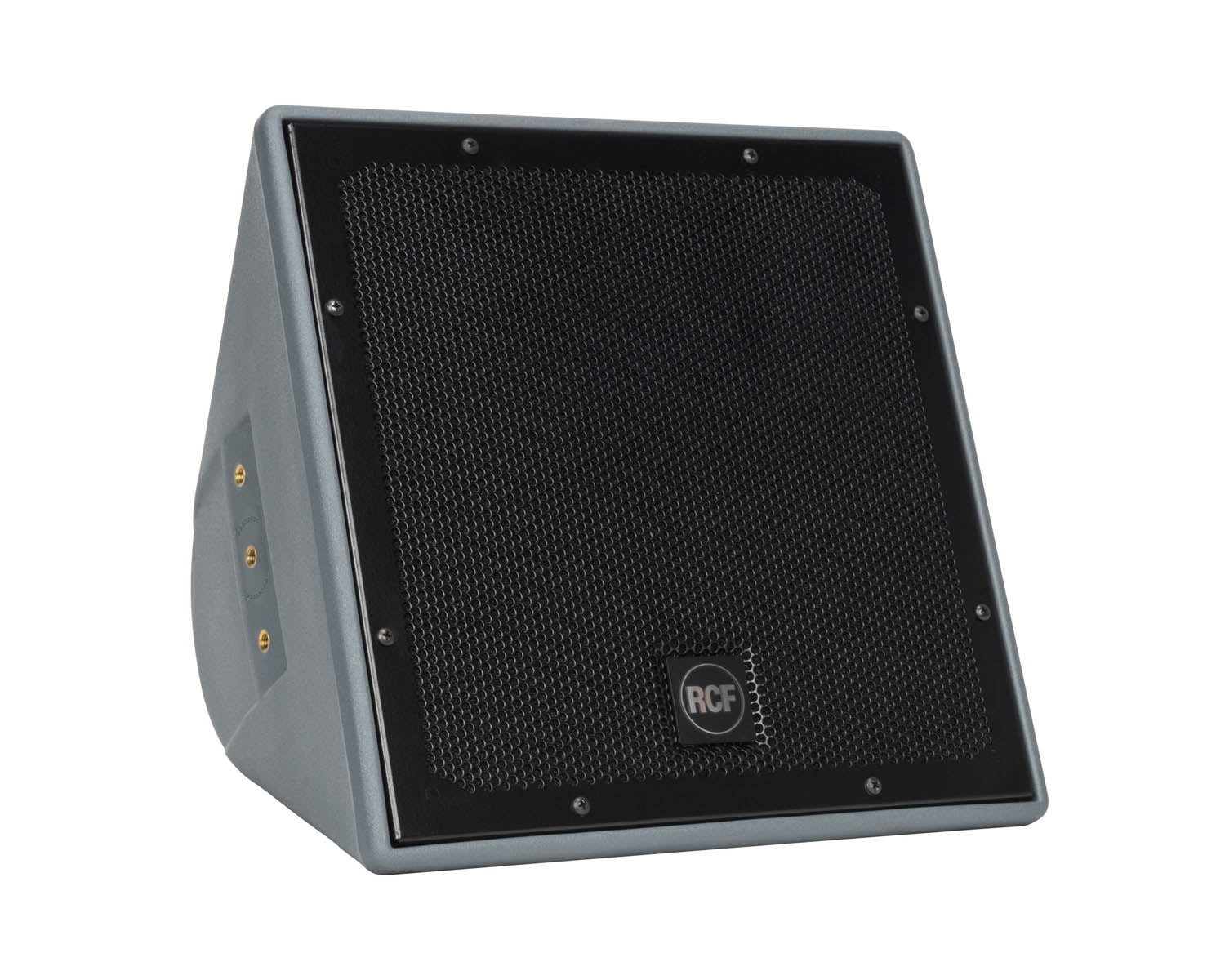

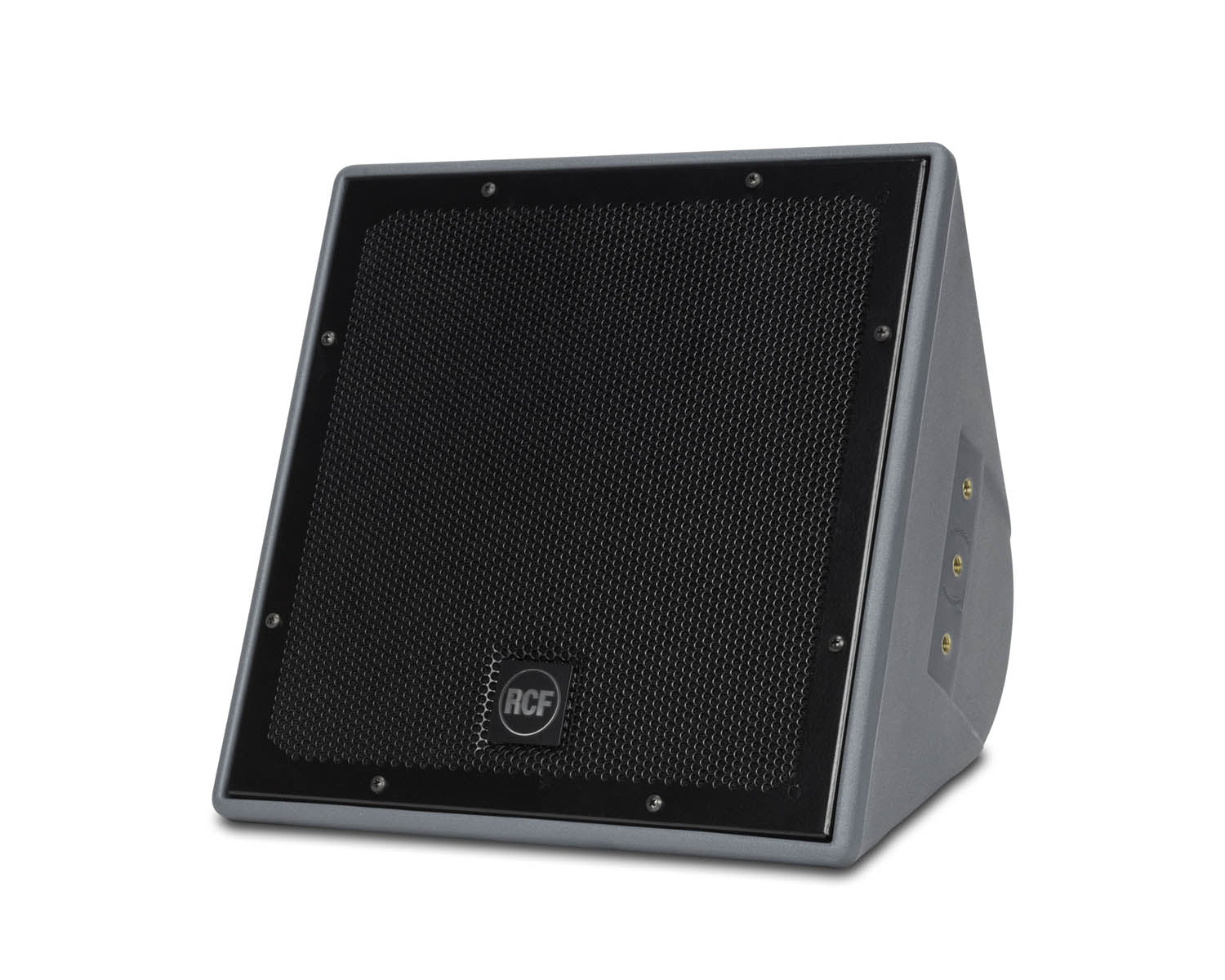

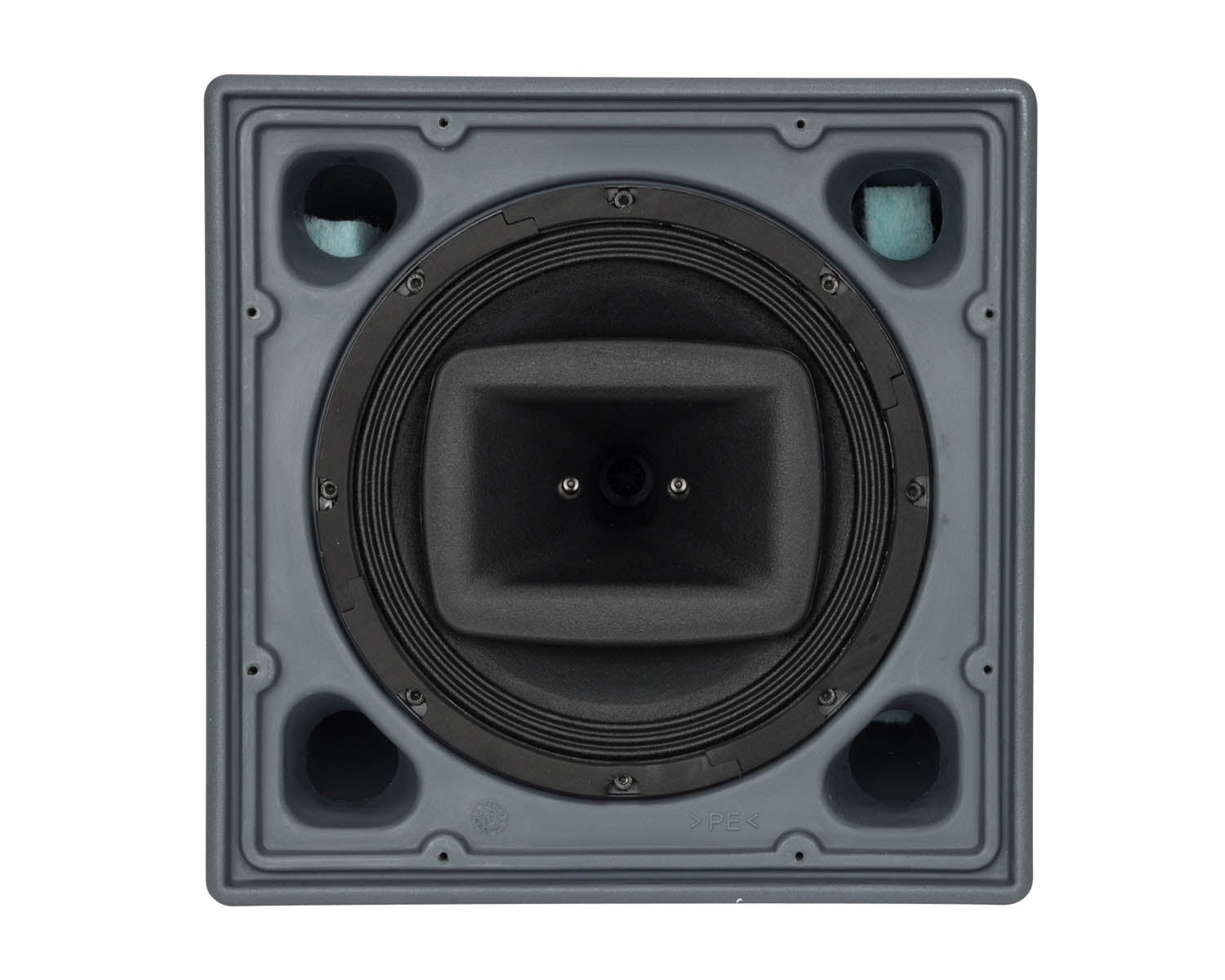

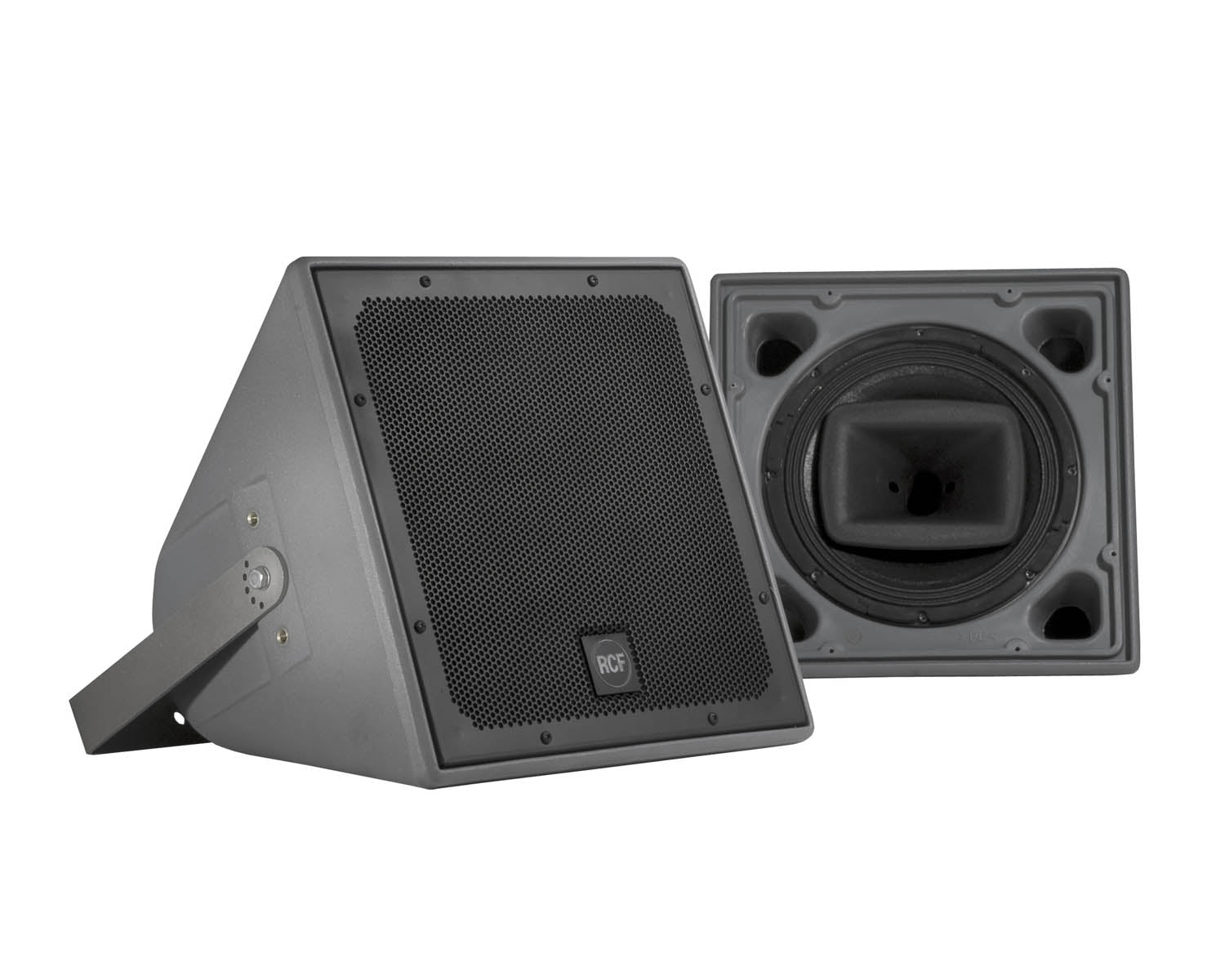

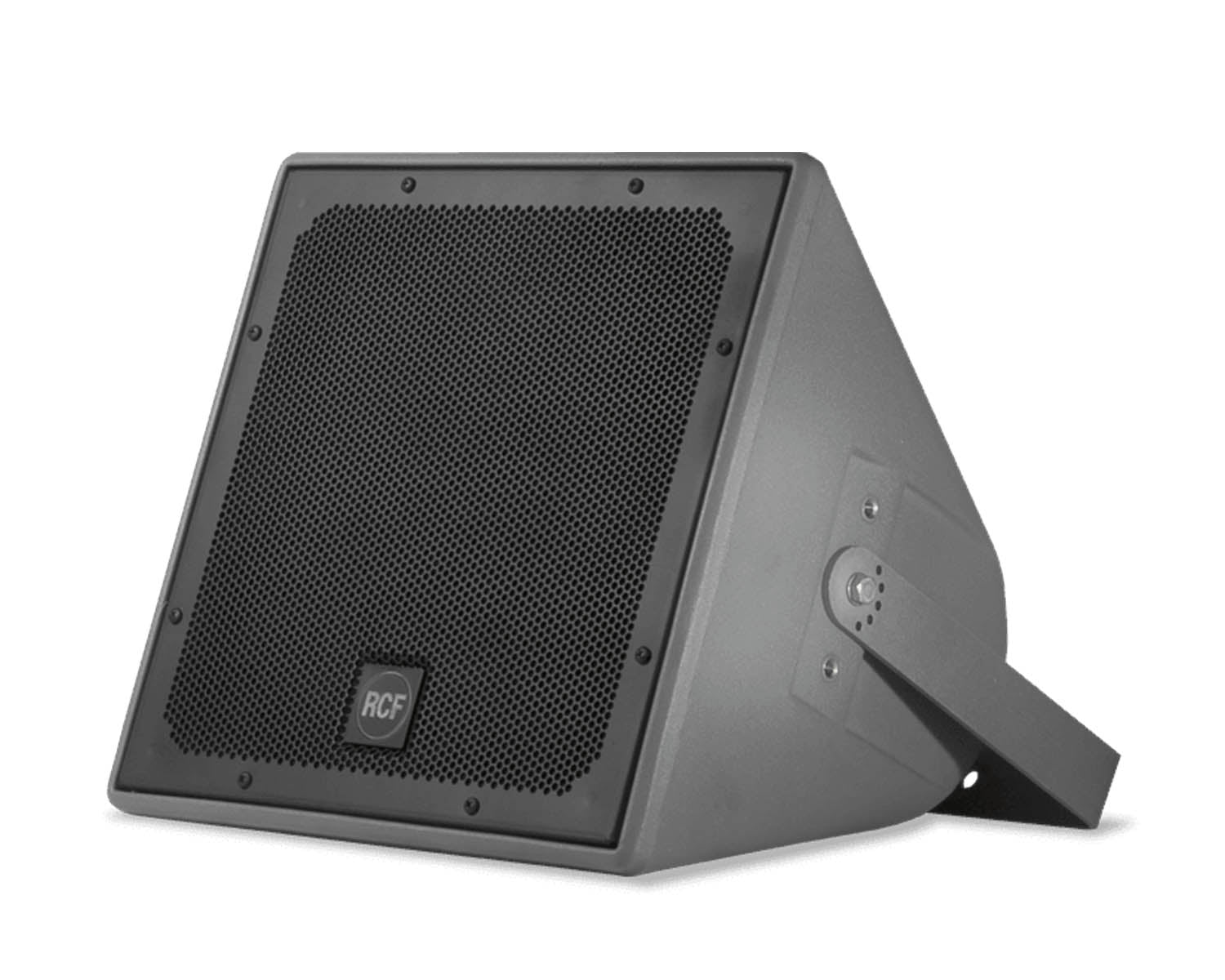

The P 2110T is a weatherproof full-range, wide-dispersion, coaxial two-way loudspeaker system for a variety of professional indoor or outdoor applications. The speaker can be installed individually or coupled in array configurations. The low-frequency transducer is a 10” woofer with a 2.5” voice coil. The high-frequency section combines a 1” RCF Precision compression driver with a 1.5” diaphragm assembly centrally-mounted in the throat of the LF driver, and loaded on a constant directivity CMD horn for smooth, wide dispersion. The P 2110T features a selectable line transformer for 70 - 100 volt applications, built-in LICC crossover, and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP-55 standard requirements. Included are M10 brass inserts (12 x) and one durable corrosion-resistant 316P stainless steel U-Bracket with spacers (2x) for 90° mounting. The aluminium grille cover is powder coated with water-repellent backing material and a rotatable logo plate.

Product Features

• 124 dB SPL Max, 200W RMS
• Weatherproof IP55 cabinet with UV protection
• Line transformer
• 90° x 40° CMD constant directivity horn
• 10" high-output LF transducer with 2.5" voice coil
• RCF Precision 1" C. Driver with 1.5" voice coil

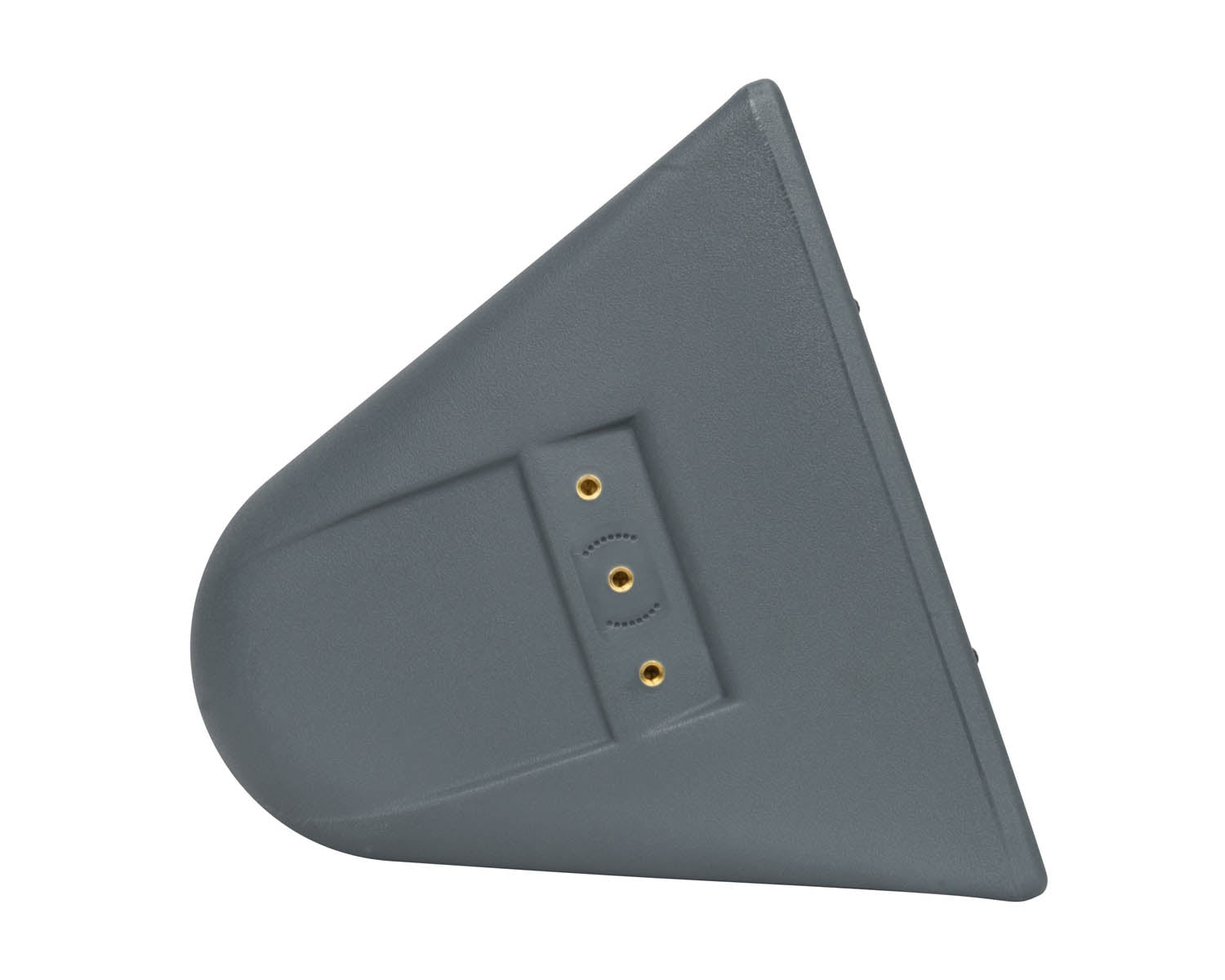

• 12 brass suspension points (M10)
• Roto-moulded single piece cabinet

Product Specifications

General

• Acoustical Specifications
  • Frequency Response -10 dB:95 Hz ÷ 20000 Hz
  • Max SPL @ 1m:124 dB
  • Horizontal coverage angle:90°
  • Vertical coverage angle:40°
  • Directivity index; Q:11
  • System Sensitivity:95 dB
  • Nominal Impedance:16 Ω
  • Power Handling:200 W
  • Peak Power Handling:800 W
  • Recommended Amplifier:400 W
  • Protections:Dinamyc
  • Crossover frequencies:2000 Hz
• Transducers

  • Compression Driver:1" HF driver, 1,5" voice coil
  • Nominal Impedance:8 Ω
  • Input Power Rating:25 W AES
  • Sensitivity:106 dB
  • Woofer:10" woofer, 2.5" voice coil
  • Nominal Impedance:16 Ω
  • Input Power Rating:180 W AES
  • Sensitivity:95 dB
• Input Section

  • Input connector:5m, 4-adriges Neopren Kabel
  • Constant voltage transformer:70/100
  • Power Selection:70V/30W ,15W , 100V/60W, 30W
• Cabinet

  • Cabinet Material:Polyethylene rotomoulded
  • Hardware:12 x M8 inserts+ U-brackets and pair of spacers

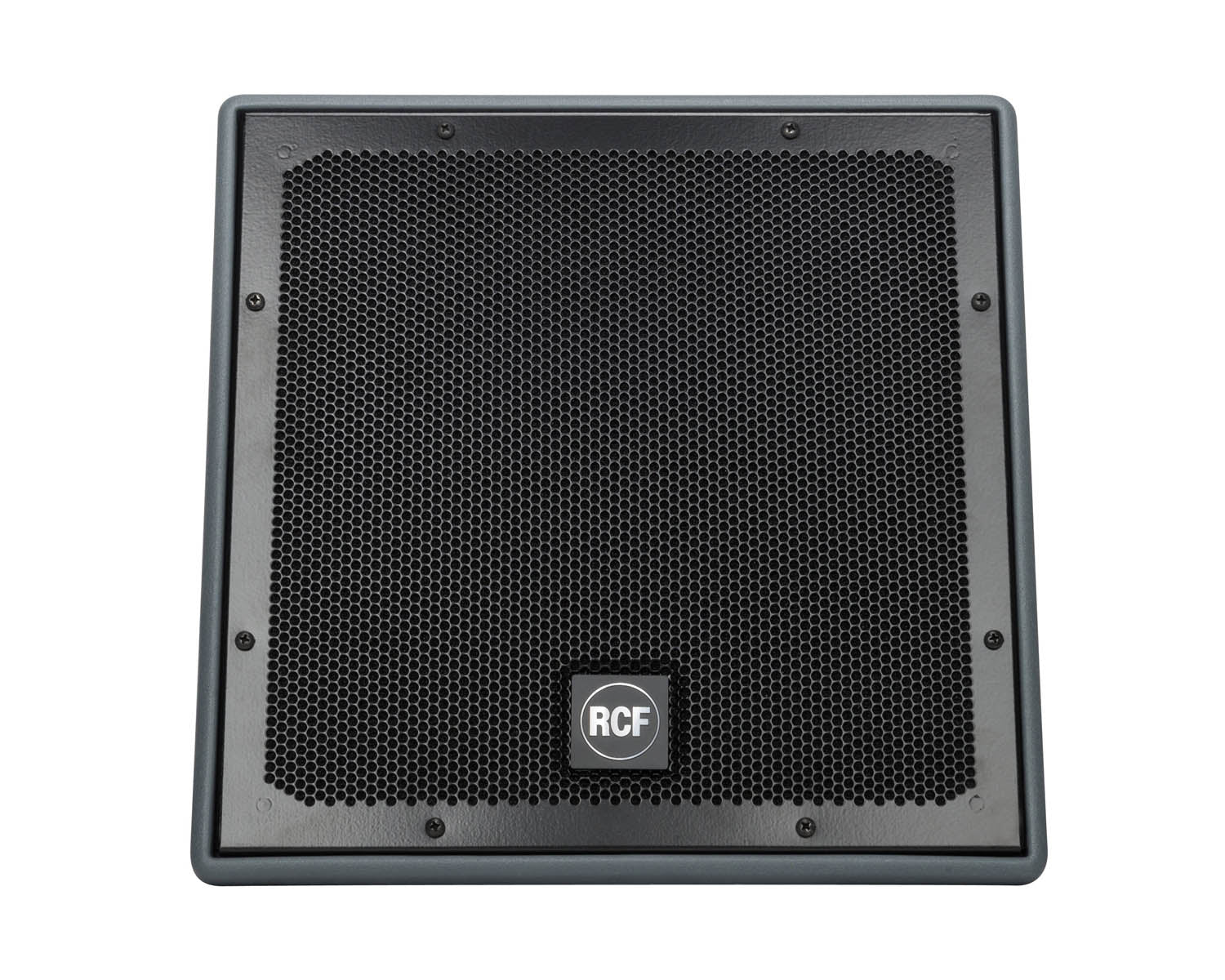

  • Grille:Custom perforated aluminium grille with open-cell fiber and water repellent woven fabric backing
  • Colour:Grey

Physical & Dimensions

• Height: 350mm
• Width: 350mm
• Depth: 320mm
• Weight: 13.5kg
