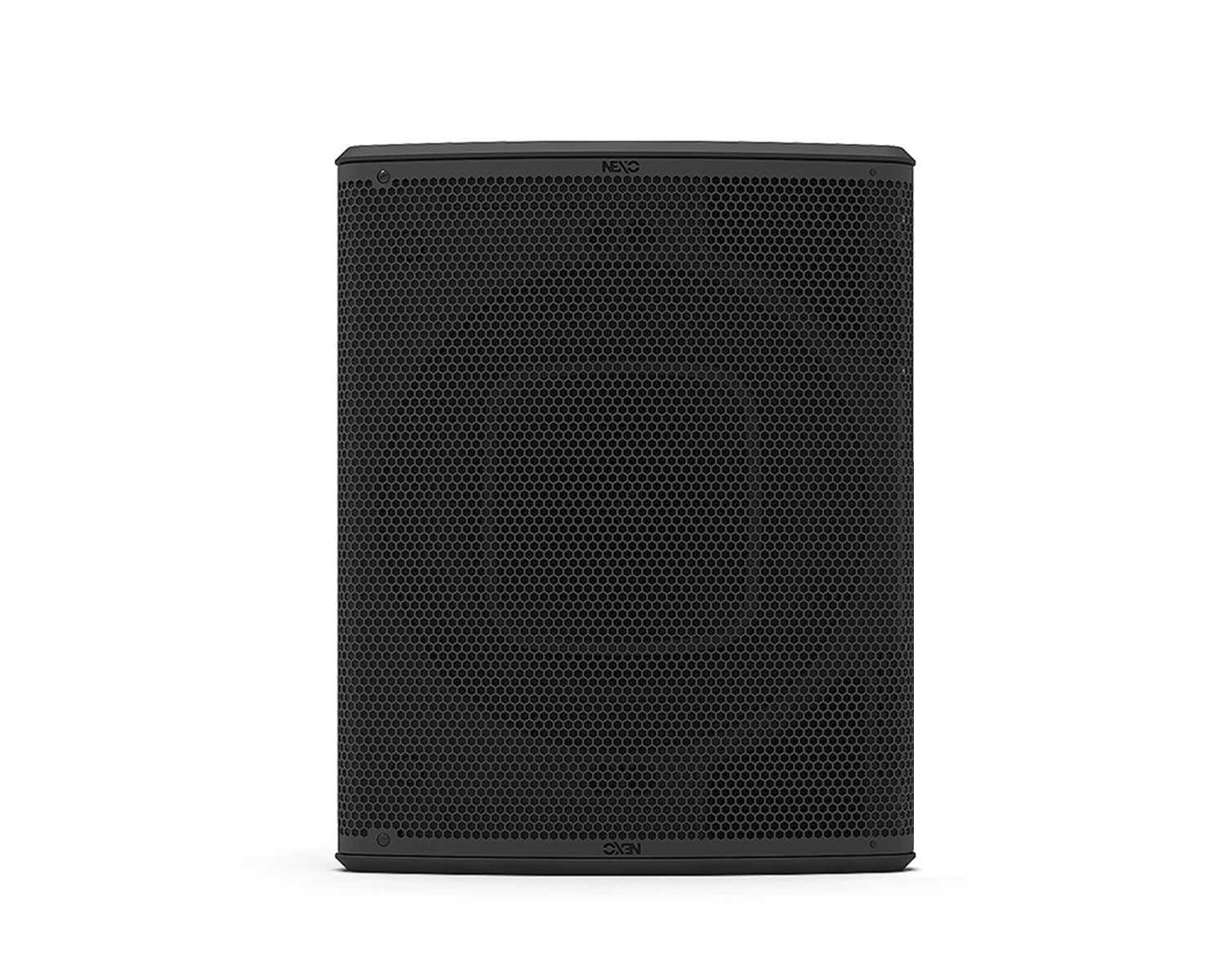

NEXP15 - NEXO P15 15inch Active or Passive Touring Loudspeaker 8ohm Black Image 1

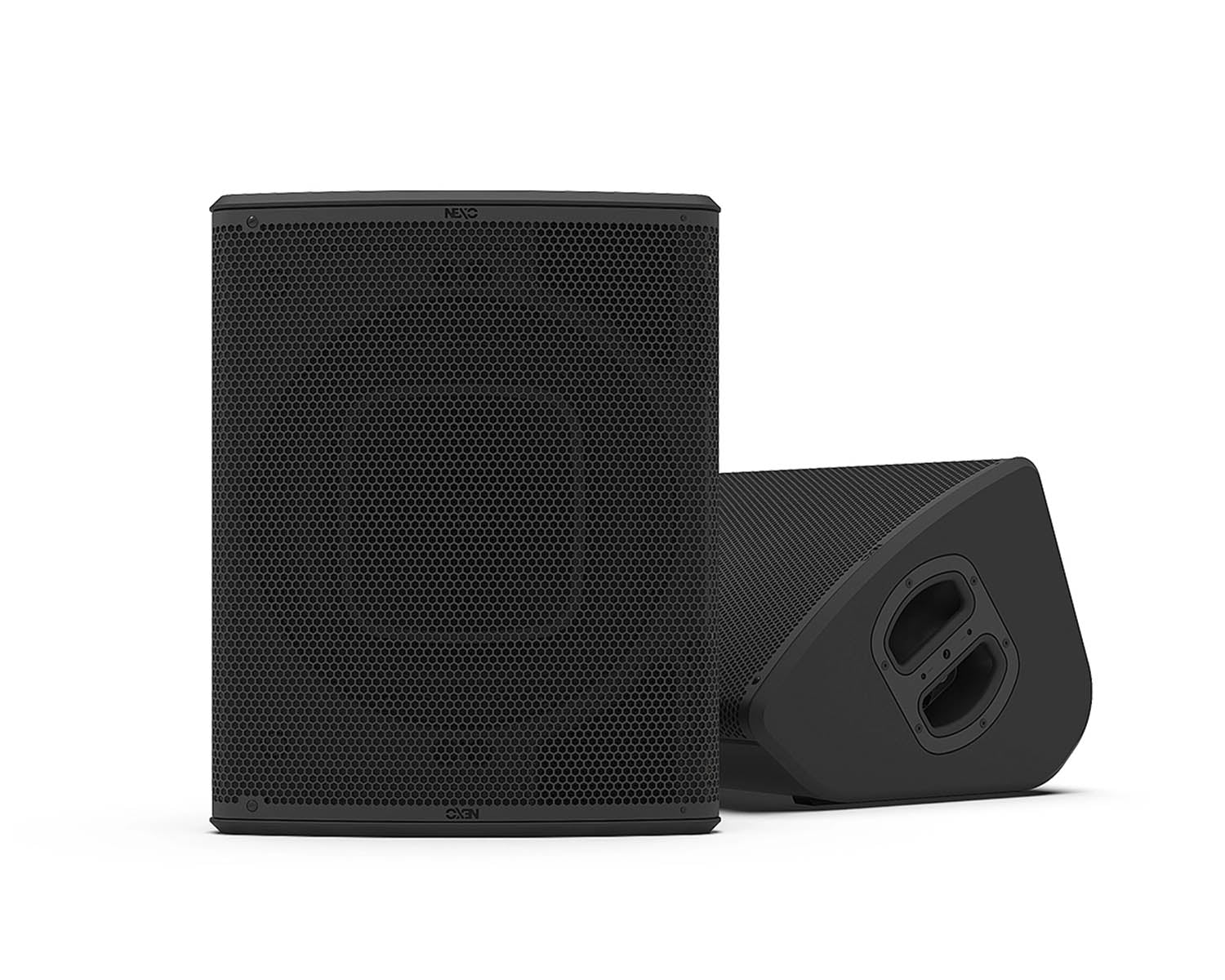

NEXP15 - NEXO P15 15inch Active or Passive Touring Loudspeaker 8ohm Black Image 2

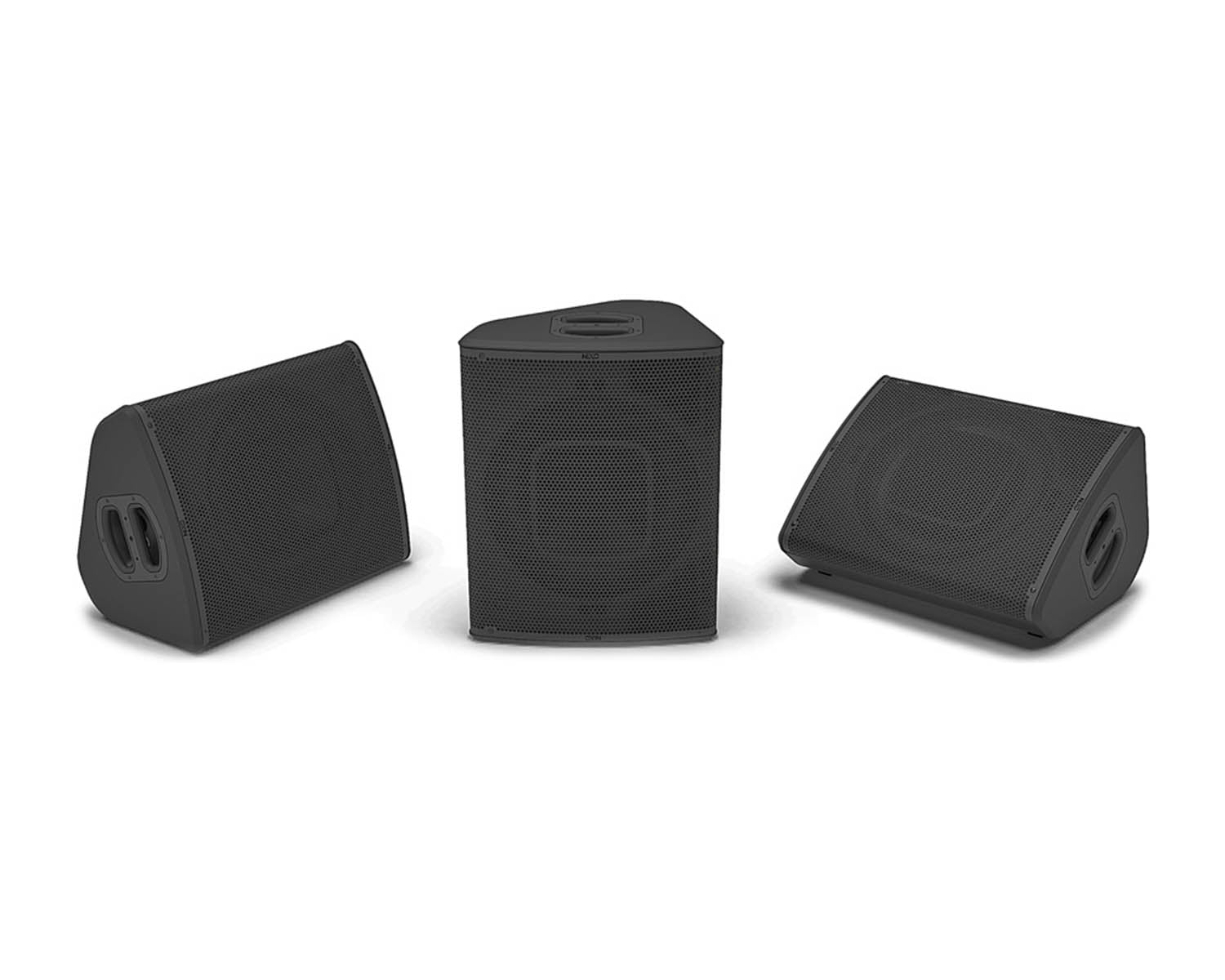

NEXP15 - NEXO P15 15inch Active or Passive Touring Loudspeaker 8ohm Black Image 3

NEXP15 - NEXO P15 15inch Active or Passive Touring Loudspeaker 8ohm Black Image 4

The P15 is built around a 15 mm custom-made bent plywood shell, with poplar veneer for the inside layers and birch on the outside. The result is a robust enclosure with exceptionally good sound quality and lightweight.

The bass-reflex tuning is done through two computer-optimised shaped port which guarantee ultra-low distortion even at very high level.

Two large comfortable handles on each side (on Touring version only) hold a 35 mm pole stand adapter and a Speakon® connector for discrete connection when on pole stand or in wedge monitor mode.

The backplate holds two other Speakon® connectors and a recessed switch to change the cabinet from 2-way passive to 2-way active (on Touring version only).

The Installation version is passive only and has a cable gland with a 2 core cable for audio input ensuring IP54 protection.

The internal passive filter is encapsulated in a certified resin to protect components from vibration and dust, ensuring an extra-long life.

The custom-designed common neodymium magnet coaxial driver with a 3.5” voice coil for the LF driver and a 3” diaphragm for the HF motor is the heart of the P15 and is responsible both for its smooth, clean sound and enormous power.

Product Features

Compact, low-profile, curvilinear enclosure
15” LF Neodymium driver and 3” diaphragm HF driver in a coaxial configuration

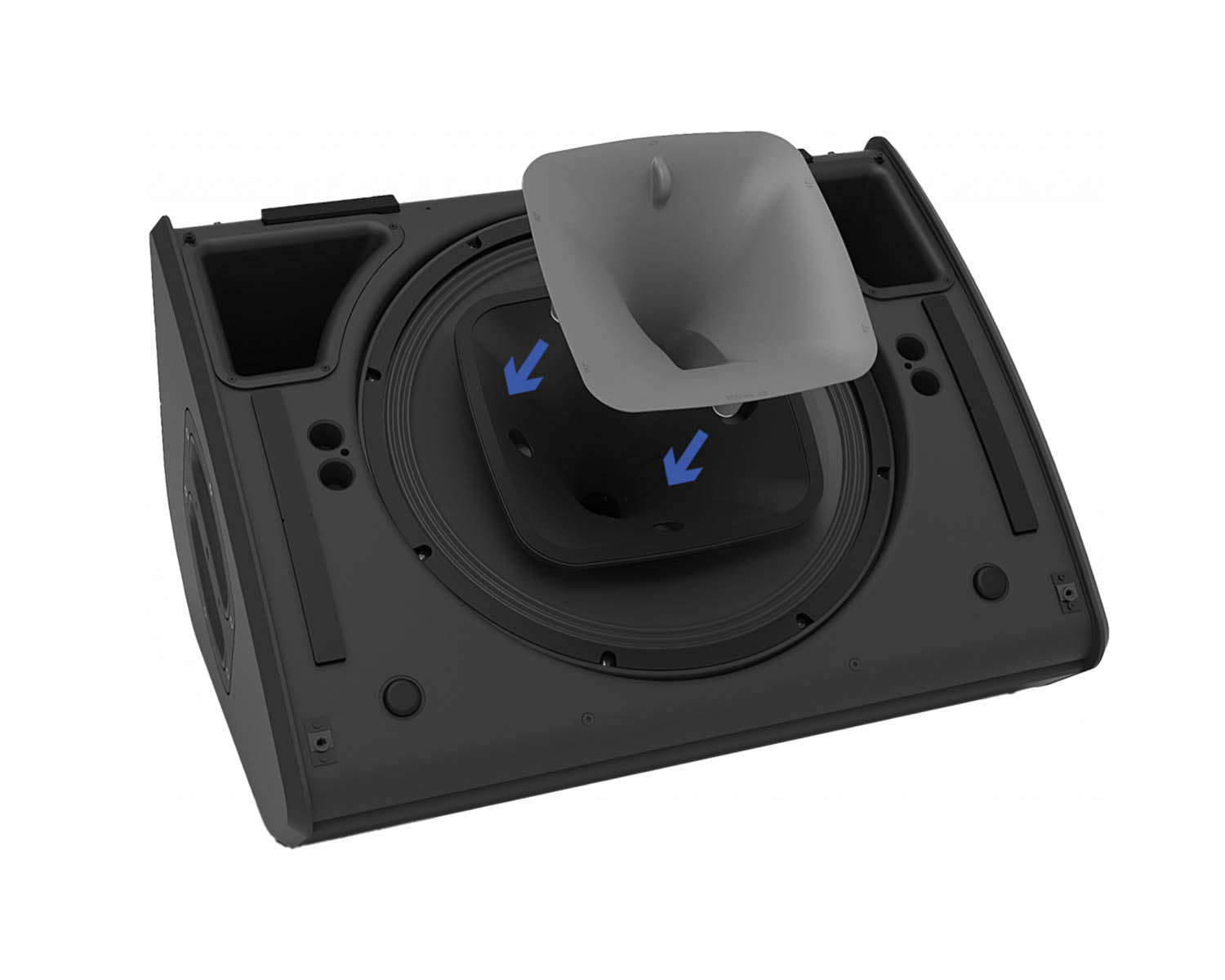

Variable HF directivity
Switchable Active/Passive modes
141dB peak SPL (Active Mode)
Threaded inserts on the back and on both sides for connection of mounting accessories
Stand fitting on both sides
4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
Touring, installation and TIS versions

Product Specifications

General

Frequency Response @-6 dB: 57 Hz - 20 kHz
Sensitivity 1W@1m: 108 dB SPL Nominal
Peak SPL@1m: 139 dB Peak (Passive mode) / 141 dB Peak (Active mode)
Operating Voltage: 55 Vrms (180 Vpeak)
HF Dispersion (according to ﬂanges): 60°x60° (Default) - 90°x40° (with 90x40 ﬂange) - 60°~100°x40° (with PS ﬂange)
Crossover Frequency: 57 H, 85 Hz, 120Hz
Nominal Impedance: Active mode: (8 Ω LF + 8 Ω HF) / Passive mode: 8 Ω
Recommended Power: Active: (800 to 1350 W LF + 400 to 630 W HF) / Passive: 800 to 1350 W

Features

Components: 1 x Coaxial Neodymium LF 15” 8 Ohms long excursion & HF 3“ 8 Ohms
Number of ways (Touring version): 2 ways passive (2+/2- P15) or 2 ways active (1+/1- LF, 2+/2- HF) switchable
Connectors (Touring version): 4 x NL4, 4 poles connectors (1 per handle + 2 at the back)
Rigging points: 1 x universal accessory ﬁt on each side + 1 x on the bottom
Material: Custom made bent plywood of Baltic birch and poplar
Finish: Black or White structural paint
Front Finish (Touring version): Steel front grille + back mesh
Weight: Net: 23 kg
Height x Width x Depth: 600mm x 483mm x 352 mm
Operating temperature range: 0°C - 40°C
Storage temperature range: -20°C - 60°C
System Operation:
- Recommended powering solution: NXAMP4x2mk2 Powered TDcontroller: up to 2 x P15 per channel
- Optional powering solution:
  - DTDcontroller + DTDAMP4x1.3 : 1 x P15 per channel
  - NXAMP4x1mk2 Powered TDcontroller (Bridged): up to 2 x P15 per channel
  - NXAMP4x4mk2 Powered TDcontroller: up to 4 x P15 per channel
