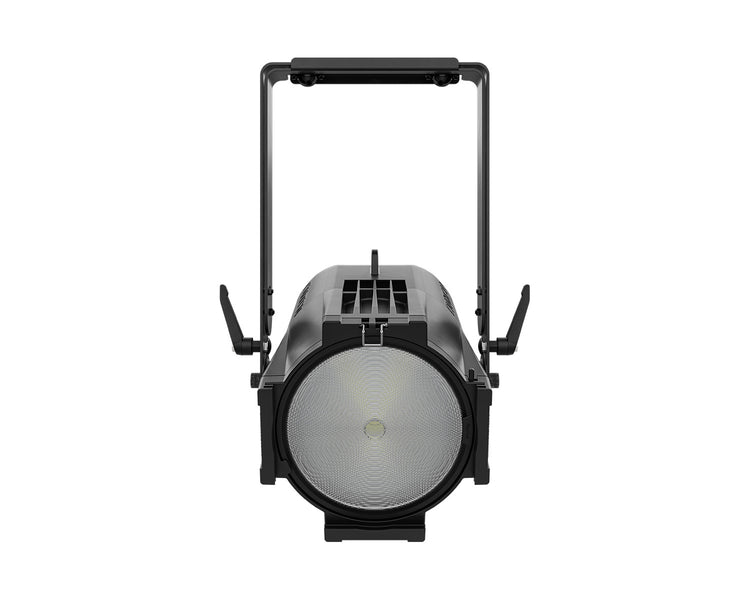

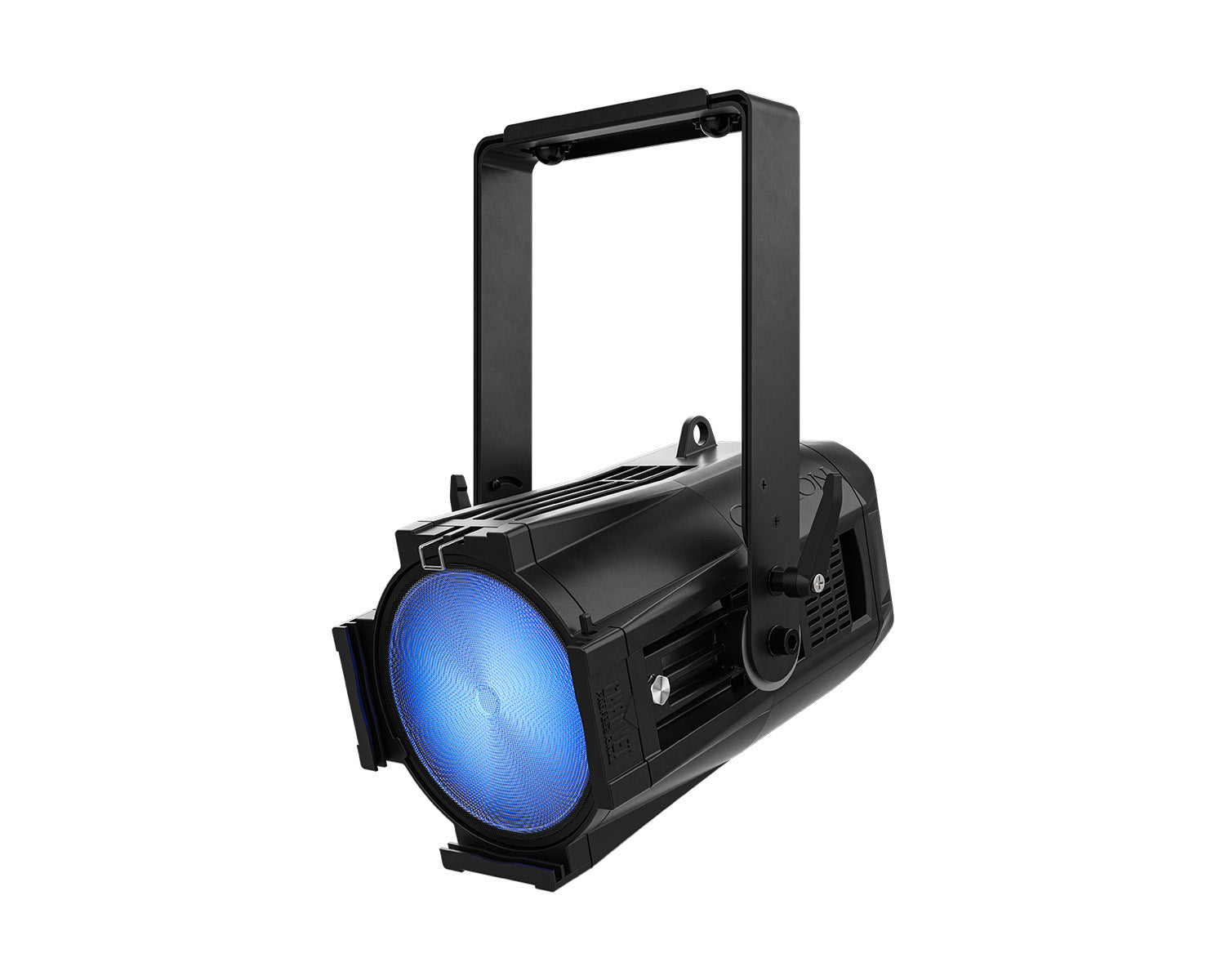

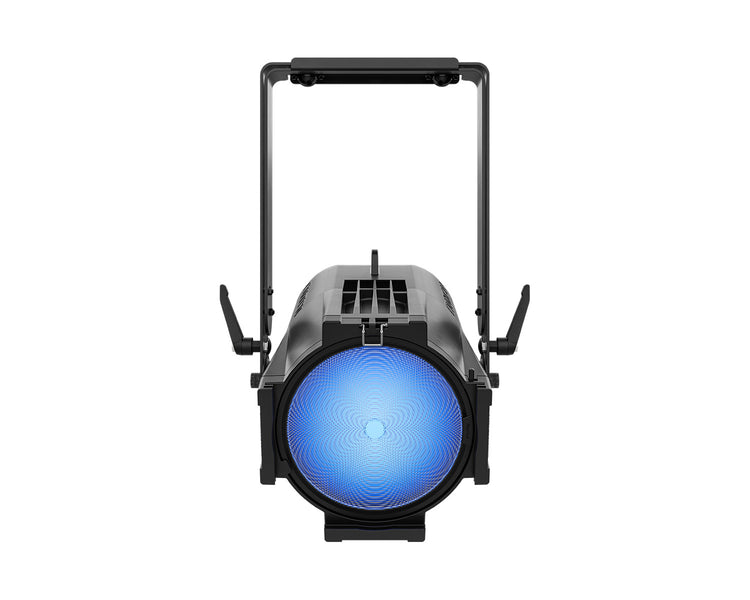

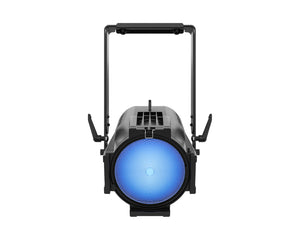

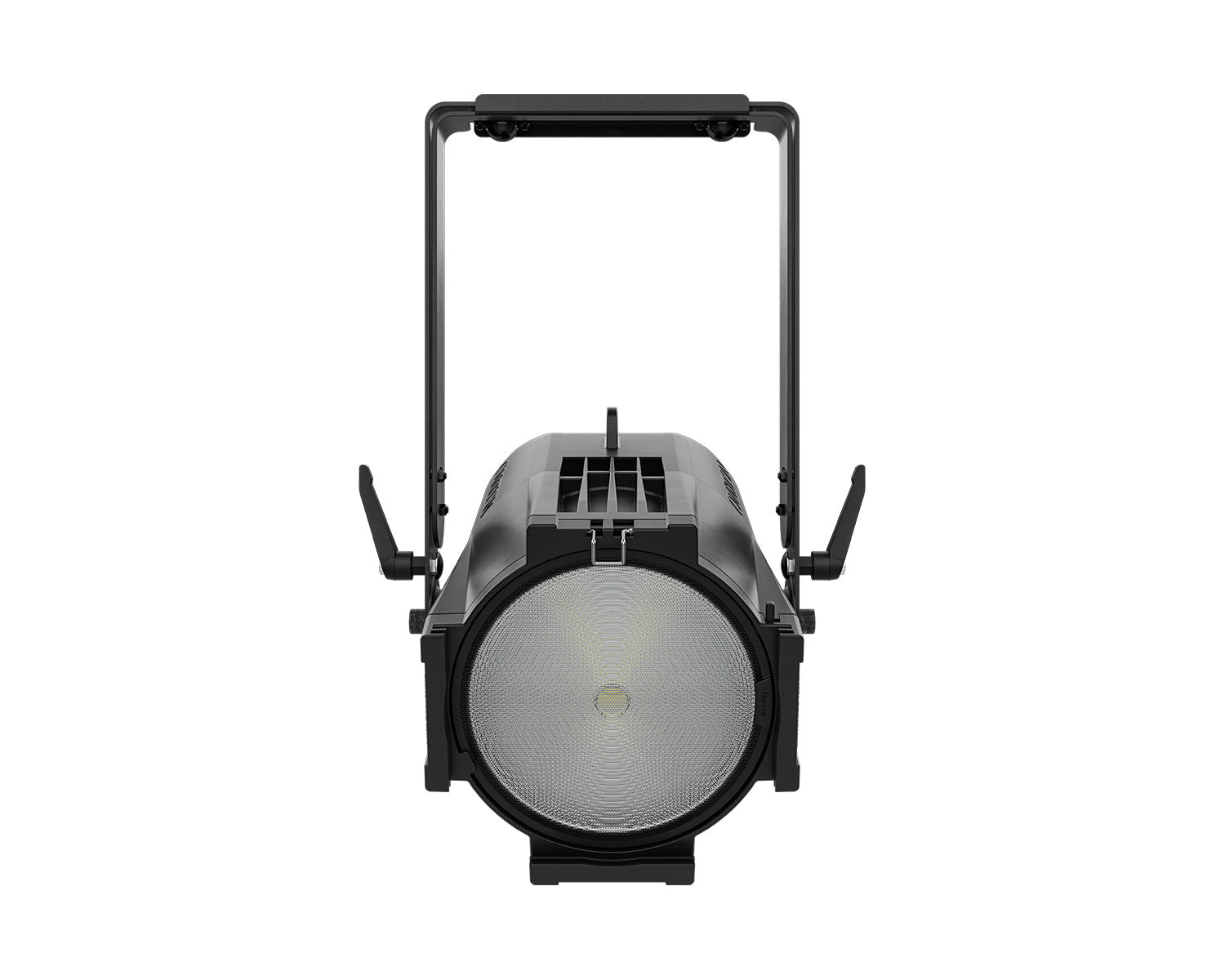

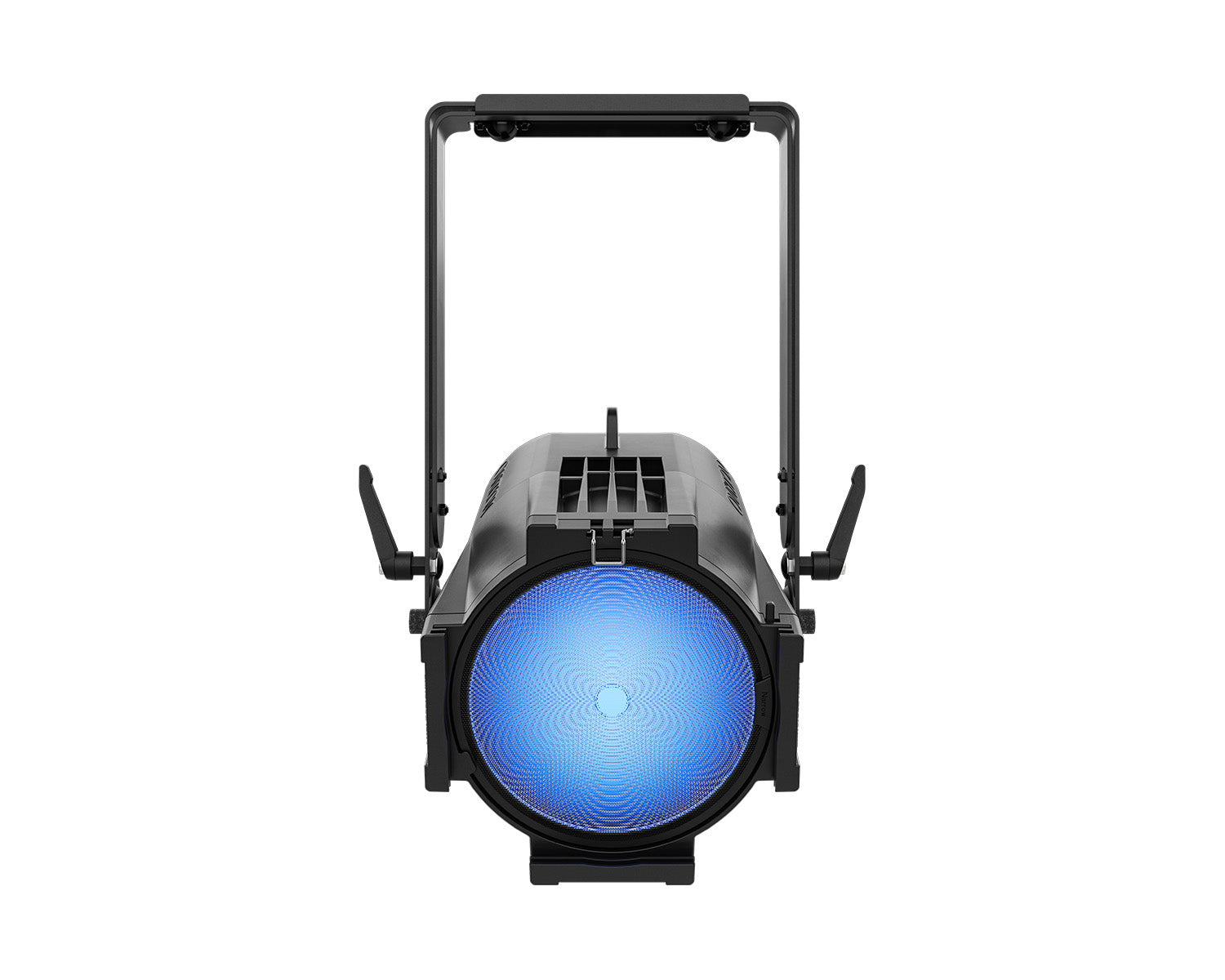

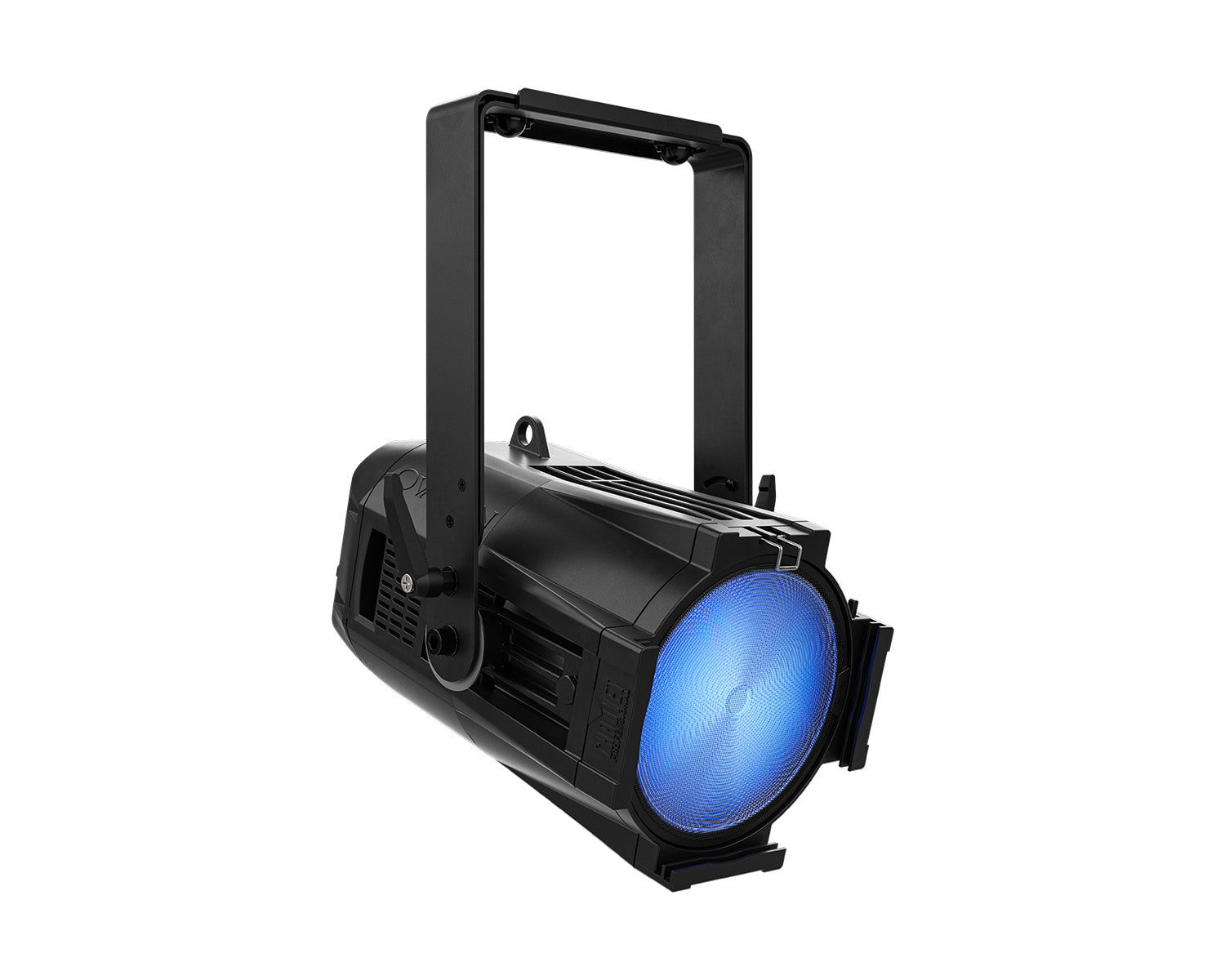

Handle it all, from a narrow spot to a wide flood. Four interchangeable lenses, one unrivaLED light engine. Ovation Rêve P-3 IP is our brightest IP65-rated multi-color full-spectrum-white LED PAR. An outdoor fixture with unsurpassed power and quality of light that incorporates all the advancements of our Ovation Rêve RGBAM LED source, and offers the versatility of Narrow, Medium, Wide and Very Wide lenses. Linear colour temperature presets from 2800 K to 8000 K with high CRI and CQS. Adjustable PWM (Pulse Width Modulation) avoids on camera flicker.

Indoors or out, a powerful instrument for theatrical, house of worship, special events, rental and production use.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

• Full-spectrum LED PAR lighting fixture for rental/production use as well as special event and theatre.
• Fully IP65 rated for seasonal use indoors or out
• Interchangeable Narrow, Medium, Wide lenses.
• USB port for fixture software updates
• Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
• +/- Green adjustment and emulated red-shift via DMX or on-board control

Product Specifications

Optical

• Light Source: 80 LEDs (10 red, 10 green, 10 blue, 20 amber, 30 mint) 4.4 to 7.8 W, (2.4 A), 50,000 hours life expectancy.
• Colour Temperature (range): 2800 to 8000 K
• Colour Temperature (at full): 5320 K
• CRI (3200): 94.5
• Beam Angle (Very Narrow Lens): 12.6°
• Beam Angle (Narrow Lens): 23.2°
• Beam Angle (Medium Lens): 29.1°
• Bam Angle (Wide Lens): 67.9°
• Field Angle (Very Narrow Lens): 21.8°
• Field Angle (Narrow Lens): 40.3°
• Field Angle (Medium Lens): 44.3°
• Field Angle (Wide Lens): 112°
• Lumens (Very Narrow Lens) : 11,153
• Lumens (Narrow Lens) : 11,110
• Lumens (Medium Lens) : 11,263
• Lumens (Wide Lens) : 10,698
• Illuminance (Very Narrow Lens) : 6,841 lux @ 5 m
• Illuminance (Narrow Lens) : 2,063 lux @ 5 m
• Illuminance (Medium Lens) : 1,642 lux @ 5 m
• Illuminance (Wide Lens) : 317 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 25 Hz
• Standalone Colour Mixing: Yes
• Colour Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

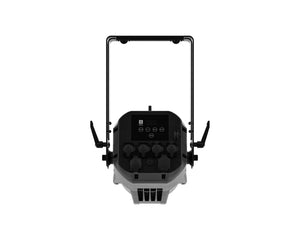

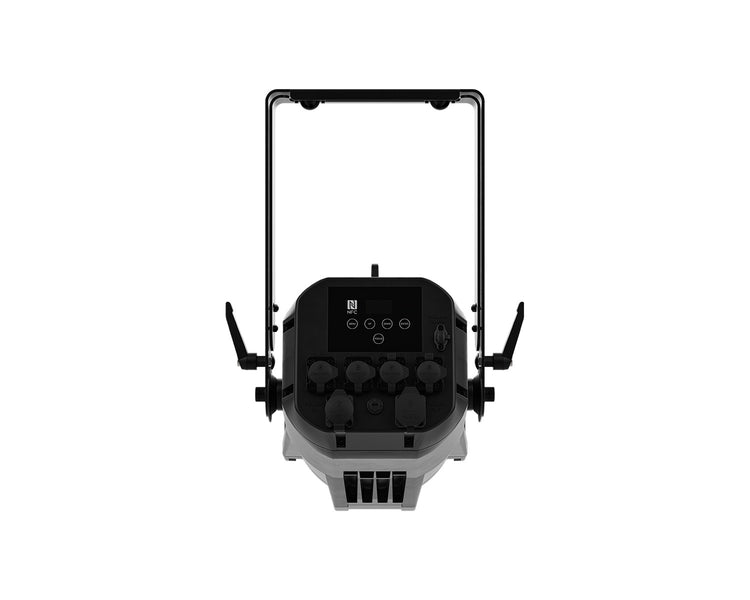

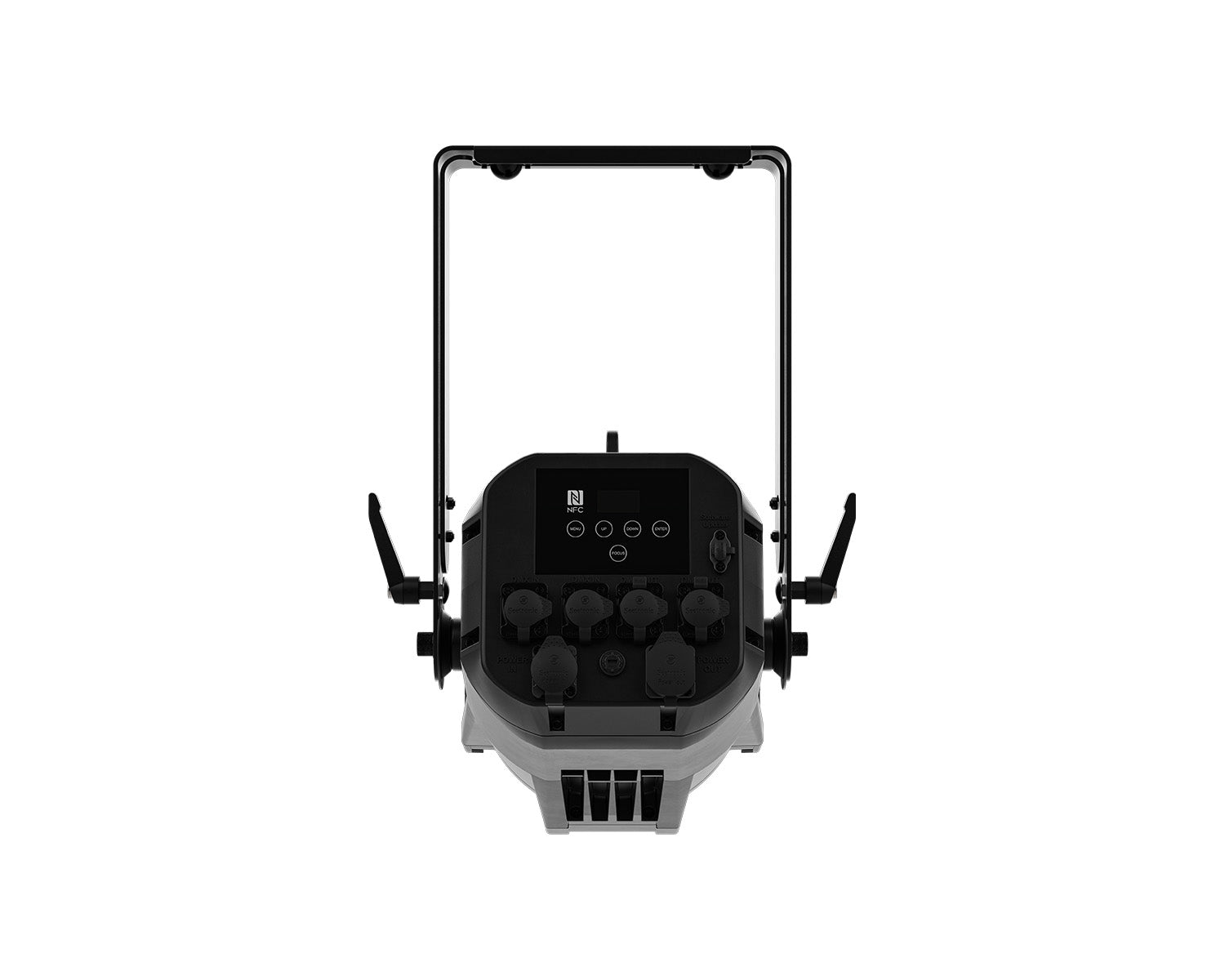

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB

Control

• Control Protocol: DMX, RDM
• DMX Channels: 1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV
• Modes/Personalities: 9 personalities (1, 4, 5, 7, 11, 13ch1, 13ch2, 17, HSV)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 274 W, 2.31 A @ 120 V, 60 Hz
• Power and Current: 267 W, 1.38 A @ 208 V, 60 Hz
• Power and Current: 265 W, 1.25 A @ 230 V, 50 Hz

Construction/Physical

• Dimensions: Dimensions: 18.82 x 11.81 x 8.27 in (478 x 300 x 210 mm)
• Weight: 21.4 lb. (9.8 kg)
• Exterior Colour: Black
• Housing Material: Aluminium diecast

What's in the Box?

• Ovation Reve P-3 IP
• Seetronic Powerkon Power Cord
• Very Narrow, Narrow, Medium and Wide Lens
