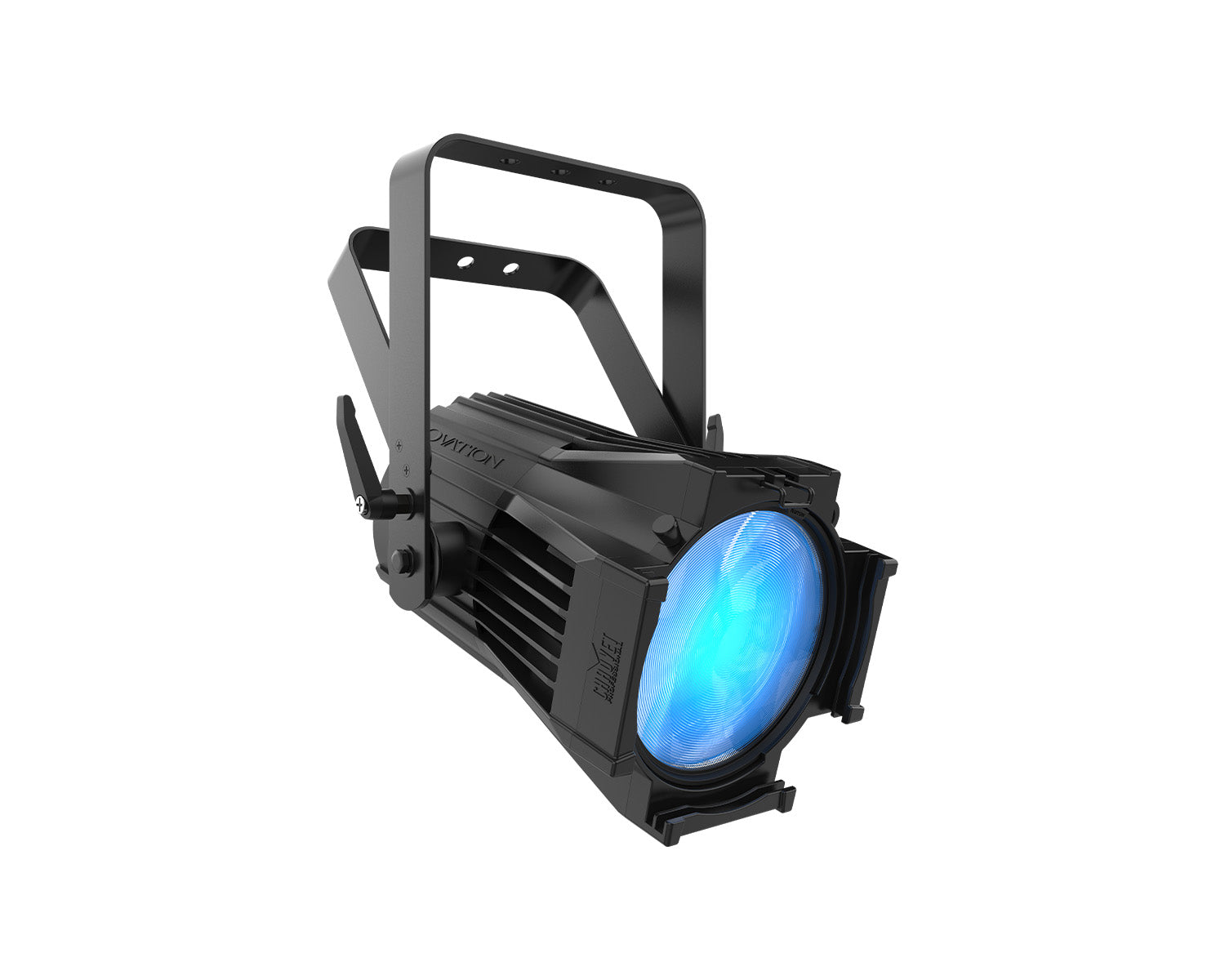

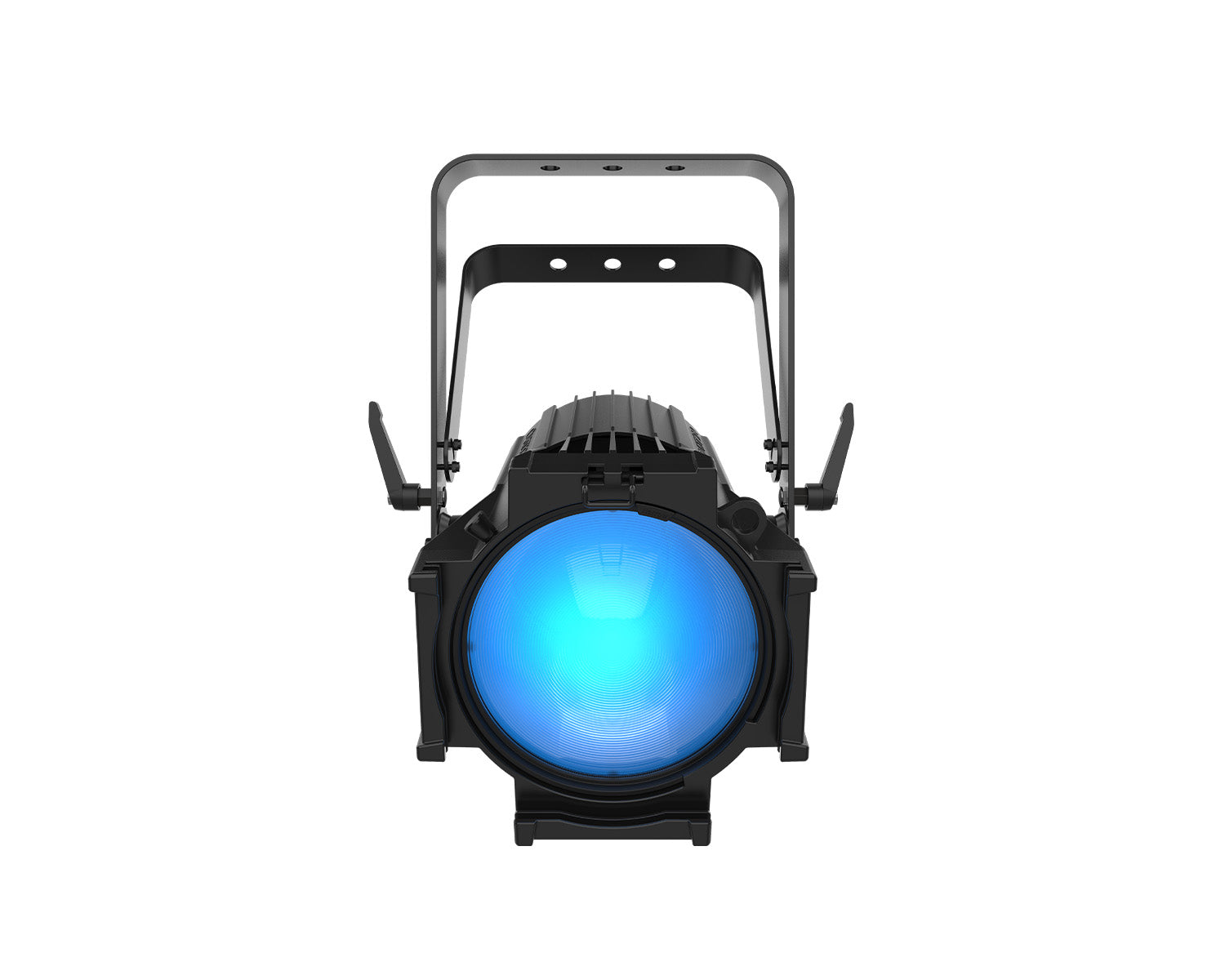

Ovation P-56FC is a compact, virtually silent par that produces a homogenized, single-source, flat and even field of light with high CRI. The bright unit utilizes the same advanced full colour-mixing RGBAL LED system found in the popular Ovation E-910FC ellipsoidal to produce subtle pastels to punchy saturates and nearly any temperature of white. Interchangeable lens plates are included for medium and wide beam angles and the unit accepts standard 7.5” beam shaping accessories. Ideal for theatrical and studio applications, the virtually silent par features extremely smooth 16-bit dimming, as well as RDM and PWM for ease of set-up.

Product Features

• New Model: Now with powerCON® TRUE1
• Full colour PAR style fixture with homogenized single source of light
• Interchangeable lens plates included for medium and wide beam angles
• Flat, even field of light
• Quiet operation for use in any situation with fan speed control
• RDM and variable Pulse Width Modulation for setup ease
• Accepts standard 7.5” beam shaping accessories
• 16-bit dimming resolution for smooth fades

Product Specifications

Optical

• Light Source: 62 LEDs (12 red, 11 green, 11 blue, 14 amber, 14 lime) 6 to 8 W, (1 A), 50,000 hours life expectancy.
• Colour Temperature (range): 2800 to 6500 K
• Colour Temperature (at full): 6229 K
• CRI (3200): 87.9
• Field Angle (Narrow Lens): 24.7°
• Beam Angle (Narrow Lens):12.8°
• Beam Angle (Medium Lens): 23.2°
• Beam Angle (Wide Lens): 73.2°
• Field Angle (Medium Lens): 40.9°
• Field Angle (Wide Lens): 103.7°
• Illuminance (Narrow Lens) : 3,404 lux @ 5m
• Illuminance (Medium Lens): 1,251 lux @ 5 m
• Illuminance (Wide Lens): 197 lux @ 5 m
• Illuminance (Narrow Lens) : 3,404 lux @ 5m
• Illuminance (Medium Lens): 1251 lux @ 5 m
• Illuminance (Wide Lens): 197 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Colour Mixing: Yes
• Colour Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

Connections

• Power Connection: Edison (Local) plug to powerCON® TRUE1
• Power Input: powerCON® TRUE1
• Power Output: powerCON® TRUE1
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX, RDM
• DMX Channels: 1, 3, 5, 7, 10, 12, 13, 16 or HSV
• Modes/Personalities: 9 personalities (1, 3, 5, 7, 10, 12, 13, 16, HSV)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 7 units @ 100 V; 8 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V; 16 units @ 240 V
• Power and Current: 167 W, 1.68 A @ 100 V, 60 Hz [4.6 A inrush]
• Power and Current: 161 W, 1.36 A @ 120 V, 60 Hz [6.0 A inrush]
• Power and Current: 160 W, 0.80 A @ 208 V, 60 Hz [8.2 A inrush]
• Power and Current: 159 W, 0.75 A @ 230 V, 50 Hz [9.8 A inrush]
• Power and Current: 158 W, 0.73 A @ 240 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• Noise Level (Idle): 31.5 dB(A) @ 1 m
• Noise Level (Auto): 31.4 dB(A) @ 1 m
• Noise Level (On): 31.3 dB(A) @ 1 m
• Noise Level (Off): 4.0 dB(A) @ 1 m
• Noise Level (silent): 19.3 dB(A) @ 1 m

Construction / Physical

• Dimensions: Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
• Weight: 12.2 lb (5.6 kg)
• Exterior Colour: Black
• Housing Material: Aluminium die-cast
• Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

What's in the Box?

• Power Cord
• Gel frame (7.5 in/191 mm accessories)
• Narrow, Medium and Wide Lens
