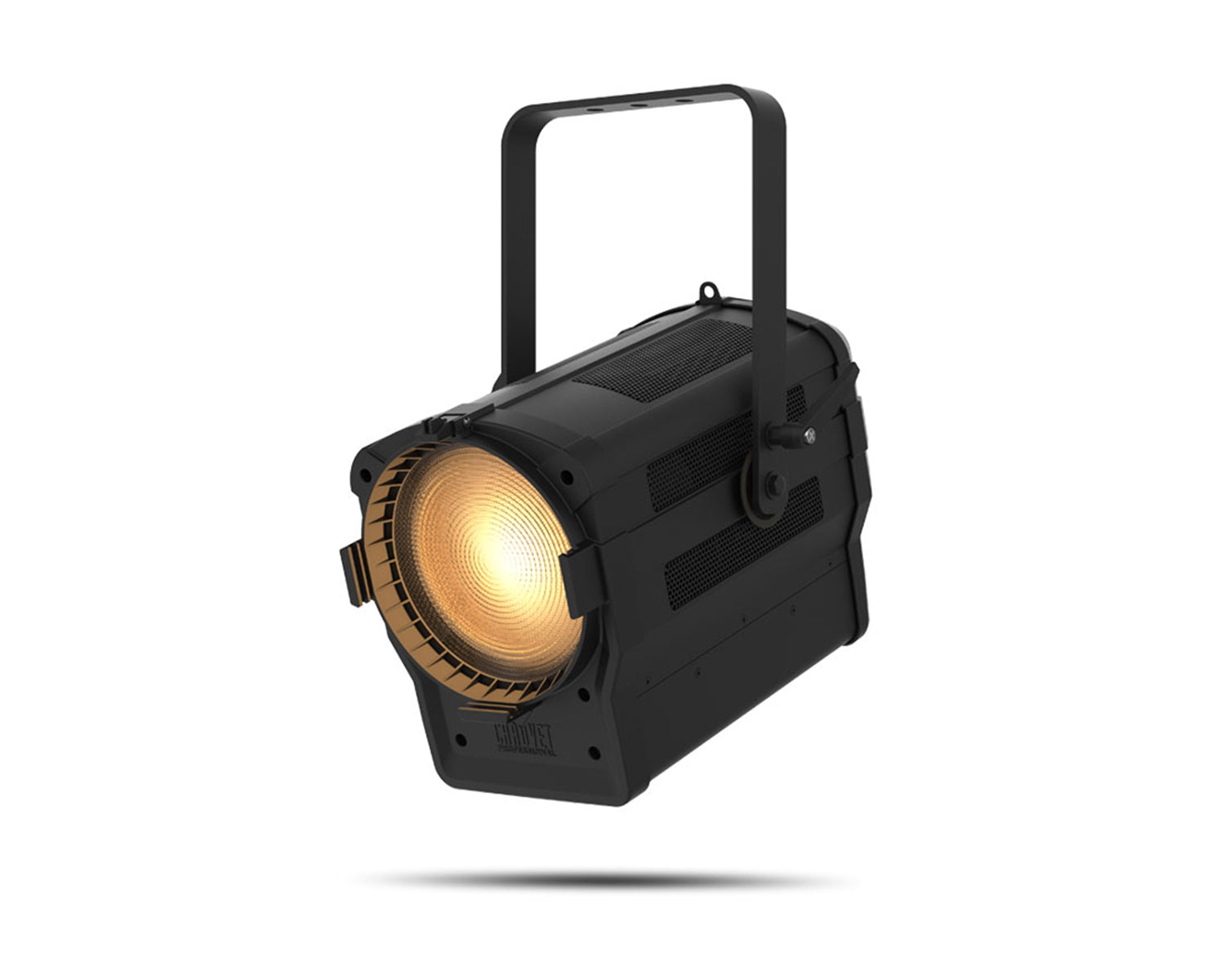

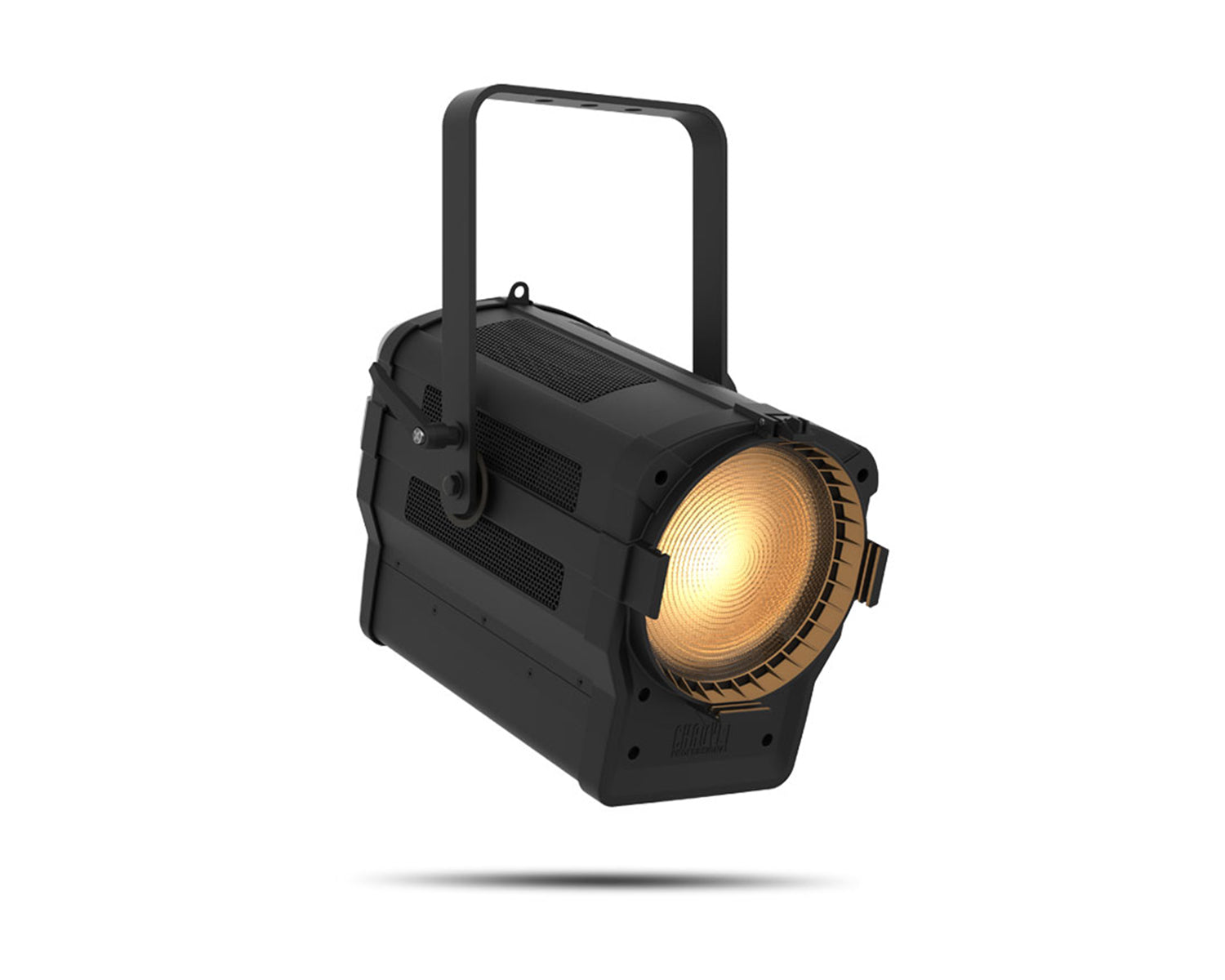

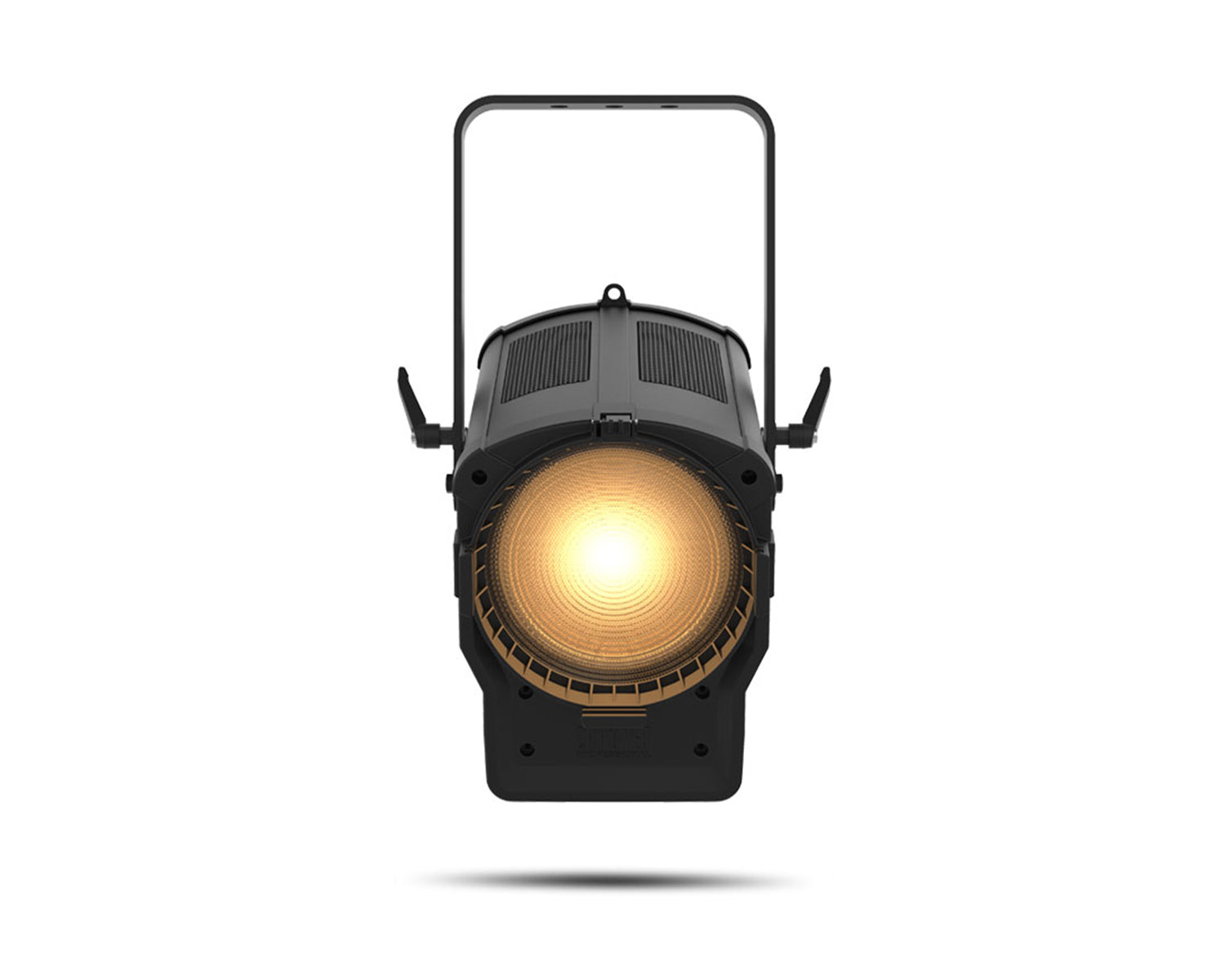

Ovation F-265WW is a high-power Fresnel utilizing our efficient warm white LED system to project a bright, beautifully soft, high CRI (95+) field of light ideal for theaters and television studios. A motorized zoom with a 27°- 57° field angle and the light output can be controlled via DMX, on-board dials, RDM, adjustable PWM and an easy to navigate OLED full text display.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

• Warm white fresnel with output comparable to an 8”, 2,000 W Fresnel
• 16-bit dimming resolution for smooth fades
• Flat, even field of light
• Virtually silent operation for use in any situation
• Motorized zoom angle between 27° to 57°, manually or via DMX
• Features an easy to navigate OLED full text display

Product Specifications

General

• Optical

  • Light Source: 1 LED (WW) 202 W, (3.6 A), 50,000 hours life expectancy
  • Color Temperature (at full): 3142 KCRI: 96
  • Beam Angle: 16° to 38°
  • Field Angle: 27° to 57°
  • Zoom Angle: 27° to 57°
  • Lumens (27°): 9,283
  • Lumens (59°): 12,802
  • Illuminance (27°): 5,203 lux @ 5 m
  • Illuminance (59°): 1,285 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
• Dynamic Effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 30 Hz
  • Dim Modes: 4

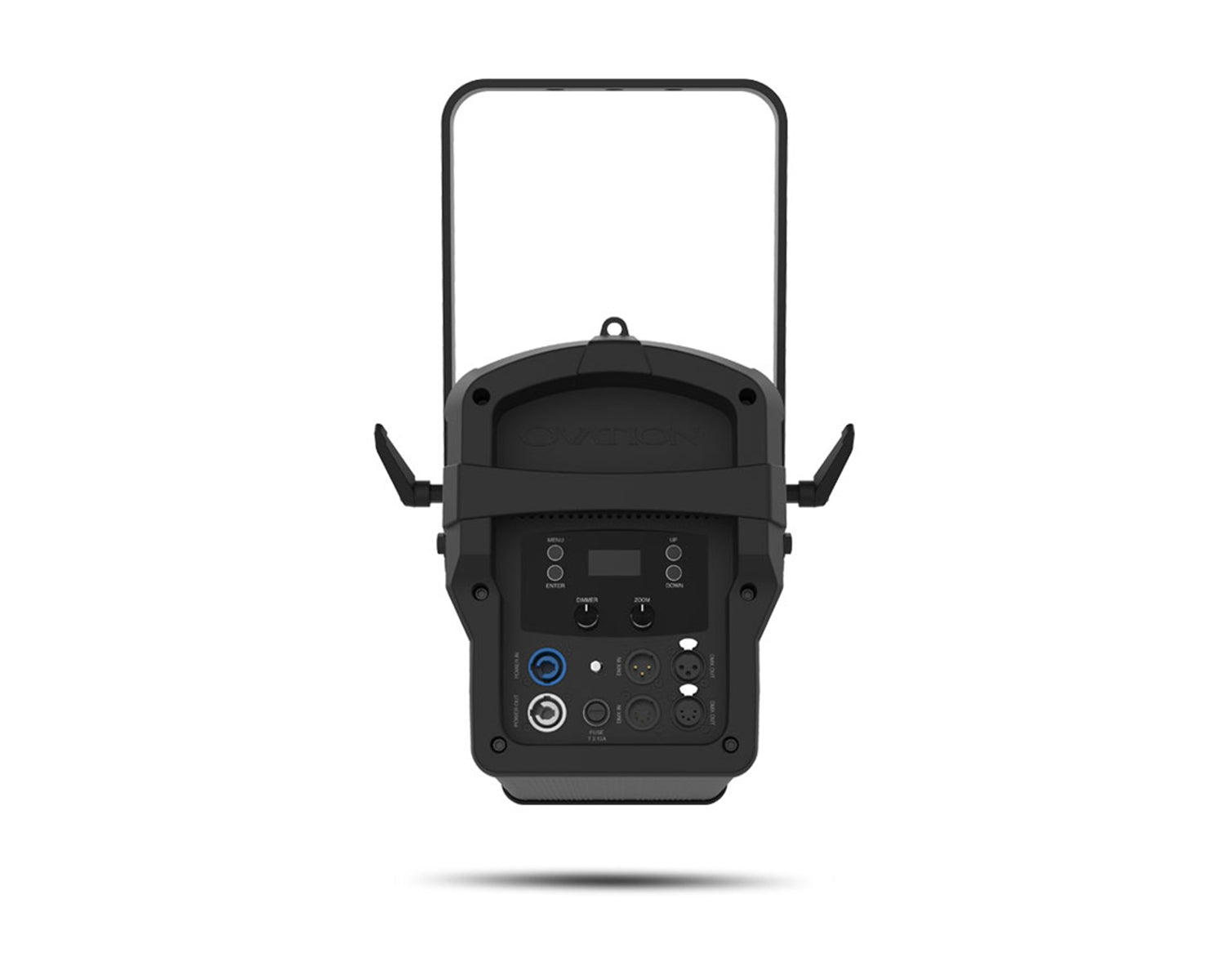

• Connections

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
• Control

  • Protocol(s): DMX, RDM
  • DMX Channels: 1, 2, 2 or 5
  • Modes/Personalities: 4 personalities (1, 2, 2, 5)
• Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
  • Power and Current: 227 W, 1.88 A @ 120 V, 60 Hz
  • Power and Current: 234 W, 1.11 A @ 208 V, 60 Hz
  • Power and Current: 235 W, 1.01 A @ 230 V, 50 Hz
• Certifications/Qualifications
  • CE, METIP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Physical & Dimensions

• Height: 384mm
• Width: 320mm
• Depth: 450mm
• Weight: 7.9kg
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast
• Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

What's in the Box?

• Ovation F-265WW
• Neutrik powerCON power cord
• Gel Frame

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik® powerCON® cables
• 3-pin or 5-pin DMX Cables
• Ovation F7.5” Barndoor
