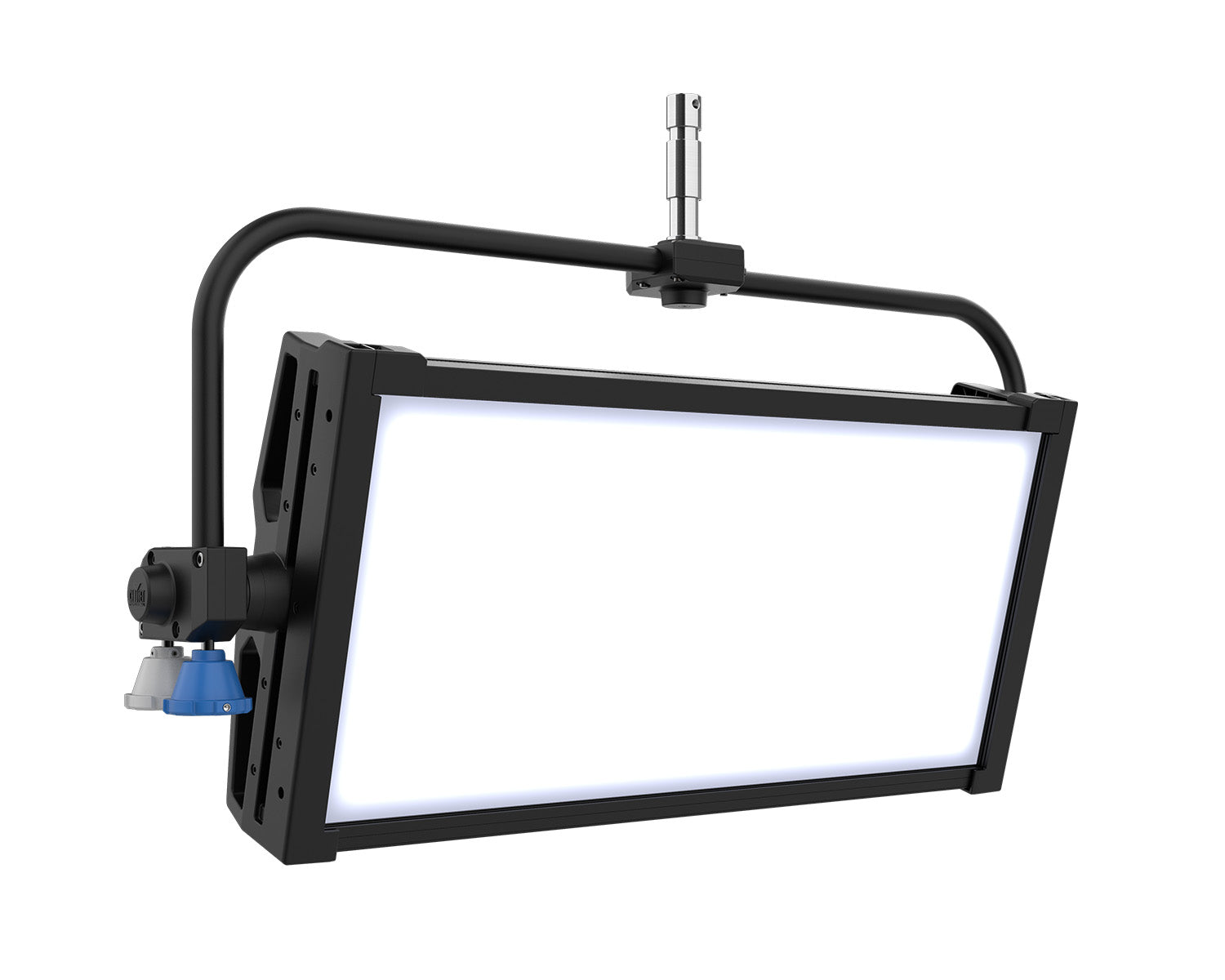

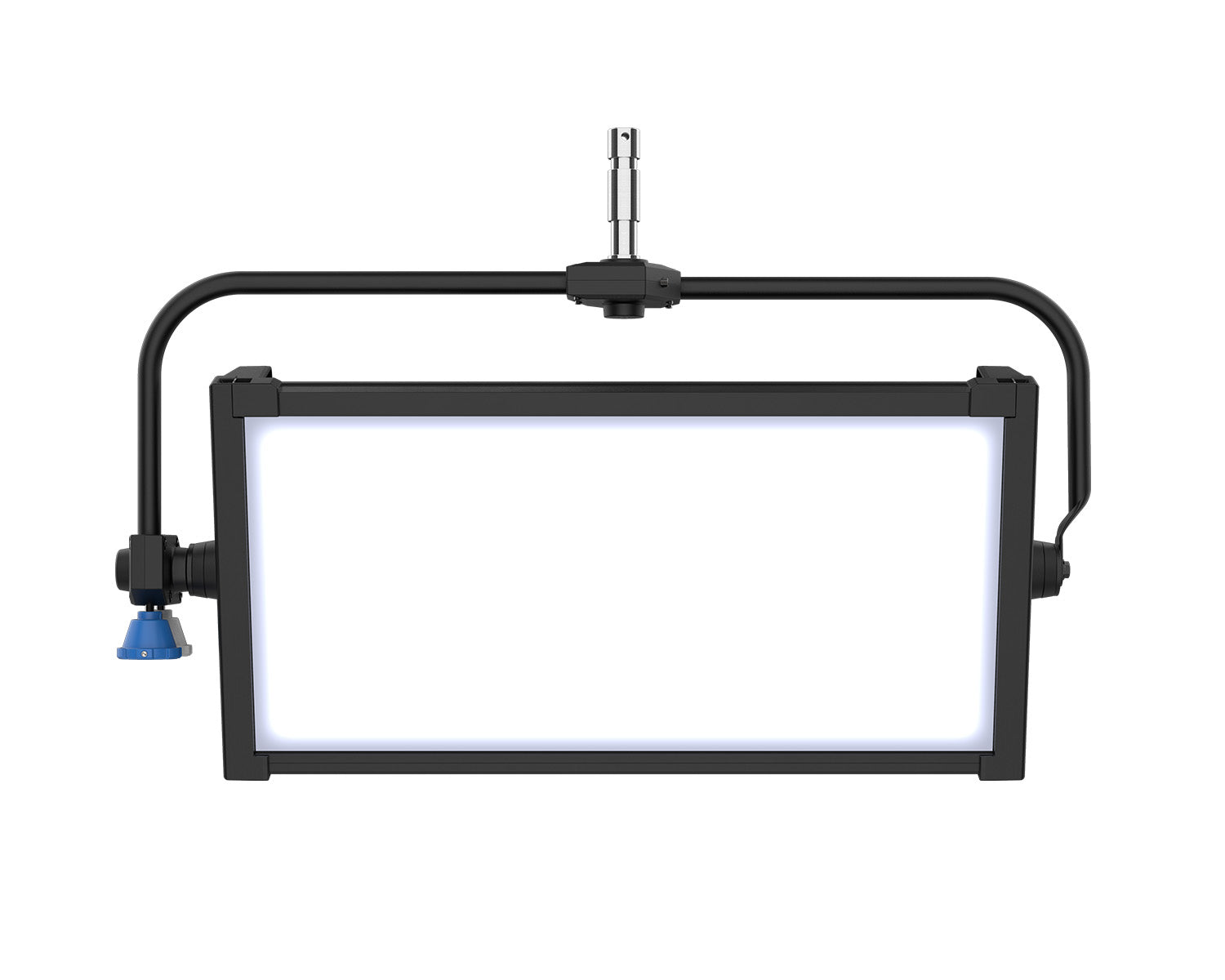

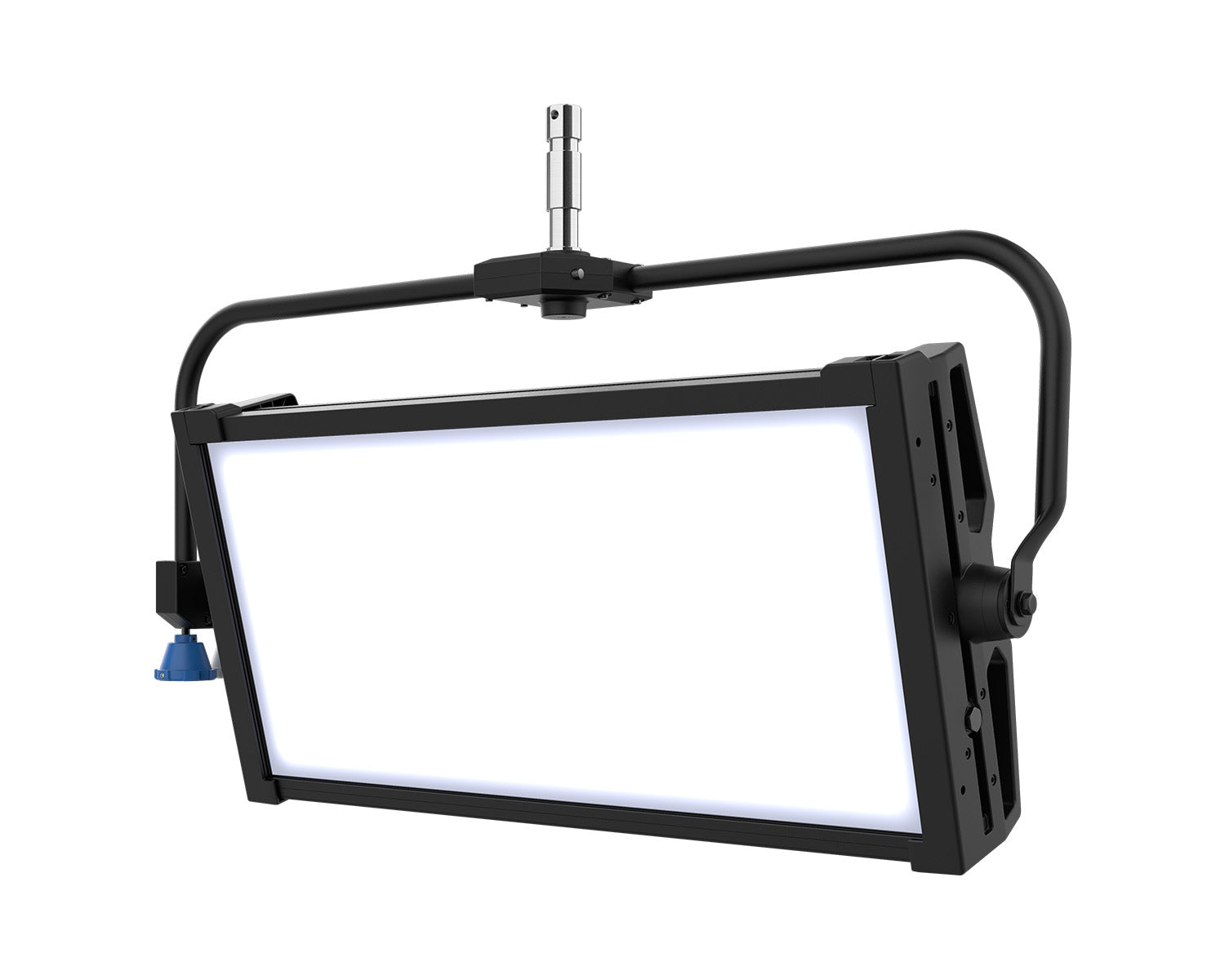

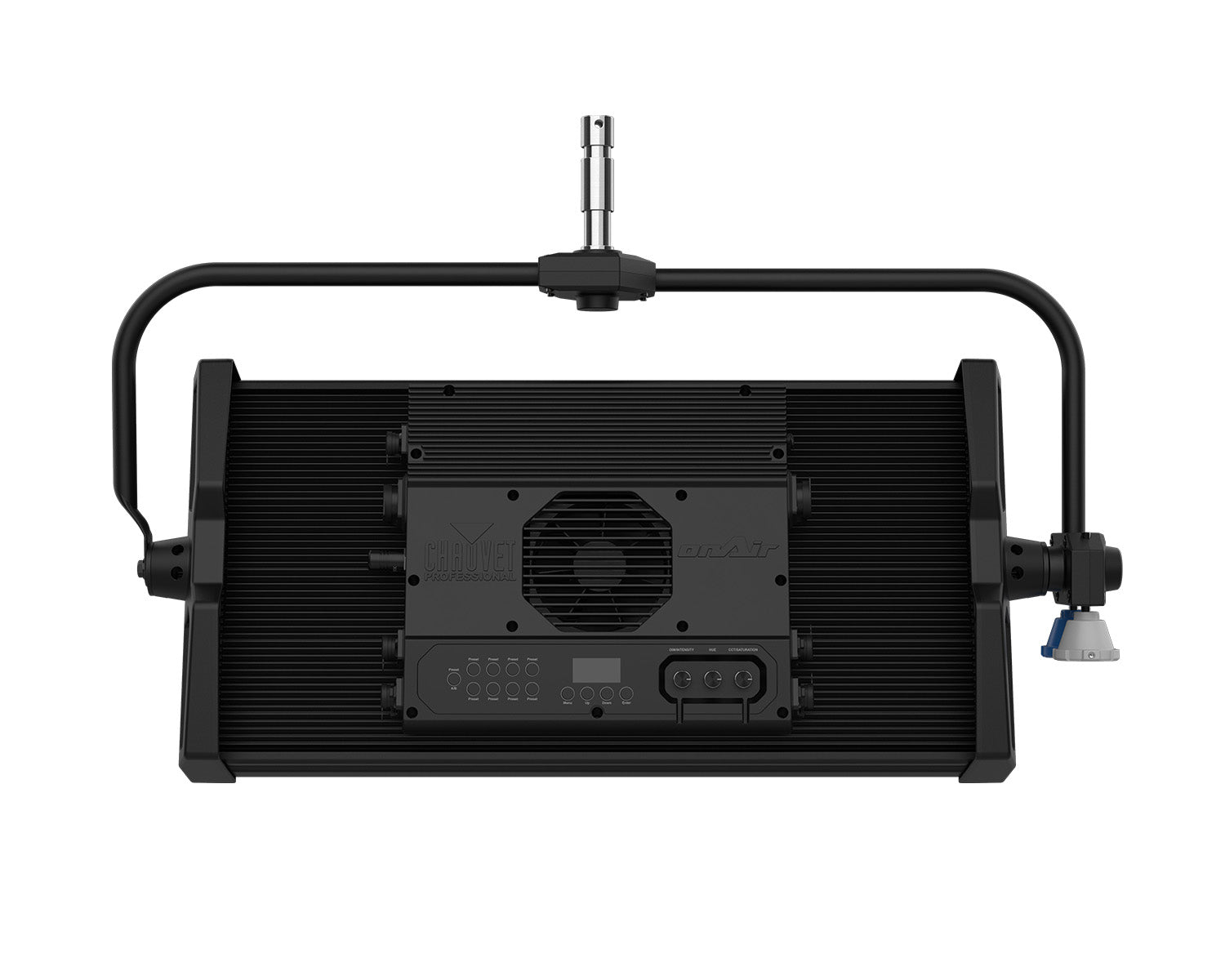

onAir Panel 2 IP from Chauvet Professional is a rugged IP65, full-spectrum LED soft light with a 1×2 format that is capable of facing all of the elements, outdoors or in. Ready to go on-location for any broadcast setting, onAir Panel 2 IP features a superior quality of white light with high CRI/ TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of colour to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket on a rugged build, designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs.

Product Features

• Full-spectrum LED 2x1 format soft light panel style fixture for broadcast, film, and special events
• IP65 rating for all-weather use indoors or out.
• Linear colour temperature presets from 2800 K to 8000 K with high CRI and CQS
• Virtual colour wheel with colour matched to popular gel colours
• +/- Green adjustment and emulated red-shift via DMX or on-board control
• RDM (Remote Device Management) and CRMX Wireless Control for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio applications
• Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.
• Easily switch mounting options from Jr Pin to Omega Bracket
• Drop-in slot for diffusers and intensifier filter (sold separately)
• Rugged design for years of rough use in the most extreme conditions.
• Easy to use on-board control with full access to all the features of the fixture without the need for a dedicated controller.
• USB port for fixture software updates
• 28 VDC power input via 3-pin XLR to power the fixture from an external battery pack

Product Specifications

OPTICAL

• Light Source: 448 LEDs (tri-colour RGB) 1.4 W, (150 mA), 50,000 hours life expectancy.
• Light Source: 448 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy. Colour Temperature (range): 2800 to 8000 K
• Colour Temperature (range): 2800 to 8000 K
• Colour Temperature (at full): 7220 K
• CRI (3200 K): 90.8
• Beam Angle: 100.2°
• Field Angle: 157°
• Lumens: 22,508
• Illuminance: 349 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Colour Mixing: Yes
• Colour Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 33.4 x 5.4 x 21.6 in (849 x 139 x 553 mm)
• Weight: 37.9 lb (17.1 kg)
• Exterior Colour: Black
• Housing Material: Aluminium alloy

CONNECTIONS

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Power Input: 28 VDC, 3-pin IP65 XLR
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® Compatible Cable Length (power): 5 ft (1.5 m)
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB

CONTROL

• Control Protocol: Art-Net, sACN, DMX, CRMX, RDM
• DMX Channels: 1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23 or 32
• Art-Net Channels: 1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23 or 32
• Modes/Personalities: 12 personalities (1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23, 32)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 3 units @ 100 V; 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V, 8 units @ 240 V
• Power and Current: 372 W, 3.104 A @ 120 V, 60 Hz
• Power and Current: 371 W, 1.774 A @ 208 V, 60 Hz
• Power and Current: 370 W, 1.608 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC,
• IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s in the Box?

• onAir Panel 2 IP
• Seetronic Powerkon IP65
• Omega bracket with mounting hardware

Optional Accessories

• onAir Panel 2 IP Barndoor
• onAir Panel 2 IP 60deg Honeycomb
• onAir Panel 2 IP Diffusion Filter Pack
• onAir Panel 2 IP Intensifier Filter
• onAir Panel 2 IP Pole Op Yoke
• onAir Panel 2 IP Pole Op Yoke
• Professional Clamps: CTC-50HC, CTC-50HCN
• Seetronic Powerkon power linking cables
• 5-pin DMX Cables
• Ethernet Cables
