Designed, machined, assembled and tested by Audix in the USA, the OM11 vocal dynamic microphone was first issued in 1985 as the OM1. This microphone is a dynamic vocal microphone used for a wide variety of live, studio and broadcast applications. Its sharp, crisp vocal sound, resistance to feedback and ability to handle high SPLs without distortion are trademarks of the OM11.

The OM11 dynamic vocal microphone is designed with a tight, uniformly controlled Hypercardioid polar pattern which helps isolate the vocals on stage. The response of the OM11 is tailored to cut through the mix, providing extra presence and articulation to the vocals even at very high stage volumes. In addition to having extremely low handling noise, the OM11 Hypercardioid microphone is well balanced, comfortable to hold and durable.

Product Features

• Concert level, professional vocal mic for live sound, broadcast and studio
• Clear, accurate vocal sound that cuts through the mix
• Precision machined brass construction
• Extremely low handling noise
• Handles exceptionally high SPLs without distortion
• VLM Capsule
• Designed, assembled & tested in the USA
• 5-year warranty

Product Specifications

General

• Transducer Type: Dynamic
• Frequency Response: 50 Hz - 18 kHz
• Polar Pattern: Hypercardioid
• Output Impedance: 200 ohms
• Sensitivity: 1.9 mV / Pa @ 1k
• Capsul Technology: VLM Type C
• Off-Axis Rejection: >30 dB
• Maximum SPL: ≥140 dB
• Power Requirements: None
• Connector: 3-pin XLRm
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Physical & Dimensions

• Materials: Finish Zinc Alloy / Black Finish
• Weight: 370 g / 13 oz
• Length: 179 mm / 7 in

What's in the Box?

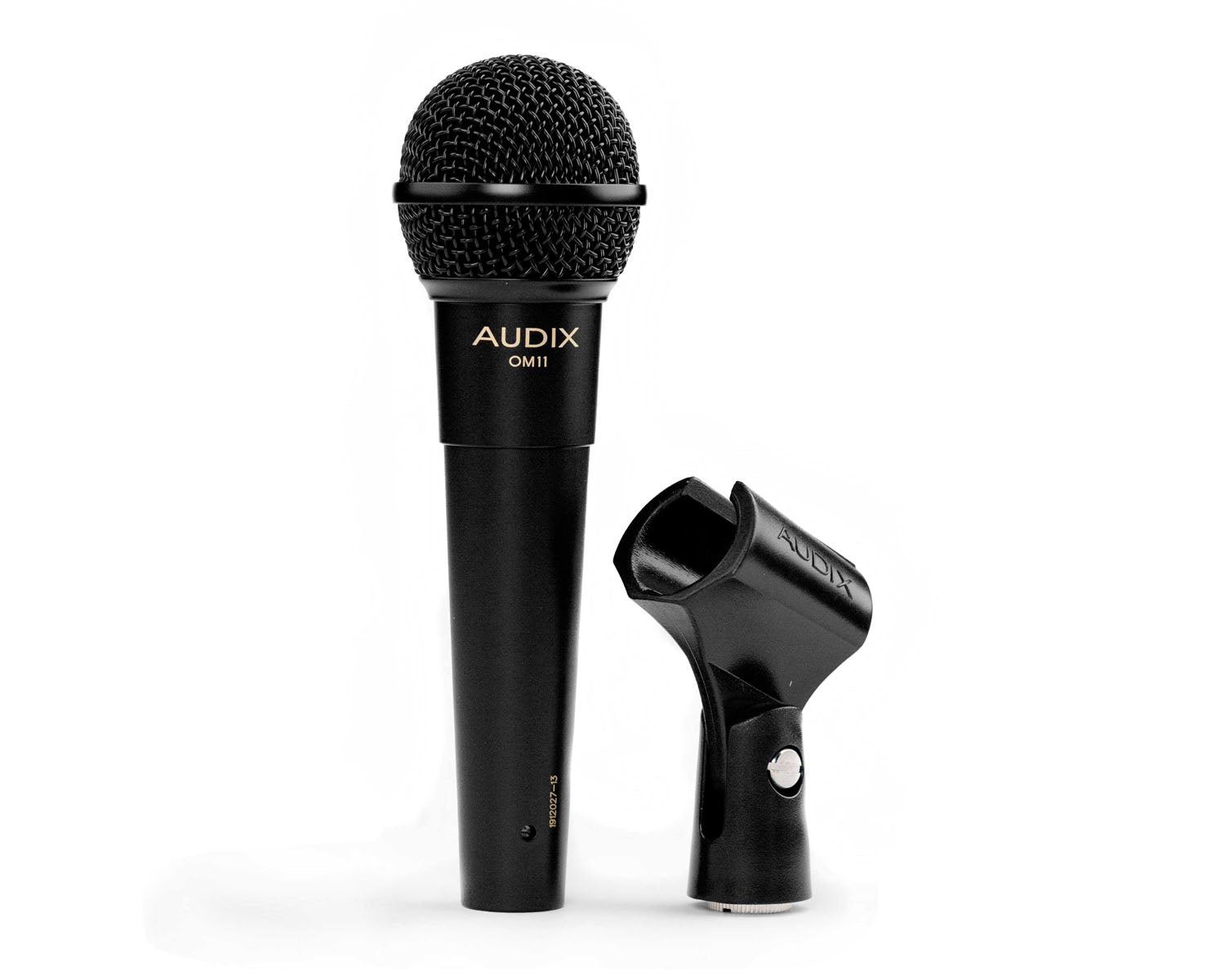

• 1 x OM11 Vocal Microphone
• 1 x MC1 Microphone Clip
• 1 x P1 Carrying pouch

Optional Accessories

• WS357 - Optional high-quality external foam windscreen for reducing wind, sibilance, and pop noise.
• CBL20 - 20’ premium XLR-XLR balanced mic cable. Quad conductor, twisted pair with braided shield for maximum conductivity. 6mm PVC jacketed.
• CBLDR25 - 25’ premium right angle XLR-XLR balanced mic cable. Quad conductor, twisted pair with braided shield for maximum conductivity. 6mm PVC jacketed.
• T50K - Professional impedance matching transformer that allows a low impedance mic to be connected to a high impedance input.
• TRIPOD - Metal tripod desktop stand for use with any 5/8” threaded mic clip.
