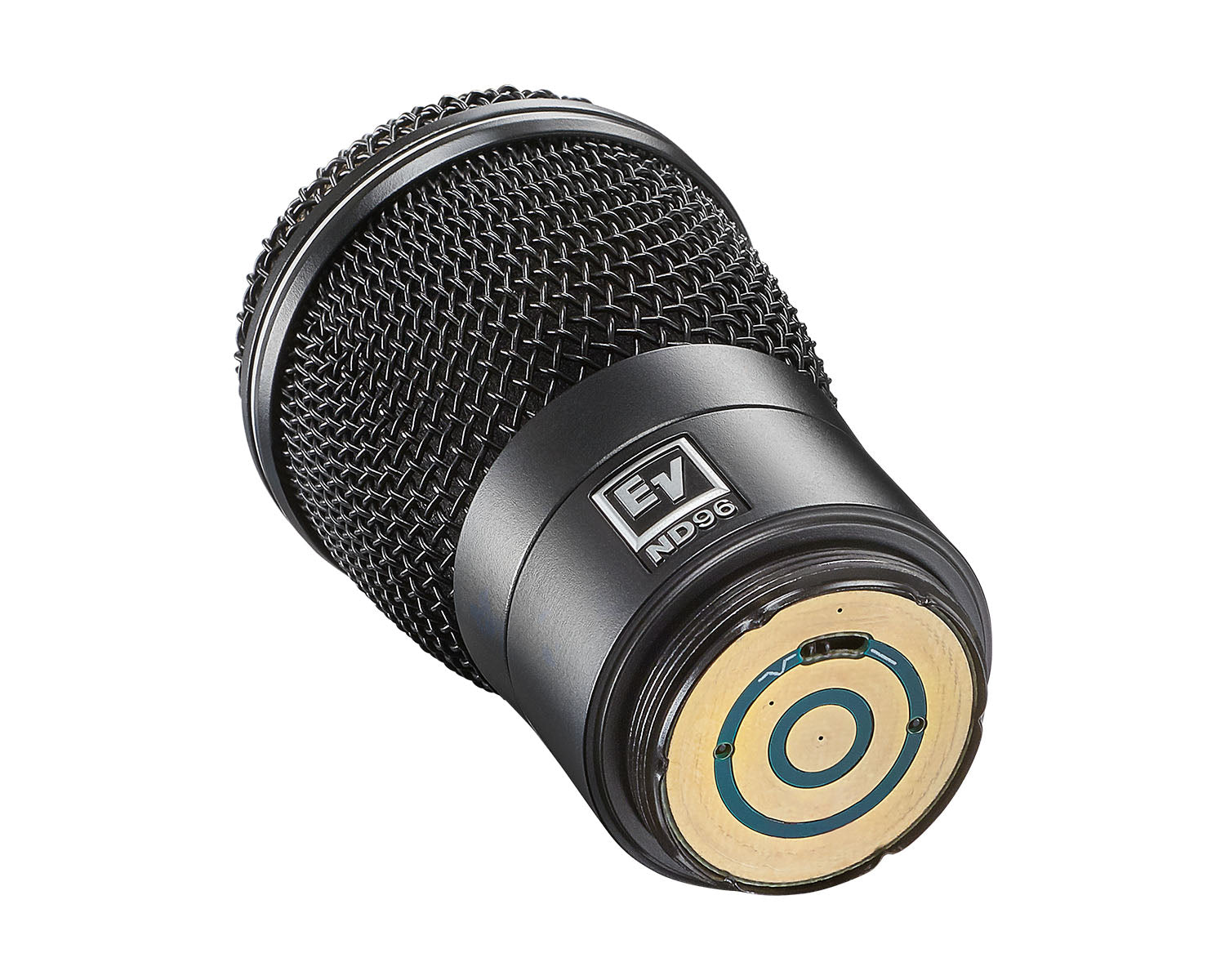

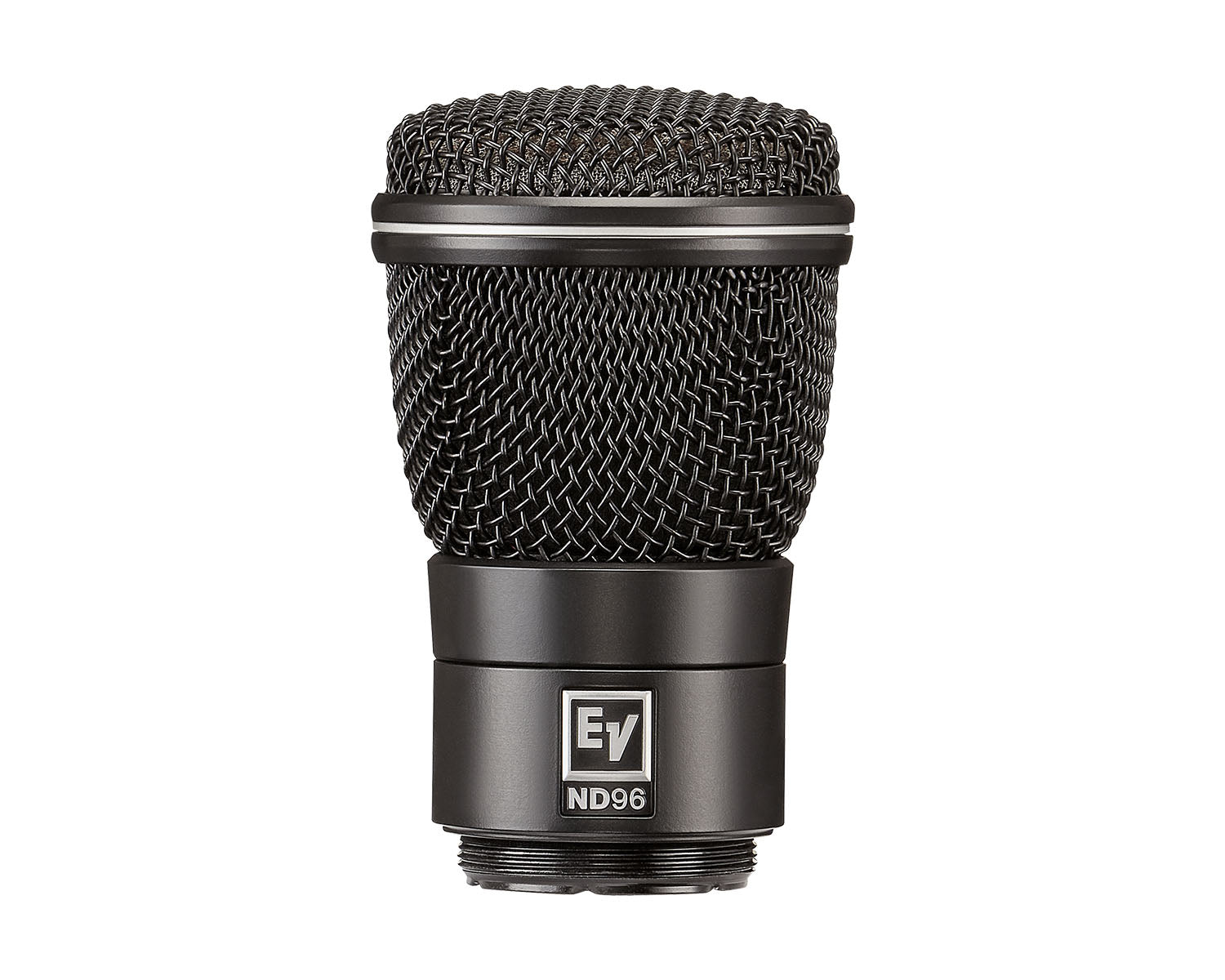

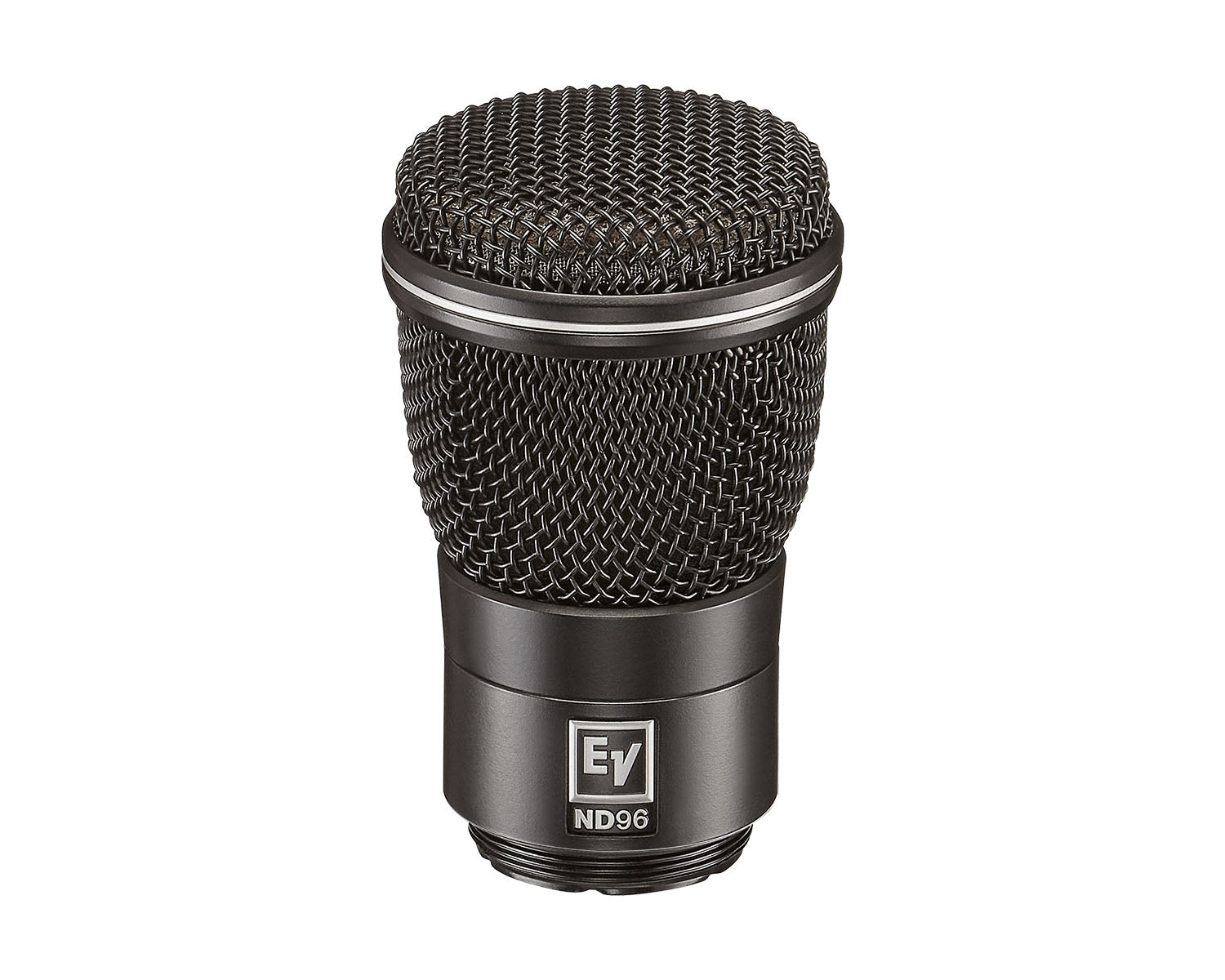

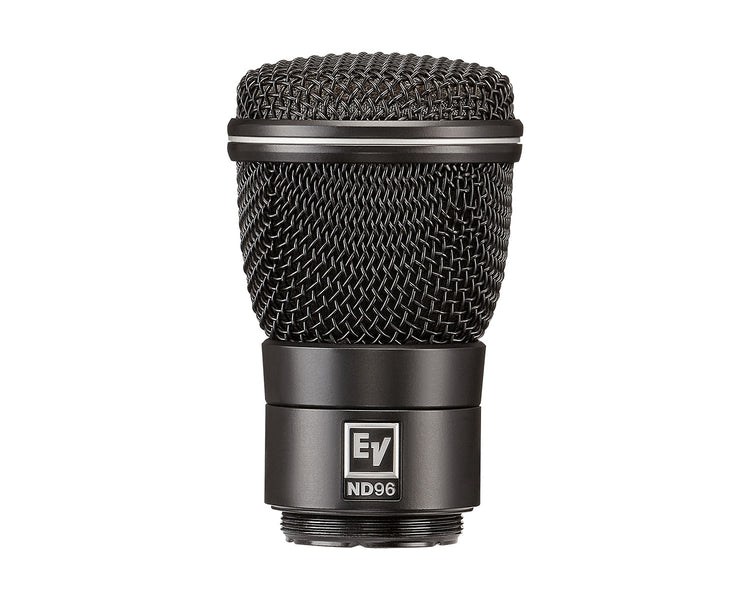

The Electro-Voice ND96-RC3 is a robust, high performance, dynamic cardioid thread-on vocal microphone head for wireless handheld transmitters. This microphone head electrically and mechanically adapts to Electro-Voice (and many other brands) wireless handheld transmitters that use the common 3-contact rings, 1.25” diameter by 28-thread pitch coupling convention. The floating captured ID collar will spin freely until screwing the head on tightly. It will remain locked in place when fully tightened. This allows the desired orientation of the branding to the transmitter.

Designed for excellent acoustic control on very loud stages, the ND96-RC3 special structural and acoustical designs create performance characteristics allowing the microphone’s gain before feedback in a mix to be significantly louder than most microphones.

The microphone head dynamic capsule contains a large Mylar diaphragm, which delivers a rich and detailed frequency response by combining its large surface area for tonal balance with its low-mass high velocity material for exceptionally fast transient response.

The microphone head features a selectable vocal presence tuning that can be engaged to reduce certain low-mid frequency areas and emphasize key upper midrange vocal presence areas to increase intelligibility in high-energy reinforcement (see charts). The microphone head features an innovative capsule shock-mount system consisting of a 4-point suspension around the circumference of the capsule combined with a tuned pneumatic pump at the capsule base, offering superior handling noise reduction to eliminate mechanical vibrations and noise in the mix.

The Memraflex grille is made of a durable tight-mesh grille wire that withstands extraordinarily rough treatment. Your microphone head remains protected and looking good gig-after-gig, year-after-year. For additional protection, the capsule contains a hydrophobic cloth membrane, which prevents moisture and debris from reaching the diaphragm. The capsule uses a humbucking coil that attenuates AC hum and electromagnetic interference. Use the ND dynamic mics with confidence near speaker cabinets and EMF generating equipment racks.

Product Features

• Thread-on microphone head for Electro-Voice and other brand wireless handheld transmitters
• Excellent acoustic control on very loud stages: exceptionally high gain before feedback
• Large diaphragm dynamic capsule creates a rich and detailed frequency response
• Vocal presence emphasis switch selects between alternate sonic signatures
• Shock-mounted capsule minimizes handling noise

Product Specifications

• Element type: Dynamic neodymium magnet structure
• Frequency response, close: 30 Hz-15 kHz
• Frequency response, far: 140 Hz-15 kHz
• Polar pattern: Supercardioid
• Sensitivity, open circuit voltage @ 1 kHz in flat position: 4.7 mV/Pascal (-46.5 dBV/Pa)
• Sensitivity, open circuit voltage @ 1 kHz in vocal presence position: 3.2 mV/Pascal (-50 dBV/Pa)
• Maximum SPL: 136.5 dB SPL (1% THD)
• Impedance: 1000 ohms
• Power requirements: 4-8 VDC
• Polarity: Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact
• Electrical contact: 3-Ring/3-Pin
• Threaded coupling:
  • 1.25" diameter
  • 28 UN-2A thread pitch
• Finish: Black polyurethane paint
• Materials: Aluminium, steel, steel wire grillescreen
• Dimensions:
  • Length: 3.3 in. (83.5 mm)
  • Diameter: 2.0 in. (50.5 mm)
• Net weight: 6.8 oz (193 g)
• Shipping weight: 8.7 oz (247 g)
