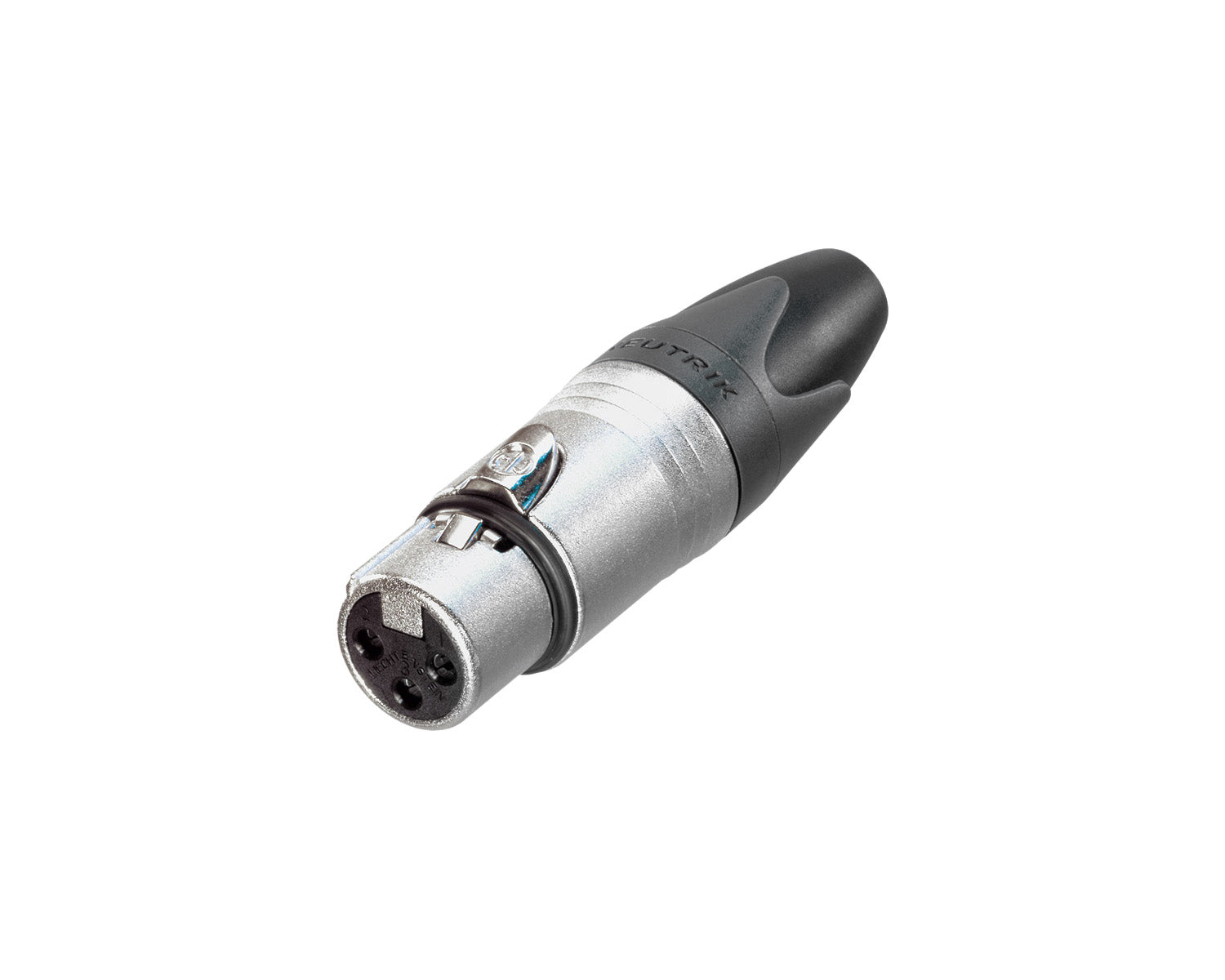

3 pole female cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Product Features

• Unique cage design of female contact for low contact resistance and high integrity
• Female contact incorporates a solder barrier to prevent solder running into the contact mating area
• Female connector with improved solid metal latch which is larger and easier to handle
• Additional ground spring contacts for better shell ground continuity
• Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
• Boot with polyurethane gland gives high protection to cable bending stresses
• Coloured rings and boots available for coding or identification
• Sleek and ergonomic design - valuable and handy
• Rugged zinc diecast shell, longlasting and dependable
• Internal thread on shell is well protected against any damage

Product Specifications

Product

• Title:  NC3FXX
• Connection Type:  XLR
• Gender:  female

Electrical

• Capacitance between contacts:  ≤ 4 pF
• Contact resistance:  ≤ 3 mΩ
• Dielectric strength:  1,5 kVdc
• Insulation resistance:  > 10 GΩ (initial)
• Rated current per contact:  16 A
• Rated voltage:  < 50 V

Mechanical

• Cable O.D.:  3.5 - 8.0 mm
• Insertion force:  ≤ 20 N
• Withdrawal force:  ≤ 20 N
• Lifetime:  > 1000 mating cycles
• Wiresize:  max. 2.5 mm²
• Wiresize:  max. 14 AWG
• Locking device:  Latch lock

Material

• Boot: Polyurethane
• Contact plating:  2 µm Ag
• Contacts:  Bronze (CuSn8)
• Insert:  Polyamide (PA66)
• Locking element:  Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
• Locking element plating:  Nickel
• Shell:  Zinc diecast (ZnAl4Cu1)
• Shell plating:  Nickel
• Strain relief:  Polyacetal (POM)

Environmental

• Flammability:  UL 94 V-0
• Standard compliance:  IEC 61076-2-103
• Protection class:  IP 40
• Solderability:  Complies with IEC 68-2-20
• Temperature range:  -30 °C to +80 °C
