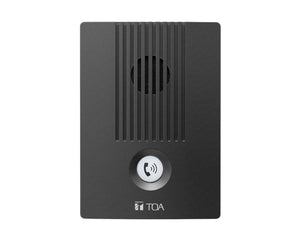

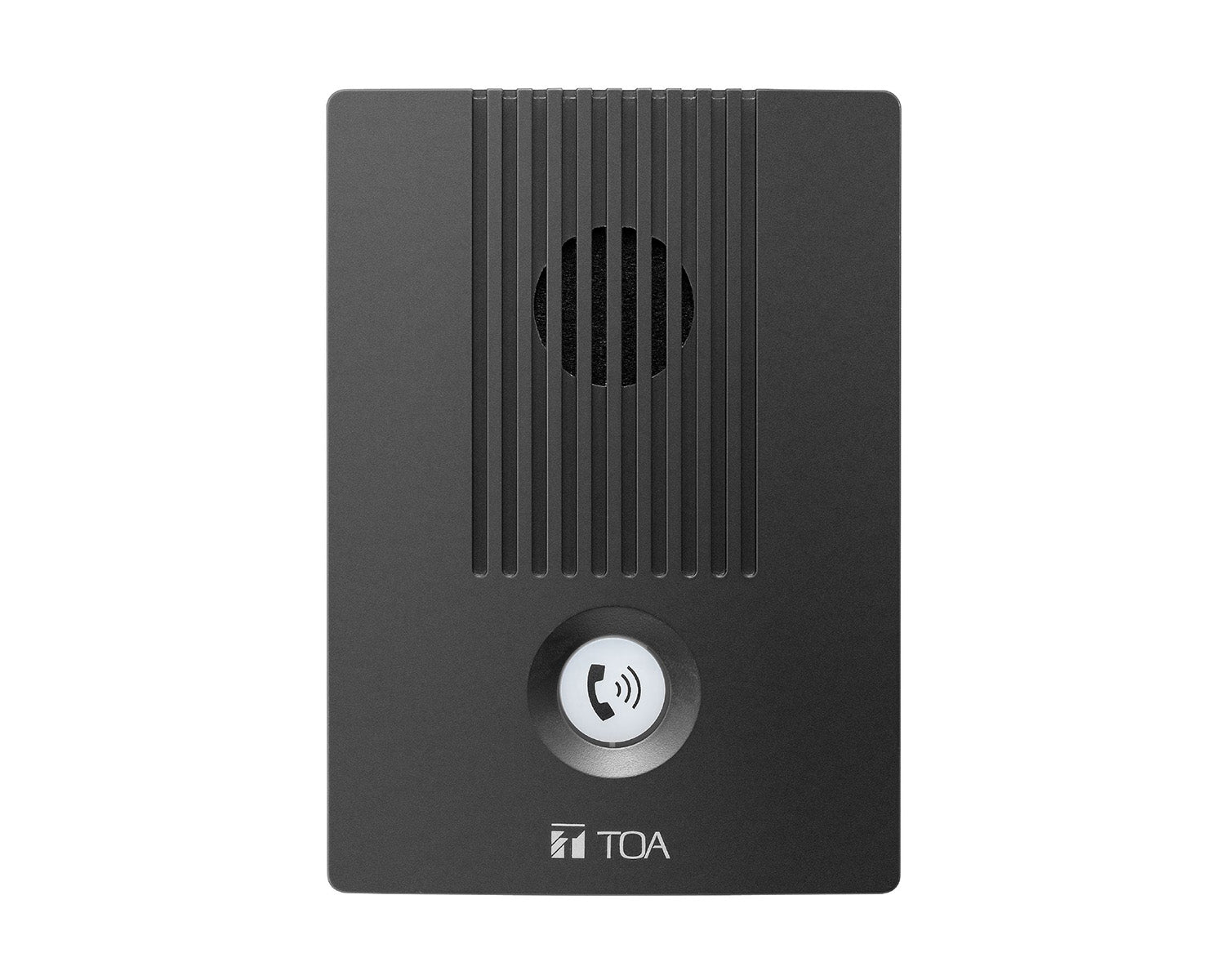

TOAN8650DS - TOA N8650DS IP Intercom Door Station Image 1

The N-8650DS is an indoor use IP door station employing packet audio technology. Connecting the N-8650DS to an IP network (LAN or WAN) permits hands-free conversation of high sound quality to be made between the N-8650DS and the intercom station connected to the IP Intercom Exchange, or between the N-8650DS and an IP multifunctional master station. Besides, the N-8650DS can be used in conjunction with the Multi Interface units through a network. The N-8650DS is equipped with 1 channel of control input, 5 channels of control outputs (including 1 channel of relay control output), and speaker output, thereby enabling connections of external equipment such as a sensor, indicator, and external speaker.

Product Features

For indoor use
Hands-free conversation
High sound quality
External speaker connector (8 Ω)
1x Control In
4x Control Out / 1x Contact Out
PoE
Status LED

Product Specifications

Power Source: Power supply device that complies with IEEE802.3af standard or 12 V DC (supplied from the AC adapter (option))
Power Consumption: Use of the AC adapter (12 V DC): 3.5 W (station only), Use of the PoE (48 V DC): 5 W
Speech Method: Hands-free conversation
Audio Frequency Range: 300 Hz - 7 kHz
Hands-free: Speaker: 3.5 cm (1.38") cone-type, maximum output 0.5 W, 8 Ω
Microphone: Omni-directional electret condenser microphone
Contact Input: 1 channel, no-voltage make contact input, open circuit voltage: 5 V DC,
short circuit current: 10 mA or less, unterminated ends
Contact output:
- Open collector output, 4 channels, withstand voltage: 30 V DC,
- control current: Max. 50 mA (4 output 1COMMON), unterminated ends
- Relay contact output, 1 channel, withstand voltage: 30 V DC,
- control current: Max. 500 mA, unterminated ends
External Speaker Terminal: Maximum output 0.5 W, 8 Ω, unterminated ends
Network Section:
- Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
- Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
- Audio packet transmission system: Unicast, Multicast
- Number of paging destinations: 0, *Reception only
- Connector: LAN: RJ45 connector (PoE compatible)
- Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
- Quantifying bit number: 16-bit
- Voice encoding method: Sub-band ADPCM, Cryptosystem
- Voice packet loss recovery: Silence insertion
- Audio delay time: 80 ms, 320 ms (controllable on the software)
Indication: Status lamp (built in the Call button)
Installation Method: Flush-mount/Surface-mount
Operating Temperature: -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Operating Humidity: 90 %RH or less (no condensation)
Finish: ABS resin, dark grey
Dimensions: 117.2 (W) × 162 (H) × 60 (D) mm (4.61" × 6.38" × 2.36")
Weight: 400 g (0.88 lb)
Accessory:
- Box mounting screw (No.6-32UNC × 20) x 4
- Box mounting screw (M4 × 20) x 4
- LAN coupler x 1
Applicable Box:
- For wall mount: Wall-mount Box YS-13A (option)
- For flush mount: 3-gang electrical box or Back Box YC-150 (option)
