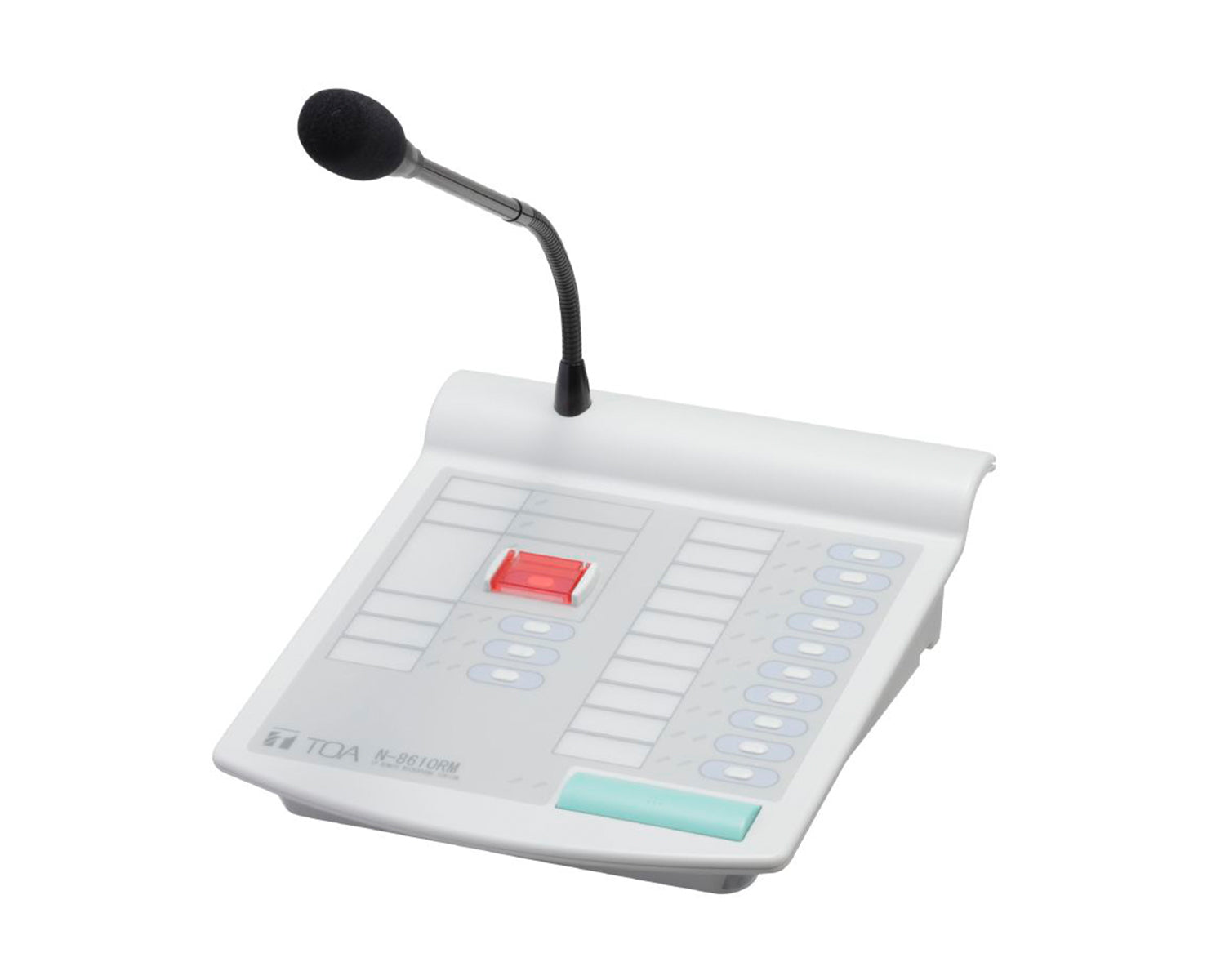

The N-8610RM is an IP remote microphone that employs packet audio technology. High-quality voice output to intercom stations connected to the IP intercom exchange or Multi-Interface Unit and to other N-8610RM units can be achieved by simply connecting the remote microphone to a LAN or WAN network. The N-8610RM features a full range of remote microphone operating capability, and is equipped with 14 function keys, including one under a cover, each with its own indicator. Functions can be assigned individually to these keys. The number of function keys and indicators can be increased to up to 40 in blocks of 10 with the addition of up to 4 RM-210 Extension Units. Power can be supplied to the microphone using a PoE-compatible switching hub, eliminating the need for the N-8610RM optional AC adapter. The N-8610RM can also be wall-mounted with the additional use of the optional WB-RM200 Wall-Mounting Bracket.

Product Features

• Paging and Communication function
• 14 function keys
• Functions can be assigned individually
• Connection to SX-2000 System via LAN or switching hub and SX-200IP
• Up to 4 RM-210 Key Extension Units can be connected
• PoE
• Status LED
• Communication function

Product Specifications

• Power Source: Power supply device that complies with IEEE802.3af standard or
• 12 V DC (use of the optional AC adapter)
• Power Consumption:
  • Use of the AC adapter (12 V DC): 4 W (microphone only), 8.5 W (when connecting 4 RM-210 Extension units)
  • Use of the PoE (48 V DC): 5.2 W (microphone only), 7.5 W (when connecting 2 RM-210 Extension units)
• Speech Method: Hands-free conversation (use of goose-neck microphone)
• Audio Frequency Range: 300 Hz - 7 kHz
• Microphone: Unidirectional electret condenser microphone
• Built-in Speaker: 6.6 cm (2.6") cone-type, rated output 0.3 W, 8 Ω
• Network Section:
  • Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
  • Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
  • Audio packet transmission system: Unicast, Multicast
  • Number of paging destinations: Unicast (max. 16), Multicast (max. 191)
  • Connector: LAN: RJ45 connector (PoE compatible)
  • Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
  • Quantifying bit number: 16 bits
  • Voice encoding method: Sub-band ADPCM, Cryptosystem
  • Voice packet loss recovery: Silence insertion
  • Audio delay time: 80 ms, 320 ms (controllable on the software)
• No. of Connectable Expansion: Max. 4 units (maximum 2 units at PoE power supply)
• Operation: Function keys (including a covered key), talk key
• Indicator: Power indicator, Status indicator, Selection indicator, Broadcast status indicator, Microphone indicator
• Installation Method: Desk/Surface mounted master station (When mounting to the wall, use the optional WB-RM200.)
• Operating Temperature: 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
• Operating Humidity: 90 %RH or less (no condensation)
• Finish: ABS resin, blueish grey
• Dimensions: 190 (W) × 76.5 (H) × 215 (D) mm (7.48" × 3.01" × 8.46") (excluding microphone)
• Weight: 700 g (1.54 lb)
• Accessory:
  • CD (for PC setting, maintenance use) x 1
  • Ferrite clamp (for power supply cable, LAN cable, and extension unit cable) x 1 each

What's in the Box?

• CD (for PC setting, maintenance use) x 1
• Ferrite clamp (for power supply cable, LAN cable, and extension unit cable) x 1 each
