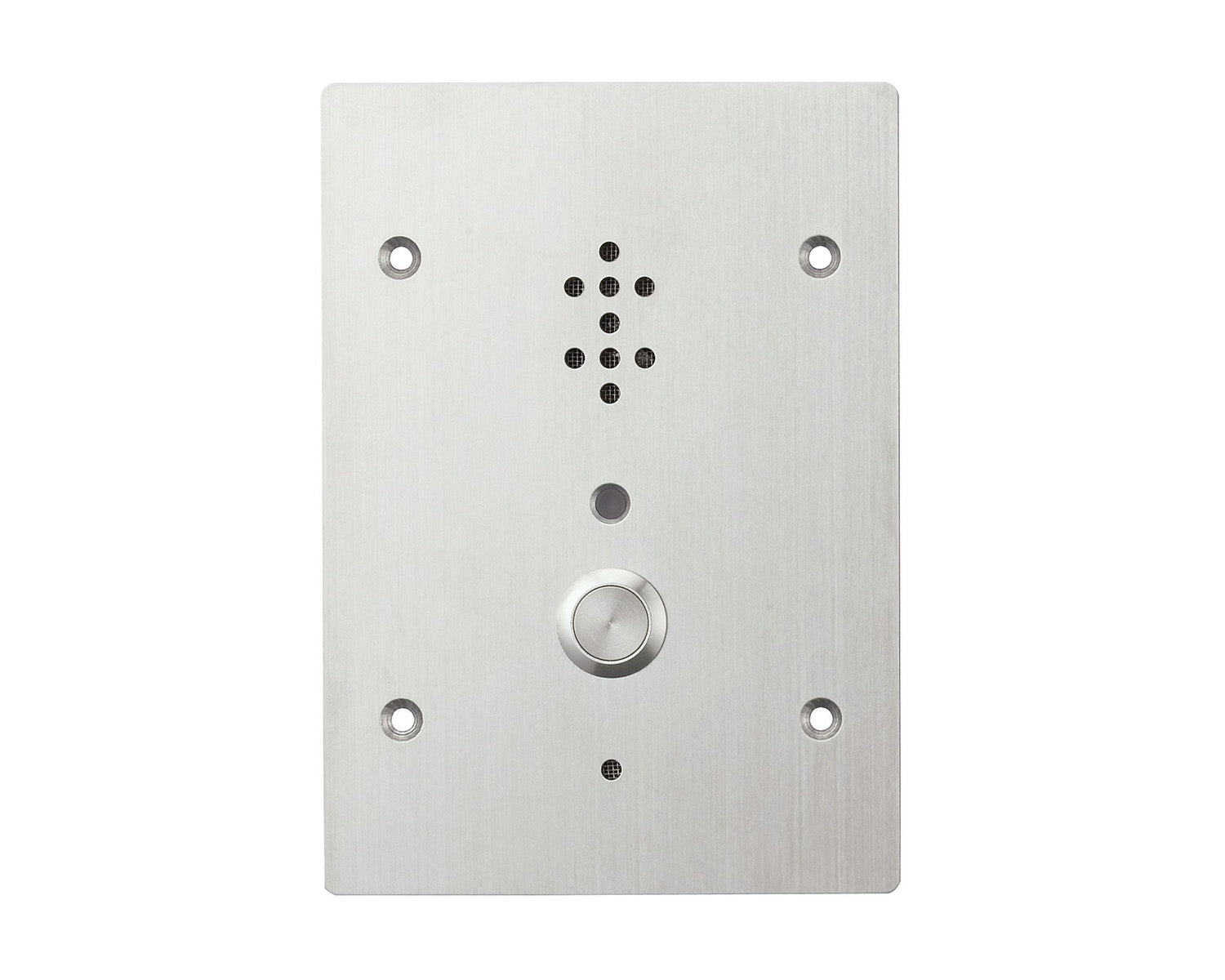

TOAN8050DS - TOA N8050DS IP Intercom Door Station Image 1

Designed to connect to the IP Intercom Exchange, the N-8050DS is a door station featuring high quality hands-free conversation. It has a contact output (momentarily closed) to remotely control an electronic door lock. It is in full conformity with IP54 water-proof and dust-proof standards. The operating temperature range is -10 to 50℃. As provided with guard nets inside to cover the openings of the microphone and speaker, the N-8050DS can be installed free from care in public space.

Product Features

For indoor / outdoor use
Hands-free conversation
Contact output
Status LED
Includes mounting screws
Stainless Steel, Metal

Product Specifications

Power Source: 48 V DC (supplied from the IP intercom exchange (option))
Power Consumption: 1.8 W (at rated), 2.4 W (max.)
Wiring Method: 1 set of twisted pair cable
Transmission System: 2 wire 160 kbps echo canceller transmission system
Signal Level: 0 dB* or less
Speech Method: Hands-free conversation
Audio Frequency Range: 300 Hz - 7 kHz
Transmission Range: Max. 1500 m (φ0.65 mm. Loop resistance 170 Ω)
Hands-free:
Speaker: 3.5 cm cone-type, 1 W, 8 Ω
Microphone: Omni-directional electret condenser microphone
Contact Output: Open collector output, withstand voltage: Max. 30 V DC, control current: Max. 50 mA, one shot: can be set from 1 to 9 s, screw terminal (polarized)
Indication: Status lamp
Line Connecting Terminal: 2 wire, screw terminal (non-polar)
Setting Method: Flush-mount/Surface-mount
Operating Temperature: -10 ℃ to +50 ℃
Operating Humidity: 90 %RH or less (no condensation)
Housing Protection: BS EN62262: 2002: IK02 equivalent
Dust/Water Protection: IP54 (Note that panel edges must be sealed at installation.)
Finish:
- Plate: Stainless steel (SUS304), hairline
- Call button: Metal
Dimensions: 115 (W) x 162 (H) x 54 (D) mm
Weight: 680 g
Accessory:
- Box mounting screw (No.6-32UNC × 18) x 4
- Box mounting screw (M4 × 25) x 4
- Acoustic absorbent (made of felt) x 1
