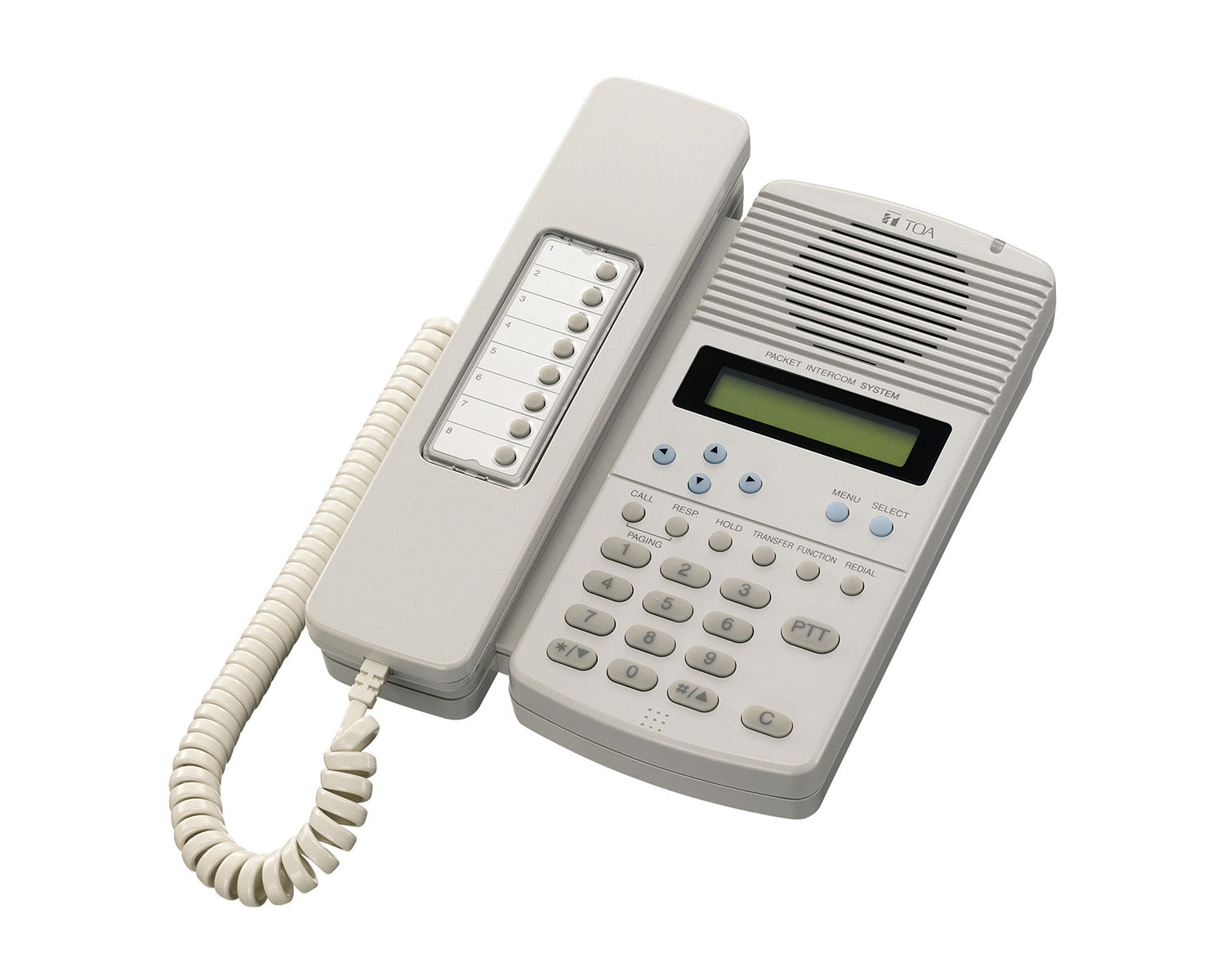

TOAN8000MS - TOA N8000MS IP Intercom Master Station and LCD Disp & Handset Image 1

This Master Station is designed to connect to the IP Intercom Exchange and provide hands-free or handset conversation of high sound quality. In addition to the functions of the standard Master Station, the Multifunctional Master Station provides LCD display, Auto-dialer function enabling one-touch dialling, headset terminal and external speaker terminal. This station can be mounted to the wall using an optional YC-280 wall mounting bracket.

Product Features

Paging and Communication function
With LC-Display
Hands-free or handset conversation
Auto-dialer function
Headset terminal
External speaker terminal

Product Specifications

Power Source: 48 V DC (supplied from the IP intercom exchange (option))
Power Consumption: 1.8 W (at rated), 2.4 W (max.)
Wiring Method: 1 set of twisted pair cable
Transmission System: 2 wire 160 kbps echo canceller transmission system
Signal Level: Under 0 dB*
Speech Method: Hands-free or handset conversation
Audio Frequency Range: 300 Hz - 7 kHz
Transmission Range: Max. 1500 m (φ0.65 mm, Loop resistance 170 Ω)
Hands-free:
- Speaker: 5.7 cm cone-type, 0.6 W, 8 Ω
- Microphone: Omni-directional electret condenser microphone
Handset:
- Receive path: Dynamic type
- Send path: Electret condenser microphone
Display: LCD: Alphanumeric characters (16 characters × 2 lines)
Indication: Status lamp
Line Connecting Terminal: RJ11 modular jack
Headset Terminal: Speaker: 3 mW, 32 Ω, Microphone: -49 dB*, φ3.5 mm mini Jack
External Speaker Terminal: 0.6 W, 8 Ω, screwless connector (2 pins)
Installation Method: Desk/Surface mounted master station (When mounting to the wall, use the optional YC-280.)
Operating Temperature: 0 ℃ to +40 ℃
Operating Humidity: Under 90 % RH (no condensation)
Finish: Body, Handset: ABS resin, grey
Dimensions: 148 (W) x 208 (H) x 70.5 (D) mm (excluding a curl cord section)
Weight: 800 g
Accessory: Connection cord (3 m) …1
Option: Wall mounting bracket: YC-280
