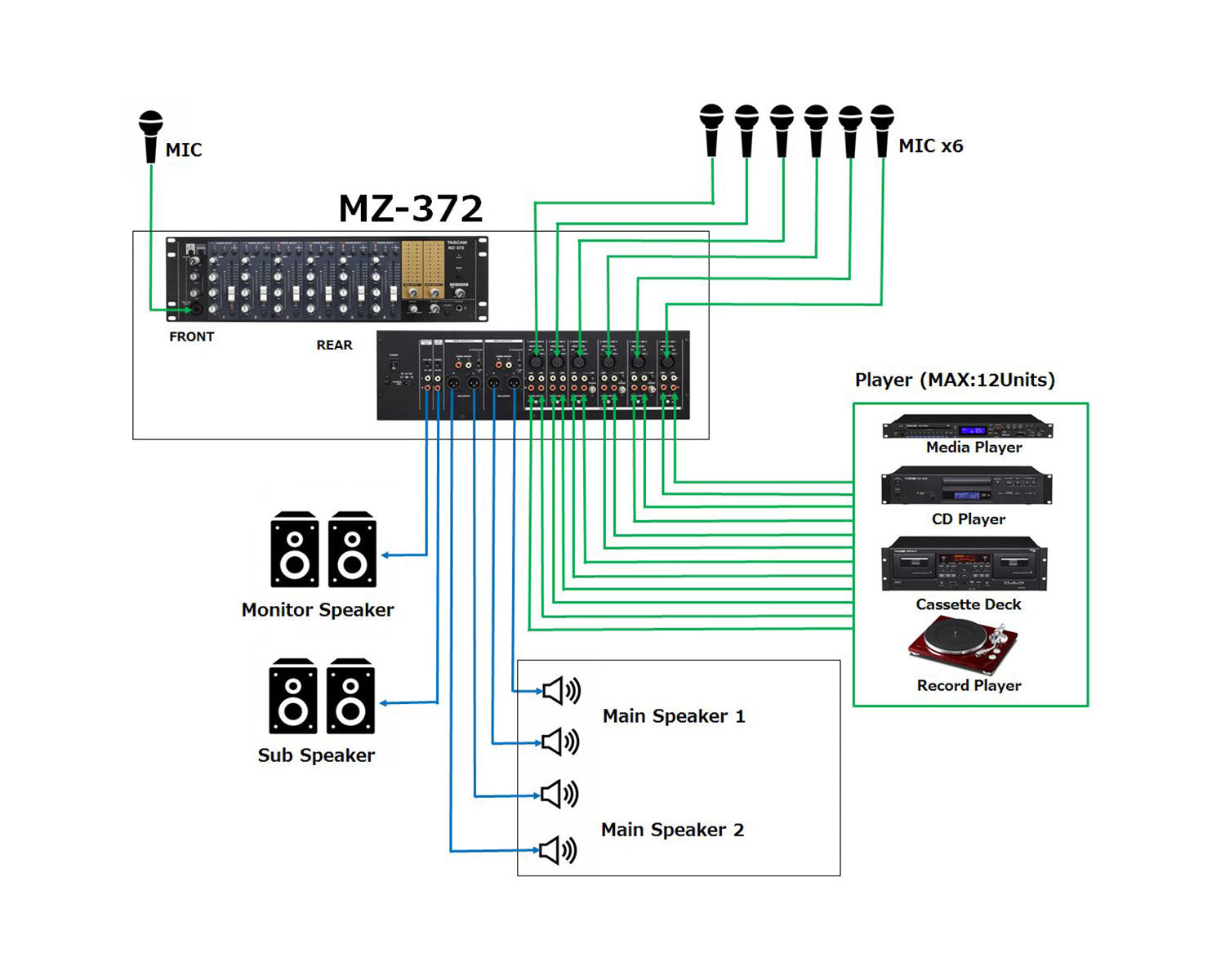

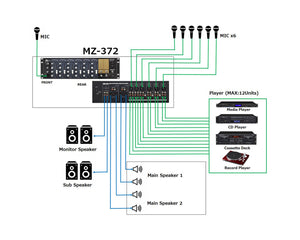

The MZ-372 is a rackmount mixer designed for fixed installations in hotels, conference centres, public facilities, theme parks or bars. It offers seven input channels, two pairs of main outputs and a sub output.

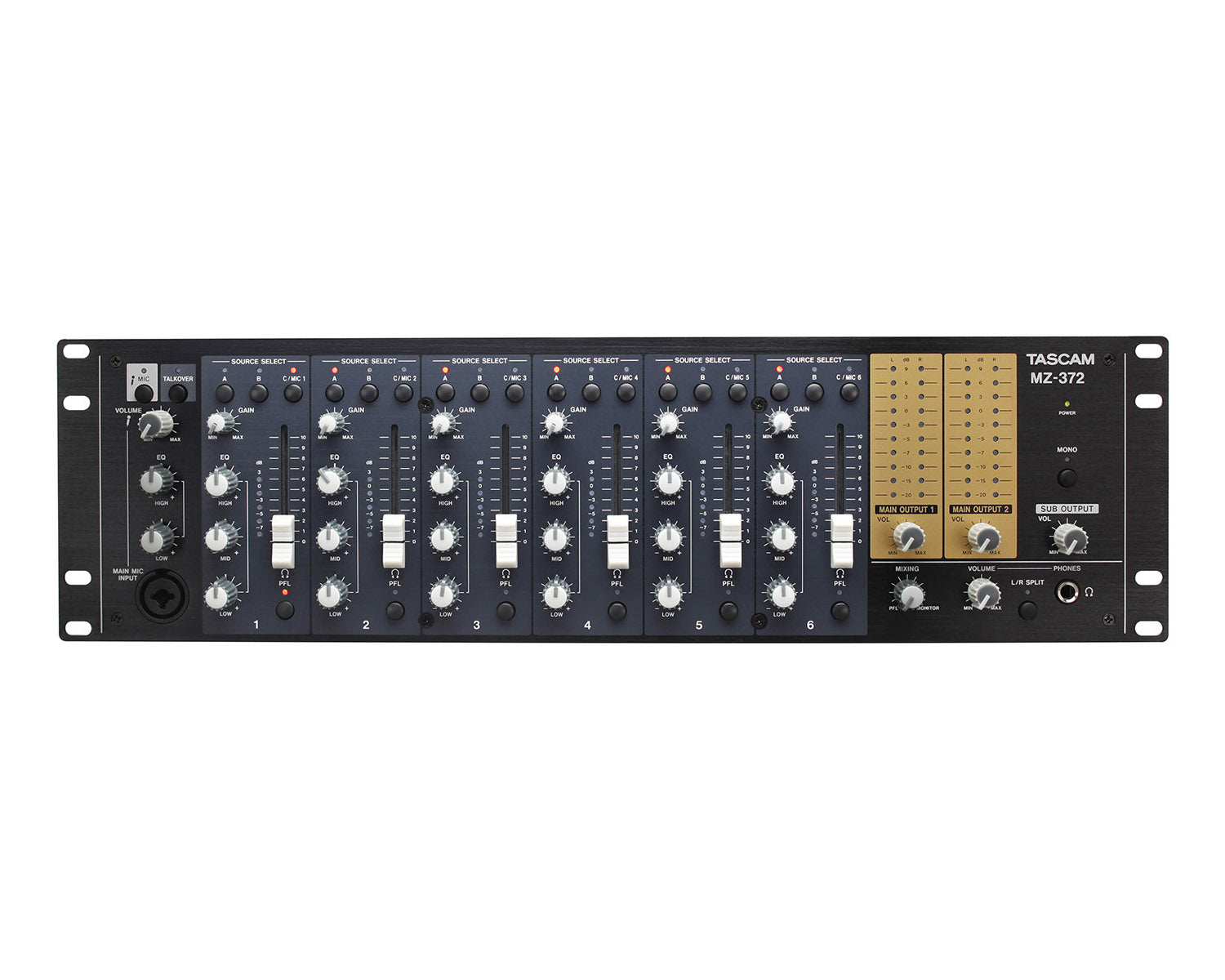

Six input channels can be used for microphones or line-level signals from analogue playback sources like media players, tuners or cassette decks, each equipped with gain controls, LED level meters, three-band equalizers and 100-mm faders. Up to three of these channels can be switched to phono to connect record players (turntables). An additional mic input with level control and two-band equalizer on the front side can be used for announcements or speech reinforcement. In this case, the built-in Talkover function can be used to automatically lower the volume of background music according to the mic volume.

Each of the two main outputs has its own level control and stereo LED level meter. An independent sub output with level control and mono/stereo selection can be used to drive an external master recorder or an additional room. And there is a headphones output with level control for pre-fader monitoring of selected input channels and the main output signal.

Product Features

• Rackmount mixer with seven input channels and two pairs of main outputs
• Six mic/line input channels are equipped with gain controls, LED level meters, three-band equalizers and faders

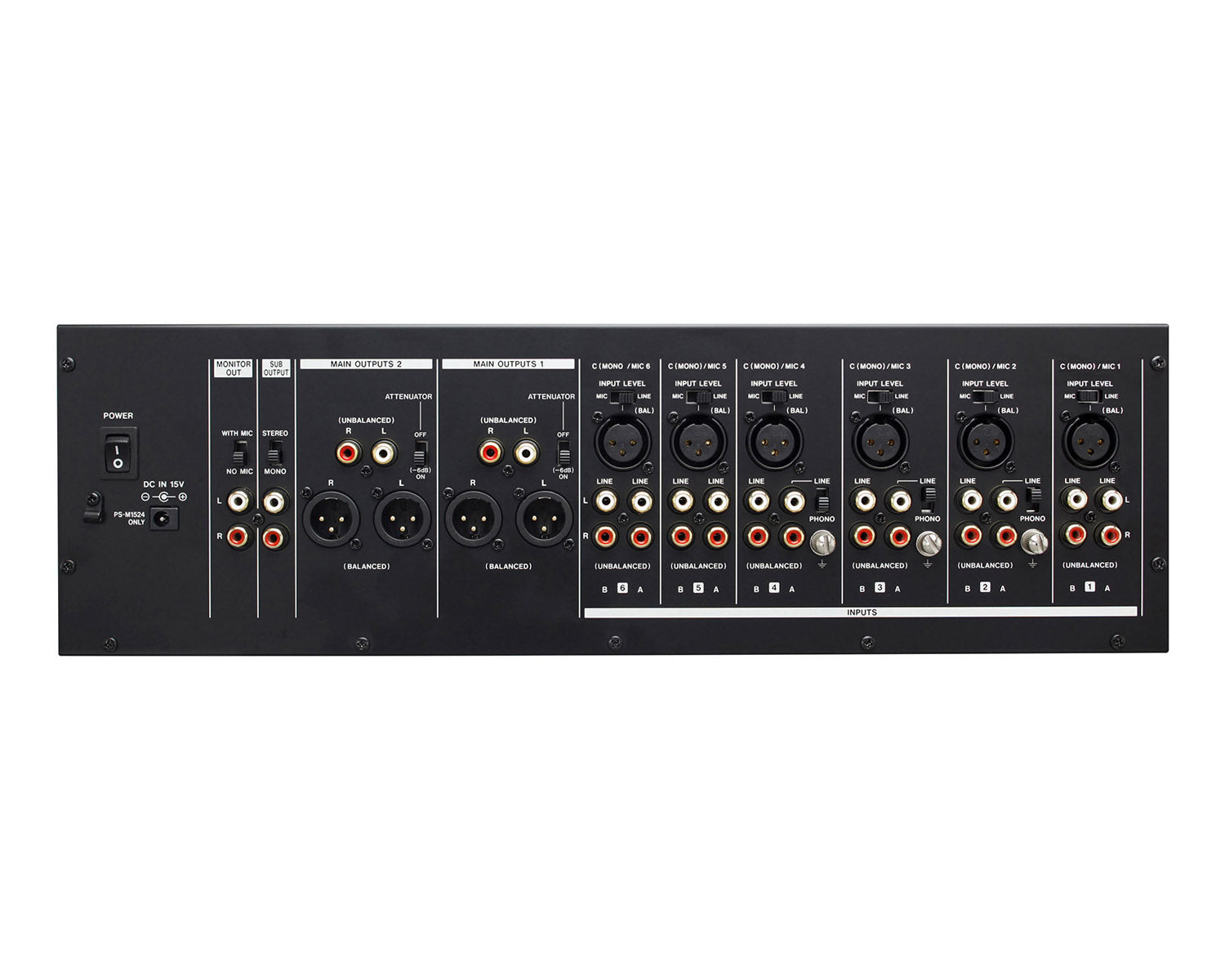

• Each channel can be set to use one of two RCA unbalanced input pairs or an XLR balanced input
• XLR inputs are switchable between mic and line level
• Three channels can be switched to phono for record players
• Independent front mic input with level control and two-band equaliser
• Talkover function automatically lowers background music volume according to mic volume
• Two main outputs with level control and stereo LED level meters
• Sub output with level control and mono/stereo selection
• Headphones output with level control can be used for pre-fader monitoring of selected input channels and the main output
• 19-inch rack-mountable size (3U)

Product Specifications

Audio inputs

• Main microphone input:
  • Balanced: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
  • Unbalanced: 6.3-mm TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
  • Input impedance: 33 kΩ
  • Nominal input level:
    • –65 dBu (VOLUME knob at MAX)
    • –30 dBu (VOLUME knob at MIN)
• Mic/Line inputs (balanced): XLR-3-31 (1: GND, 2: HOT, 3: COLD)
  • Set to Mic
    • Maximum input level: –30 dBu
    • Minimum input level: –65 dBu
    • Input impedance: 33 kΩ
  • Set to Line
    • Nominal input level: –1 dBu
    • Maximum input level: 20 dBu
    • Input impedance: 22 kΩ
  • Line inputs (unbalanced): RCA pin jacks
    • Nominal input level: –10 dBV
    • Maximum input level: 10 dBV
    • Input impedance: 22 kΩ

Audio outputs

• Main outputs (unbalanced): RCA pin jacks
  • Nominal output level: –10 dBV
  • Maximum output level: 6 dBV
  • Output impedance: 200 Ω
• Main outputs (balanced): XLR-3-32 (1: GND, 2: HOT, 3: COLD)
  • Nominal output level: 4 dBu
  • Maximum output level: 24 dBu
  • Output impedance: 200 Ω
• Sub outputs: RCA pin jacks
  • Nominal output level: –16 dBV
  • Maximum output level: 0 dBV
  • Output impedance: 200 Ω
• Monitor outputs: RCA pin jacks
  • Nominal output level: –16 dBV
  • Maximum output level: 0 dBV
  • Output impedance: 200 Ω
• Headphones output: 6.3-mm stereo jack
  • Maximum output power: 50 mW + 50 mW (into 32 Ω load)

Audio performance

• Frequency response: 20 Hz – 20 kHz
• Distortion: ≤0.03%
• Crosstalk: 65 dB

Power supply and other specifications

• Power supply: Dedicated AC adapter (PS-M1524)
  • Input voltage: AC 100–240 V, 50/60 Hz
  • Output voltage: DC 15 V
  • Output current: 2.4 A
• Power consumption: 35 W
• Overall dimensions (width × height × depth): 482 mm × 132 mm × 93 mm
• Weight: 3.2 kg
• Permissible operating temperature: 5–35 °C
