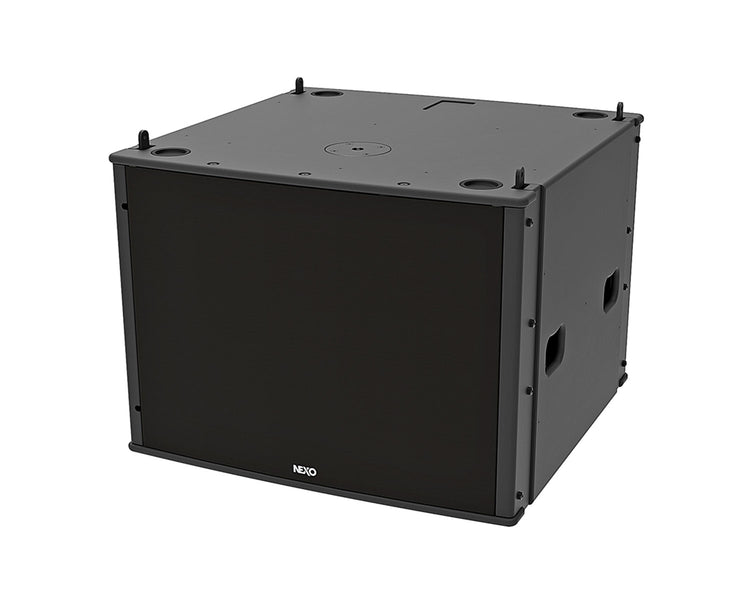

Measuring 701mm wide x 525mm high x 704mm deep and weighing 55 kg, the MSUB18-I is the same width as the GEO M12 main cabinet, and 41% higher. Cabinets are constructed from Baltic birch ply with large composite bumpers on the corners, and feature integral rigging. Employing a single 18″ diameter voice coil Neodymium driver in a high-efficiency band pass cabinet design with a quadratic shaped profiled port, the MSUB18 can be deployed in Omni or Cardioid modes and is available in black, white or custom RAL colours. The MSUB18-I is the installation version.

Product Features

• Very high power, arrayable sub that can be stacked or flown, with or without its companion main element the GEO M12
• Integrated rigging hardware with no loose parts
• Front and rear connectivity for cardioid (front to back) implementation
• Comprehensive range of versatile, multifunction accessories for deploying the MSUB18 in a wide variety of applications
• Available in black, white and custom RAL colours

Product Specifications

General

• Frequency Response @-6 dB: 32 Hz to 120 Hz
• Sensitivity 1W@1m: 107 dB SPL Nominal
• Peak SPL@1m: 139 dB
• Available Crossover Frequencies: 32-65, 32-75, 32-85, 32-95, 32-120 Hz
• Nominal Impedance: 4 Ohms
• Recommended Power: 2000 Watts

Features

• Component: 1 x 18” 4 Ohms very long excursion Neodymium driver
• Height x Width x Depth: 525mm x 701mm x 704mm (20.6” x 27.6” x 27.7”)
• Weight: Net: 55 kg / 122 lbs
• Connectors: 2 x Cable gland with 2 cores cables
• Construction: Baltic Birch Plywood & textured black or white coating
• Fittings: 8 x Side handles
• Front Finish: Acoustic fabric fitted from grill
• Operating temperature range: 0°C - 40 °C
• Storage temperature range: -20 °C - 60 °C
• System Operation
  • Recommended powering solution – NXAMP4x4 Powered TDcontroller: 2 x MSUB18 per channel
  • Optional powering solution – NXAMP4x1mk2 Powered TDcontroller (Bridged): 1 x MSUB18 per channel
  • Optional powering solution – NXAMP4x2mk2 Powered TDcontroller: 1 x MSUB18 per channel
