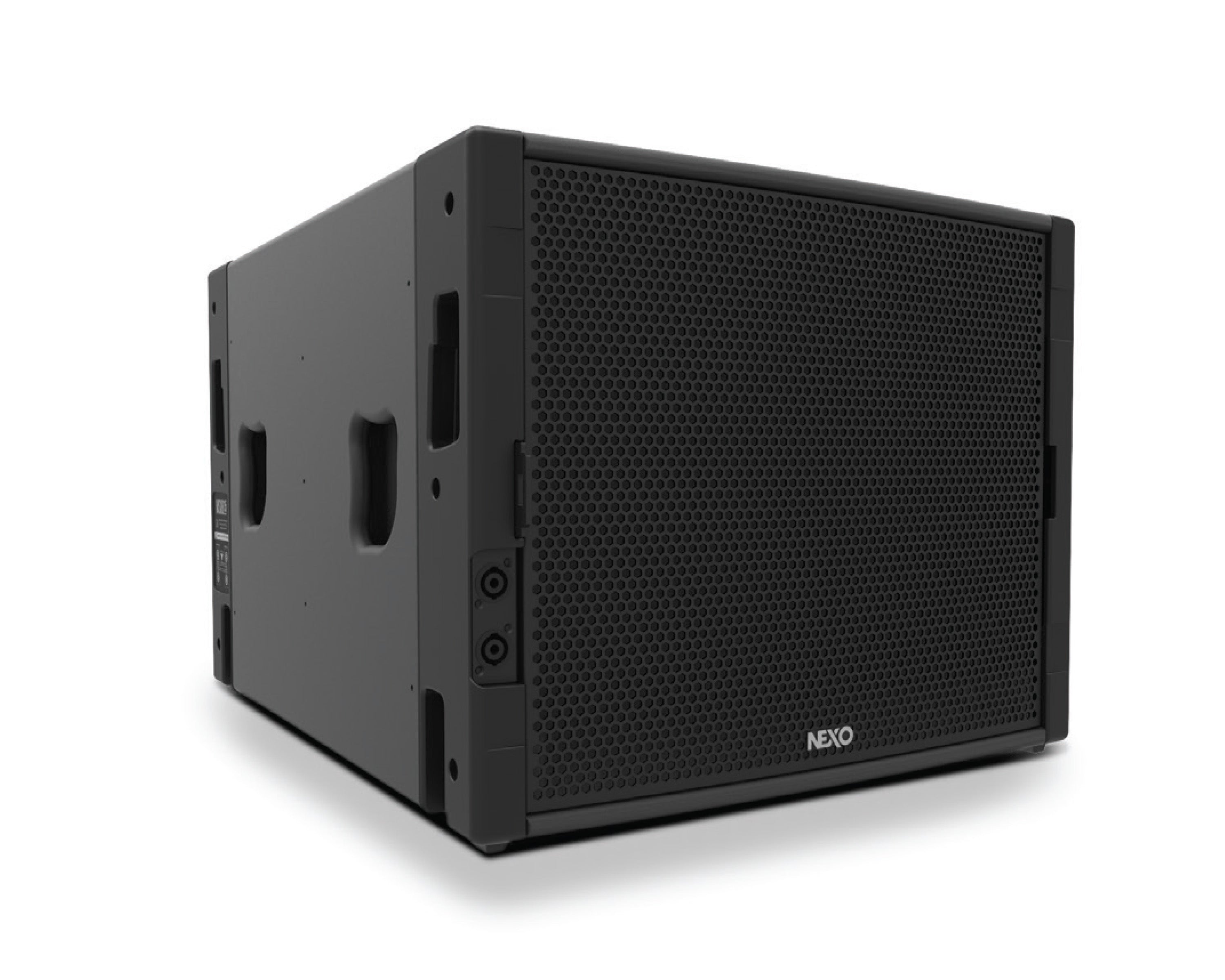

Measuring 531mm wide x 434mm high x 704mm deep and weighing 40Kg, the MSUB15 is the same width as the GEO M10 main cabinet, and 50% higher. Cabinets are constructed from Baltic birch ply with large composite bumpers on the corners, and feature integral rigging. Employing a single 15″ diameter / 3″ voice coil Neodymium driver in a high-efficiency band pass cabinet design with a quadratic shaped profiled port, the MSUB15 can be deployed in Omni or Cardioid modes and is available in black, white or custom RAL colours. The touring version features a steel front grille and Speakon connectors (front and back).

Product Features

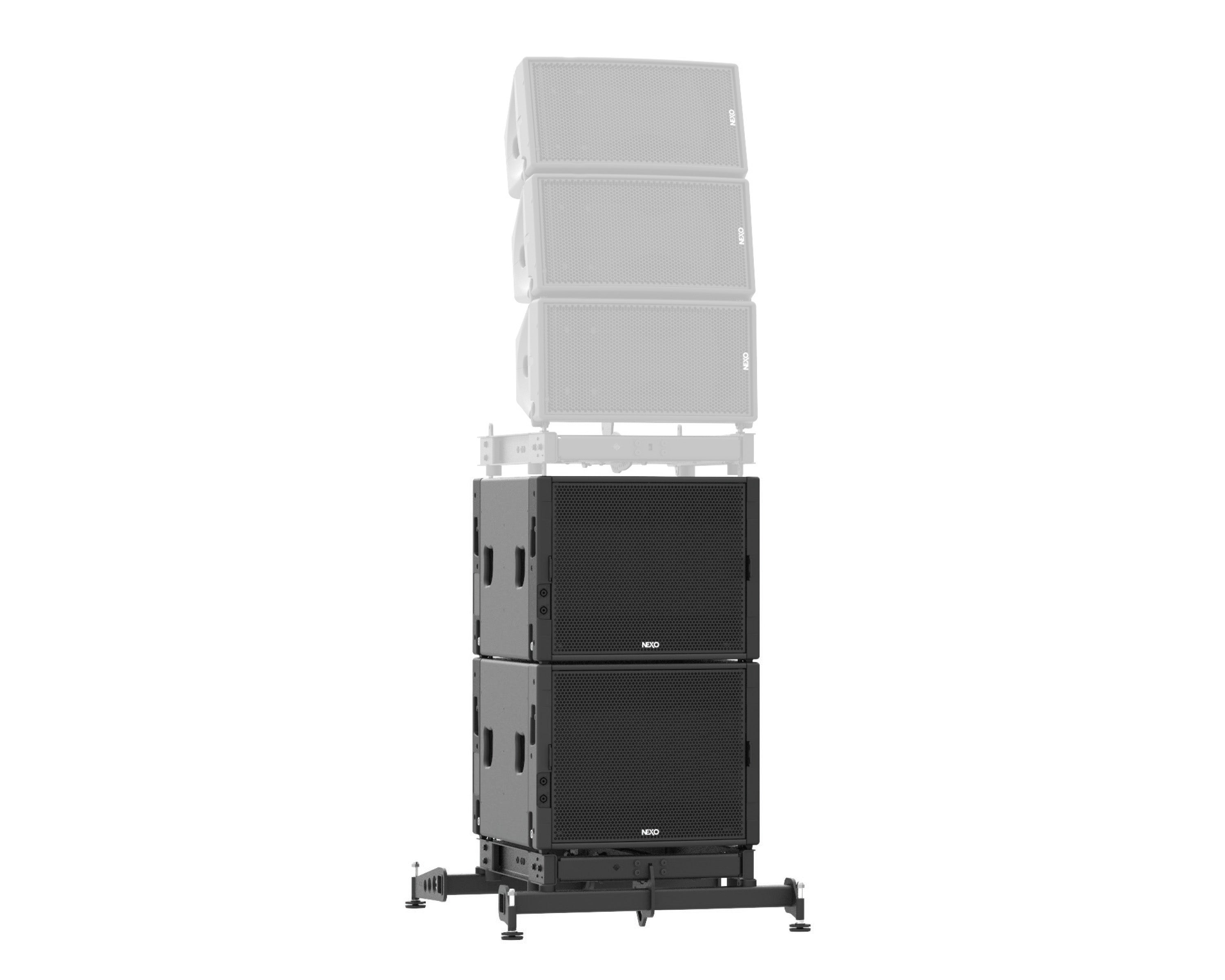

Compact arrayable sub that can be stacked or flown
Can be used with or without its companion main element the GEO M10
Integrated rigging hardware with no loose parts
Front and rear connectivity for cardioid (front to back) implementation
Comprehensive range of versatile, multifunction accessories for deploying the MSUB15 in a wide variety of applications
Touring version with steel grille and Speakon connectors
IP Rating: IP54

Product Specifications

General

Frequency Response @-6 dB: 40 Hz to 120 Hz
Sensitivity 1W @ 1m: 101 dB SPL Nominal
Peak SPL @ 1m: 136 dB
IP Rating: IP54
Available Crossover Frequencies: 40-65, 40-75, 40-85, 40-95, 40-120 Hz
Nominal Impedance: 8 Ohms
Recommended Power: 900 Watts
Component: 1 x 15” 8 Ohms long excursion Neodymium driver
Connectors: 4 x NL4, 4 poles connectors (1+/1- MSUB15 / 2+/2- Through)
Construction: Baltic Birch Plywood & textured black or white coating
Fittings: 4 x Side handles
Front Finish: Steel front grill + back mesh
Operating temperature range: 0°C - 40 °C
Storage temperature range: -20 °C - 60 °C
Recommended powering solution: NXAMP4x2mk2 Powered TDcontroller: up to 2 x MSUB15 per channel
Optional powering solution:
- NXAMP4x1 Powered TDcontroller (Bridged): up to 2 x MSUB15 per channel
- NXAMP4x4 Powered TDcontroller: up to 3 x MSUB15 per channel
- DTD TDcontroller + DTDAMP4x1.3 Power amplifier: 1 x MSUB15 per channel
