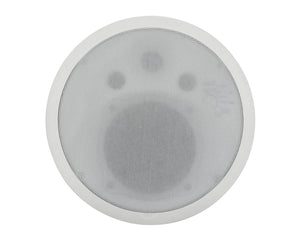

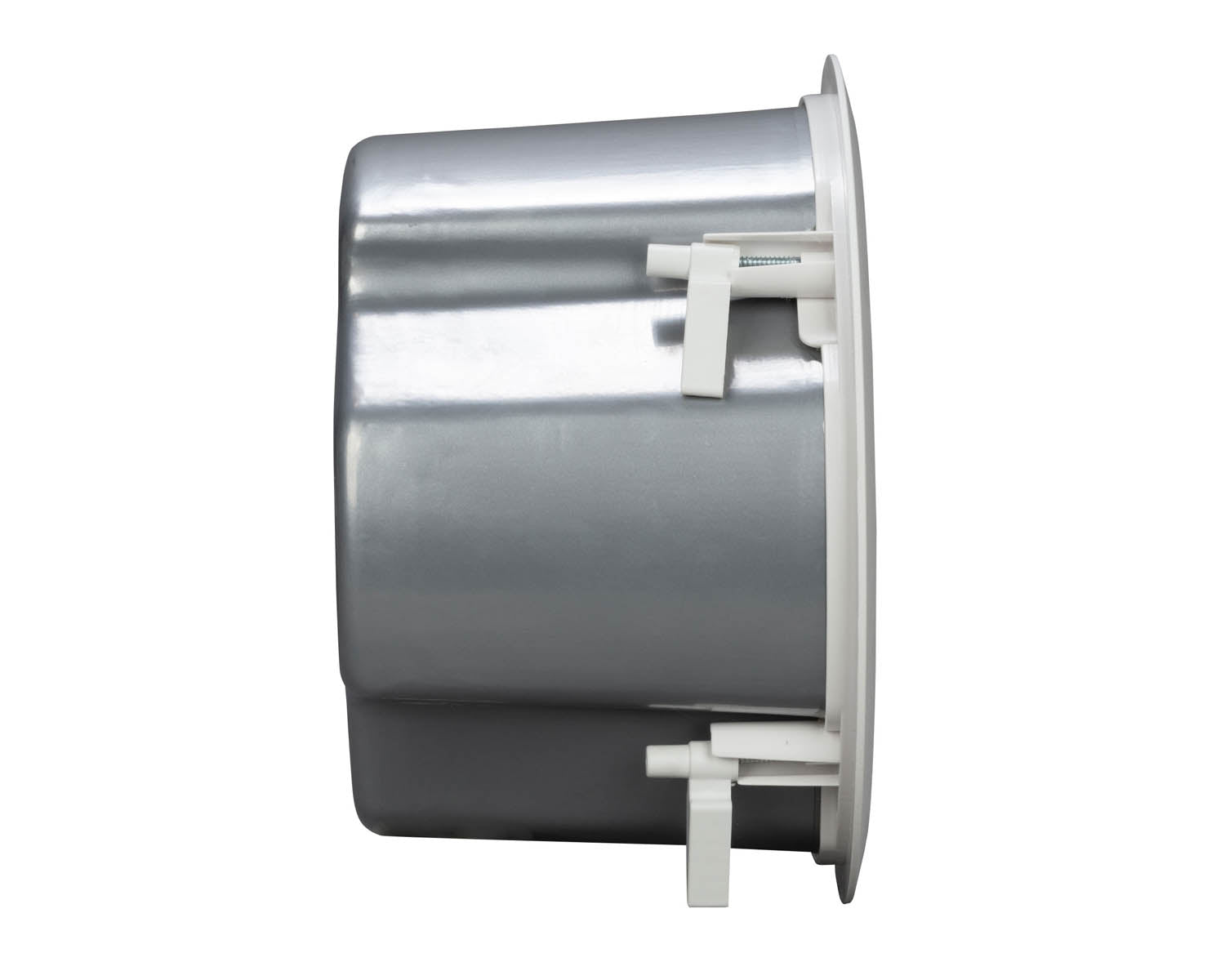

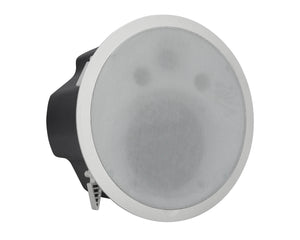

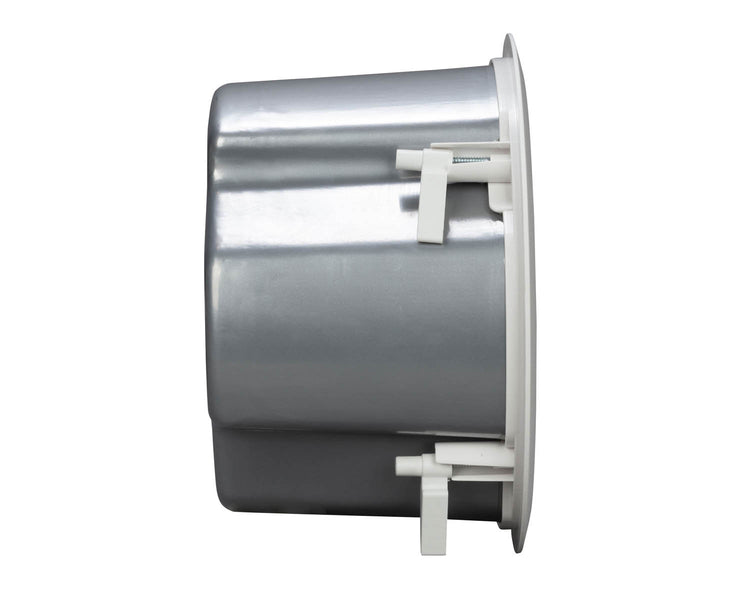

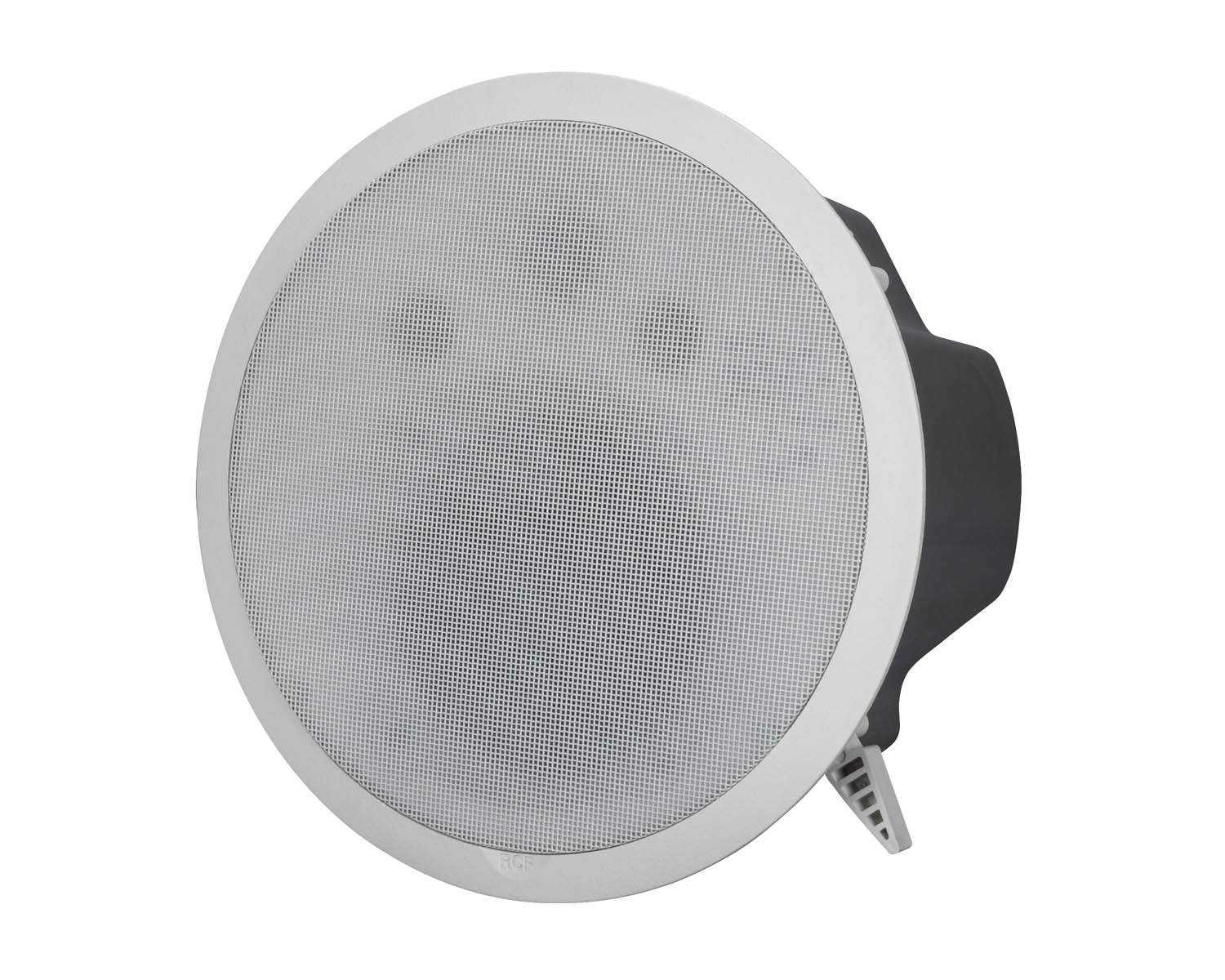

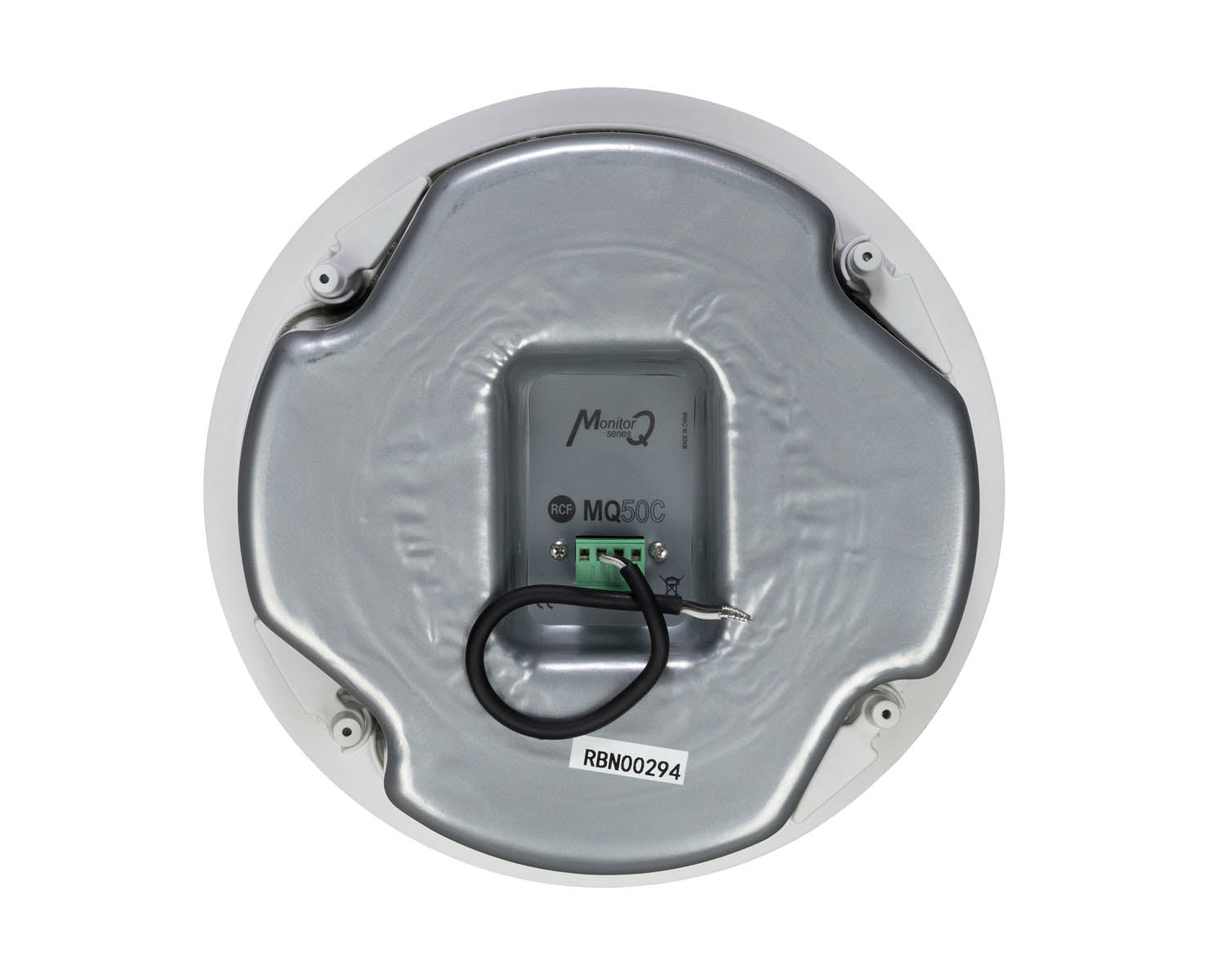

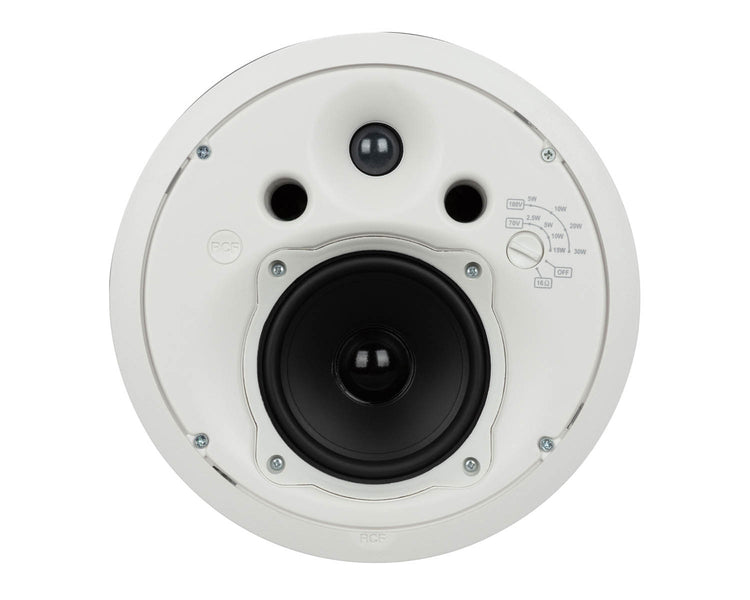

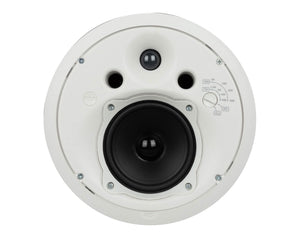

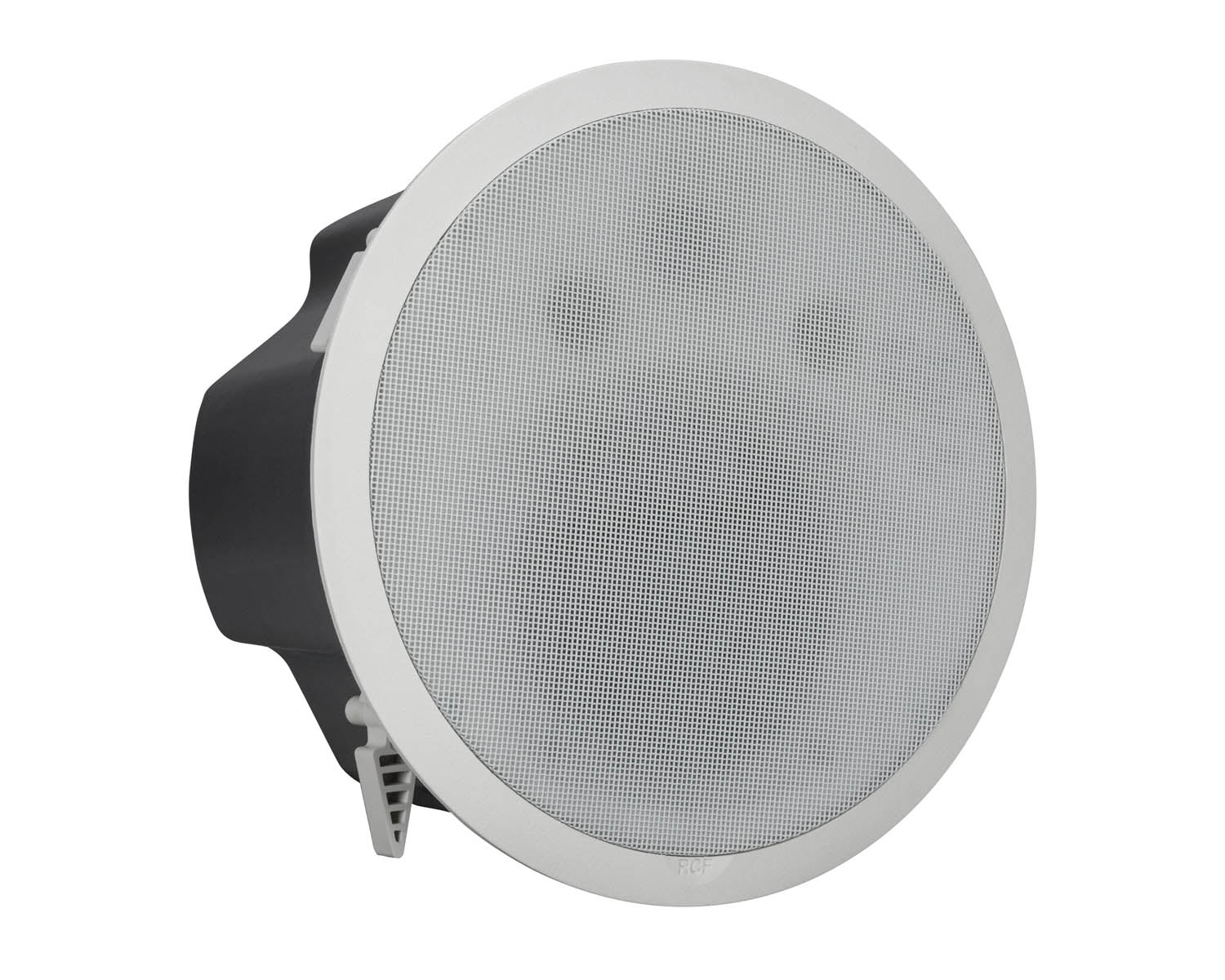

Compact design, light weight and limited depth makes the MQ 50C a 2-way ceiling speakers ideal for use in any background and foreground music system where a good sound is required. The woofer is a high-excursion, PP coated paper cone with rubber surround design mounted in a tuned enclosure. The fabric dome tweeter is loaded on a constant Q wave guide to provide natural and smooth sound reproduction on a wide dispersion angle. Installation of MQ 50C is fast and efficient thanks to the built-in rotating hooks. No additional brackets or rings or other supports are required: thanks to its lightweight construction the speaker can be mounted as a conventional ceiling speakers. Connections are made on four poles Euroblock connector. Power value can be selected with a rotary switch, accessible behind the grill.

Product Features

• 5" woofer with 1" dome tweeter
• Power selectable (100 V): 30 W – 20 W – 10 W – 5 W
• 91 dB sensitivity
• Colour: white RAL 9016 and black RAL 9005
• Self-extinguishing plastic frame and back can, steel grille
• In/out euroblock connectors

Product Specifications

Acoustical specifications

• Frequency Response (-10dB): 70 Hz ÷ 20000 Hz
• Max SPL @ 1m: 112 dB
• Coverage angle: 120°
• System Sensitivity: 91 dB

Power section

• Nominal Impedance (ohm): 16 ohm
• Power Handling: 60 W RMS
• Peak Power Handling: 240 W PEAK
• Recommended Amplifier: 120 W
• Crossover Frequencies: 3000 Hz

Transducers

• Dome Tweeter: 1.0\'\' neo
• Woofer: 5.0\'\' neo

Input/Output section

• Input connectors: Euroblock
• Output connectors: Euroblock
• Constant Voltage Transformer: 100 V
• Power selection 1: 30 W - 333 ohm
• Power selection 2: 20 W - 500 ohm
• Power selection 3: 10 W - 1000 ohm
• Power selection 4: 5 W - 2000 ohm

Standard compliance

• CE marking: Yes

Physical specifications

• Cabinet/Case Material: Plastic
• Grille: Steel
• Colour: White - RAL 9016

Size

• Depth: 156 mm / 6.14 inches
• Diameter: 266 mm / 10.47 inches
• Weight: 2.1 kg / 4.63 lbs

Shipping information

• Package Height: 235 mm / 9.25 inches
• Package Width: 310 mm / 12.2 inches
• Package Depth: 310 mm / 12.2 inches
• Package Weight: 2.99 kg / 6.59 lbs
