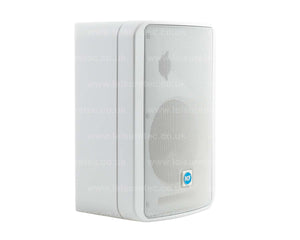

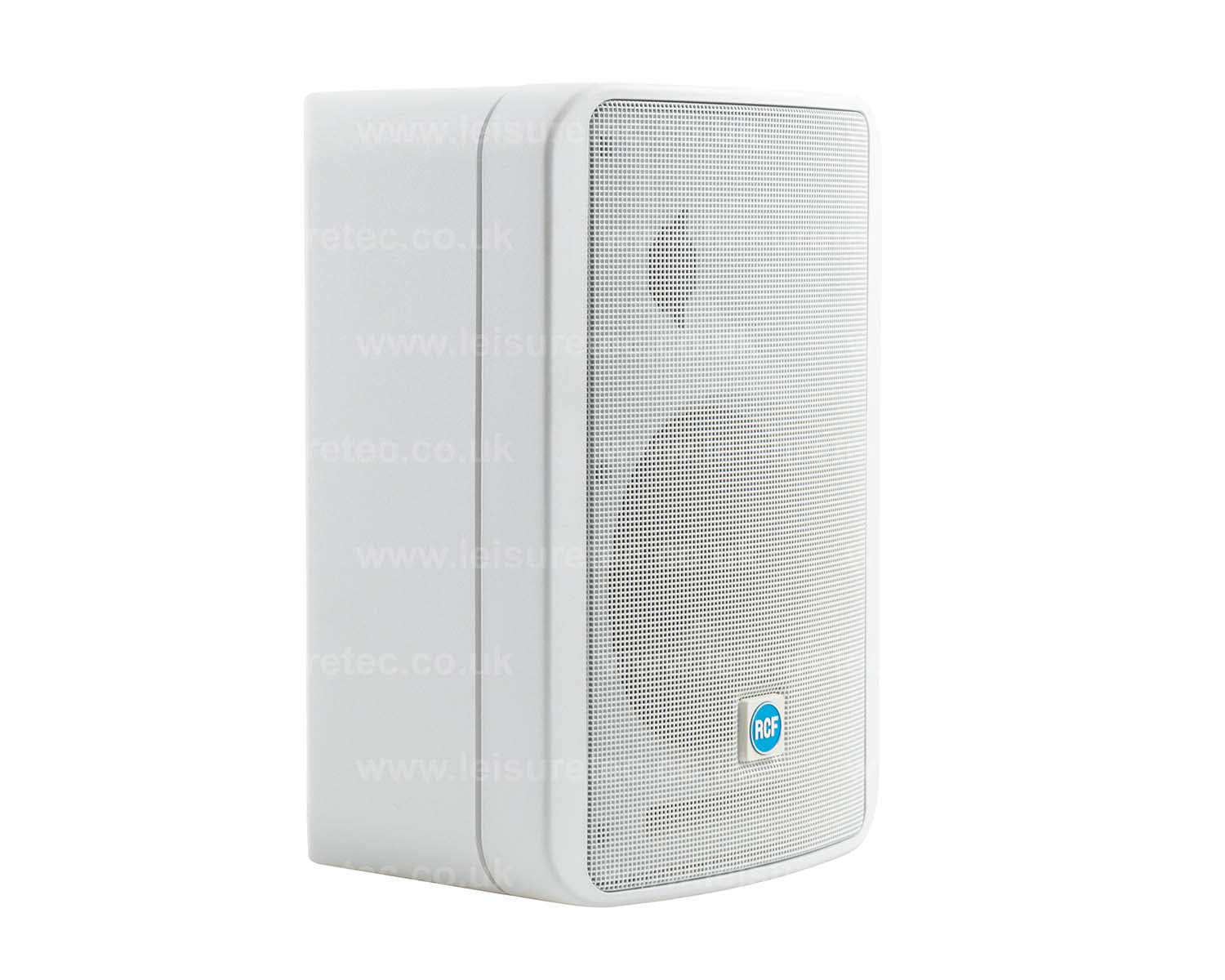

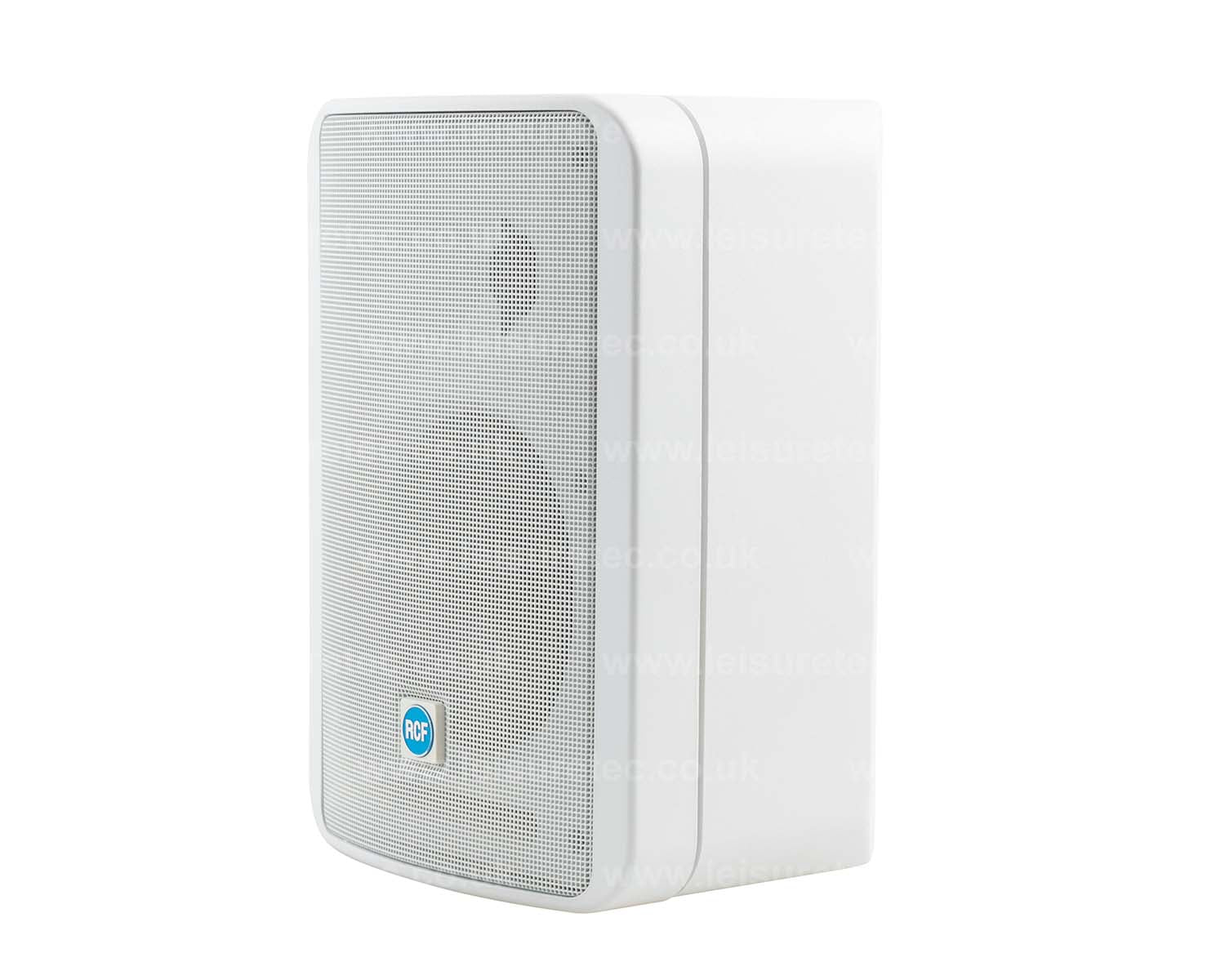

The MR5S (Black) and MR5SW (White) are a compact two-way speaker system designed for constant-impedance systems. The 5" carbon fibre woofer, in combination with a 0.75" soft dome tweeter mounted on a 105° x 105° constant directivity horn, provide natural, smooth sound reproduction, ideal for use in business music systems and indoor/outdoor background music applications.

The passive crossover is designed to reduce heat dissipation and optimise the power response of the loudspeaker. Connections are made to recessed, gold plated banana terminals.

The enclosure is constructed of high-density polystyrene, with integrated mounting points for use with the optional mounting hardware, and includes a protective perforated steel grille.

Product Features

• Compact 2-Way Loudspeaker
• 5" carbon fibre woofer with a 0.75" soft dome tweeter
• 105° x 105° constant directivity horn
• Ideal for use in business music systems and indoor/outdoor background music applications
• Constructed of high-density polystyrene, with integrated mounting points for use with the optional mounting hardware
• Finish: White

Product Specifications

System

• Freq. Range (–10 dB): 65Hz-20kHz
• Freq. Response (–3 dB): 100Hz-19kHz
• Horz. Coverage Angle (–6 dB): 105°, averaged 800Hz-16kHz
• Vert. Coverage Angle (–6 dB): 105°, averaged 800Hz-16kHz
• Directivity Factor Q (DI): 6.3 (8.0), averaged 800Hz-16kHz
• System Sensitivity 1: 87 dB, 1W@1m
• Rated Maximum SPL: 112 dB @ 1 m (3.3 ft) peak
• Rated Nominal Impedance: 4Ω (bypassed)
• System Input Power Rating 2: 175W IEC, 700W Peak
• Recommended Amplifier 3: 250W
• HF Protection: Dynamic
• Crossover Frequency: 2.5kHz, 12 dB/octave

Transducers

• Low Frequency: 5" (130 mm) carbon fibre woofer with 1" (25mm) coil
• High Frequency: 0.75" (19 mm) horn-loaded dome tweeter, Ferrofluid® cooled

Physical

• Enclosure: 45° back angles, high-density polystyrene
• Attachment Inserts: 4 integrated threaded insert points
• Colour: White (MR5SW)

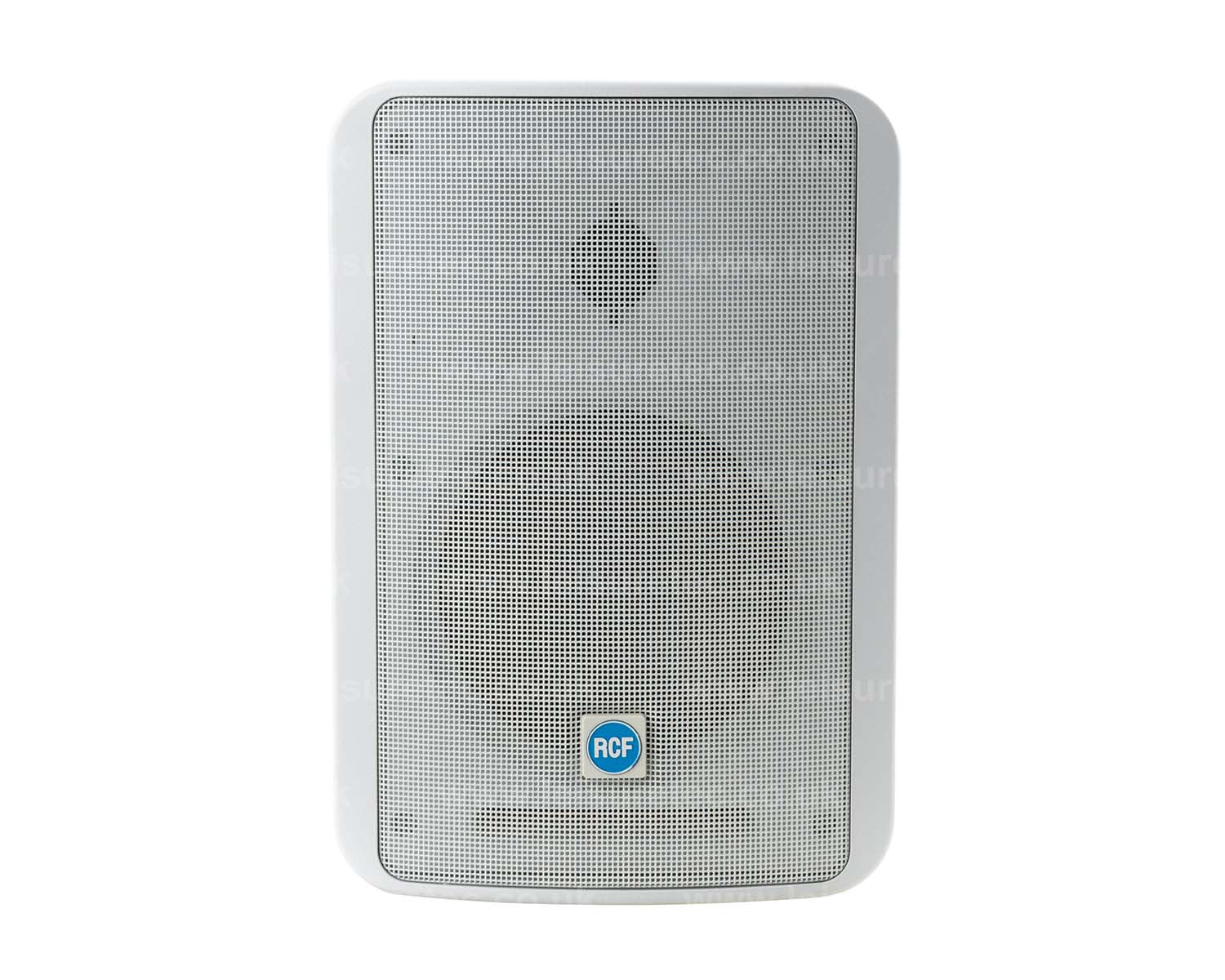

• Grille: Matching perforated steel grille
• Input Connectors: Gold-plated banana terminals
• Dimensions HxWxD: 10.32 in x 7.17 in x 6.57 in (262 mm x 182 mm x 167 mm)
• Net Weight: 8.6 lb (3.9 kg)
