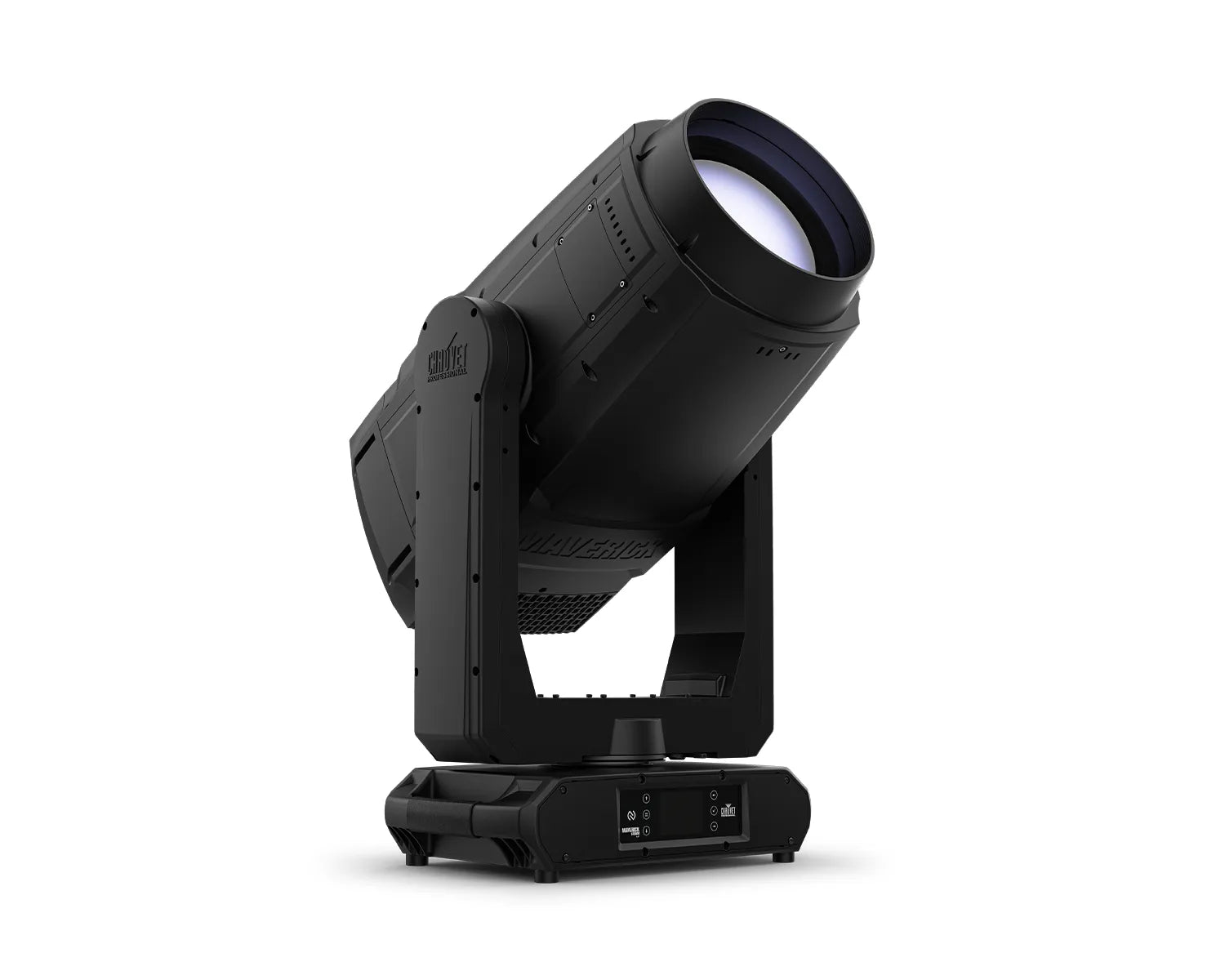

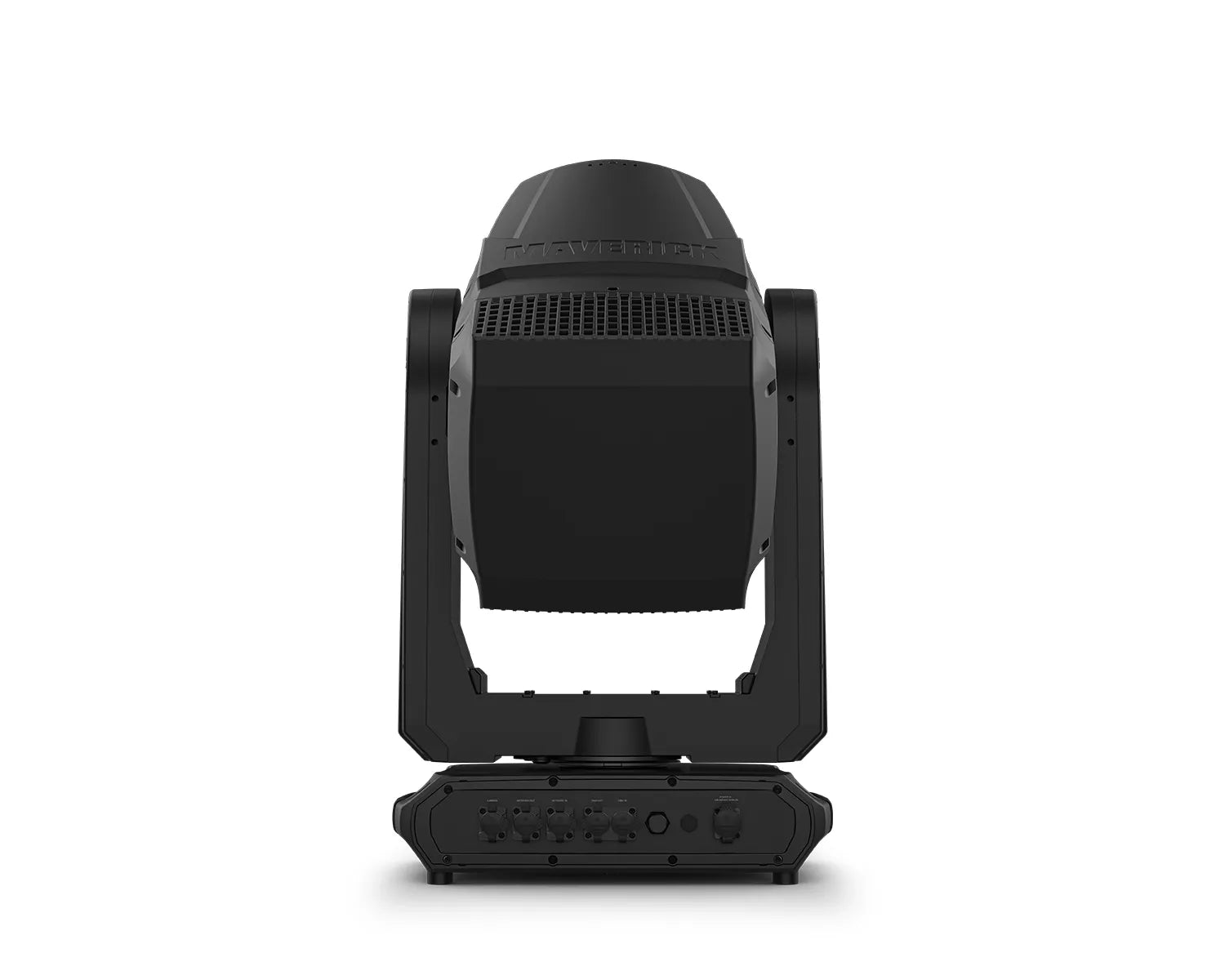

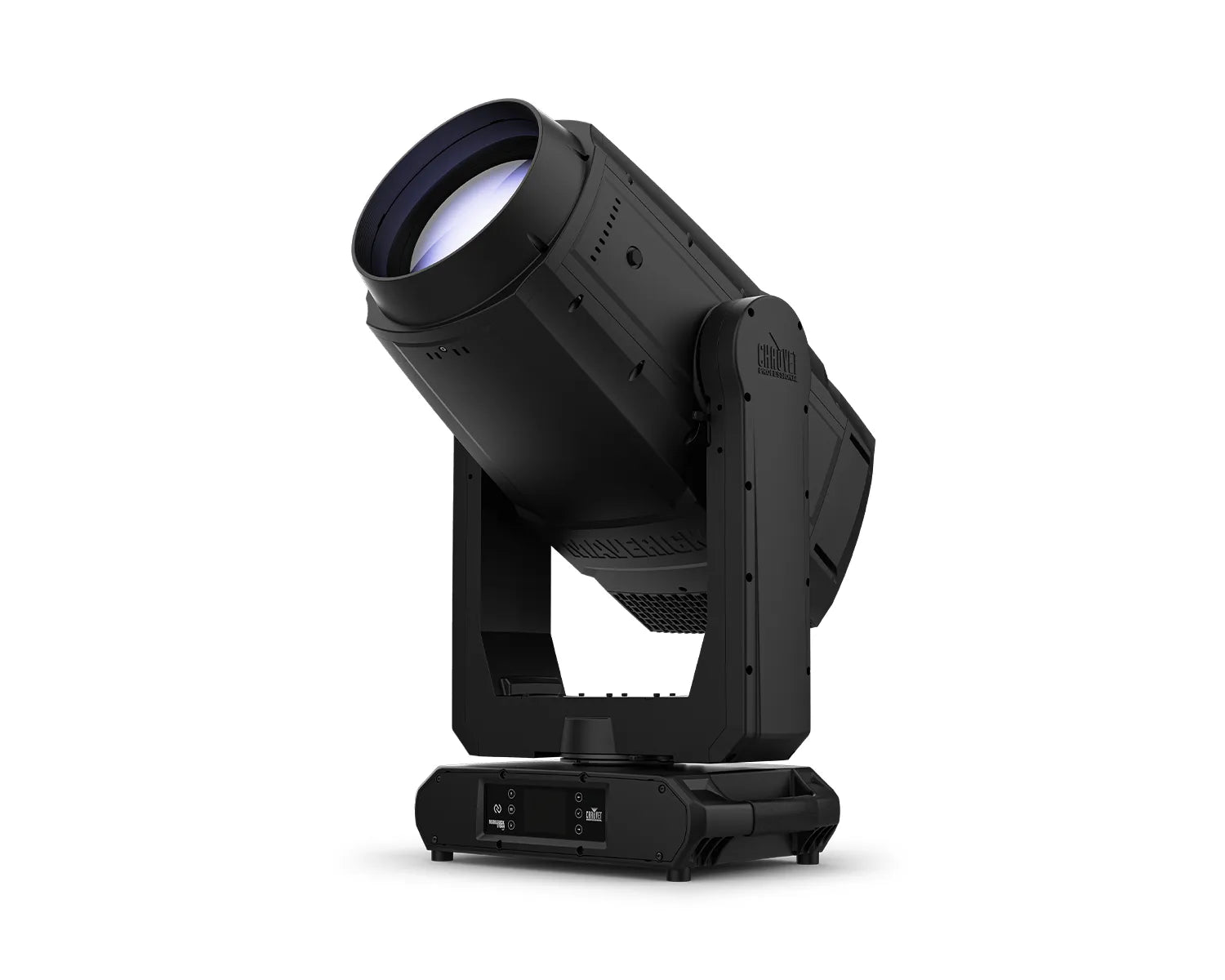

Maverick Storm LT is a fully-featured, IP65-rated, 1400W moving head engineered for the demands of the world’s biggest stages. With a massive 18:1 zoom range, CMY + CTO colour mixing, a comprehensive effects package including dual gobo wheels, dual prisms, an animation wheel, and a 4-blade framing system, it delivers the creative firepower professionals expect at the top of the market. What sets it apart is its utility-first design: camera-ready architecture for followspot integration, built-in Sky Tracker mode and Failsafe Ethernet. Maverick Storm LT isn’t just a fixture. It’s a workhorse built to tour the world.

Product Features

• Fully featured, IP65 1,400 W LED yoke profile fixture including CMY + CTO colour mixing, a 4-blade framing shutter system with rotation, a colour wheel, 18:1 zoom, 2 prisms (5 facet round and linear, 2 rotating gobo wheels, integrated sun shield)
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY + CTO colour mixing system to create a wide pallet of colours
• CRI and CTB filters on colour wheel for added flexibility
• Two gobo wheels: (1) rotating, indexing and interchangeable slot and lock, and (1) Static
• An animation wheel for kinetic textured effects
• DMX, CRMX, sACN, and Art-Net for full flexibility of control options
• RDM and NFC enabled for remote addressing and trouble shooting
• 3.2 to 55.9° zoom range for variable beam sizes
• Iris, 5-facet round and linear prisms, and 2 frosts (light and medium) for beam control
• True 1 compatible power input
• Integrated sun shield protects the optical path from sunlight when the fixture is powered off
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
• Bluetooth compatibility for software uploads
• Battery backup display with auto-rotate depending on fixture orientation
• Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost

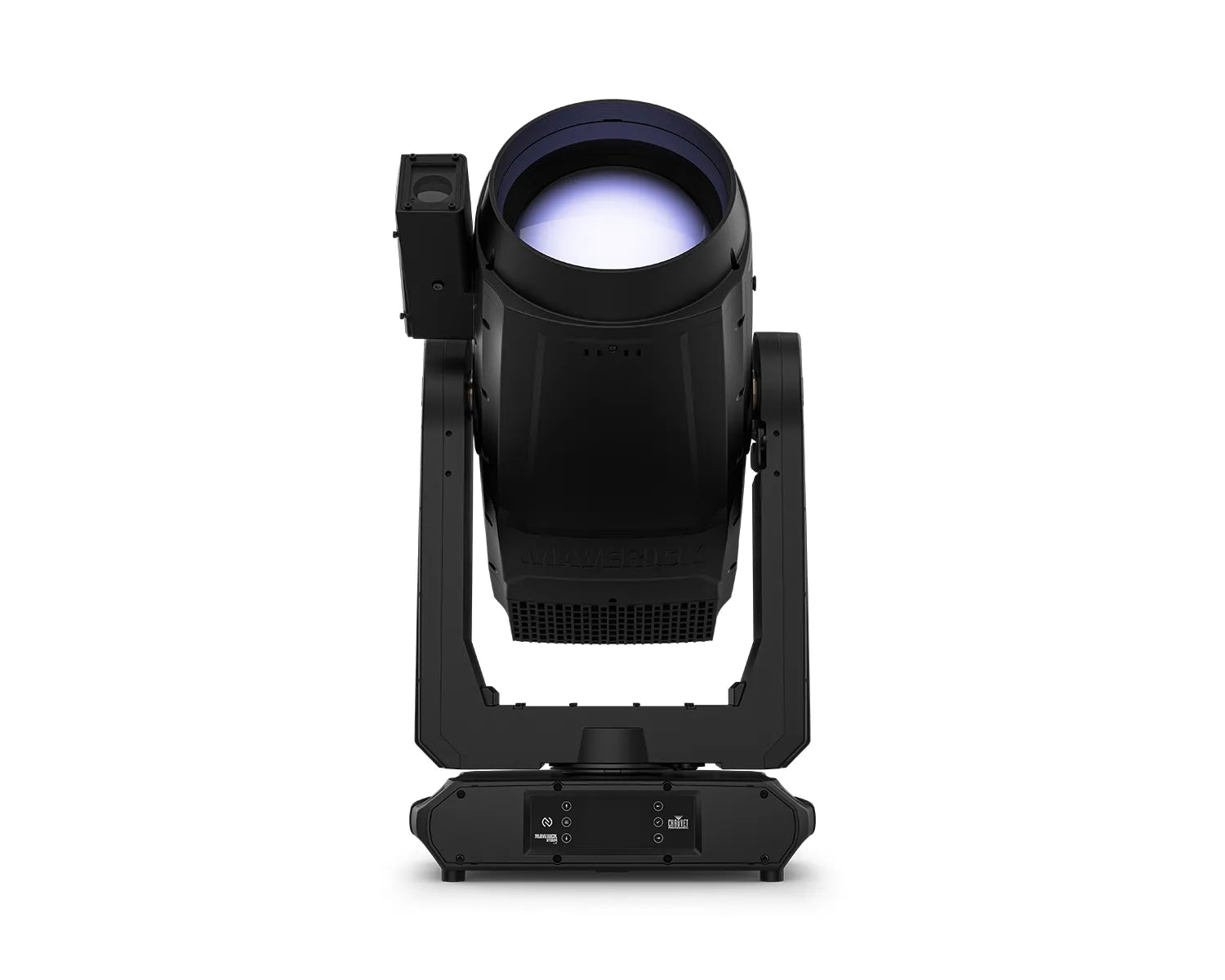

• Camera ready (camera kit sold separately) (camera not sold by CHAUVET)
• Built-in Sky Tracker mode allows up to 4 fixtures to work together to create sky tracker effects

Product Specifications

• Optical
  • Light Source:  1 LEDs (CW) 1400 W (39A), 6877K, 50,000 hours life expectancy.
  • Colour Temperature (at full):  7185K
  • Front lens diameters:  245 mm
  • CRI:  67.9
  • Beam Angle:  3.2° to 51.2°
  • Field Angle:  4.1° to 55.1°
  • Cutoff Angle:  4.4° to 55.9°
  • Zoom Range:  3.2° to 55.9°
  • Lumens – Output:  65,004 lm
  • Illuminance:
    • (3.2°):  488,879 lux @ 5 m
    • (55.9°):  4,079 lux @ 5 m
  • Selectable PWM:  600 Hz, 2000 Hz, 15000 Hz, 25000 Hz
• Dynamic Effects
  • Pan and Tilt:  540°/270°
  • Colours:  5 + white (including CTB and CRI)
  • Colours:  CMY Wheels, CTO Wheel
  • Colour Macros:  CMY colour macros
  • Gobos (1):  7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2):  9 + open (9 glass), continuous scroll at variable speeds
  • Gobo Size:  Gobo Wheel 1 (rotating): 27 mm (outside), 21 mm (image), 1.1 mm (max. thickness)
  • Effect Wheel:  1 effect
  • Framing Shutters:  Yes
  • Dimmer:  Electronic
  • Shutter/Strobe:  Electronic
  • Zoom:  Motorised
  • Focus:  Motorised
  • Frost:  Motorised
  • Iris:  Motorised
  • Prism:  2x 5 Facets, motorised, rotating
  • Strobe Rate:  0 to 25 Hz
    Move-in-Black:  YesDim Modes:  2
  • Dim Curves:  4
• Control
  • Control Protocol:  Art-Net, sACN, DMX, RDM, CRMX
  • DMX Channels:  37 or 53
  • Art-Net Channels:  37 or 53
  • Modes/Personalities:  2 personalities (37, 53)
• Connections
  • Power Connection:  Seetronic Powerkon IP65
  • Power Input:  Seetronic Powerkon IP65
  • Data Connectors:  5-pin IP rated XLR Seetronic connectors
  • Cable Length (power):  5 ft (1.5 m)
  • Software Connection:  Bluetooth, Upload 08
  • NFC connection
• Electrical
  • Input Voltage:  208 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:  1963 W, 9.68 A @ 208 V, 60 Hz
  • Power and Current:  1959 W, 8.62 A @ 230 V, 50 Hz
  • Power and Current:  1945 W, 8.33 A @ 240 V, 50 Hz
  • Power and Current (resting):  167 W, 1.29 A @ 208 V, 60 Hz
  • Power and Current (resting):  166 W, 1.18 A @ 230 V, 50 Hz
  • Power and Current (resting):  165 W, 1.16 A @ 240 V, 50 Hz
• Certifications/Qualifications
  • Compliance:  CE, MET, FCC, CB
  • Operating Temperature:  -4 °F to 122 °F (-20 °C to 50 °C)
  • Temperature (Ambient):  -4 °F to 113 °F (-20 °C to 45 °C)
  • Minimum Distance from Flammable Material to all exterior surfaces of the product:  1 m
  • Maximum Exterior Surface Temperature (Tc):  176° F (80° C)
  • Maximum Ambient Temperature (ta):  113° F (45° C)
  • Minimum Distance from Irradiated Object to the Final Lens of the Luminaire:  5 m
• Construction/Physical
  • Dimensions:  21.29 x 12.71 x 35.66 in (541 x 323 x 906 mm)
  • Weight:  132 lb (59.8 kg)
  • Exterior Colour:  Black
  • Housing Material:  Aluminium die-cast, High-impact flame-retardant polymer, Steel
  • IP Rating:  IP65


What's in the Box?

• Maverick Storm LT
• Seetronic Powerkon IP65 power cord to Bare end
• (2) 140-DX Omega bracket with mounting hardware
• Quick Reference Guide or User Manual
