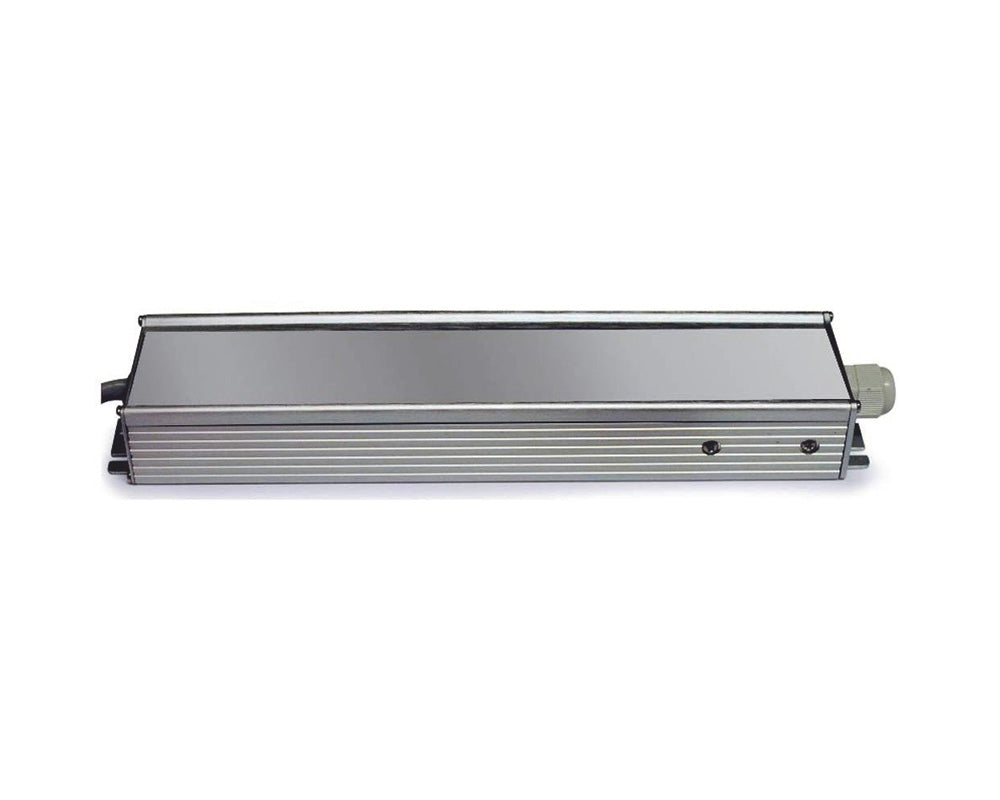

The Martin™ IP66 PSU 240W is an IP66-rated external power supply unit that can supply 48 VDC power to various Martin™ lighting and LED Video products, including the Exterior PixLine, Exterior Dot-HP and VC-Dot.

It provides an alternative to the P3 PowerPort in supplying power to fixtures in a DMX-controlled system.

Product Features

• IP66-rated
• Wall-mountable
• Can be located up to 50 m (164 ft.) away from the creative LED video products
• No configuration or addressing required

Product Specifications

PHYSICAL

• Length: 314 mm (12.4 in.)
• Width: 68 mm (2.7 in.)
• Height: 39 mm (1.5 in.)
• Weight: 1.5 kg (3.3 lbs.)

SYSTEM INTEGRATION

• Exterior PixLine™ family
• Exterior Dot-HPTM family
• VDO Sceptron™ family
• VC-Dot™ family via VC-Feeder™
• VC-Grid™ family (indoor product)
• VC-Strip™ family (indoor product)
• Tripix family

CONSTRUCTION

• Housing: Aluminium
• Finish: Clear anodized
• Protection rating: IP66, NEMA 4X
• RoHS compliant

INSTALLATION

• Mounting: Fixation points for surface-mounting
• Orientation: Any
• Maximum cable length: See connected product user manuals
• Maximum number of connected fixtures: See connected product user manuals

CONNECTIONS

• AC power input: 100-240 V nominal, 50/60 Hz
• 48 VDC power output:
• To Tripix: Power Inserter Cable, Martin™ IP66 PSU 240 W to Tripix system, 0.25 m (9.8 in.), P/N 91611339
• To VDO Sceptron: Input Y-Cable, XLR5 + Martin™ IP66 PSU 240W to BBD, 0.25 m (9.8 in.), P/N 91616050
• To Exterior PixLine: Input Y-Cable, XLR5 + Martin™ IP66 PSU 240W to BBD, 0.25 m (9.8 in.), P/N 91616050
• To Exterior Dot-HP: Input Y-Cable, XLR5 + Martin™ IP66 PSU 240W to BBD, 0.25 m (9.8 in.), P/N 91616050
• To VC-Grid: Input Y-Cable, XLR5 + Martin™ IP66 PSU to XLR4, 0.25 m (9.8 in.), P/N 91616039
• To VC-Strip: Input Y-Cable, XLR5 + Martin™ IP66 PSU to XLR4, 0.25 m (9.8 in.), P/N 91616039
• To VC-Feeder (VC-Dot): Input Y-Cable, XLR5 + Martin™ IP66 PSU 240W to IP65 connector, 0.25 m (9.8 in.), P/N 11840195

ELECTRICAL

• AC mains power input: Hard-wired (terminal block) via cable gland
• Power supply unit: Auto-sensing multi-voltage switch-mode
• DC power output: 48 V
• Maximum DC output power: 240 W
• Maximum DC output current draw: 5 A
• Protection: Overvoltage, overcurrent, short circuit, over-temperature, all with auto-recovery

THERMAL

• Cooling: Convection
• Maximum ambient temperature (Ta max.): 45° C (113° F)
• Minimum ambient temperature (Ta min.): -30° C (-22° F)
• Maximum surface temperature, steady state, at 45° C ambient: 80° C (176° F)
• Total heat dissipation (calculated, including max. number of connected devices, all at full load): 820 BTU/hr.

APPROVALS

• EU safety: EN 60598-2-6, EN 61347-2-13
• EU EMC: EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547
• US safety: UL 1012
• Canadian safety: CSA C22.2 No. 107.1
• Australia/NZ: RCM
