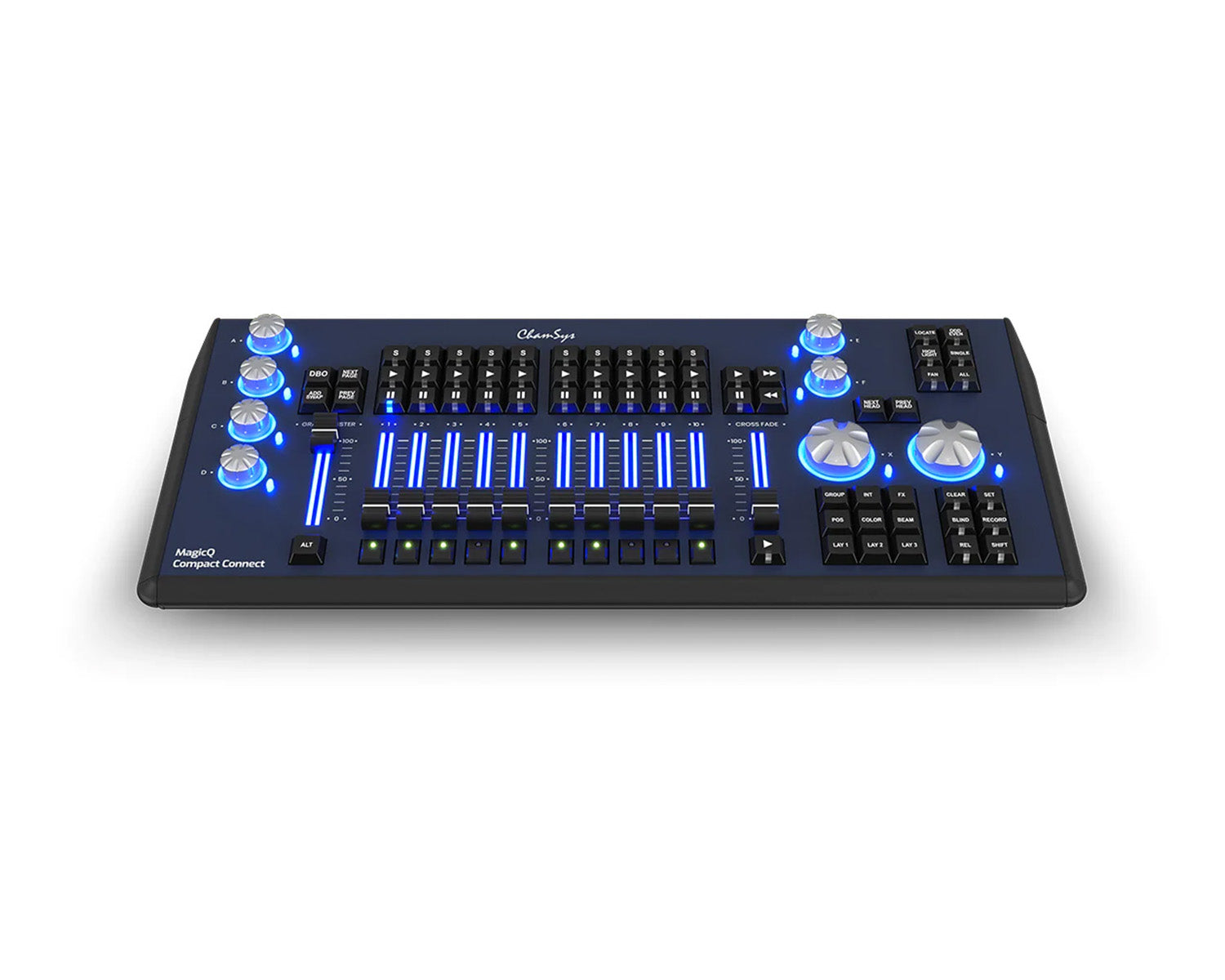

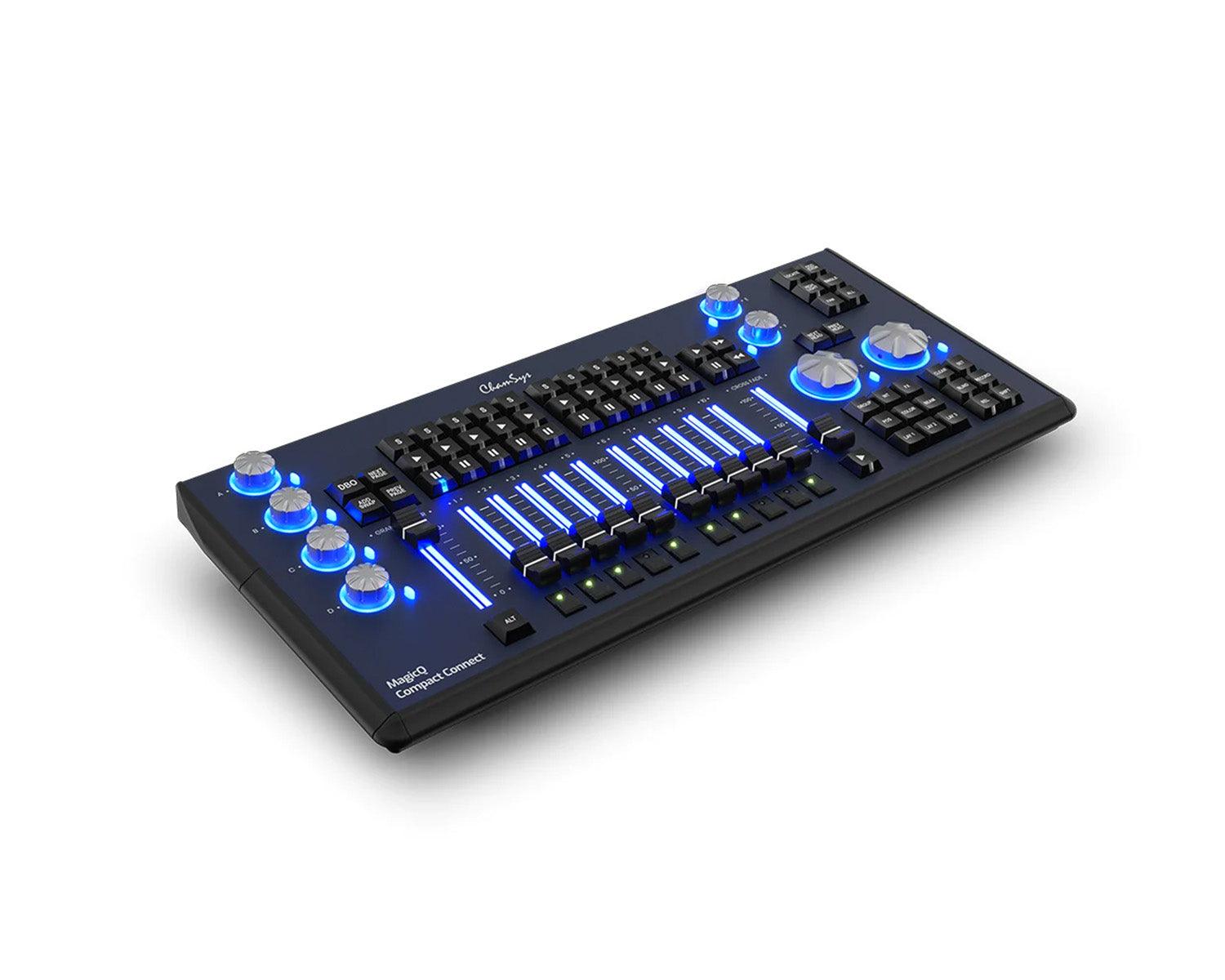

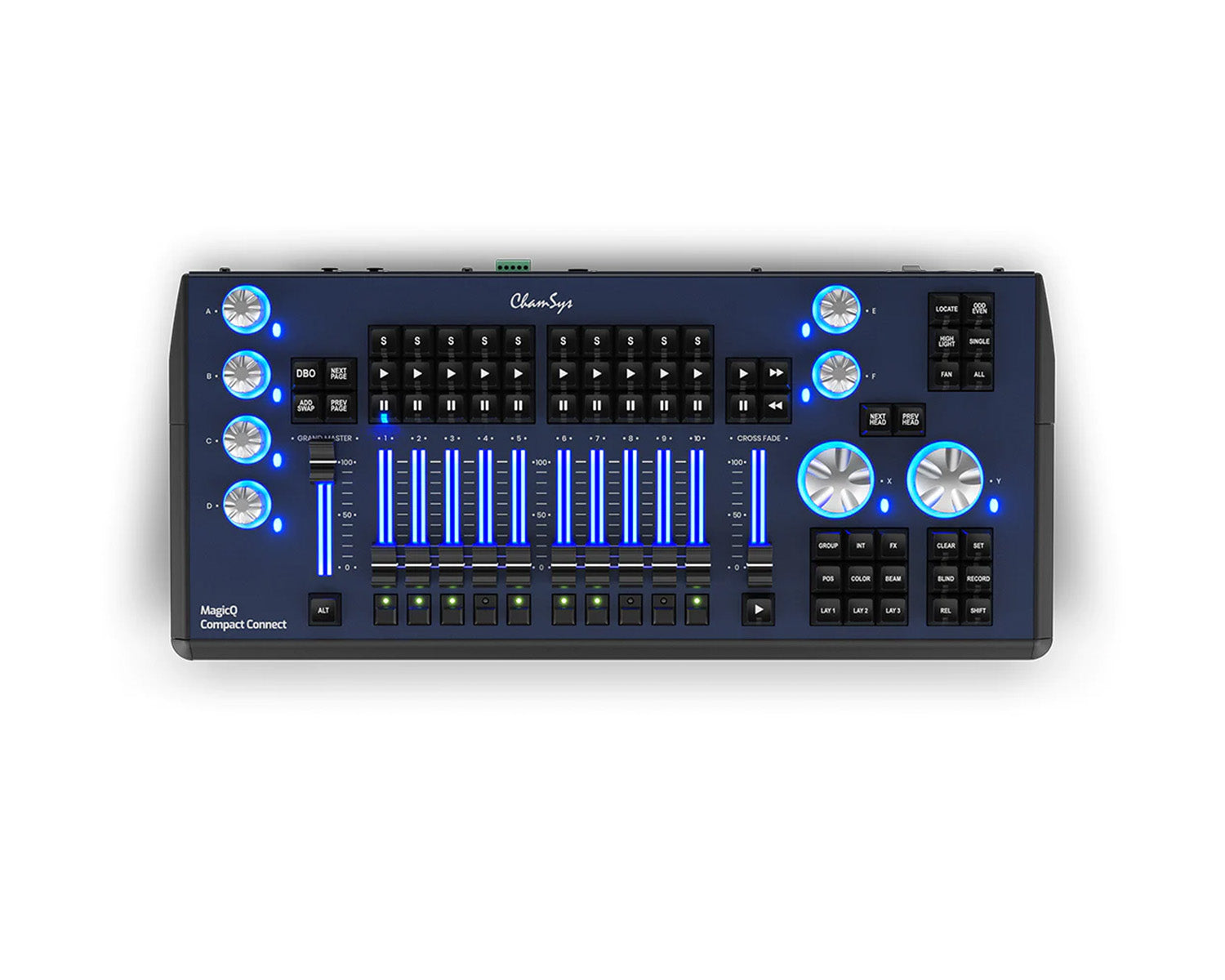

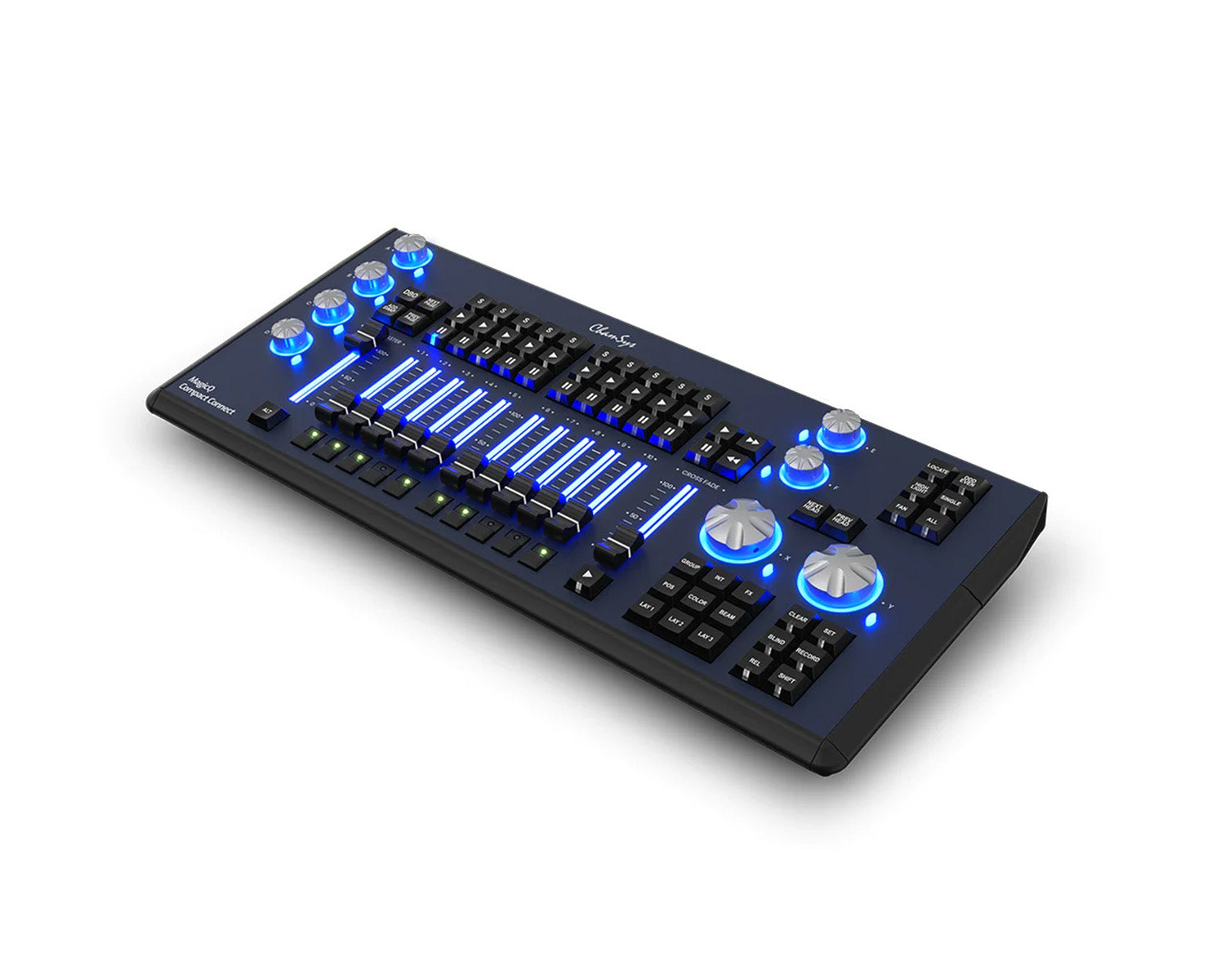

The MagicQ Compact Connect is a lightweight USB control surface that connects to your PC or Mac to control lighting, media, and LEDs.

Small enough to travel inside hand luggage, the portable Compact Connect is packed with powerful features. It has 2 direct DMX512 outputs and sends up to 64 universes of ArtNet and sACN directly from its onboard network port without the need for additional licenses or dongles. The design of the Compact Connect provides illuminated access to fixture parameters via 8 rotary encoders and live show control through 10 playback faders featuring Flash, Go and Select buttons as well as dedicated Grand Master and Crossfader for overall level control. An internal USB hub, audio input, 10Scene/Remote Input port and working light socket bring additional connectivity and convenience.

The Compact Connect is ideal for use by touring Lighting Designers or for installation into theatres, schools, clubs, studios and venues. This affordable solution offers quick tactile playback control in combination with the power of MagicQ software running on Windows, Linux or OSX.

MagicQ Software

MagicQ software offers powerful lighting control with loads of features that lighting designers have some to rely on, such as full lighting visualisation, pixel mapping, and HD media playback on up to 8 different layers, all integrated smoothly to streamline workflows, save time, and shorten learning curve.

Product Features

• A lightweight USB control surface
• Connects to your PC or Mac to control lighting, media, and LEDs
• 2 direct DMX512 outputs
• Up to 64 universes of ArtNet and sACN directly from its onboard network port
• 10 playback faders featuring Flash, Go and Select buttons as well as dedicated Grand Master and Crossfader
• Ideal for installation into theatres, schools, clubs, studios and venues

Product Specifications

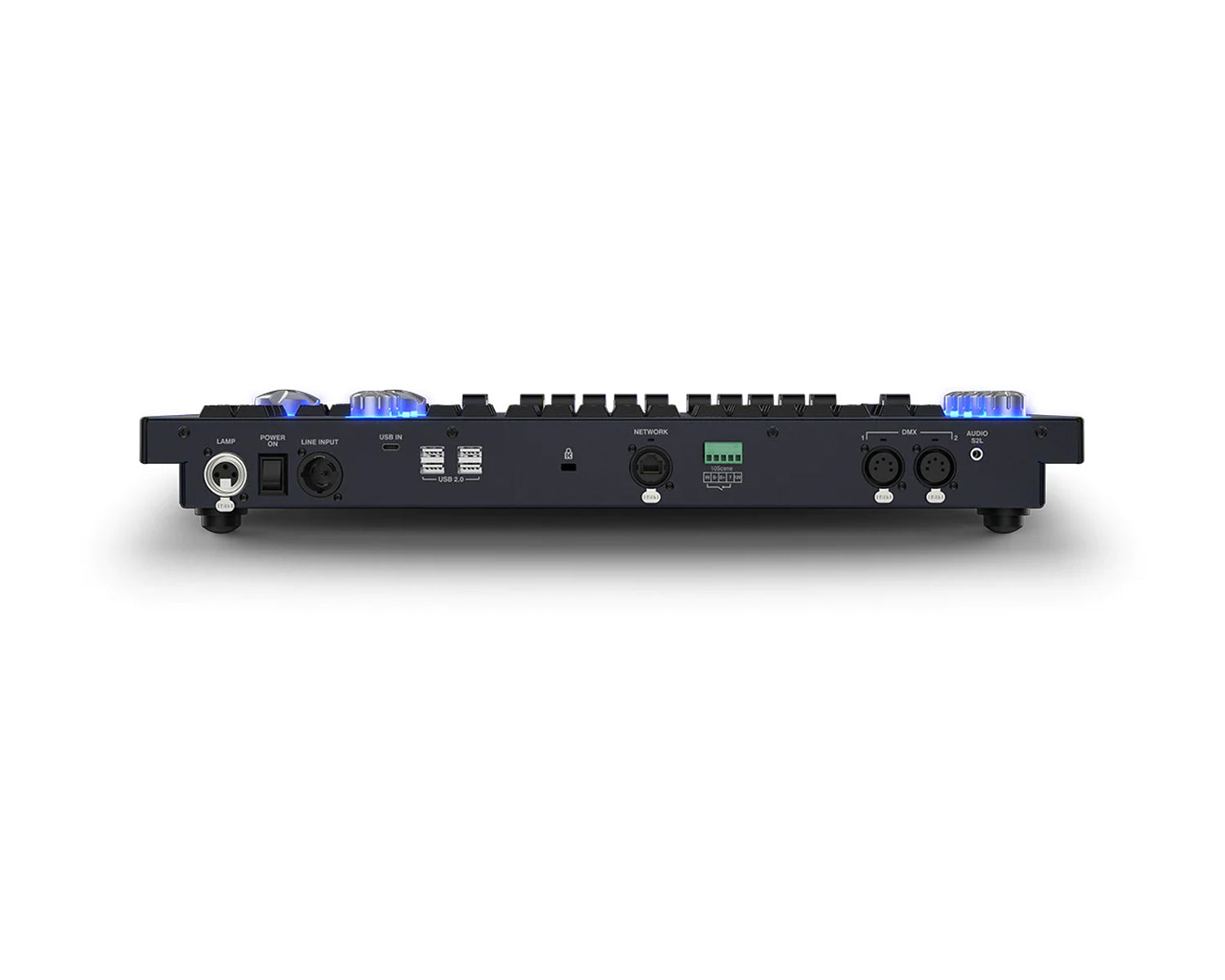

Hardware Specifications

• Direct DMX Outputs: 2
• Fader Playbacks: 10
• Attribute Encoders: 8
• USB Ports: 5 (4 USB-A output, 1 USB-C input)
• Network Ports: 1
• Audio Input: (1 channel, 7 band): Yes
• 10Scene Input: Yes
• Kensington Security Lock Fixing: Yes
• Working Light Port: Yes
• Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

Software Specifications

• Universes: 64
• Max Number of DMX Channels: 32768
• Max Number of Fixtures Supported: 32768
• Max Number of Cues: 5000
• Max Number of Cue Stacks: 2000
• Max Number of Groups: 5000
• Max Number of Palettes: 4096
• Number of Media Server Layers Supported: 50 (each different content)

Console Weights and Dimensions

• Width: 522mm
• Depth: 230mm
• Height: 65mm
• Height (top of encoders): 78mm
• Weight: 3.65kg

What's in the Box?

• MagicQ Compact Connect
• USB A-C Cable
• Dual Colour Desk lights
• Dust Cover
• Lightweight Durable Case
• Neutrik powerCON TRUE1 Power Cable
