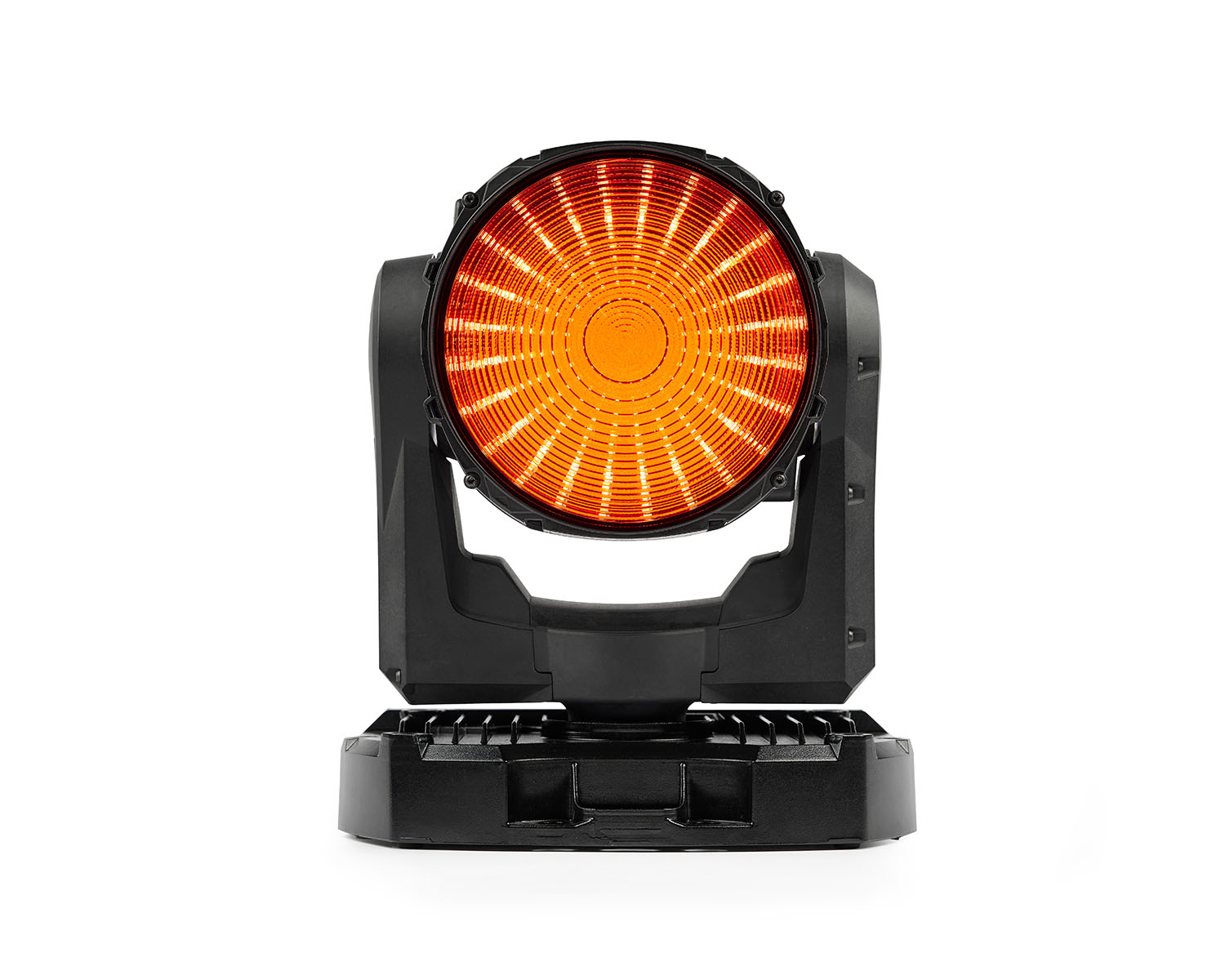

Setting a new standard for compact moving heads, MAC One is a revolutionary Beam, Wash and Eye-Candy fixture, featuring a captivating Fresnel lens that transforms any stage or event into an extraordinary visual spectacle. Compact, lightweight, and highly versatile, MAC One defines a new compact class of performance lighting.
MAC One excels in three powerful feature areas. First, its narrow, high-intensity beam packs the same punch as larger, heavier fixtures to enable robust and vibrant aerial effects. Next, its stunning Fresnel lens creates a soft wash with a 4 to 27-degree zoom range, delivering seamless transitions and engaging visual effects. Rounding out the robust feature-set is an innovative backlight system with 24 RGB effect LEDs within the lens to guarantee memorable and show-stopping visual experiences.
With an impressive output of 2,400 lm and a narrow beam intensity of 300,000 cd, MAC One performance is unparalleled in its category. Powered by a custom-developed 120 W RGBL (Red, Green, Blue, Lime) LED engine, it ensures higher light quality (CRI, TM-30, TLCI) than traditional RGBW fixtures, appealing to discerning lighting designers.
MAC One stands out against competing fixtures by delivering an innovative combination of features in an incredibly compact and low-weight form-factor. The fixture is easy to handle and manage, opening up a world of creative possibilities for lighting designers and users. More fixtures can be used in a show without compromising weight or space limitations, resulting in lower transport costs and a significant return on investment for rental companies.
For additional versatility, MAC One can also be used with the interlocking accessory system originally created for Martin’s VDO Atomic products. Martin fourbar and matrix accessories can also be used to further extend its design potential and ease large quantity deployment. MAC One can be driven with DMX, Art-Net, sACN, and Martin P3 control systems for seamless integration into any lighting setup.
Whether you are a lighting designer, rental company, or event organizer, MAC One is the answer for creating big looks with many fixtures, utilizing a compact fixture for tight spaces or enthralling the stage with captivating eye-candy effects. Transcend expectations, empower creative expression and revolutionize the stage with MAC One.
Product Features
Light Source
- Custom in-house developed 120 W RGBL (Red, Green, Blue, Lime) LED offering higher light quality (CRI, TM-30, TLCI) than RGBW
- Lumen Output: 2400 lm
- Intensity: 300,000 cd in narrow beam

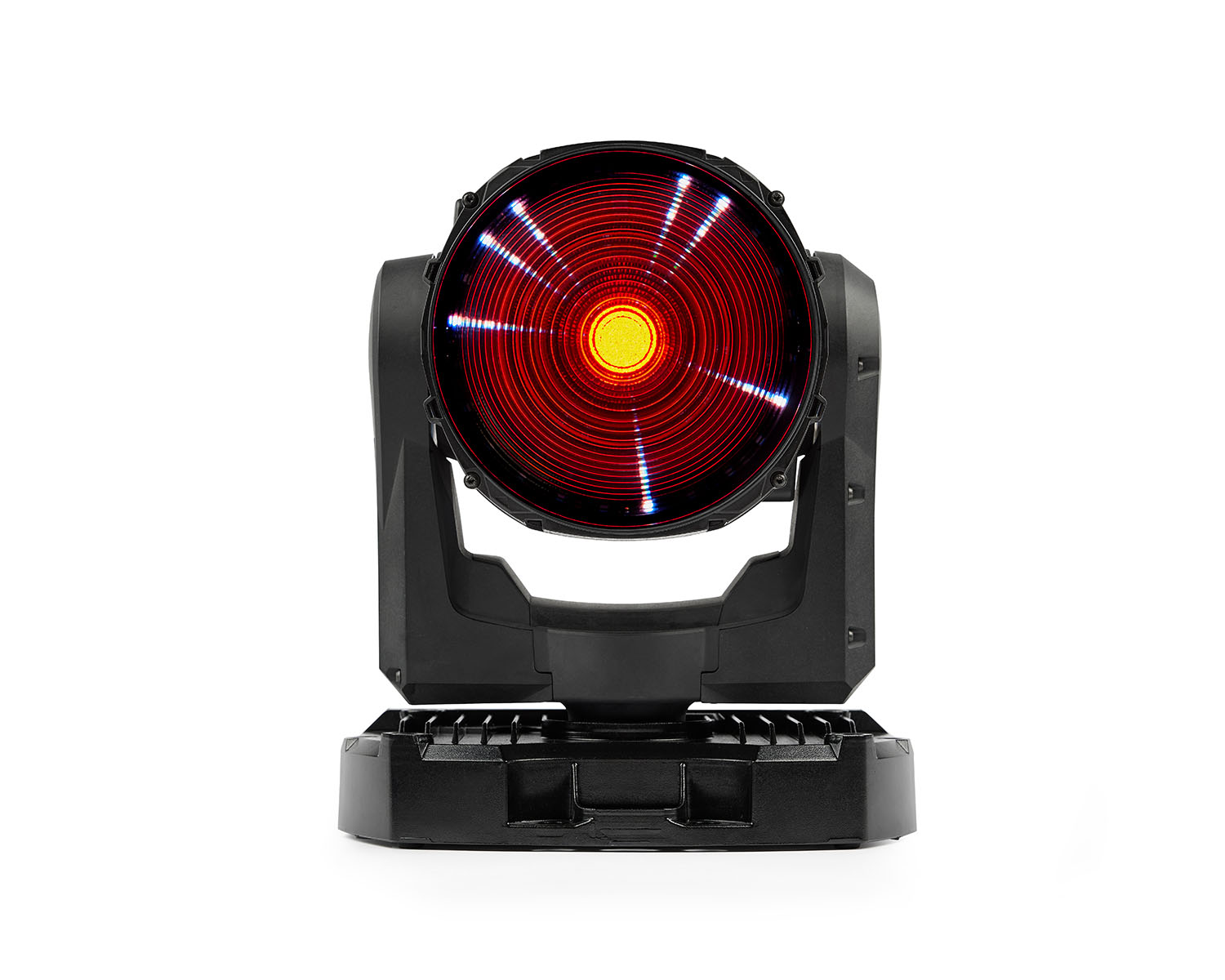

- Backlight Effect: 24 x 0.25 W RGB LED
- Fully calibrated using Martin Full Gamut Color Calibration
- Flicker-Free operation
- LED Driver frequency adjustable for demanding applications
Optics

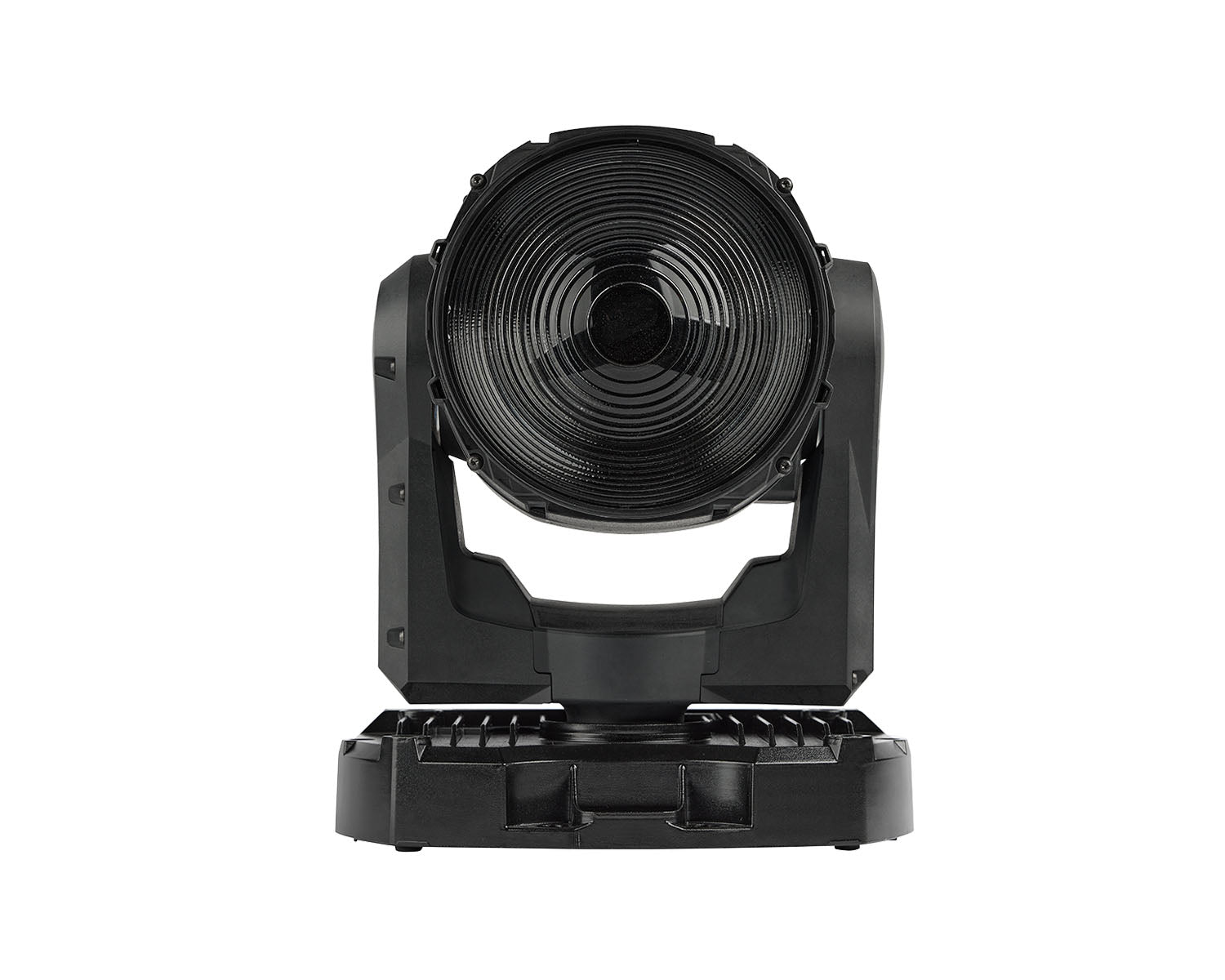

- 150 mm Fresnel lens
- 4 to 27 degrees zoom
- Defined narrow beam
- Soft edge wide wash
- Minimal stray light
- Minimal colour temperature shift from centre to edge

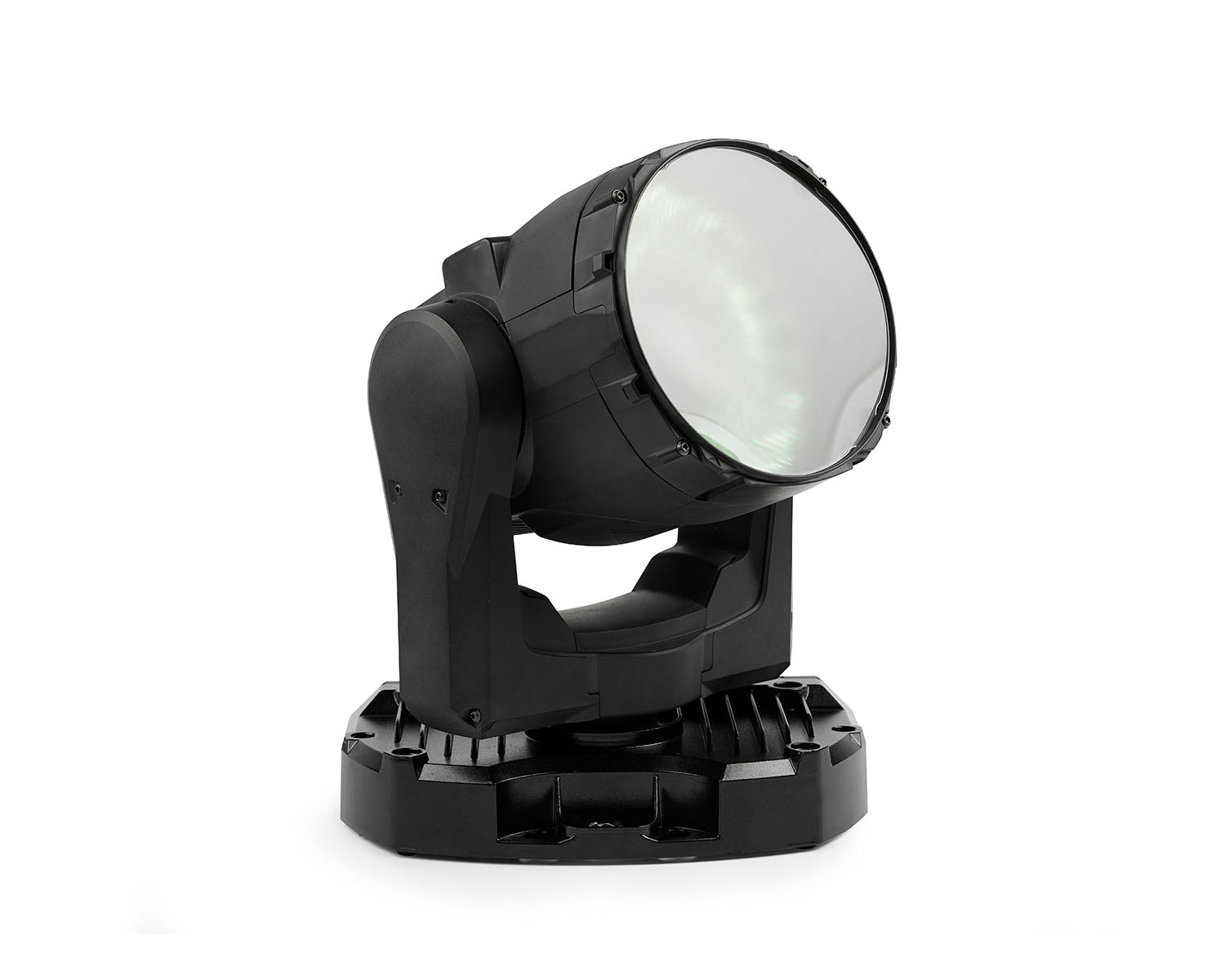

- SoftLens accessory included
Color Palette
- RGBL colour mixing with very bright and vibrant saturated colours, as well as soft pastels and white tones
- Calibrated and Extended Colour Modes
- Calibrated Color Temperature Control: 1,000 – 12,850 K
- Calibrated Green Magenta Shift (Tint) Control: Δuv -0.05 – +0.05
- Tungsten Emulation Option
- Virtual Colour Wheel
Dynamic Effects
- More than 200 built-in FX macros with control of foreground colour, background colour, speed and direction
- P3 video mapping of fixture Beam and/or Fresnel Backlight pixels
- P3 Mix allowing crossfade between video looks and DMX looks
- Extreme speed pan, tilt and zoom
Cooling and Noise
- Ultra-quiet cooling system (no fans in base, only fans in head)
- Theater / Broadcast mode at just 23.0 dB(A)
- Low noise pan, tilt and zoom mode
Construction
- Weight: 4.4 kg / 9.7 lbs.
- Dimensions: 254 x 336 x 220
Control
- DMX, Art-Net, sACN & Martin P3 control
- Fail-safe bypass on Ethernet ports
- Battery-powered display for setup and configuration
Installation
- Single omega bracket attachment
- M12 threaded holes for direct clamp attachment or attachment to four-bar accessory
- Optional four-bar accessory
- Optional grid mount ring accessory
Product Specifications
Dynamic Effects
- Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
- Beam Dimming options: Choice of four dimming curves
- Beam Colour Mixing: RGB, independently variable 0 - 100%
- Beam Colour Temperature Control: Variable 1,000 – 12,850 K
- Beam Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
- Beam Virtual Colour wheel: 48 colour presets, continuous rotation & random colour
- Zoom: Motorised with 1:5 zoom ratio, including zoom pulse effect
- Pan: Motorised 540°
- Tilt: Motorised 240°
- Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
- Backlight Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
- Backlight Dimming options: Choice of four dimming curves
- Backlight Colour Mixing: RGB, independently variable 0 - 100%
- Backlight Colour Temperature Control: Variable 1,000 – 12,850 K
- Backlight Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
- Backlight Virtual Colour wheel: 48 colour presets, continuous rotation & random colour
- Backlight PixelMapping: Individual RGB control of each of the 24 Backlight pixels
- Backlight P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
- Pre-programmed effects: Two ranges of FX on Beam, Backlight or Combination; independent or synchronised/combined
- LED Frequency control: Variable LED PWM control
Control And Programming
- Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
- Protocol Detection: Automatic
- DMX Modes: Compact, Basic, Ludicrous & Compact Direct
- DMX Channels: 20, 36, 108 & 20
- 16-bit Controllable Parameters: Beam & Backlight Dimming, Beam Colour Mixing, Zoom, Pan and Tilt
- Setting and Addressing: Display Menu, RDM, RDM over Art-Net or P3
- Local User Interface: Backlit LCD Display with battery-powered operation
- Fixture identification: User-settable ID number
- DMX Compliance: USITT DMX512-A
- RDM Compliance: ANSI/ESTA E1.20
- Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
- sACN Compliance: ANSI E1.31 - 2016
- Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
- DMX/RDM Transceiver: Galvanic-isolated RS-485
- Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
- Firmware Update: via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller
Optics
- Front Lens Diameter: 150 mm (5.91 in.)
- Zoom Range: 1:5
- Full Zoom Range at Half Peak (Beam Angle): 4.0° - 21.0°
- Full Zoom Range at Tenth Peak (Field Angle): 6.0° - 27.0°
- Beam Light Source: 1 x 120 W RGBL LED
- Backlight Light Source: 24 x 0.25 W RGB LED
- Max. Total Beam LED Engine Power: 120 W
- Max. Total Backlight LED Engine Power: 6 W
- Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*
- *Figure obtained under manufacturer test conditions
Photometric Data
- Light Engine Luminous Output: 5,680 lumens
- Fixture Luminous Output Wide: 2,400 lumens
- Fixture Luminous Output Narrow: 1,800 lumens
- Peak Luminous Intensity Narrow: 300,000 cd
- CCT: Variable 1,000 K – 12,850 K (+/- 200 K)
- CRI (Colour Rendering Index) high output mode: ≥ 77
- CRI (Colour Rendering Index) high quality mode: ≥ 83
- CQS (Colour Quality Scale) high output mode: ≥ 87
- CQS (Colour Quality Scale) high quality mode: ≥ 90
- TM-30 Rf (IES TM-30-15 Fidelity Index) high output mode: ≥ 81
- TM-30 Rf (IES TM-30-15 Fidelity Index) high quality mode: ≥ 84
- TM-30 Rg (IES TM-30-15 Gamut Index) high output mode: ≥ 114
- TM-30 Rg (IES TM-30-15 Gamut Index) high quality mode: ≥ 110
- TLCI (Television Lighting Consistency Index) high output mode: ≥ 70
- TLCI (Television Lighting Consistency Index) high quality mode: ≥ 84
- Beam LED Refresh Rate: 2,400 Hz with adjustment (+/- 2%) via DMX
- Backlight LED Refresh Rate: 1,200 Hz
- Binning: Tight colour and flux binning
- Calibration: Full Gamut Colour Calibration of Beam and Backlight
- Color Modes: Extended Color Mode and Calibrated Color Mode
- * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
Construction
- Housing: High-impact flame-retardant thermoplastic
- Colour: Black
- Protection rating: IP20
Installation
- Mounting options: clamps on fixture, omega on fixture, fourbar or grid mount ring
- Mounting points on Fixture: 1 pair of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega bracket and two M12 threaded holes
- Mounting points on Fourbar: 1 fixed and 2 repositionable M12 threaded holes
- Mounting points on Grid Mount Ring: 6 receivers for VDO Couplers (compatible with VDO Atomic Bold/Dot)
- Mounting points on VDO Coupler Header: 2 repositionable M12 threaded holes and 4 receivers for VDO Couplers (compatible with Grid Mount Ring and VDO Atomic Bold/Dot)
- Maximum vertical column height in Grid Mount Rings: 6 fixtures
- Location: Indoor or outdoor protected from elements
- Orientation: Any
- Minimum distance to combustible materials: 0.20 m (7.87 in.)
- Minimum distance to illuminated surfaces: 1.75 m (68.90 in.)

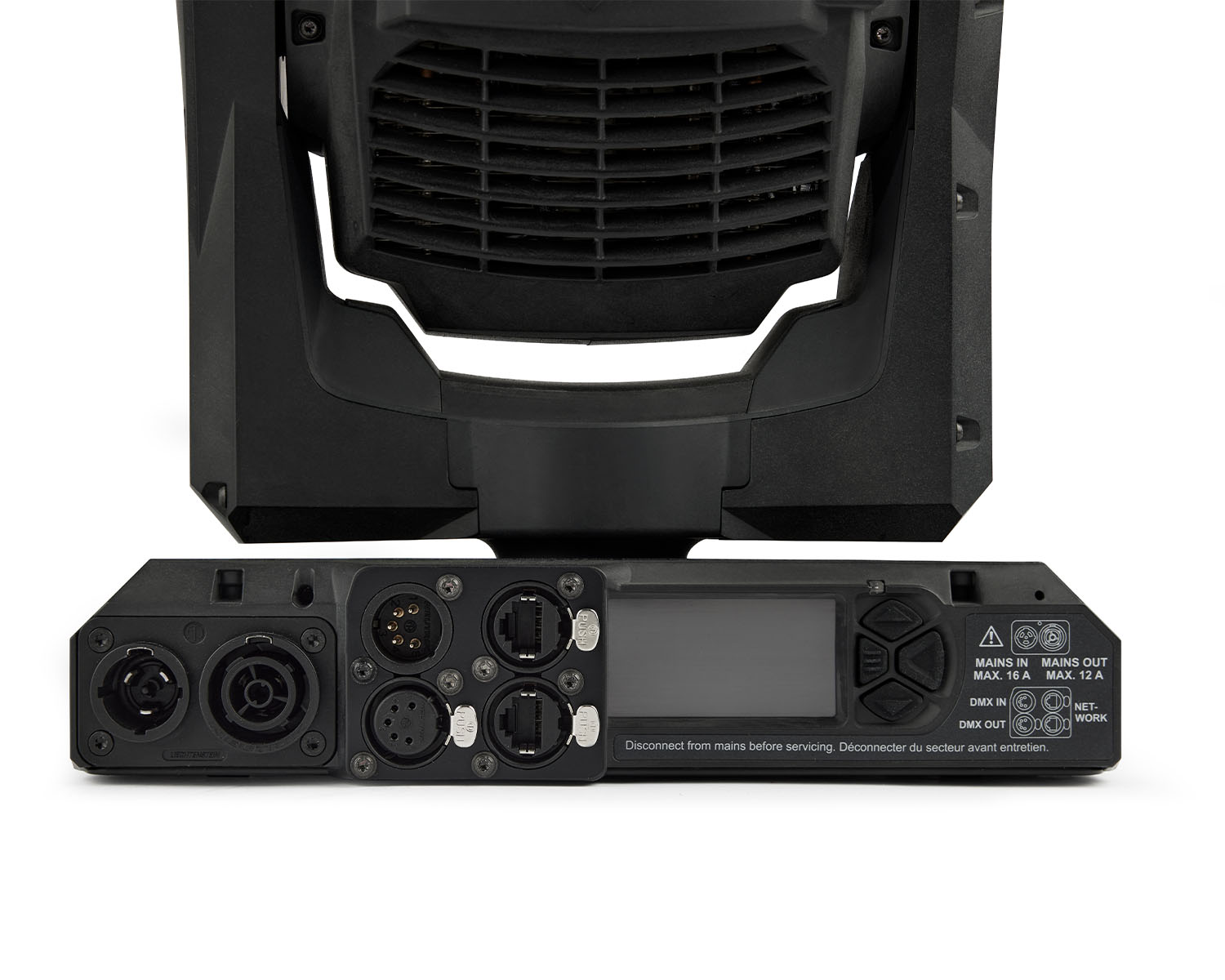

Connections
- AC mains power in/thru: Neutrik powerCON TRUE1 TOP
- DMX and RDM data in/thru: Neutrik 5-pin locking XLR
- Ethernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass: Neutrik etherCON
Electrical
- AC power: 100-240 V AC nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Typical half-cycle RMS inrush current at 230 V, 50 Hz: 3.5 A
- Typical earth-leakage current: 0.05 mA
- Power Factor: 0.99 @ 100V , 0.98 @ 120V , 0.94 @ 208V , 0.92 @ 230V , 0.88 @ 240V
- Max current draw: 2.0 A @ 100V / 120V, 0.9 A @ 208V / 230V / 240V
- Typical current draw: 1.6 A @ 100 V , 1.4 A @ 120 V , 0.9 A @ 208 V , 0.8 A @ 230 V , 0.8 A @ 240 V *
- Power Consumption\n
- Maximum: 180 W
- Typical: 160 W *
- Idle: 24 W *
- Hibernation: 9 W *
- * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Thermal
- Cooling: Forced air (temperature regulated, low noise, user-definable levels)
- Total heat dissipation (calculated, +/- 10%): 546 BTU/hr.
- Maximum surface temperature, steady state, at 40° C ambient: 55° C (131° F)
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Minimum ambient temperature (Ta min.): 5° C (41° F)
Acoustic Data
- Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 26.3 dB(A)
- Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 23.0 dB(A)
Environmental
- RoHS: Compliant
- REACH: Compliant
- WEEE: Compliant
- Proposition 65: Compliant
- FSC: Certified cardboard inner and outer packaging
- Efficacy (max output): 15 lm/W
- LWR*: 545 lm/kg (247 lm/lbs.)
- LWR = Lumen-to-Weight Ratio
What's in the Box?

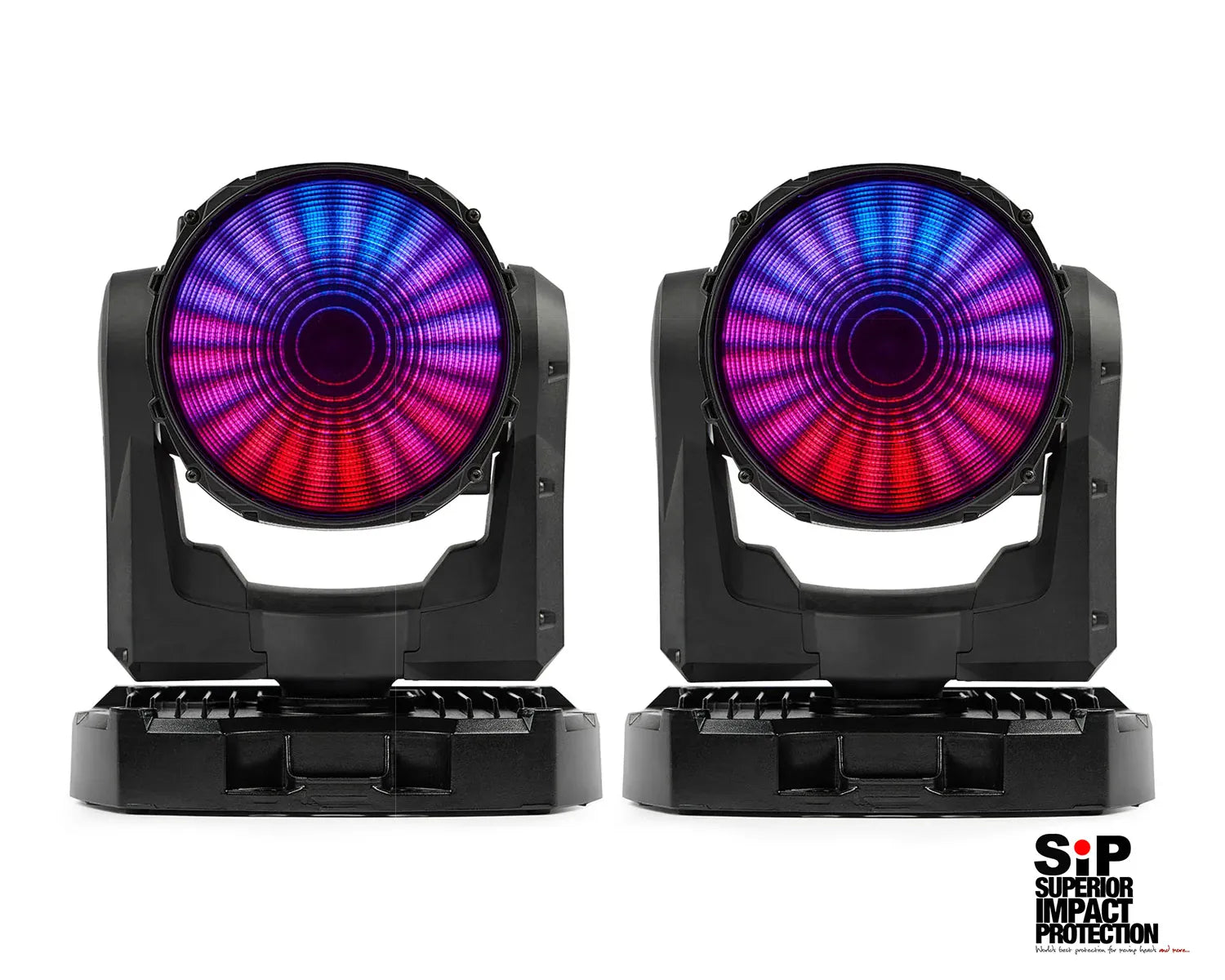

- 2 x MAC One Moving Heads
- Dual SiP foam flight case insert
- Omega brackets
- SoftLens
- Multi-Language Safety and Installation Manual
