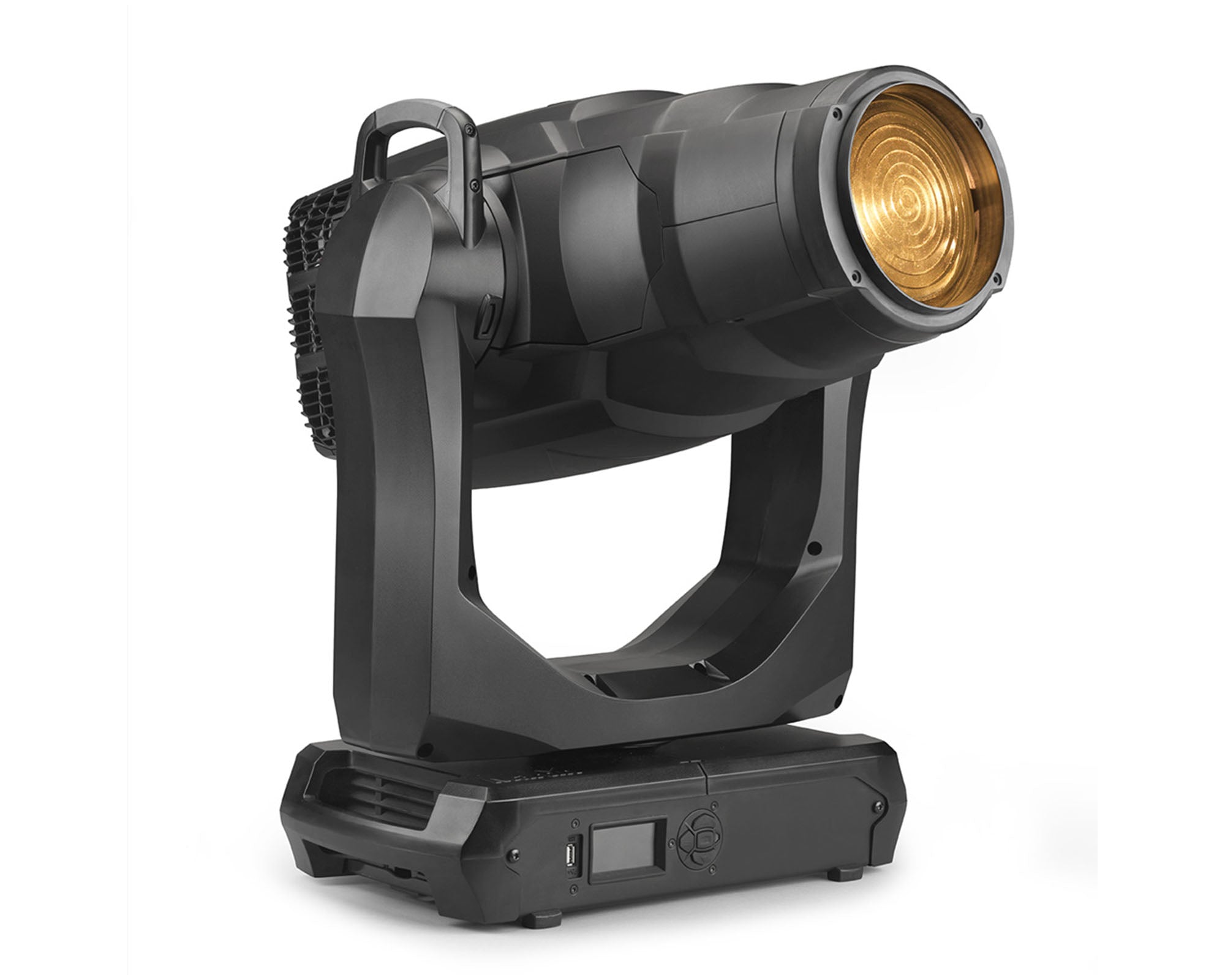

MAR1639 - Martin Professional MAC Encore Wash WRM Warm White LED 3000K EPS Image 1

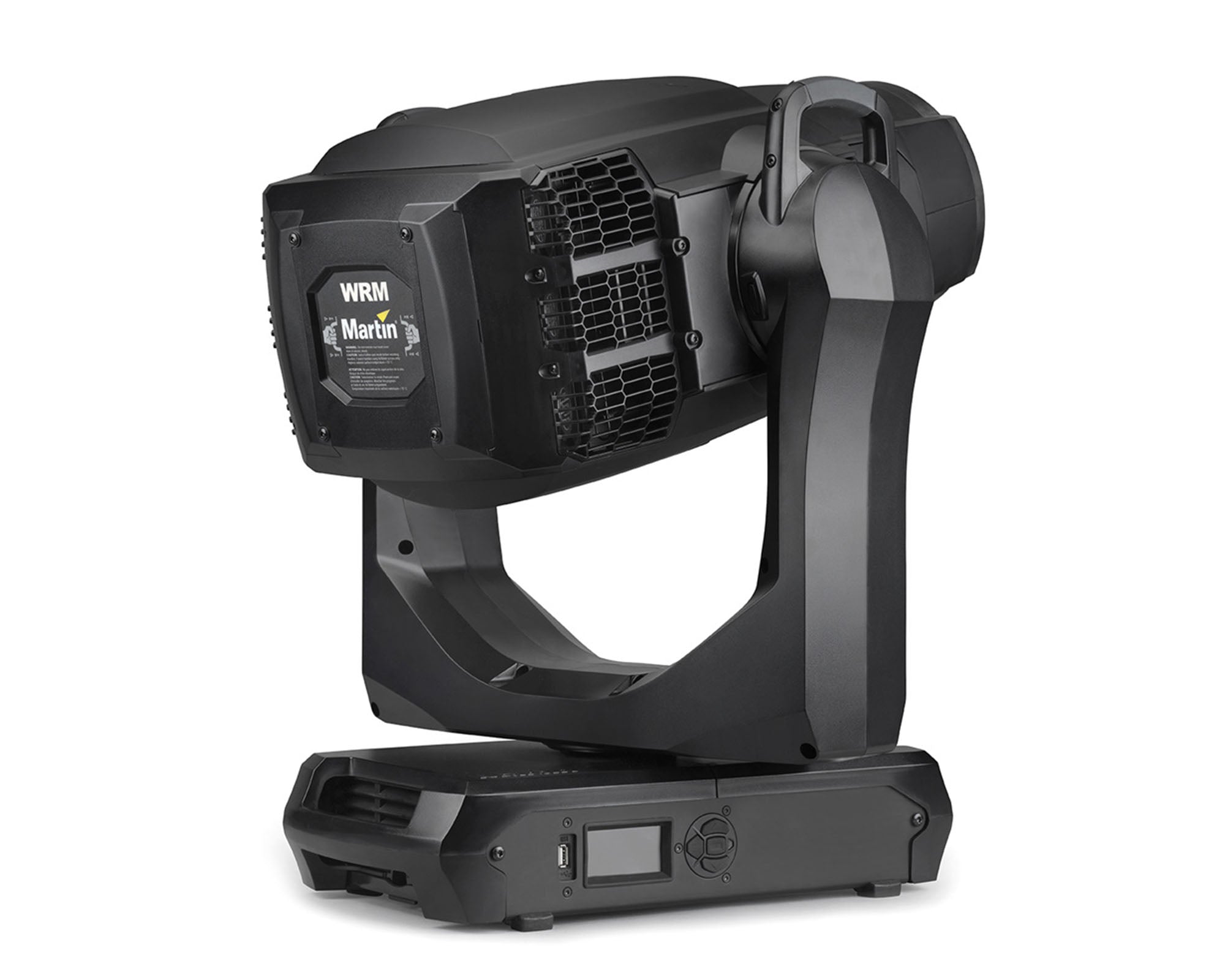

MAR1639 - Martin Professional MAC Encore Wash WRM Warm White LED 3000K EPS Image 2

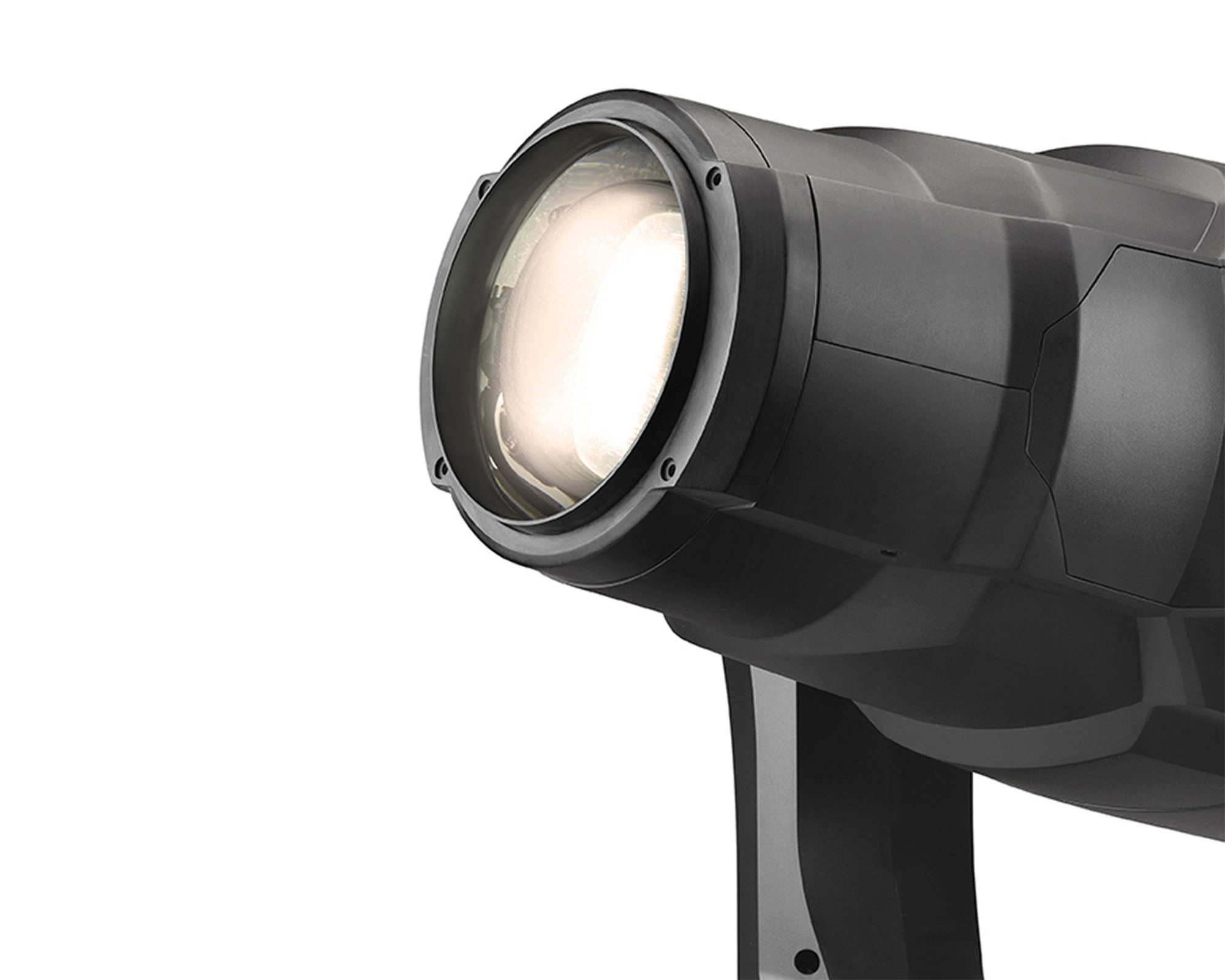

MAR1639 - Martin Professional MAC Encore Wash WRM Warm White LED 3000K EPS Image 3

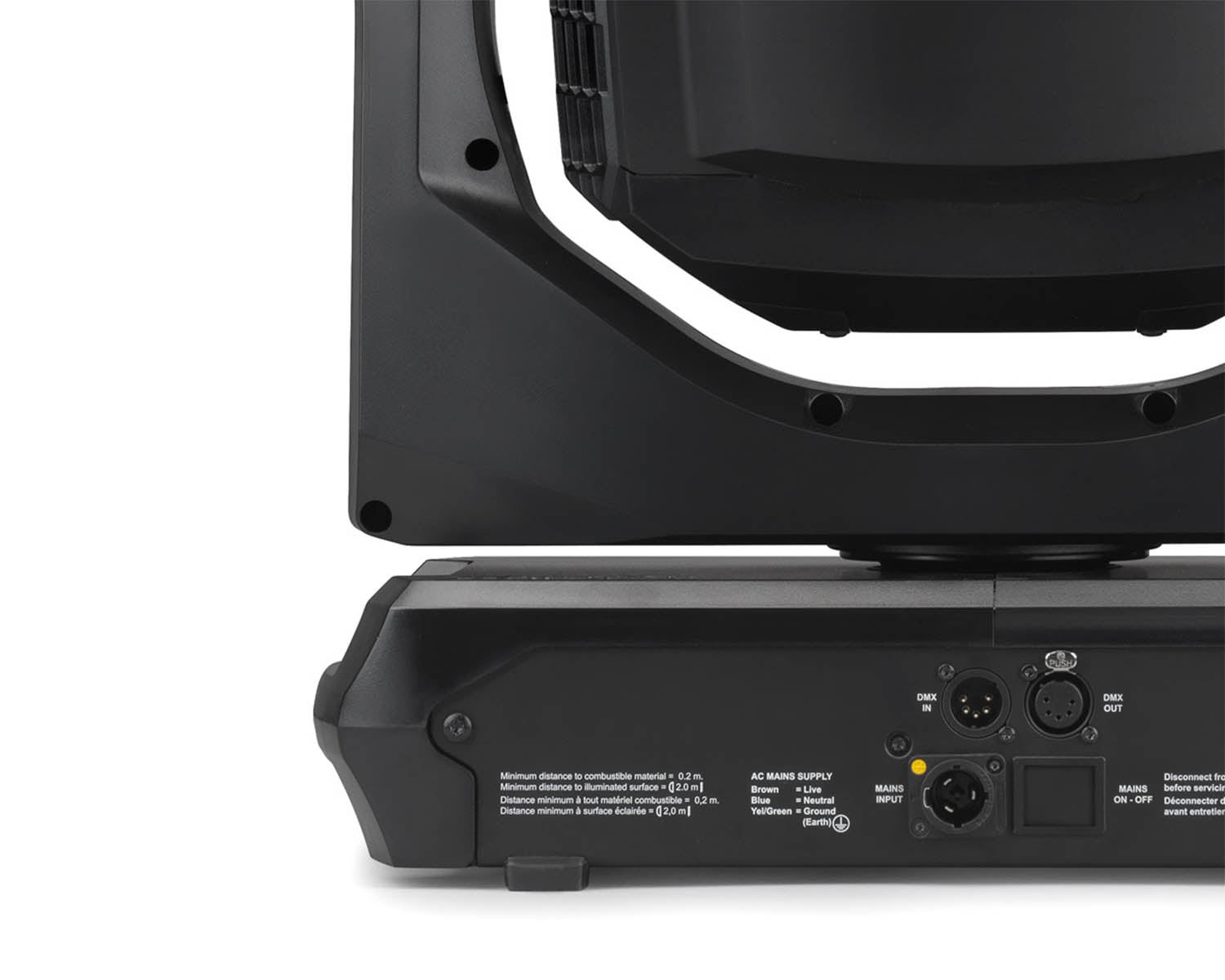

MAR1639 - Martin Professional MAC Encore Wash WRM Warm White LED 3000K EPS Image 4

Designed to produce rich colour and premium white light in a wide variety of applications where light quality is critical, the MAC Encore™ Wash WRM is a perfect, LED-based, replacement for the much-loved, discontinued MAC TW1. The feature-packed soft edge moving head offers unparalleled 3000 K warm tungsten emulation that truly challenges the output quality of a real incandescent light source, and doubles as a modern replacement for generic fixtures like tungsten based Fresnel fixtures, with the additional benefit of colour mixing and movement.

Product Features

Pure white LED engine with 3000 K CCT.
No colour temperature variation during zoom and dimming.
Flicker-free operation—LED driver frequency suitable for all camera applications.
Whisper-silent—Combines convection and forced air cooling with user-selectable output vs. sound level control.
Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
Vibrant CMY colour mixing with a superior palette of colours ranging from rich, saturated primary colours to light and smooth pastel shades.
Variable CTB—tungsten to daylight CCT control and expansion of the CMY palette that stays true to the black body curve.
Colour wheel—6 interchangeable dichroic filters + open.
Fresnel lens: 1:4 zoom—precise, silent and fast zoom.
PC lens (optional): 1:5 zoom—precise, silent and fast zoom.
Internal barndoor system with two shutter blades and iris. Shutter blades can overlap for full blackout and the entire system rotates +/- 100°. Repeats cues with great precision.
Precise and tight iris with adjustable dynamic effects.
Animotion™ FX System—Internal dimming effect macros for stunning 3D mid-air and projection effects.
Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring.

Product Specifications

Dynamic Effects

Colour mixing: CMY, independently variable 0 - 100%
Colour temperature control: Variable 3000 - 7000 K
Colour wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random colour
Barn doors: Internal, two blades with individually controllable insertion, +/- 100° module rotation
Iris: Variable 0 - 100%
Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
Dimming options: Choice of four dimming curves
Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
Zoom: Motorized
Pan: 540°
Tilt: 268°
Position correction system: Absolute position monitoring

Control and Programming

DMX channels: 24
Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
16-bit control: Dimming, pan and tilt
Movement control options: Tracking and vector
Fixture identification: User-settable ID number
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
Fixture software update: USB memory device or over DMX link

Optics

Light source: 3000 K white LEDs
Total LED engine power: 468 W
Minimum LED lifetime: 50 000 hours (to >80% luminous output)*
Zoom range with Fresnel lens (standard): 14° - 60° one-tenth peak (1:4)
Zoom range with PC lens (optional): 11° - 58° one-tenth peak (1:5)
*Figure obtained under manufacturer test conditions

Photometric Data

Light engine luminous output: ≥ 31 500 lumens
Fixture luminous output with Fresnel lens (standard):8500 lumens
Fixture luminous output with PC lens (optional): 9500 lumens
CRI (Color Rendering Index): >90
CQS (Color Quality Scale): >90
TM-30 Rf (IES TM-30-15 Fidelity Index): >90
TM-30 Rg (IES TM-30-15 Gamut Index): >98
TLCI (Television Lighting Consistency Index): >90

Construction

Colour: Black
Housing: High-impact flame-retardant thermoplastic
Protection rating: IP20

Installation

Mounting points: 4 pairs of 1/4-turn locks
Location: Dry location only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m (8 in.)
Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)

Connections

AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)
DMX and RDM data in/out: 5-pin locking XLR

Electrical

AC power: 120-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Power consumption, all effects static, zero light output:64 W
Half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A

Typical Power and Current

120 V, 60 Hz: 5.0 A, 596 W, PF 0.998
208 V, 60 Hz: 2.9 A, 581 W, PF 0.988
230 V, 50 Hz: 2.6 A, 580 W, PF 0.981
240 V, 50 Hz: 2.2 A, 585 W, PF 0.979

Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor

Thermal

Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels)
Maximum surface temperature, steady state, Ta=40° C:75° C (167° F)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.

Physical & Dimensions

Length: 452 mm (17.8 in.)
Width (across yoke): 480 mm (18.9 in.)
Height (maximum): 755 mm (29.8 in.)
Height (head straight up): 745 mm (29.4 in.)
Weight: 28.5 kg (62.9 lb.)
Minimum centre-to-centre distance in side-by-side installation: 730 mm (28.8 in.)
