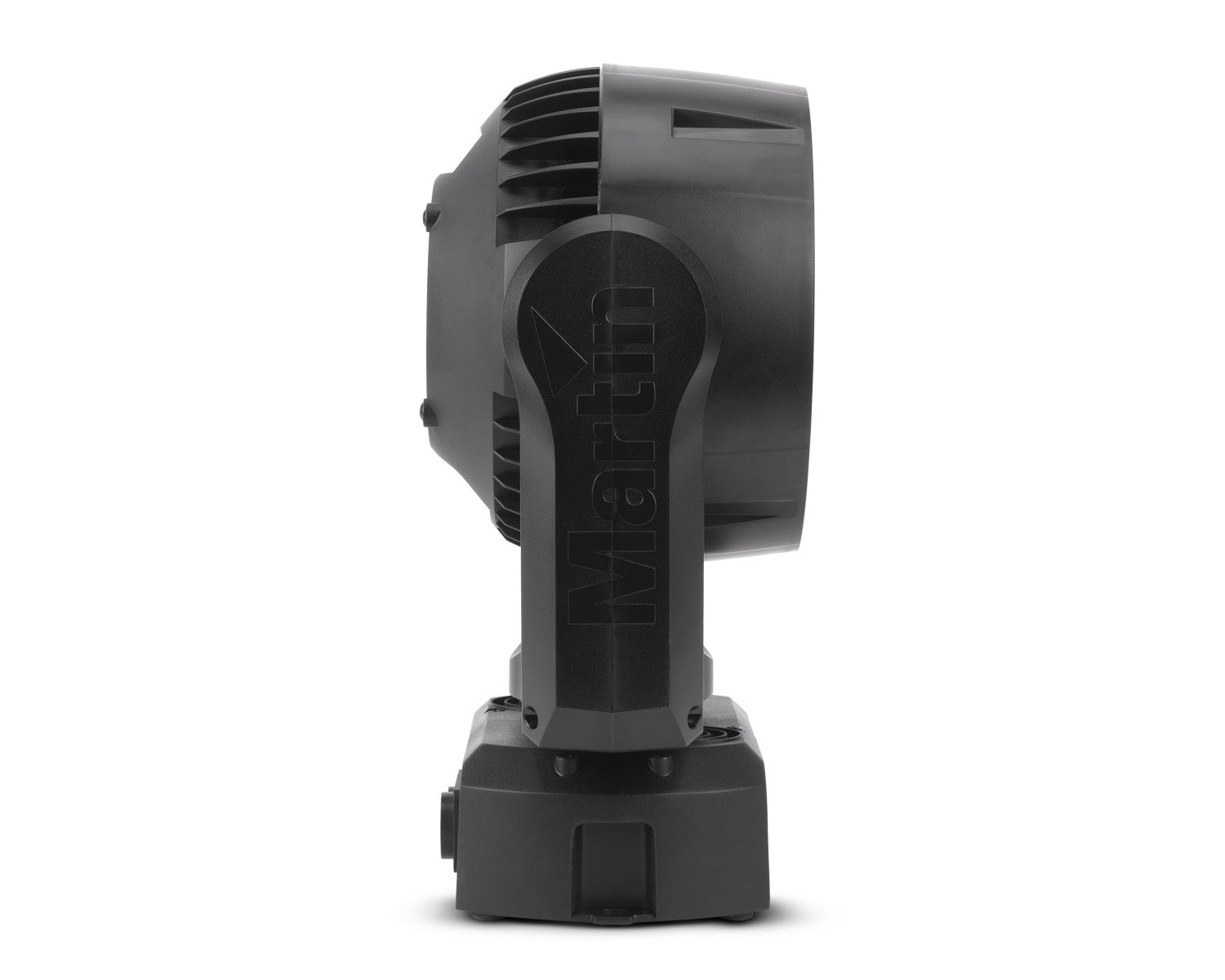

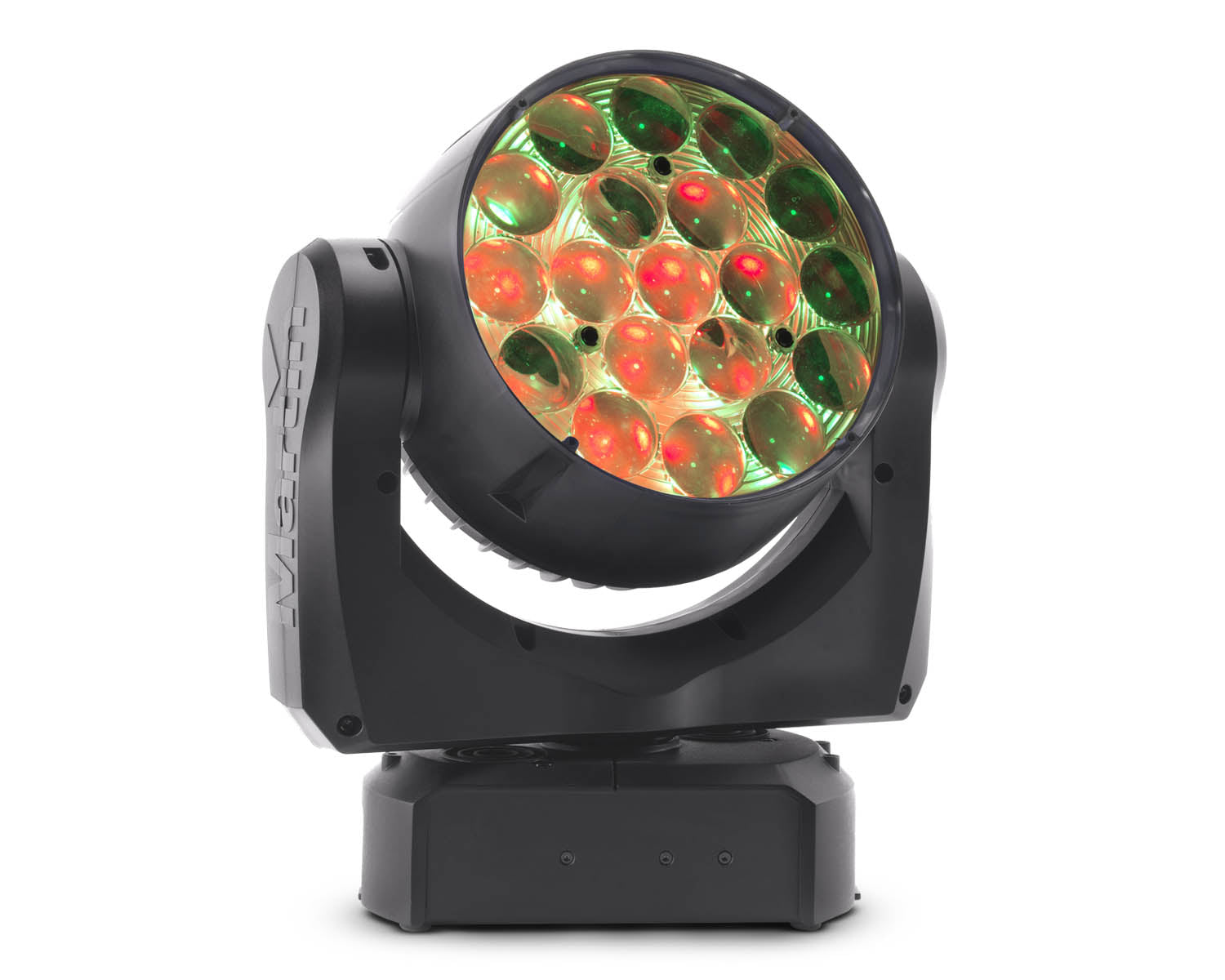

The MAC Aura XB takes an award-winning, innovative, compact LED wash light to the next level, incorporating many new features first introduced with the MAC Quantum Wash™. Not only does the MAC Aura XB offer additional brightness, it also features a new superior colour mixing system and an optimized lens design for tighter beams and more even washes. Martin unique and patented Eye-candy Aura Effect™ is also part of the package.

Product Features

• Super-bright single-lens wash with fully premixed colour
• Broad colour palette, RGBW colour mixing
• Eye-candy Aura Effect™Uniform shades
• Built-in FX engine
• 10 to 60° uniform zoom
• 6000 Lumens output
• Rapid movement
• Compact, low weight design (6.5 kg)High efficiency, low power consumption, long lifetime

Product Specifications

Physical

• Length (across yoke): 302 mm (11.9 in.)
• Width (across yoke): 302 mm (11.9 in.)
• Height (head straight up): 360 mm (14.2 in.)
• Weight (without accessories): 6.5 kg (14.4 lbs.)

Dynamic Effects

• Beam colour mixing: RGBW
• Aura (secondary lens array illumination) colour mixing: RGB
• Beam colour temperature control: CTO, variable 10 000 - 2500K
• Beam and aura electronic \'colour wheel\' effect: 33 LEE-referenced colours plus white, variable-speed colour-wheel rotation effect and random colour
• Beam and aura independent shutter effects: Electronic, with regular and random pulse, burst and strobe effects
• Pre-programmed effects: Range of independent and synchronized
• Beam and Aura FX, two combinable
• Electronic dimming: Independent beam and aura, four dimming curve options
• Zoom: 10° - 60° (one-tenth peak angle)
• Pan: 540°
• Tilt: 232°
• Pan and tilt speed: Adjustable via onboard control panel and DMX

Control and Programming

• Control options: Independent or synchronized Beam and Aura control
• Control system: DMX, RDM
• Control resolution: 8-bit, with 16-bit control of pan & tilt
• DMX channels: 14/25
• Setting and addressing: Control panel with backlit graphic display
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20
• Transceiver: RS-485
• Firmware update: Via DMX with Martin™ USB Duo DMX Interface Box

Optics and Photometric Data

• Light source: 19x 15W RGBW LED Array System
• LED refresh rate: Beam 1200 Hz, Aura 4395 Hz
• Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
• Total luminous output (wide, one-tenth peak): 6000 lumens
• Total luminous output (narrow, one-tenth peak): 4300 lumens
• Video compatibility: Designed for use with HD/high-speed video cameras *Figure obtained under manufacturer´s test conditions

Construction

• Colour: Black
• Housing: High-impact thermoplastic, flame-retardant to UL 94 5VA
• Protection rating: IP20

Installation

• Mounting points: M12 hole for rigging clamp, attachment points for surface-mounting bracket
• Orientation: Any
• Minimum distance to combustible materials: 200 mm (8 in.) from fixture
• Minimum distance to illuminated surfaces: 1 m (3 ft. 4 in.) from fixture
• Location: Indoor use only, must be fastened to surface or structure

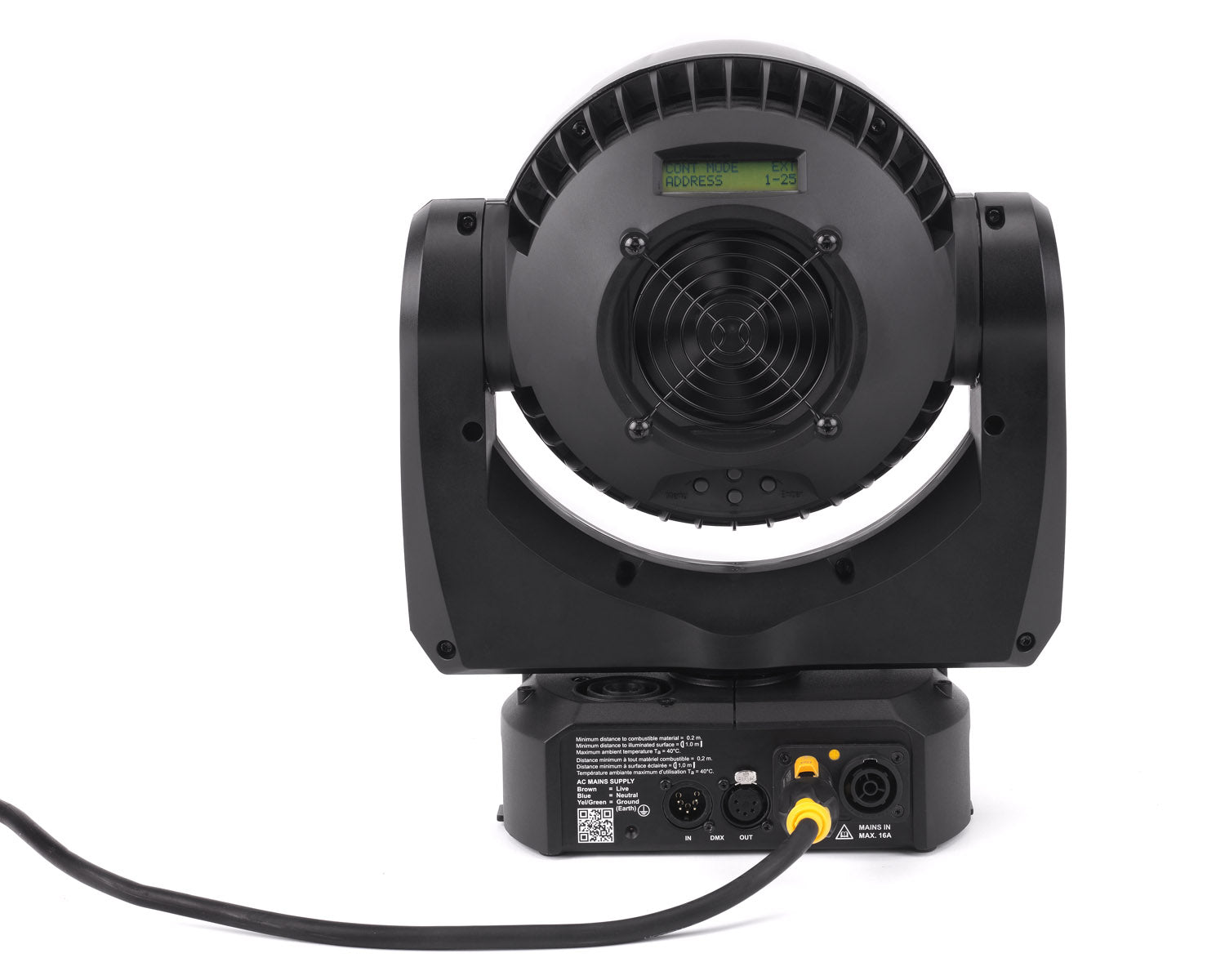

Connections

• AC power: Neutrik PowerCON TRUE1 NAC3PX dual socket
• AC power input socket: Accepts Neutrik PowerCON TRUE1 NAC3FX-W cable connector
• AC power thru socket: Accepts Neutrik PowerCON TRUE1 NAC3MX-W cable connector
• DMX data in/out: 5-pin locking XLR

Electrical

• Maximum power consumption: 400 W
• Power supply unit: Auto-ranging electronic switch mode
• AC power: 100-240 V nominal, 50/60 Hz
• Typical half-cycle RMS inrush current: 10.7 A
• Power consumption, all effects static, zero light output: <25 W

Typical Power and Current

• 100 V, 60 Hz: 359 W, 3.8 A, PF 0.99
• 120 V, 60 Hz: 355 W, 3.2 A, PF 0.99
• 208 V, 60 Hz: 350 W, 1.8 A, PF 0.97
• 230 V, 50 Hz: 349 W, 1.7 A, PF 0.95
• 240 V, 50 Hz: 349 W, 1.6 A, PF 0.95
• Measurements made at nominal voltage with all LEDs at full intensity.
• Allow for a deviation of +/- 10%.

Thermal

• Cooling: Forced air (temperature-regulated, low noise, user-definable levels)
• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Minimum ambient temperature (Ta min.): 5° C (41° F)
• Total heat dissipation (calculated, +/- 10%): 1230 BTU/hr.

Approvals

• EU safety: EN 60598-2-17 (EN 60598-1), EN 62471
• EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547
• US safety: UL 1573
• US EMC: FCC Part 15 Class A
• Canadian safety: CSA E598-2-17 (CSA E60598-1)
• Canadian EMC: ICES-003 Class A
• Australia/NZ: C-TICK N4241

Related Items

• Martin USB Duo™ DMX Interface Box: P/N 90703010
• Martin DMX 5.3 Splitter™: P/N 90758140
• Martin RDM 5.5 Splitter™: P/N 90758150
• Power Input Cable, 16 A, 14 AWG, SJT, 1.5 mm2, H05VV-F with, PowerCON TRUE1 NAC3FX-W, 1.5 m (4.9 ft.): P/N 11541513
• Power Relay Cable, 16 A, 14 AWG, SJT, 1.5 mm2, H05VV-F, PowerCON TRUE1 in/out connectors, 0.7 m (2.3 ft.): P/N 11541514
• Power Relay Cable, 16 A, 14 AWG, SJT, 1.5 mm2, H05VV-F, PowerCON TRUE1 in/out connectors, 1.5 m (4.9 ft.): P/N 11541512
• Power Relay Cable, 16 A, 14 AWG, SJT, 1.5 mm2, H05VV-F, PowerCON TRUE1 in/out connectors, 3.25 m (10.7 ft.): P/N 11541511
• Cable connector, PowerCON TRUE1 NAC3FX-W, female: P/N 05323416
• Cable connector, PowerCON TRUE1 NAC3MX-W, male: P/N 05343418

What's in the Box?

• M12 bolt suitable for use with Martin rigging clamps
• Note that power cables and connectors are not included and must be ordered separately
