The M-8080D 8x8 Digital Matrix Mixer is dedicated music, paging, discussion and zone management solutions for Commercial Audio applications.

With DSP functions: EQ, Compressor, Ducker, Priority Setting, etc. M-8080D Line-up includes remote control panels, remote input, and output panel, paging microphone. Easy to use and implement.

It can be mounted in an EIA Standard equipment rack (1 unit size)

Product Features

• 8 analogue IN and 8 analogue OUT
• 4 digital IN and 4 digital OUT
• DSP functionalities EQ, Compressor, Delay and more
• Easy and quick operation
• Intuitive GUI via PC
• Extended remote controller options

Product Specifications

• Power source: 220 - 240 V AC, 50 / 60 Hz
• Frequency response: 20 Hz - 20 kHz (±3 dB)
• Power consumption: 40W
• S/N ratio: 105 dB ( (A weighted)

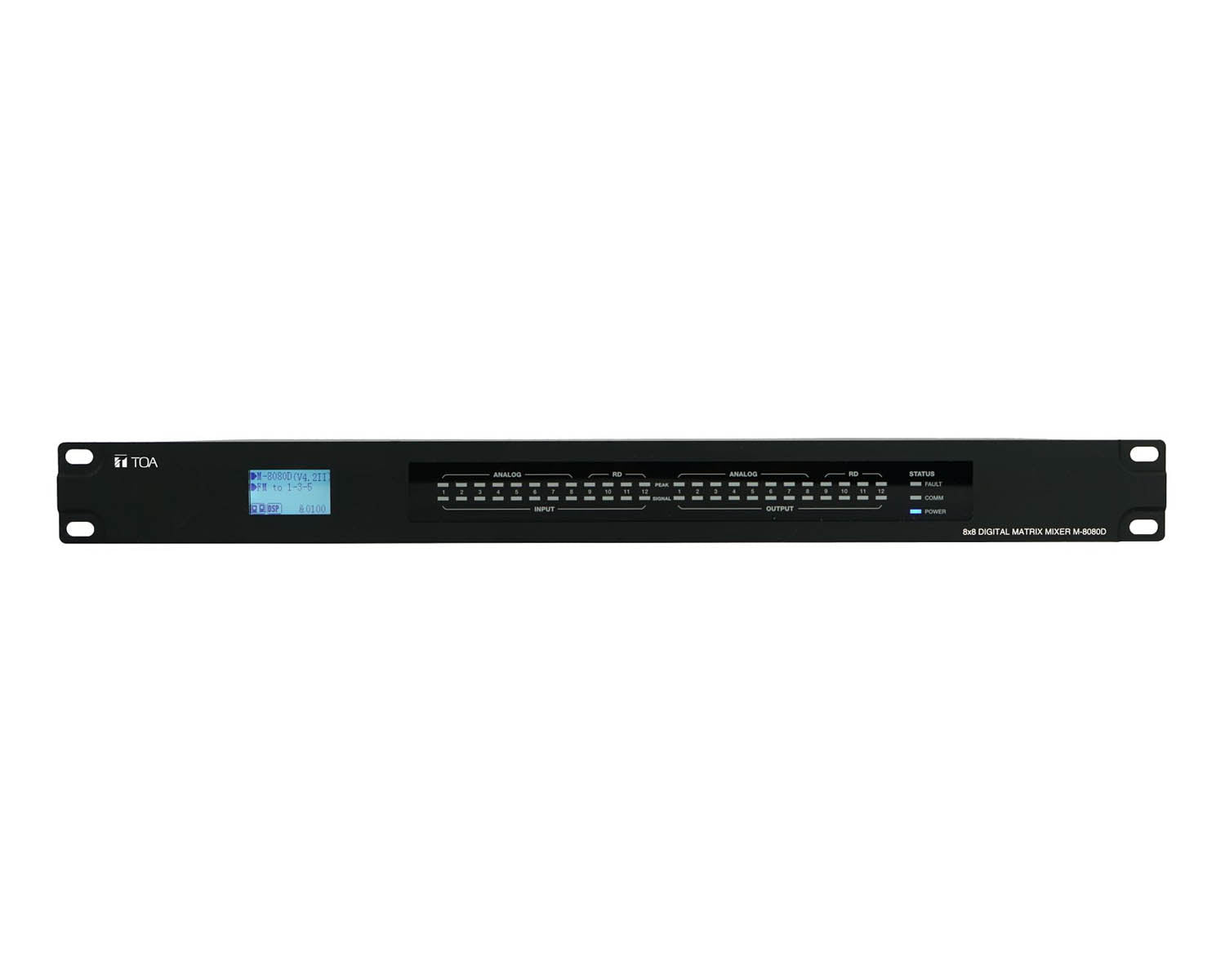

• Indicator
  • LC-Display: Displays device information: name, fimrware version, ID, communication status
  • LEDs:
    • Input: Analog Signal (Green)x8, Analog Peak(Red)x8, RD signal(Green)x4, RD Peak(Red)x4
    • Output: Analog Signal (Green)x8, Analog Peak(Red)x8, RD signal(Green)x4, RD Peak(Red)x4
    • Status: Fault(Red)x1, Comm(Green)x1, Power(Blue)x1
• Crosstalk: 79 dB

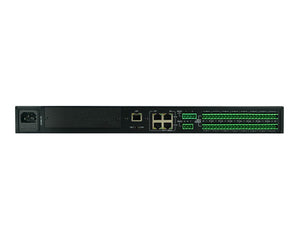

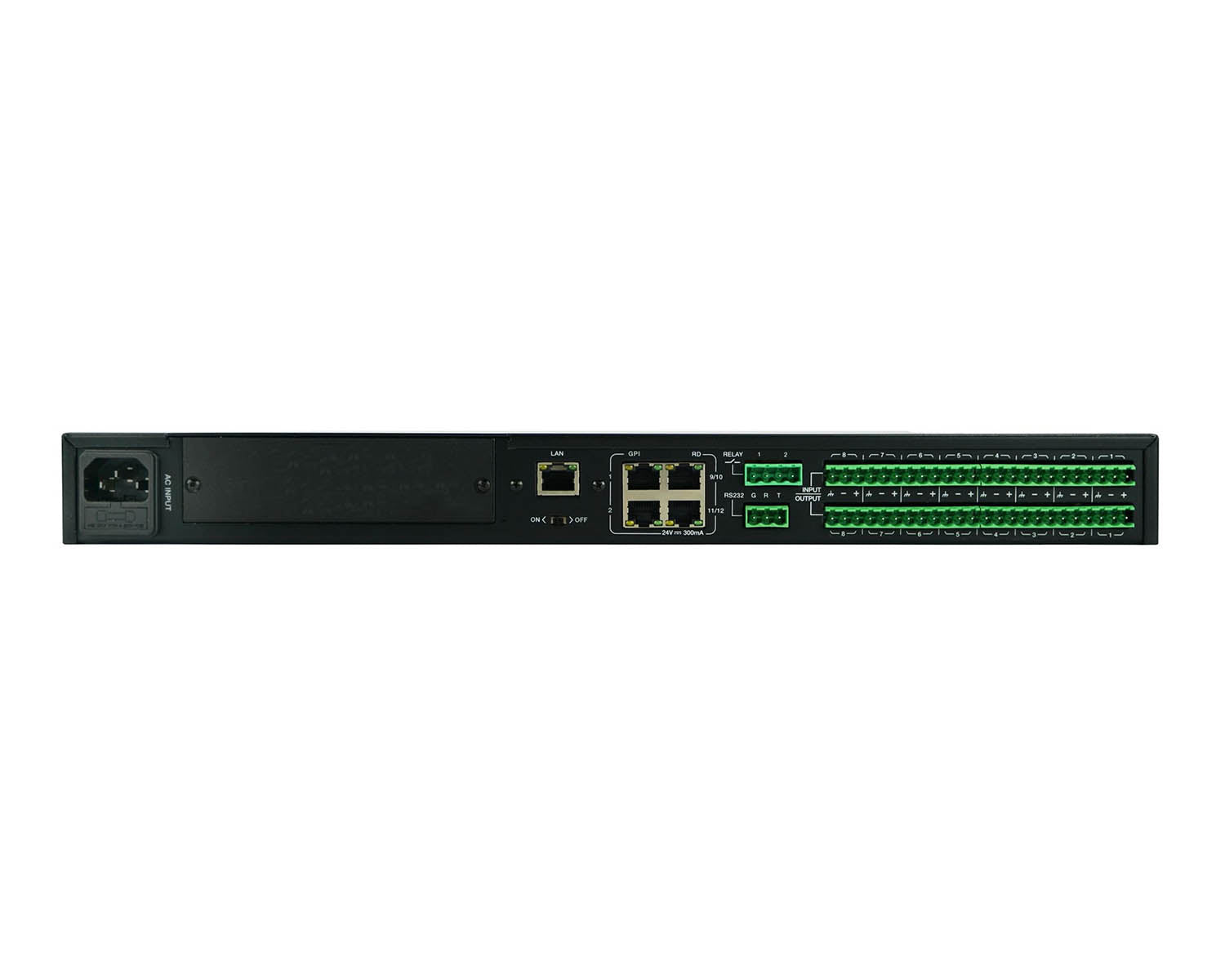

• Inputs: AUDIO INPUT: 1-8: -48 to 0dBv, 6.8 kΩ, electronic balanced, removable terminal block (3 pins x8)
• Outputs: AUDIO OUTPUT: 1-8: 0dBv, 1.8kΩ, Maximum output 20 dBu(7.75V), electronic balanced, removable terminal block (3 pins x 8)
• Controls
  • CONTROL INPUT: GPI 1 - 2: no-voltage contact input, open voltage: 1.5V DC, short-circuit current: Under 3 mA, RJ45 Connector x 2
  • CONTROL OUTPUT: Relay 1 - 2: withstand voltage: 24V DC, control current: Under 500 mA, removable terminal block (4 pins)
  • RD port: RD 9 - 12: transmits and receives AES3 digital audio plus control data. Connect remote devices such as M-822IO,
  • M-800RC, M-802RC, M-800RCT and M-800RM, maximum cable length is 100 meters, RJ45 Connector x 2
• LAN: 100 MBit, DHCP
• Signal processing
  • Equalizer / Filter
  • Gate
  • Compressor
  • Ducker
  • Feedback Compression (FBC)
  • Auto Mixer
  • Delay
• Sampling frequency: 48 kHz, 24 bit
• Equalizer / Filter
  • 5 band EQ (LPF and HPF) for IN and 8 band EQ (LPF and HPF) for OUT
  • Parametic Equalizer: 19.7 - 20160 HZ, range: ±18 dB, Q: 0.4 - 128, Type: peak/low/high
• Compressor
  • Threshold: -30 to +20 dB in 1 dB steps
  • Attack: 10 -150 ms
  • Release: 10 ms - 1 s
• Delay: 0 - 1361.2916 ms
• Matrix
  • 8 x 8
  • 12 x 12 (Expandable via optional equipment)
• PC software: Included
• Dimensions (W x H x D): 483 x 44,2 x 259 mm
• Dimensions (ø x D): x 259 mm
• Finish: Aluminium, Steel plate, surface-treated, paint, black,
• Operating humidity: 90 % or less (no condensation)
• Operating temperature: 0°C to + 40°C (32°F to 104°F)

What's in the Box?

• 1x Power Cord (2m)
• 1x CAT5 cable (2m)
• 1x Removable terminal block (4pins)
• 17x Removable termina block (3 pins)
